Summary of Contents for AMD Geode SBX-5363

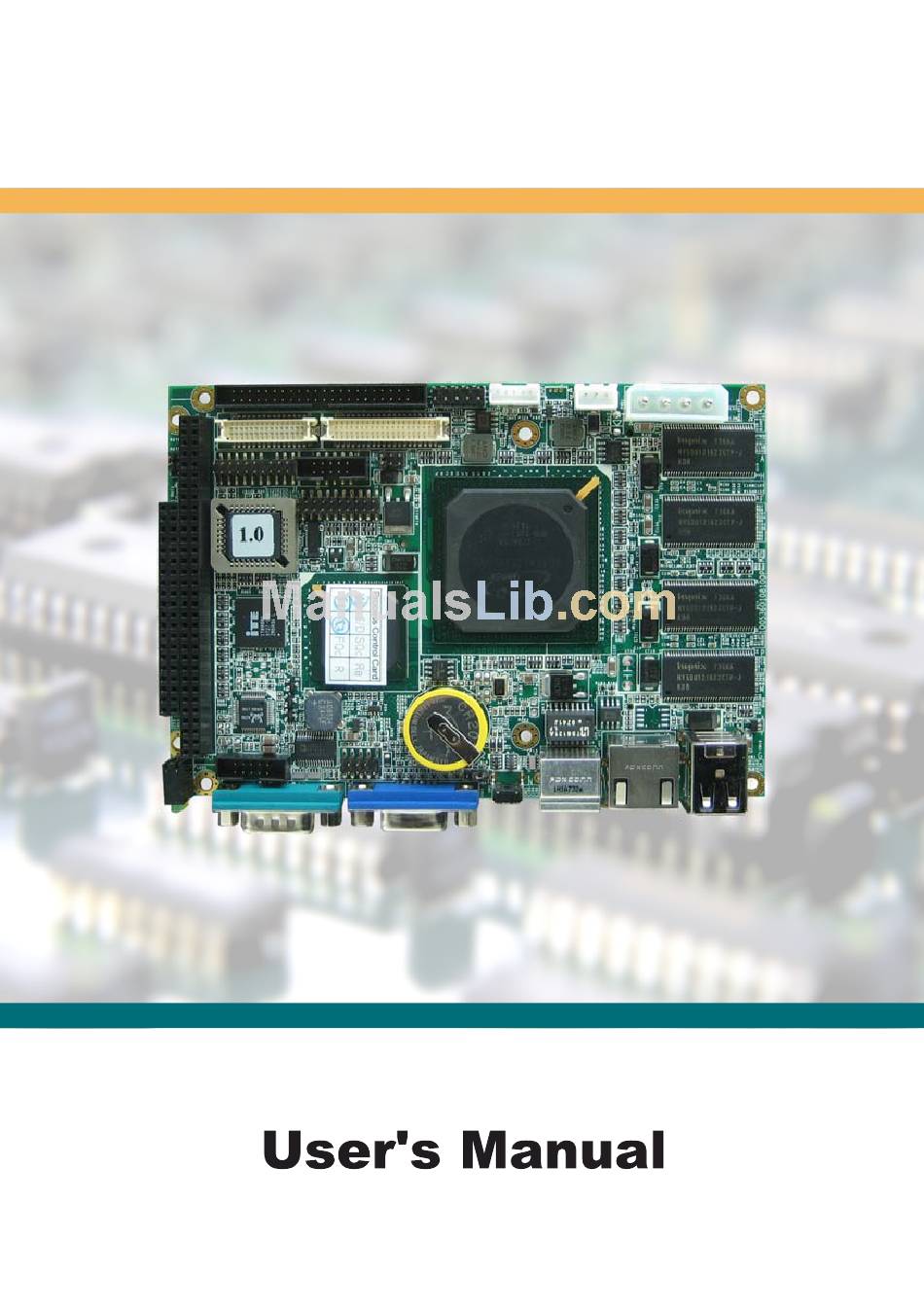

  • Page 2 SBX-5363 AMD Geode 3.5" Embedded Board User's Manual Version 1.0 2009.10...

  • Page 3: Table Of Contents

    Index Table of Contents Chapter 1 Introduction ... 1 1.1 Copyright Notice ... 2 1.2 About this User's Manual ... 2 1.3 Warning ... 2 1.4 Replacing the lithium battery ... 3 1.5 Technical Support ... 3 1.6 Warranty ... 4 1.7 Packing List ...
  • Page 4 Chapter 3 BIOS ... 22 3.1 BIOS Introduction ... 23 3.2 BIOS Setup ... 23 3.3 Standard CMOS Features ... 24 3.4 Advanced BIOS Features ... 26 3.5 Advanced Chipset Features ... 28 3.6 Integrated Peripherals ... 30 3.7 Power Management Setup ... 35 3.8 PNP/PCI Configurations ...

  • Page 5: Chapter 1 Introduction

    Introduction Chapter 1 Introduction - 1 -...

  • Page 6: Copyright Notice

    Introduction 1.1 Copyright Notice All Rights Reserved. The information in this document is subject to change without prior notice in order to improve the reliability, design and function. It does not represent a commitment on the part of the manufacturer. Under no circumstances will the manufacturer be liable for any direct, indirect, special, incidental, or consequential damages arising from the use or inability to use the product or documentation, even if advised of the possibility of such...

  • Page 7: Replacing The Lithium Battery

    Introduction 1.4 Replacing the lithium battery Incorrect replacement of the lithium battery may lead to a risk of explosion. The lithium battery must be replaced with an identical battery or a battery type recommended by the manufacturer. Do not throw lithium batteries into the trashcan. It must be disposed of in accordance with local requlations concerning special waste.

  • Page 8: Warranty

    Introduction 1.6 Warranty This product is warranted to be in good working order for a period of two years from the date of purchase. Should this product fail to be in good working order at any time during this period, we will, at our option, replace or repair it at no additional charge except as set forth in the following terms.

  • Page 9: Packing List

    Introduction 1.7 Packing List If any of the above items is damaged or missing, contact your vendor immediately. 1.8 Ordering Information SBX-5363-R/ Lx800 SBX-5363-S/Lx800 Cable kits 1 xSBX-5363 AMD Geode LX800 3.5" Embedded Board 1 x CPU Heat Sink 1 x CDROM (for Driver Used)

  • Page 10: Specification

    SBX-5363 3.5" Embedded Board AMD Geode LX 800@0.9W 500MHz AMD Geode CS5536 SBX-5363 Onboard 256MB DDR SODRAM SBX-5363 1*200PIN SO-DIMM up to 1GB DDR SDRAM 2D Graphics Controller integrated in AMD Geode LX800 CRT: 1920 x 1440 (85Hz) LCD: 18/24 bit TTL up to 1600 x 1200 (60Hz);...

  • Page 11: Board Dimensions

    Introduction 1.10 Board Dimensions - 7 -...
  • Page 12 USB1 SDRAM Main Power CFD1 KB/MS JBAT1 VGA .ATX1 JRS1 INV1 - 8 - Introduction USB2 COM1 AUDIO HDD LED LVDS Power LED Cs5536 PC/104 Lx800 LPD/FDD JCF1/JVLCD1 COM2 SD-DIMM1...

  • Page 13: Chapter 2 Installation

    Installation Chapter 2 Installation - 9 -...

  • Page 14: Jumpers Quick Reference

    2.1 Jumpers Quick Reference Jumpers Label JBAT1 JCF1 JRS1 JVLCD1 2.1.1 CMOS Jumper Settings Type: Onboard 3-pin header (JBAT1) CMOS Setup (JBAT1) Keep CMOS (default setting) Clear CMOS 2.1.2 CF Card Master&Slave Select Type: Onboard 3-pin header (JCF1) JCF1 1-2 (default setting) Function Clear CMOS CF master or slave selected...

  • Page 15: Serial Port Select

    Installation 2.1.3 Serial Port Select RS-232C/422/485 Mode select (JRS1) RS-232C/422/485 Mode on COM2 The onboard COM2 port can be configured to operate in RS-422 or RS-485 modes. RS-422 modes differ in the way RX/TX is being handled. Jumper JRS1 switches between RS-232 or RS-422/485 mode. When JRS1 is set to RS-422 or 485 mode, there will be only +12V output left while JRS1 is set.

  • Page 16: Connectors Quick Reference

    2.2 Connectors Quick Reference Connectors Label ATX1 AUDIO1 CFD1 COM1 COM2 GPIO FDD1 IDE1 INV1 JFRT1 KBM1(PS/2) LAN1 LCD1 LVDS1 LPT1 PC104 PWR1 USB1 USB2 VGA1 Function ATX Feature Connector Audio Interface Connector Compact Flash Disk Serial Port: COM1 Serial Port: COM2 16-bit GPIO Share with LPT Connector Enhanced IDE Connector...

  • Page 17: Ethernet Connector

    Installation 2.2.1 Ethernet Connector Connector: LAN1 Type: One external RJ-45 on bracket Description 2.2.2 Power Connector ATX Feature Connector: ATX1 Type: Onboard 1x3pin Wafer Header Description #PS-ON 5VSB ATX Power Connector: PWR1 Type: Onboard 1x4pin Header Description +12V Description ATX1 PWR1 - 13 - LAN1...

  • Page 18: Enhanced Ide Connector

    2.2.3 Enhanced IDE Connector Connector: IDE1 Type: One onboard 2x22pin Header Description IDE RESET IO RWITE IO READ IO READY DACK IRQ14 ADDR1 ADDR0 CS#2 IDEACTP Description IDESEL ATA66 DETECT ADDR2 CS#3 - 14 - Installation IDE1...

  • Page 19: Flat Panel Connector

    Installation 2.2.4 Flat Panel Connector LCD Interface Connector LCD1 connector is defined for TTL panel supporting up to 24-bit. LCD2 connector is defined for LVDS panel supporting 18-bit only. Connector: LCD1 Type: One onboard DF13-40DS Header Description 3.3V BIASON LPD0 LPD2 LPD4 LPD6...
  • Page 20 Connector: LVDS1 Type: One onboard DF13-30DS Header Description LVDS CLK+ LVDS CLK- LVDS TX0+ LVDS TX0- LVDS TX1+ LVDS TX1- LVDS TX2+ LVDS TX2- LVDS TX3+ LVDS TX3- LVDS Panel Inverter Connector: INV1 Type: One onboard 1x5pin Wafer Header Description +12V Backlight on/off Brightness control...

  • Page 21: Peripheral Ports

    Installation 2.3 Peripheral Ports 2.3.1 Parallel Port (Share with FDD) Connector: LPT1 Type: One onboard 2x10Pin Header Description #STB #ACK 2.3.2 USB Ports Connector: USB1 Type: Onboard two USB ports Description USBD1+ USBD0+ Connector: USB2 Type: One onboard 2x5pin Header Description USBD2- USBD2+...

  • Page 22: Ps/2 Keyboard & Mouse

    2.3.3 PS/2 Keyboard & Mouse Connector: KBM1 Type: One external 6-pin Mini DIN connector on bracket Description KB_DATA KB_CLK 2.3.4 CRT Display Connector Connector: VGA1 Type: One external 15-pin D-sub female connector on bracket Description BLUE HSYNC VDCLK 2.3.5 COM1 Port with RS-232C Mode Connector: COM1 Type: One onboard 9-pin D-sub male connector Description...

  • Page 23: Com2 Port With Rs-232C/422/485 Mode

    Installation 2.3.6 COM2 Port with RS-232C/422/485 Mode 1 RS-232C Mode Connector: COM2 Type: One onboard 10-pin header Description 2 RS-422 Mode Connector: COM2 Type: One onboard 10-pin header Description 3 RS-485 Mode Data+ of RS-485 is connected by pin-1 Data- of RS-485 is connected by pin-2 Description Description - 19 -...

  • Page 24: 16-Bit General Purpose I/O (Dio)

    2.3.7 Audio Interface Port Connector: AUDIO1 Type: One onboard 2x5pin Box Header Description LINEL AGND LOUT-L 2.3.8 16 -bit General Purpose I/O (DIO) Connector: DIO Type: One onboard 2x10pin Header Description Output Port I/O Based Address : 208hex~20Fh; Pin1~Pin8 Input Port I/O Based Address : 200hex~207h;...

  • Page 25: Cfd1: Compact Flash Ii Socket

    Installation 2.5 CFD1: Compact Flash II Socket Connector: CFD1 Description DATA4 DATA6 CS#1 ADDR1 DATA0 DATA2 DATA11 DATA13 DATA15 IO WRITE IRQ15 CSEL IDE RESET DASP DATA8 DATA10 Note: 1.After hot-swapping CF II, you must restart your system for device detecting 2.CF II and ATA channel are alternative 3.CF II Socket supports up to 4GB Description...

  • Page 26: Chapter 3 Bios

    BIOS Chapter 3 BIOS - 22 -...

  • Page 27: Bios Introduction

    BIOS 3.1 BIOS Introduction The Award BIOS (Basic Input/Output System) installed in your computer system's. The BIOS provides for a standard device such as disk drives, serial ports and parallel ports. It also adds password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.

  • Page 28: Standard Cmos Features

    3.3 Standard CMOS Features "Standard CMOS Features" allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the CPU card is already installed in a working system, you will not need to select this option.
  • Page 29 BIOS IDE Primary HDDs / IDE Secondary HDDs The onboard PCI IDE connectors provide Primary and Secondary channel for connecting up to four IDE hard disks or other IDE devices Each channel can support up to two hard disks; the first is the "Master" an the second is the "Slave"...

  • Page 30: Advanced Bios Features

    Halt On This field determines whether or not the system will halt if an error is detected during power up. All errors (default No errors All, But Keyboard All, But Diskette All, But Disk/Key 3.4 Advance BIOS Features Quick Power On Self Test This BIOS feature allows you to decrease the time it takes to boot up the computer by shortening or skipping certain standard booting procedures.
  • Page 31 BIOS First/ Second/Third Boot Device These fields determine the drive that the system searches first for an operating system. The options available include Setting: Floppy, LS-120, HDD-0, SCSI, CDROM, HDD-1, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN and Disabled. Boot Other Device It allows the system to search for an OS from other devices other than th ones selected in the First/ Second/ Third Boot Device Setting: Disabled/ Enabled (Default)

  • Page 32: Advanced Chipset Features

    BIOS 3.5 Advanced Chipset Features CAS Latency It allows CAS latency time in HCLKs. The system board designer should set the values in this field, depending on the DRAM installed. Do not change the values in this field unless you change specifications of the installed DRAM or CPU.
  • Page 33 BIOS XOR Bit Select Setting: 18(Default)/19/20/21. Video Memory Size In order to determine how much memory is allocated to the video graphics device. Setting: None/8M(Default)/16M/32M/64M/128M/254M. Output display In order to specify the display devices the system is connected to. Setting: Flat Panel/CRT (Default)/Panel & CRT. Flat Panel Configuration It allows you to open the Flat Panel Configuration menu.

  • Page 34: Integrated Peripherals

    BIOS 3.6 Integrated Peripherals On-Chip IDE Device >>> On-Chip IDE Channel 1 The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. Setting: Disabled/Enabled (Default). Master/Slave Drive PIO Mode It allows your system HDD controller to run faster Rather than having the BIOS issue with a series of commands tha transferring to or from the disk drive, PIO (Programmed Input/Output) allow...
  • Page 35 BIOS IDE Primary Master/Slave UDMA It allows your system to improve disk I/O throughput to 33MB/sec with the Ultra DMA33 feature. Setting: Disabled/Auto (Default). IDE DMA Transfer Access Setting: Disabled, Enabled (Default). IDE HDD Block Mode It allows HDD controller to use the fast block mode to transfer data to and from HDD.
  • Page 36 Onboard Serial/Parallel Port It allows you to select the onboard serial and parallel ports with their addresses. Setting: Serial Port 1 Serial Port 2 Parallel Port UART Mode Select It determines the UART 2 mode in your computer. Setting: IrDA/ASKIR/Normal (Default). RxD, TxD Active Setting: Hi, Hi/Hi, Lo (Default)/Lo, Hi /Lo, Lo.
  • Page 37 BIOS Serial Port 3 Use IRQ Setting: IRQ10 (Default)/IRQ11. Serial Port 4 Use IRQ Setting: IRQ10 /IRQ11 (Default). IT8888 ISA Decode IO >>> It allows you to use the IT8888 ISA Decode IO menu to set the IO memory range for the onboard ISA. Decode I/O Space 0/ 1/ 2/ 3/ 4/ 5 It allows you to allocate system resources to the ISA bridge and to enable the function correctly...
  • Page 38 BIOS Decode I/O Size 0/ 1/ 2/ 3/ 4/ 5 It allows you to specify the size of the ISA bus. Setting: 1 Byte, 2 Bytes, 4 Bytes, 8 Bytes, 16 Bytes, 32 Bytes, 64 Bytes, 128 Bytes. IT8888 ISA Decode Memory >>> It allows you to use the IT8888 ISA Decode Memory to set the resources for the onboard ISA bus.

  • Page 39: Power Management Setup

    BIOS IT8888 DDMA >>> Suppose that the ISA bus card is required DMA1 & DMA5. Set "DDMA1 Support" & "DDMA5Support" to "Enabled". Onboard Audio Setting: Enabled (Default), Disabled. 3.7 Power Management Setup ACPI Function It supports ACPI (Advance Configuration and Power Interface). Setting: Enabled (Default) /Disabled.
  • Page 40 Power Management It allows you to select the type of power saving management modes. Setting: APM Advanced power management (APM) ACPI (Default) Advanced Configuration and Power Interface (ACPI) Modem Use IRQ It sets the IRQ used by the Modem. Setting: N/A (Default)/3/4/5/7/9/10/11. PME Event Function Setting: Disabled/Enabled (Default).

  • Page 41: Pnp/Pci Configurations

    BIOS 3.8 PNP/PCI Configurations PNP OS Installed It allows you to enable the PNP OS Install option if it is supported by the O installed Setting: No (Default) /Yes Reset Configuration Data It allows you to determine whether to reset the con?guration data or not. Setting: Disabled (Default) /Enabled.

  • Page 42: Pc Health Status

    PCI/VGA Palette Snoop Some non-standard VGA display cards may not show colors properly It allows you to set whether or not MPEG ISA/VESA VGA cards ca display with PCI/VGA When "Enabled", a PCI/VGA can display with an MPEG ISA/VES VGA card When "Disabled", a PCI/VGA cannot display with an MPEG ISA/VES VGA card...

  • Page 43: Load Optimized Defaults

    BIOS 3.10 Load Optimized Defaults It allows you to load the default values to your system configuration. The default setting is optimal and enabled all high performance features. 3.11 Set Password - 39 -...

  • Page 44: Save & Exit Setup

    BIOS Useing Password to set a password that will be used exclusively on the system. To specify a password, highlight the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. And the system confirms your password by asking you to type it again.

  • Page 45: Exit Without Saving

    BIOS 3.13 Exit Without Saving Typing 'Y" will quit the Setup utility without saving the modifications. Typing "N" will return you to Setup utility. 3.14 BIOS Beep Sound code list Beep Sound 1 short (Beep) 2 short (Beep) 1 long - 1 short (Beep) 1 long - 2 short (Beep) 1 long - 3 short (Beep) 1 long - 9 short (Beep)

  • Page 46: Bios Memory Mapping

    3.15 BIOS memory mapping Address Device E000:0000h - F000:FFFFh D000:2000h - D000:FFFFh D000:0000h - D000:1FFFh C000:E000h - CF00:FFFFh C000:0000h - C000:DFFFh A000:0000h - B000:FFFFh 0000:0000h - 9000:FFFFh 3.16 Award BIOS Post Codes Test CMOS read/write functionality Early chipset initialization: Disable shadow RAM, L2 cache (socket 7 and below), program basic chipset registers Detect memory: Auto detection of DRAM size, type and ECC, auto detection of L2 cache (socket 7 and below)
  • Page 47 BIOS Test F000h segment shadow to see whether it is read/write capable or not. If test fails, keep beeping the speaker Reserved Auto detect flash type to load appropriate flash read/write codes into the run time area in F000 for ESCD & DMI support Reserved Use walking 1's algorithm to check out interface in CMOS circuitry.
  • Page 48 Reserved Reserved Reserved Initialize INT 09 buffer Reserved Program CPU internal MTRR (P6 & PII) for 0-640K memory address; Initialize the APIC for Pentium class CPU; Program early chipset according to CMOS setup; Measure CPU speed; Invoke video BIOS Reserved Reserved Reserved Initialize multilanguage;...
  • Page 49 Reserved Reserved Initialize EISA slot Reserved Calculate total memory by testing the last double last word of each 64K page; Program writes allocation for AMD K5 CPU Reserved Reserved Reserved Reserved Program MTRR of M1 CPU; initialize L2 cache for P6 class CPU &...
  • Page 50 Reserved Reserved Reserved Initialize PS/2 mouse Reserved Prepare memory size information for function call: INT 15h ax=E820h Reserved Turn on L2 cache Reserved Program chipset registers according to items described in Setup & Auto-Configuration table Reserved Assign resources to all ISA PnP devices; Auto assign ports to onboard COM ports if the corresponding item in Setup is set to "AUTO"...
  • Page 51 BIOS Reserved Reserved Call chipset power management hook: Recover the text fond usedby EPA logo (not for full screen logo), If password is set, ask for password Save all data in stack back to CMOS Initialize ISA PnP boot devices Final USB initialization;...

  • Page 52: Chapter 4 Appendix

    Appendix Chapter 4 Appendix - 48 -...

  • Page 53: I/O Port Address Map

    Appendix 4.1 I/O Port Address Map Each peripheral device in the system is assigned a set of I/O port addresses which also becomes the identity of the device. The following table lists the I/O port addresses used. Address Device EE000000 - EEFFFFFF EFD00000 - EFDFFFFF EFE00000 - EFEFFFFF EFFC0000 - EFFDFFFF...
  • Page 54 00000170 - 00000177 000001F0 - 000001F7 00000274 - 00000277 00000279 - 00000279 000002F8 - 000002FF 00000376 - 00000376 00000378 - 0000037F 000003B0 - 000003BA 000003C0 - 000003DF 000003F0 - 000003F5 000003F6 - 000003F6 000003F7 - 000003F7 000003F8 - 000003FF 00000778 - 0000077B 00000D00 - 0000AC17 0000AC20 - 0000FFFF 0000E000 - 0000EFFF...

  • Page 55: Interrupt Request Lines (Irq)

    Appendix 4.2 Interrupt Request Lines (IRQ) Peripheral devices use interrupt request lines to notify CPU for the service required. The following table shows the IRQ used by the devices on board. Level Function IRQ 01 Standard 101/102-Key or Microsoft Natural PS/2 Keyboard IRQ 03 Communications Port IRQ 04...
