Summary of Contents for Philips 28PT7104/12
-
Page 1: Table Of Contents
Contents Installation Your remote control 2 Preparation 3 Installation 4 Store TV channels 4 Select the menu language and country 4 Automatic installation 5 Manual installation 5 Give name 6 Reshuffle the programme list 6 Select favourite TV channels 6 Install TV setup 7 Operation Use of the remote control 8-9... -

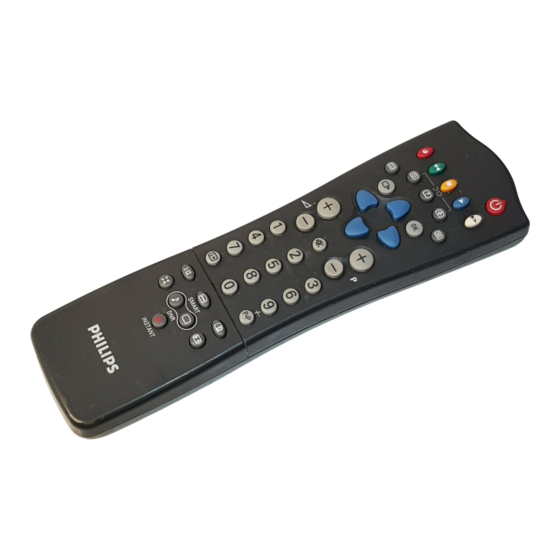

Page 2: Installation
Preparation Your remote control ® INSTANT no function Installation p. 4 yÚ switch to standby p. 8 incredible surround on/off p. 8 MODE INSTANT DVD/Satellite selection p. 19 Colour keys ® Ò ‡ π † - direct teletext page or yÚ... -
Page 3: Preparation
Preparation & Place the TV on a solid surface. For ventilation, leave at least 5 cm free all around the TV. Do not place the TV on a carpet. To prevent any unsafe situations, do not place any objects on top of the TV. Avoid heat, direct sunlight and exposure to rain or water. -
Page 4: Installation
Installation Select the menu INSTALLATION INSTANT ® Ò ‡ π † yÚ Press U and h at the same time. æ MENU To use the menus & Use the cursor in the up/down, left/right directions to select a menu item. é... -
Page 5: Automatic Installation
Automatic installation In the Automatic installation menu select and press the OK key to Start activate the searching. All TV channels are searched for and stored Automatic installation automatically. Start Stop Stop If a cable system which broadcasts ACI (Automatic Channel Installation) or a TV is searching TV channel transmitting a teletext page with the frequencies and programme One moment please ... -
Page 6: Give Name
Give name It is possible to change the name stored in the memory or to assign a name to a TV channel which has not yet been entered. A name with up to 5 letters INSTALLATION or numbers can be given to the programme numbers 0 to 99. For example Menu language SUPER, BBC1,... -
Page 7: Install Tv Setup
INSTALLATION Install TV Setup Menu language Country The Setup menu allows you to adjust initial settings, i.e. those which are not Automatic installation related to the installation of the TV channels. Manual installation The Setup menu contains items that control the settings of the TV’s functions, Give name Reshuffle features, services and peripherals you may have connected. -
Page 8: Operation
Operation Use of the remote control Use of the remote control Standby The set is switched off and the red indicator lights up. To switch the TV on again, press - P + or the digit keys. Your TV consumes energy in the standby mode. ®... - Page 9 Bilingual choice and sound mode selection Press this key • to switch from sound, in Stereo Mono case of stereo transmission, or from INSTANT , in case Nicam Stereo Nicam available ® Ò ‡ π † of digital transmission; yÚ •...
-
Page 10: Use Of The Menus
Use of the menus return or switch & Press the key to display/cancel the MENU MAIN MENU INSTANT main menu on/off ® Ò ‡ π † é Use the cursor in the up/down directions to select the yÚ PICTURE SOUND menu or to select the FEATURES PROGRAMMES... -
Page 11: Features Menu
Features menu & Press the key to display/cancel the MENU MAIN MENU return or switch é Use the cursor in the up/down directions to select the menu. FEATURES INSTANT main menu on/off ® Ò ‡ π † “ Press the cursor right to activate the selected menu. yÚ... -
Page 12: Teletext
Teletext colour keys Most TV channels broadcast information via teletext. to select Each channel which broadcasts teletext transmits a page with information on INSTANT how to use its teletext system. Look for the teletext page with the main yÚ index (usually p. 100). Depending on the TV channel, teletext is transmitted in different systems. - Page 13 Select the index teletext page Press the white colour key to display the main index (usually p.100). INSTANT ® Ò ‡ π † Only for T.O.P teletext broadcasts : yÚ T.O.P orders the pages in categories and adds other possibilities of enhancing æ...
-
Page 14: The Keys On Top Of The Tv
Select Continuous Subtitles TV channels with teletext often transmit programmes with subtitling. For each TV channel you can store a subtitle page which will be displayed continuously if the programme being broadcast is transmitted with subtitles. Switch on teletext and select the proper subtitle page from the index. Switch off teletext. -
Page 15: Connect Peripheral Equipment
Connect Peripheral Equipment There is a wide range of audio and video equipment that can be connected to your TV.The following connection diagrams show you how to connect them. Video recorder Connect the aerial cables 1, 2 and, to obtain the optimum picture quality, eurocable 3 as shown opposite. - Page 16 Camera & camcorder & Connect your camera or camcorder to sockets at the right side of your TV. é 2 and 3 for mono Connect the equipment to VIDEO AUDIO L equipment. Press the X key repeatedly to select the sound coming from one or both loudspeakers of your TV.
- Page 17 Headphone & Insert the plug into the headphone socket L at the right side of the TV. é Press ¬ on the remote control to switch off the internal loudspeakers of the TV. The headphone impedance must be between 8 and 4000 Ohm. The headphone socket has a 3.5 mm jack.
-
Page 18: To Select Connected Equipment
To select connected equipment Equipment connected with an aerial cable only : Select the programme number under which you have stored the test signal with the digit keys. ◊ Equipment connected to a euroconnector or to the right side of the TV Press the w key repeatedly to select , according to... - Page 19 Satellite receiver Press the OK key simultaneously with the digit key 1. Now you can operate your satellite receiver with the remote control of your Ò ‡ INSTANT Keep the key on the left side of the remote control pressed and MODE ®...
-
Page 20: Recording
Record with your video recorder To record S-VHS quality, connect an S-VHS peripheral directly to the video recorder. Record a TV programme & Select the programme number on your video recorder. é Set your video recorder to record. See the handbook for your video recorder. Switching programme numbers on your TV does not disturb recording ! Record a programme on your video recorder connected to from Audio/Video equipment connected to... -
Page 21: Tips
Is your TV or house aerial located too End of life directives close to loudspeakers, non-earthed audio Philips is paying a lot of attention to equipment or neon lights, etc.? No sound produce environmentally-friendly in green Mountains or high buildings can cause No sound on any channel? Check the focal areas.Your new TV contains materials... -
Page 22: Glossary
Glossary 100 Hz Menu Tint 100 Hertz provides a superior solution to On-screen display of functions and TV-function to modify the general colour the problem of picture flicker which is facilities in a well-organised survey, which balance between cool and warm and to particularly noticeable with larger screen you can select using your remote control.
