Standard Communications STRIKE 200 Owner's Manual

Standard horizon fishfinder owner's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Horizon
Strike 200/220s
Fishfinder
Owner's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STRIKE 200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Standard Communications STRIKE 200

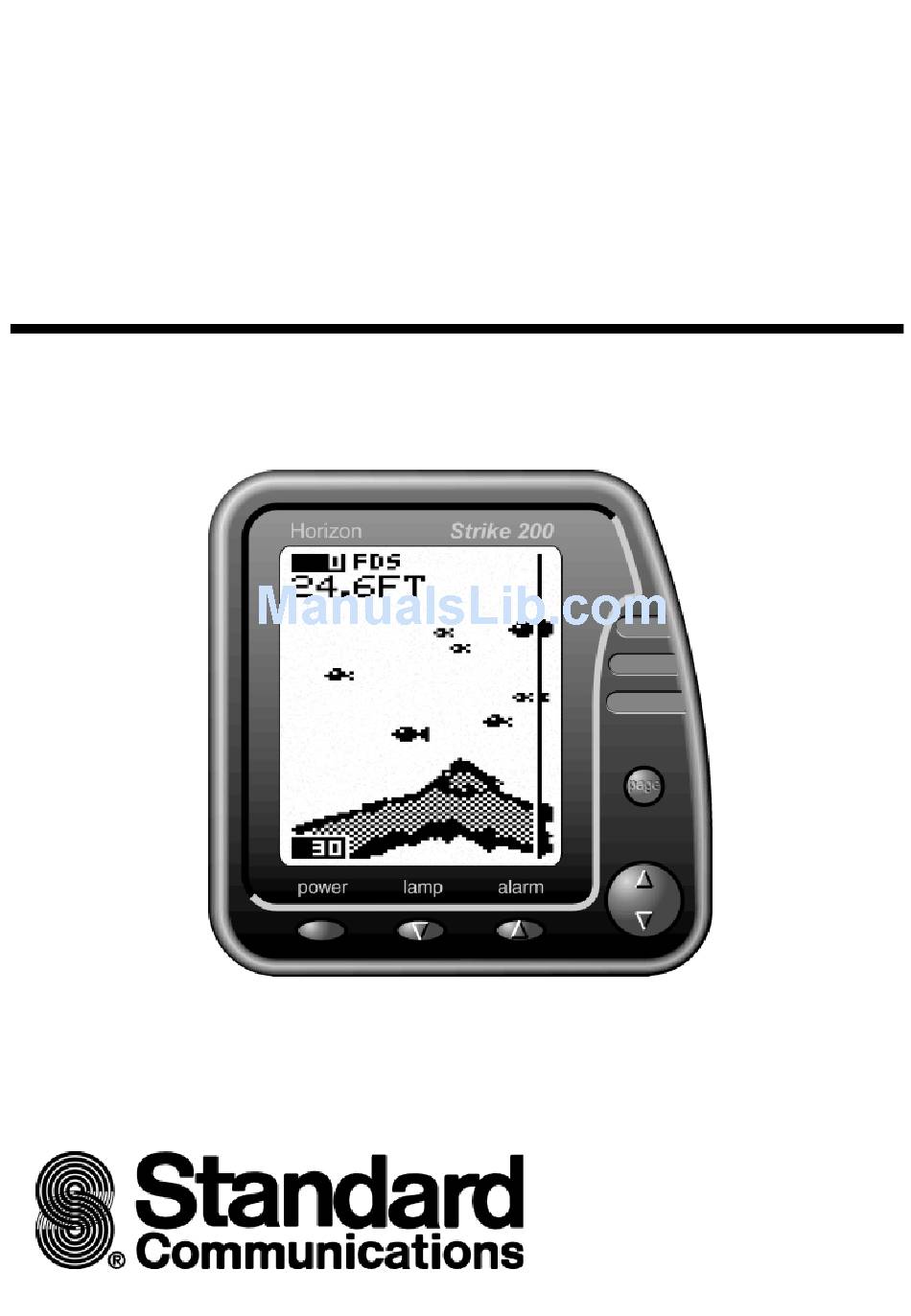

  • Page 1 Horizon Strike 200/220s Fishfinder Owner’s Manual...

  • Page 2: Specifications

    MARINE PRODUCTS LIMITED WARRANTY Standard Communications Corp. (SCC) warrants to the original consumer purchaser (the Purchaser) only that each new Marine Product will be free from defects in materials and workmanship under conditions of normal use and service for a period of one (1) year from the date of delivery to the Purchaser.

  • Page 3: Table Of Contents

    Contents Introduction ............................4 Specifications ........................... 4 Installation ............................5 Location ............................5 Installation – The Transducer ......................6 • Transom Mount Transducer ......................6 Location ..........................6 Mounting ..........................6 • Other Types of Transducers ....................... 7 Wiring connection ..........................7 Electrical protection ........................
  • Page 4 Please read this manual carefully before installing and using your fishfinder. This manual deals with both the Strike 200 and 220s . The more you know and understand about the capabilities of the unit, the better it will perform for you.

  • Page 5: Location

    The Strike 200 and 220s are water resistant and • at least 12" (300 mm) away from the may be mounted and operated in many positions compass. thanks to its compact and robust bracket, • at least 12" (300 mm) away from any radio associated with a swivel support.

  • Page 6: Transom Mount Transducer

    Read this section carefully before attempting the transducer installation. Remember, the Once the best location of the transducer is transducer location is the most critical part determined, hold the transducer and bracket of the installation. If this is not done properly, against the transom.

  • Page 7: Electrical Protection

    Both the power and depth transducer cables lead into one four pin connector on the Strike 200 or the eight pin connector on the Strike 220s . This plugs into a single socket in the rear of the instrument. Connect the...
  • Page 8 The Strike 200 and 220s use sonar technology The LCD screen is menu driven for ease of use. to display lake or seabed contours and to detect The automatic detection can locate and display fish. The system consists of an LCD display unit the position of fish with three different size fish and a depth transducer positioned in the water.

  • Page 9: Operation

    The Horizon 200 SERIES Fishfinders have five modes of operation. These are Echo, Echo + Analogue Scope, AutoFish, AutoFish + Analogue Scope and Navigate. The Autofish mode automatically analyses the return echoes and displays echoes with fish icons (the bigger the echoes, the bigger the icon!). The return echo is caused when the sonar beam strikes the air stored in the fishes swim bladder.

  • Page 10: Analogue-Scope Function

    Analogue Scope Displays depth only Current Echo The Analogue-scope function is available in either the Echo or Autofish modes. This feature displays an intensity graph of the current echoes down the right hand side of the screen. The information can be used to help determine the type of bottom structure and the size of fish.

  • Page 11: Range Function

    The range function allows you to control the depth range that is displayed on the LCD. There are three different range modes; Top, Bottom, and All. If Top is selected then a lower depth limit value must also be selected. This mode locks the display to show only echoes from the surface of the water down to the lower depth limit you have selected.
  • Page 12 • If the desired mode is Top or Bottom then use the V or the ^ key to adjust the limit value to the desired level • Press the power key to accept the choice and return to normal display The gain is a measure of ability to receive weak signals.
  • Page 13 The scroll speed is the speed that the picture moves across the screen. It is adjustable in three distinct steps, slow, medium and fast. In general the faster scroll speed will work better with higher boat speeds. The slower scroll speeds are more suitable for slow speed trolling and slower vessels.

  • Page 14: Alarms

    There are three different types of alarms, Fish, Shallow, and Deep. All the alarms activate the internal buzzer if their alarm condition is met. The buzzer will provide three different alarm signals. A short alarm signal for a mid water echo, such as a fish, a long continuous signal for a shallow water alarm and a series of short signals for a deep alarm.

  • Page 15: Setup Menu

    The setup menu enables you to customize the ‘look and feel’ of the instrument. There are six parameters that can be adjusted. Lamp intensity, units of measure, keel offset, training mode, LCD contrast and white line operation. Lamp Intensity The intensity of the night vision lights can be adjusted from 1 to 7 and OFF.
  • Page 16 Use the following sequence to adjust the speed The Strike 220s fishfinder is able to display boat displayed to match that of another craft or the speed displayed on a GPS receiver. Enter the speed, water temperature, and water depth. This Speed calibration mode as described on page menu enables you to customise the display of speed and temperature and to change the...
  • Page 17 The Fishfinder won’t turn on: 1. Check the power cable socket at the back of the Fishfinder. 2. Make certain the power cable’s red wire connects to the positive battery terminal and the black wire to negative or ground. 3. Measure the voltage at the unit’s power terminals. It should be at least 10 volts. If it isn’t: •...
  • Page 18 Accessory SCC Part # DST220 Paddle Wheel Kit 602007011A Mounting Bracket 160006020A Swivel Bracket 106667020A MB Knobs 154003016A Washers 581004030A Mounting Bracket Kit 602008011A (contains all of the above brackets, knobs and washers) Horizon Fishfinder User Manual...
  • Page 19 Standard Communications Corp. P.O. Box 92151 Los Angeles, CA 90009-2151 Telephone 310/532-5300 © STANDARD COMMUNICATIONS CORP. ALL RIGHTS RESERVED PRINTED IN NEW ZEALAND MARCH 1998...
  • Page 20 1950854A LA000052 Insert Addendum to Horizon Strike 200/220s Owner’s Manual The following explains how to use the features added in software version 4. Names of Keys. New Key Functions A key PRESS is a normal short key activation, a key HOLD is a continuous key activation for 1 second.

This manual is also suitable for:

Horizon strike 220sHorizon strike 200
