Summary of Contents for Standard Horizon RP150

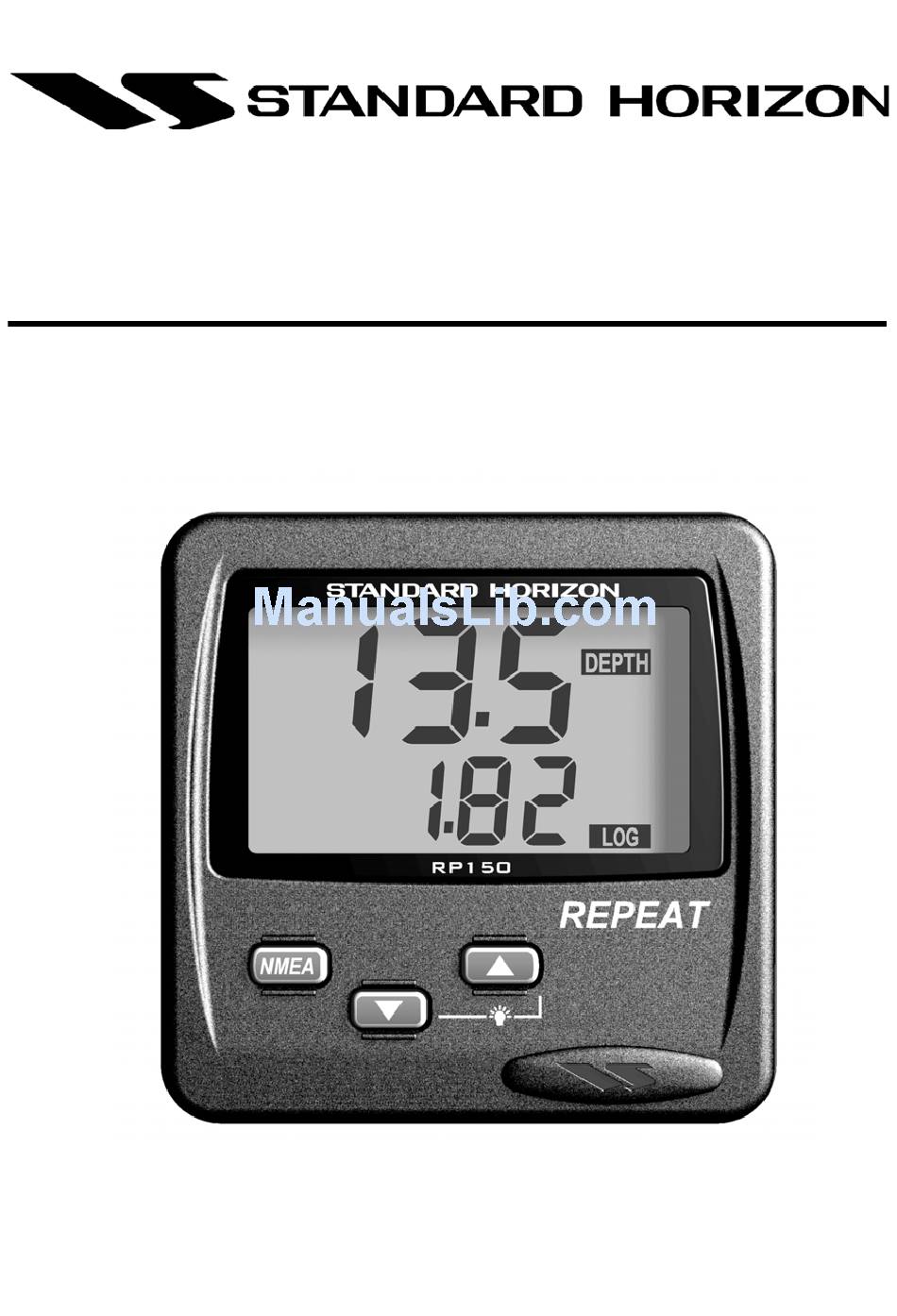

- Page 1 RP150 NMEA Repeater Owner’s Manual Marine Division of Vertex Standard...
-
Page 2: Limited Warranty
To obtain warranty service, the defective product must be returned to STANDARD HORIZON together with proof of the date of purchase. The Purchaser must pay any transportation expenses in returning the product to STANDARD HORIZON. STANDARD HORIZON will examine the product and respond to the Purchaser in approximately four (4) weeks from date of receipt of the product claimed to be defective. -
Page 3: Table Of Contents
4.5 Multiple Instruments ....................6 4.6 Setup ........................7 4.6.1 Data Search Mode .................. 7 4.7 NMEA Functions ....................7 4.8 RP150 NMEA Data ....................8 5 Operation ......................9 5.1 Changing Functions ....................9 5.1.1 Backlighting On / Off ................9 5.2 Displaying NMEA Functions ................ -
Page 4: General Information
DS150 & SL150) Depth/speed trend indicator 3 Accessories 3.1 Replacement Parts The following parts may be ordered from the Standard Horizon Parts Department. To order, call: 562-404-2700 Ext 351 Part ............................Part Number Dust Cover ............................DC150 Panel Gasket ..........................108013023A... -
Page 5: Installation
4 Installation 4.1 Location 4.2 Mounting The RP150 is designed for above or below deck The mounting surface must be flat. Use the template installation. Select a position that is: to set the center of the fixing hole. At least 12 inches (300mm) from a compass Drill a 1¼"... -
Page 6: Multiple Repeaters
Blue Blue Green Green Blue Yellow Blue Spare NMEA Input for GPS. etc. White Note: Wire colors refer to solid wires only Output wire from Wind, Speed & Depth can connect to Repeater inputs in any order RP150 User Manual... -
Page 7: Setup
After connecting an NMEA instrument and completing The RP150 has four individual data inputs. After “Data Search Mode”, it is necessary to place the making the initial connection to the RP150, or after making any additional connections, it will be RP150 into “NMEA Setup Mode”. -
Page 8: Rp150 Nmea Data
4.8 RP150 NMEA Data Number Function NMEA Sentence Boat Speed, Knots $VHW Boat Speed, km/hr $VHW Distance since reset, nautical miles $VLW Total cumulative distance, nautical miles $VLW Depth, meters (below transducer) $DPT Depth, feet (Below keel) $DBK Depth, meters (Below keel) -
Page 9: Operation
SPEED TRIP AVERAGE DISTANCE SPEED TOTAL DISTANCE AVERAGE SPEED AVERAGE TRIP SPEED DISTANCE TRIP DISTANCE 5.1.1 Backlighting On / Off Simultaneously press the keys to turn the backlight on. Repeat this procedure to turn the lighting off. RP150 User Manual... -
Page 10: Displaying Nmea Functions
NMEA key. 5.3 Simulation Mode 5.4 Microprocessor reset The RP150 has a simulation mode. When instrument is not functioning properly, the microprocessor can be reset as follows: To enter this mode hold down the NMEA key and then switch on the power. -
Page 11: Maintenance
• At power up, if all the segments display for 5 with readings on the connected instruments: seconds then the instrument is in simulation • Ensure that the RP150 is not in simulation mode. mode (see section 5.3) RP150 User Manual... - Page 12 Marine Division of Vertex Standard 17210 Edwards Road Cerrtios, CA 90703 EED4100BD Telephone: 562/404-2700 STANDARD HORIZON ALL RIGHTS RESERVED PRINTED IN NEW ZEALAND 1950750A APRIL 2001 MN000017...
