FOG
PROPANE INSECT FOGGER
®
IMPORTANT: Read this manual all the way through before trying to use fogger for the first
time. If you do not understand something, please call the number below.
H. D. HUDSON MANUFACTURING COMPANY
Consumer Care Line — 24 hours a day, 7 days a week!
Instruction
Manual
Hudson Model 62691
Hastings, MN 55033-1142
1-800-9-SPRAYER (1-800-977-7293)
www.hdhudson.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fog Propane Insect Fogger and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hudson Fog Propane Insect Fogger

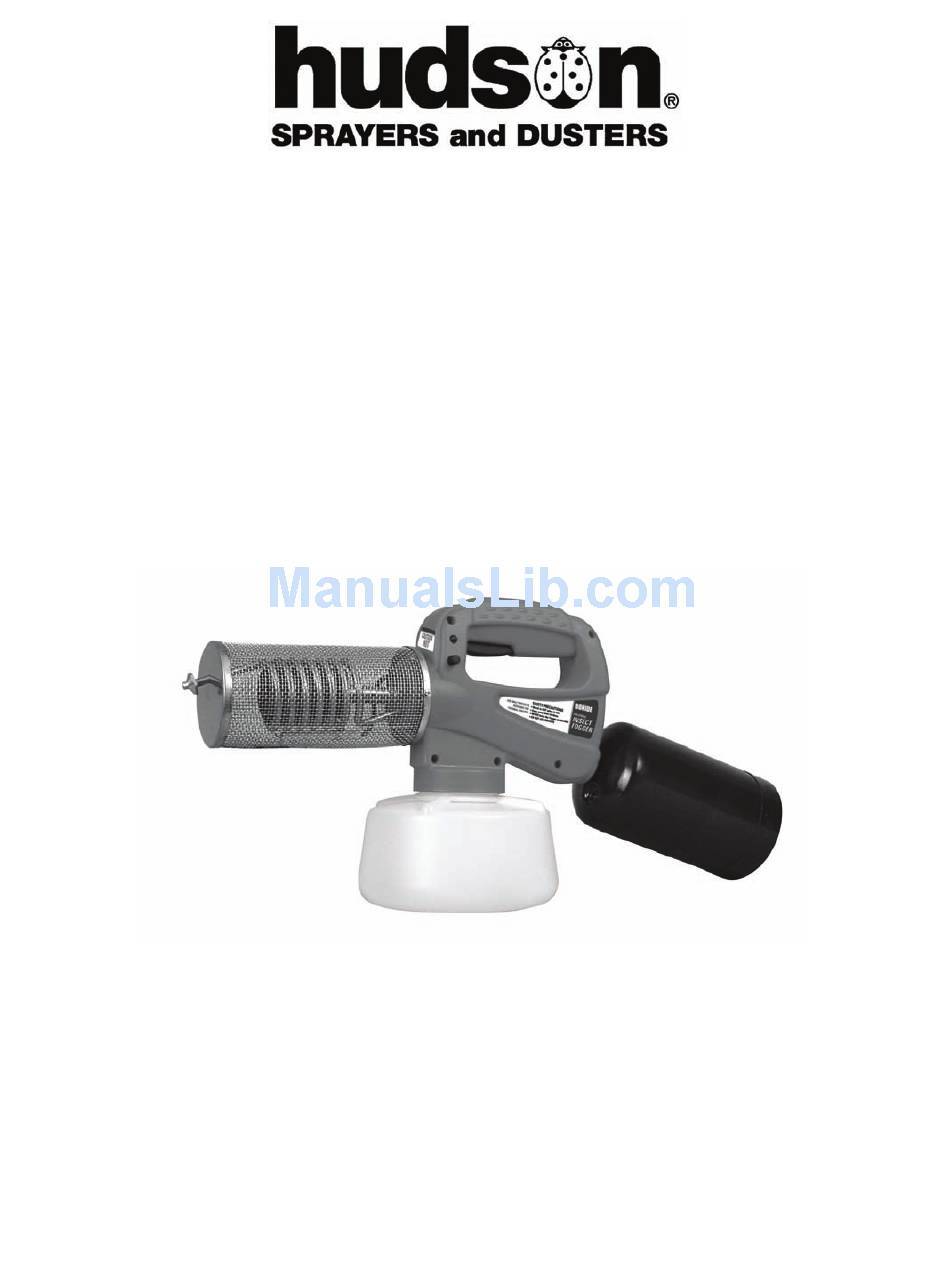

  • Page 1 IMPORTANT: Read this manual all the way through before trying to use fogger for the first time. If you do not understand something, please call the number below. Hudson Model 62691 H. D. HUDSON MANUFACTURING COMPANY Hastings, MN 55033-1142 1-800-9-SPRAYER (1-800-977-7293) Consumer Care Line —...

  • Page 2: Let's Get Started

    LETS GET STARTED! Get familiar with the product and its uses (See diagram). 1. Insecticide Vessel — This container holds your liquid Fog™ Insecticide. Use only products designed for thermal fogging. 2. Handle/Body of the Fogger — This takes the Fog Insecticide from the Insecticide Vessel delivering it to the heater coil.
  • Page 3 PREPARATION 1. Lock Trigger Button — Push the button at the front of the Fogger to lock the trigger. 2. Insecticide Vessel — Fill the plastic insecticide vessel with insecticide. Be sure that you do NOT overfill. Screw on the vessel until secure to ensure safety while using the Fogger.
  • Page 4 10. Use the Fogger about 5 feet away from the target area with the wind at your back. This will avoid having the fog blow back towards you and not on the desired location. OTHER USAGE TIPS ALWAYS operate the Fogger with the coil wire basket level with the ground. DO NOT TIP UPSIDE DOWN OR ON ITS SIDE.
  • Page 5 WARNING! READ THESE SAFETY PRECAUTIONS BEFORE USING 1. CAUTION: Read entire instruction booklet before operating. 2. AVOID breathing insecticide fog or vapors. 3. ALWAYS pre-heat your fogger for one to two minutes, while keeping the fogger level with the ground. Failure to pre-heat the heater coil may cause an uncontrolled flame.

  • Page 6: Troubleshooting Guide

    16. ALWAYS understand and follow the insecticide label instructions. 17. Propane gas cylinders are high pressure. DO NOT handle cylinders roughly. Follow instructions on cylinder label for use and storage. 18. NEVER store propane gas cylinders indoors or attached to the Fogger. Always store cylinders in a cool, well ventilated space.
  • Page 7 Flare up or Fogger pointed toward the Always operate your fogger level with uncontrolled ground. ground. New propane bottles may be burning. more likely to flare. Insecticide ignited Stop pumping immediately. Turn propane valve off. Flame will stop after excess insecticide is eliminated. Piezo ignitor will not Ignitor broken or worn out.

  • Page 8: Common Replacement Parts

    COMMON REPLACEMENT PARTS PART# DESCRIPTION COST* 5546 Coil Wire Basket Call for current. 5547 Insecticide Vessel Call for current. 5548 Pump Assembly Call for current. 5549 Piezo Ignitor Call for current. *plus $5.00 shipping and handling. CONTACT INFORMATION 1-800-9-SPRAYER (1-800-977-7293) Instructions for replacing the Piezo Ignitor 1.
  • Page 9 4. Remove upper half of housing to reveal inside of fogger. 5. Using needle nose pliers, open ignitor crimp while holding structure firmly in place. 6. Lift out old ignitor and replace with new ignitor. Ignitor tip should be within 1/8 inch of coils. Retighten crimp while holding ignitor firmly in place.
  • Page 10 NOTE: Be sure pump rod is attached to pump handle. Replace blue ignitor button cap on ignitor. NOTE: brass round points downward; black square points upward. 9. Place upper housing over assembly unit until halves line up and ignitor works. Replace 6 screws.

  • Page 11: Warranty Information

    We warrant that this product is fit for consumer (homeowner) use as directed in this manual and free from operating problems for a period of 90 days from date of purchase. Hudson will repair or replace suspect materials upon our examination/inspection of a suspected unit.
  • Page 12 THANK YOU FOR PURCHASING A HUDSON FOGGER! For best results, use Hudson Fog™ Mosquito and Flying Insect Killer! Available in Convenient, Economical 1/2-Gallon Size. Ask for Hudson Item 62692FG.
  • Page 13 Model 99598 has hose and strap. Use outdoors. Model 99598 is ideal for indoor use. AVAILABLE AT QUALITY RETAILERS For a complete catalog of Hudson sprayers and dusters for homeowner or for commercial and professional use, visit us on the web: www.hdhudson.com...

This manual is also suitable for:

Fog 62691
