Important Safety Information It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is supplied with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.
Contents For the User Wash Care Symbols Maintenance and Cleaning 18-19 Important Safety Information Descaling Your New Washer-Dryer After each wash Maintenance wash Description of the Appliance External cleaning Detergent dispenser drawer Cleaning the dispenser drawer The Control Panel Cleaning the drawer recess Cleaning the filter 18-19 Operating sequence...

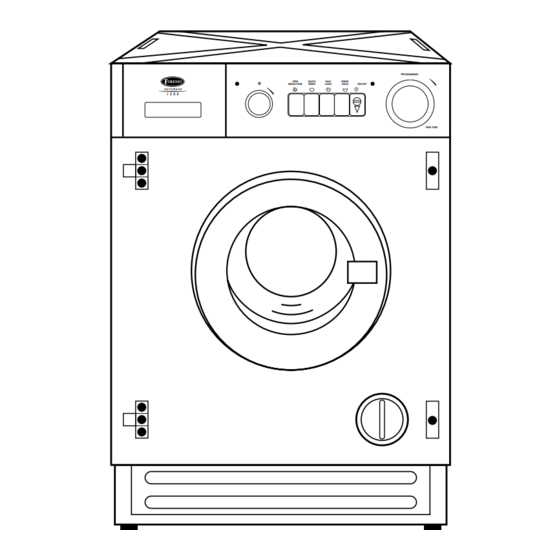

Your New Washer-Dryer Your new machine meets all modern requirements for effective treatment of laundry with low water, energy and detergent consumption. It is gentle with your laundry, simple to use and easy to care for. The special wool programme with its new delicate In the interest wash system treats your woollens with extreme care.
The Control Panel 6 HALF LOAD button 1 Detergent dispenser drawer Select this button to reduce water consumption on the 2 Drying indicator light rinse cycle when washing a smaller load of cottons or linens (maximum load size = 2.25 kg). This light illuminates when the machine is drying.
Operating Sequence 3. Measure out the fabric Before the first wash, we recommend that you run a cotton cycle at 60°C, without any laundry in the softener machine, to remove any manufacturing residue from the If required, pour fabric softener into the compartment drum and tub.
6. Start the machine Before starting up the machine check that: the appliance is plugged in the water supply tap is turned on the drain hose is correctly and securely positioned the door and the detergent dispenser drawer are closed. Depress the ON/OFF button : the mains-on light will illuminate and the machine starts operating.
4. Select the required programme WASHING 2 KG OF MIXED FABRICS AT 50°C Turn the programme selector dial clockwise to the Suppose you have 2 kg of mixed fabrics to wash. They programme H. are rather delicate fabrics and should not be washed at a high temperature.
4. Start the machine DRYING 2.25 KG OF COTTON You have for example just machine-washed and spun at Depress the ON/OFF button , the mains-on light and 1200 rpm 4.5 kg (10 lb) of laundry. drying light will illuminate and the machine starts They are cotton fabrics of medium weight which you operating.
5. Select the required time AUTODRYING 1.5 KG OF MIXED FABRICS You intend to wash and dry automatically 1.5 kg (3.3 lb) Following indications given in the programme chart on of mixed fabrics which have to be ironed. page 16, turn the time selector dial clockwise to the 90 Proceed as follows: mins setting in the black sector.
Washing and Drying Hints Do NOT overload the machine. Weigh the laundry the Some stains such as fruit, wine, grass, rust etc. are first few times you use the appliance. difficult to remove and should be treated before washing with specific products, which can be found The average weights of the most common items are in most household shops.
And in which form? Which detergent?..Not only are there different types of detergent, but they To ensure you obtain the best wash results from your are also available in different forms. Whether you chose appliance, it is important to use the right detergent in a powder or liquid in traditional or compact form is your everyday wash, and only detergents recommended your own personal choice.
Washing Programmes Programmes for cotton and linen Progr. Degree of soil Programme Max. Wash programme Description Possible options time and type of laundry dial position load mins. Prewash WHITES For heavy soiled cotton at 40 °C WITH items (whites and Wash at 95°C 4.5 kg PREWASH...
Page 15
Washing Programmes Progr. Degree of soil Programme Possible Max. Wash programme Description time and type of laundry dial position options load mins. Synthetic or mixed Wash at 50 °C fabrics, underwear, 3 rinses coloured garments, SYNTHETICS 2 kg Short spin at non-shrink shirts, 850 rpm blouses.
Drying Programmes Programme/ Drying time Degree of drying Max. load Spin speed Type of fabric mins 85-95 2.25 kg 1200 Red sector Cotton and linen (towels, 55-65 T-shirts, bathrobes) 1.5 kg 1200 Store dry (*) Red sector Suitable for items to put away without 110-120 1.5 kg...
Wash Care Symbols Wash care labels inside garments recommend how to launder your clothes with the best results. The care labelling code is in line with care labelling used in the rest of Europe. The symbols used make it easy to select the correct programme on your washing machine.
Maintenance and Cleaning Before any maintenance or cleaning is carried out you must DISCONNECT the appliance from the electricity supply. Descaling The water we use normally contains lime. It is a good idea to periodically use a water softening powder in the machine.
The dangers of freezing Clean carefully under a fast running tap. If the machine is exposed to temperatures below 0°C, certain precautions should be taken. Turn off the water tap. Unscrew the inlet hose. Unhook the drain hose from the rear support and position the end of this hose and that of the inlet hose in a bowl.
Something Not Working Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before contacting your local Service Centre, please carry out the checks listed below. IMPORTANT: if you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
Possible causes Symptom The programme is still running. The door will not open The door lock has not yet released. There is water in tub. The door can not be opened if water is present in the tub. The machine is fitted with a type of motor which makes an unusual The machine makes an unusual noise compared with other traditional motors.
We, EHP, undertake that if, within 12 months of the date This guarantee does not cover: of the purchase, this Firenzi appliance or any part Damage or calls resulting from transportation, thereof is proved to be defective by reason only of...
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person.
Unpacking Set the machine upright and remove the two remaining bolts from the back. Pull out the three plastic spacers from the holes into All transit bolts and packing must be removed which the bolts were fitted. before using the appliance. Plug the open holes with the plugs which you can find in the envelope containing the instruction booklet.
Water inlet Water drainage Connect the hose to a tap with a 3/4” thread. This appliance is designed to be permanently plumbed Do not use previously used hoses for water connection. into your home's water supply and drainage system. The appliance drain hose should hook into a standpipe, the hook in the drain hose is formed using the plastic “U-Piece”...
Special conditions If you intend the drain hose to empty into a sink, make sure that the sink is empty and the plug hole is not If the floor is carpeted or covered with crumbly or soft blocked. Use the plastic “U-Piece” supplied. material, insert a rigid support base under the feet to prevent noise, vibration or displacement.
Electrical connection The wire coloured blue must be connected to the terminal marked «N» or coloured black. Any electrical work required to install this appliance The wire coloured brown must be connected to the should be carried out by a qualified electrician or terminal marked «L»...
Building-in The required dimensions are given in the picture C. The hinges will be fixed to the door by means of screws This appliance has been designed to be built into the for wood (2-Fig. B) supplied with the appliance. kitchen furniture.
Page 29
If the door has to be opened from left to right, invert the Drill four fixing holes (see Fig. G) position of the plates (7), the magnet (4) and the plate (5) (Fig. B and E). Mount the countermagnet (6) and the hinges (1) as previously described.
