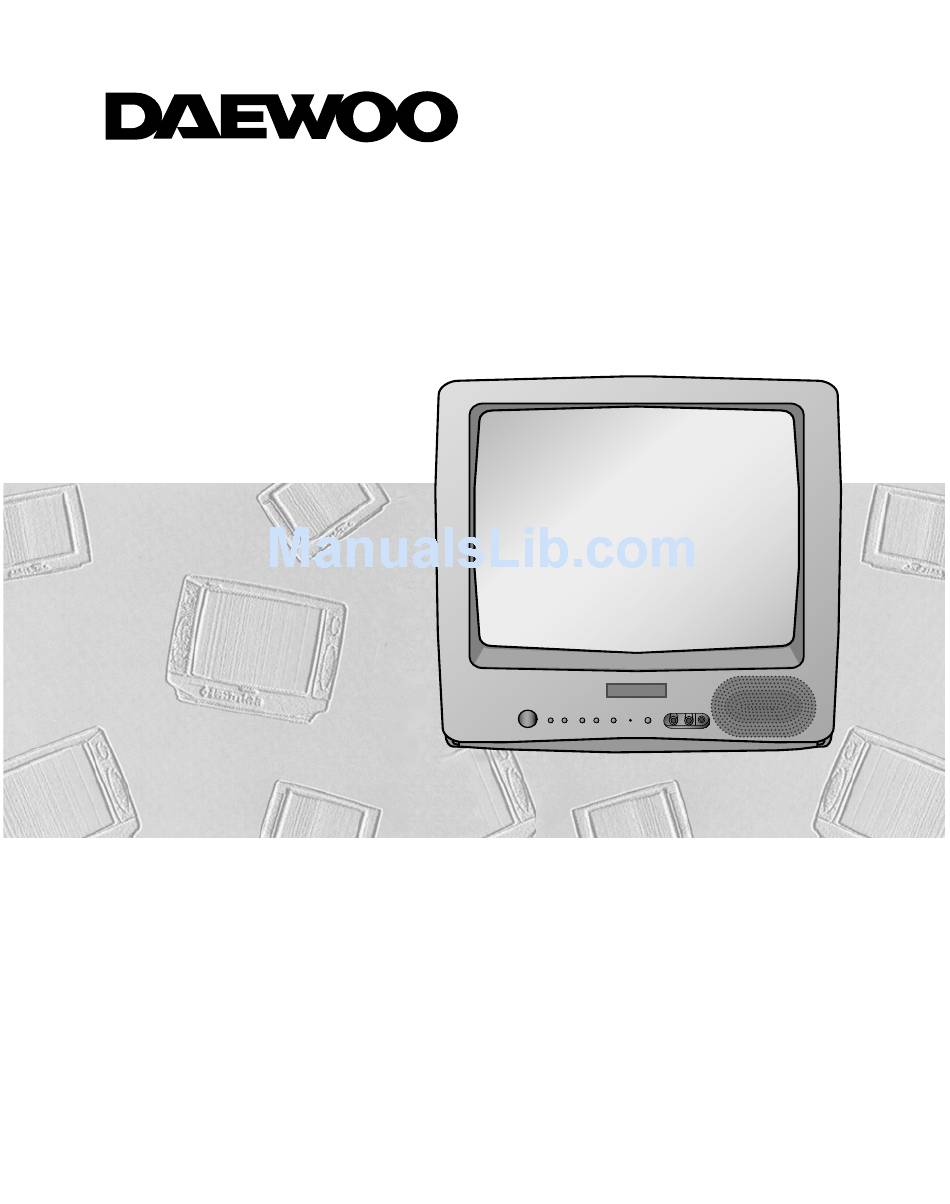

Page 1: Instruction Manual
COLOUR TELEVISION INSTRUCTION MANUAL MODEL No. S14C4NT S20C4NT S21C6NT... -
Page 2: Table Of Contents
Contents Important safeguards Before Operation Connecting external equipment Identification of Controls Daily use Menus Teletext Specifications... -
Page 3: Important Safeguards
Important safeguards WATER AND MOISTURE Never install the set in the following places : In a wet basement, bathroom. Do not place any container with liquid on the set. HEAT Never place the set near heat sources. VENTILATION Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as a bookcase or built-in unless proper ventilation is provided. -
Page 4: Before Operation
Before Operation Battery options INSERTING BATTERIES INTO THE REMOTE CONTROL UNIT Insert the batteries (two 1.5V, type AAA) MAINS CONNECTION Plug the mains cable into the power socket with 230V/50Hz AC. AERIAL CONNECTION When using an outdoor aerial, it is usually connected to the set by means of 75 ohm. -
Page 5: Connecting External Equipment
Connecting external equipment TV AND A TV AND A Use the TV/AV( ) button on the remote control or on the front of the set to select one of the three options. Whenever the TV/AV ) button is pressed, the on-screen display will be changed as shown: AV S-VHS SCART JACK A... - Page 6 RCA JACK A V (FRONT) RCA JACK A V (FRONT) Connect the AV (Audio/Video) socket with an appropriate cable to the corresponding socket of the external equipment. Select AV mode by pressing the TV/AV( ) button. Press the TV/AV( ) button to return to the TV mode.
-
Page 7: Identification Of Controls
Identification of Controls Back Aerial Terminal Scart Socket REMOTE CONTROL REMOTE CONTROL TV MODE TELETEXT mode 1. POWER 1. POWER 2. NUMBER 0-9 2. NUMBER 0-9 3. NORMAL 3. INDEX 4. AV 4. MIX 5. PR(CUROSR) UP 5. PAGE UP 6. -
Page 8: Daily Use
DAILY USE PROGRAMME SELECTION PROGRAMME SELECTION Direct selection Use remote control NUMBER 0…9 buttons. For two digits programme numbers, press the button for the second digit within 2.5 seconds. Up/Down moves Use PR UP/DOWN buttons of the remote control unit or on the front of the set. - Page 9 SLEEP FUNCTION SLEEP FUNCTION The sleep function will switch the television to stand-by after a set period of time. Pressing repetitively the remote control SLEEP button, you can enter one of the following settings : OFF > 30 min > 60 min > 90 min > 120 min > OFF The remaining time before TV turn-off is displayed on programme status.
-
Page 10: Menus
Menus MAIN MENU MAIN MENU All menus are removed within 25 seconds if you don’t press any button. PICTURE Direct selection Press remote control MENU button to display main menu. FEATURES Then, you have the choice between several sub- menus. INSTALL If you want to cancel immediately main menu, press MENU button once more. - Page 11 PICTURE MENU PICTURE MENU Enter PICTURE in the main menu. You can select each function with the UP/DOWN buttons. Use the LEFT/RIGHT buttons to adjust each function. Explanation for each function will be displayed in the lower screen whenever you select the function. (Tint control for AV NTSC only) TURES MENU TURES MENU LANGUAGE...
- Page 12 INST ALL MENU INST ALL MENU ATSS Automatic Tuning and Sorting System. EDIT Programme list edition. SYSTEM TV system selection. CHANNEL Channel number. FREQ Channel Frequency. NAME Channel name. PROGRAM Programme number. STORE TO Programme storage number. EDIT MENU EDIT MENU Programme number.
- Page 13 TIC TUNING SYSTEM TIC TUNING SYSTEM Automatic Tuning and Sorting System Select "ATSS" function and adjust to required country. Press remote control "NORMAL/OK" button more than 3 seconds to start the automatic tuning. When automatic tuning is finished, recorded programmes are displayed on screen. Note for satellite receiver users : Before starting ATSS, connect your equipment to the TV set, turn it ON and tune SKY NEWS.
- Page 14 Channels order changing Select the programme to move using remote control CURSOR UP/ DOWN buttons. Press the remote control NORMAL/OK button : the programme appears on red and can be moved to another place using remote control CURSOR UP/ DOWN buttons. When required position is reached, confirm this new position pressing the remote control NORMAL/OK button.
- Page 15 Fine Tuning If you are unable to get a good picture or sound because of a poor broadcasting signal, it is possible to fine tune a signal. Select channel frequency ("FREQ.") function. Press and release the remote control CURSOR RIGHT/LEFT buttons to fine tune a signal. Enter station name Select "NAME"...
-
Page 16: Teletext
Teletext SWITCHING TELETEXT ON/OFF Press the TELETEXT button ( ). The index page viewed last will appear. Press the TELETEXT button to return to the TV mode. Note that TELETEXT on this TV set is operated to Level 1.5. COLOUR BUTTONS IN TOP/FLOF TELETEXT Red, green, yellow and cyan fields are shown at the bottom of the screen. - Page 17 WATCHING TELEVISION DURING TELETEXT MODE Some pages are continually updated, for example, stock market reports, sports announcements, and the latest news. If you want to watch television and stay informed at the same time, press the CANCEL ( ) button. The regular programme is still visible and the teletext programme number appears at the top of the screen.
-
Page 18: Specifications
SPECIFICATIONS TV Standard PAL/SECAM-B/G, D/K, H, NTSC(AV ONLY) SECAM-L/L’(OPTION), PAL-I(OPTION) Main Voltage 230V~, 50Hz Power Consumption 14” : 39W approx 20” : 42W approx 21” : 45W approx Sound Output Power 2.5W (60% MOD. at 1KHz THD. 10%) Dimensions(WxHxD) 14” : 366 x 338 x 376mm, 9.5Kg &Weight 20”...
