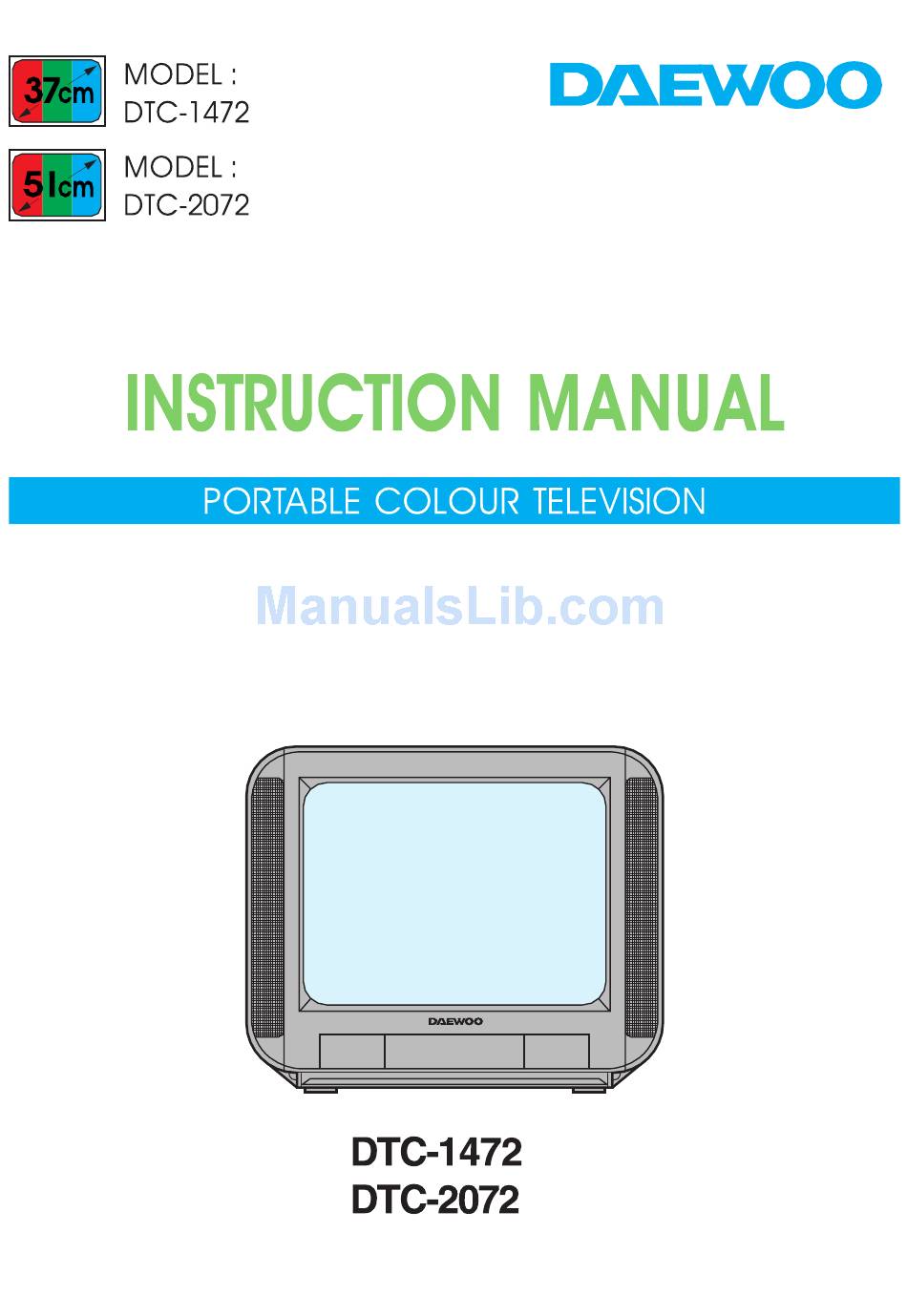

Daewoo DTC-1472 Instruction Manual

Daewoo DTC-1472 Instruction Manual

Portable colour television
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DTC-1472 and is the answer not in the manual?

Questions and answers

Summary of Contents for Daewoo DTC-1472

  • Page 2: Specifications

    SPECIFICATIONS Reception System 8-systems for TV standard broadcasting -PAL B/G, SECAM B/G, PAL I, PAL H, PAL D/K SECAM D/ K, SECAM K1, NTSC-M 4 MODIFIED COLOR SYSTEMS for VCR playback only -SECAM I, NTSC 4.43/ 5.5MHz, NTSC 4.43/6.0MHz, NTSC 4.43/6.5MHz 6 SYSTEMS for Video Discs -PAL 60Hz/5.5MHz, PAL 60Hz/6.0MHz PAL 60Hz/6.5MHz, SECAM 60Hz/5.5MHz...

  • Page 3: Important Safeguards

    IMPORTANT SAFEGUARDS WARNING To prevent fire or shock hazard, do no expose this unit to rain or moisture. LOCATION Place this unit on a flat, level surface and in a dry area free from dust and moisture. Do not place the unit in direct sunlight, or where it would be affected by smoke, steam, vibration or heat from radiators.
  • Page 4 Do not remove the backcover of the TV set. Accidental contact WARNING with high voltage components could result in electric shock. When internal adjustments are necessary, please contact your service centre. If your set produces sound but no picture, or if it emits smoke or produces a strange sound of smell, continuous operation is dangerous.

  • Page 5: Antenna Connection

    ANTENNA CONNECTION VIDEO AUDIO Antenna Terminal Audio Input Terminal (Phono pin type) Video Input Terminal (Phono pin type) Audio Output Terminal = TV Audio Out (Phono pin type) Video Output Terminal = TV Video Out (Phono pin type) For reception of true colour reproduction, an effective antenna installation is the most important.

  • Page 6: Location Of Controls

    LOCATION OF CONTROLS FRONT VIEW DTC-2072 DTC-1472 STAND-BY INDICATOR (STAND-BY) ON-TIMER INDICATOR (ON-TIMER) INFRARED SENSOR WINDOW (REMOTE SENSOR)

  • Page 7: Control Box

    CONTROL BOX MAIN POWER POWER MENU TV/ VIDEO ENTER MAIN POWER BUTTON POWER BUTTON TV / VIDEO BUTTON (TV/VIDEO) MENU BUTTON ENTER BUTTON ( Ê VOLUME UP BUTTON ( VOL ) (CURSOR UP BUTTON) VOLUME DOWN BUTTON ( VOL ) (CURSOR DOWN BUTTON) PROGRAM UP BUTTON ( PR ) (DATA UP BUTTON) PROGRAM DOWN BUTTON ( PR...
  • Page 8 AV CONNECTIONS This TV receiver is equipped with RCA JACK for your desired equipment to be connected. VCR, video disc player, satellite receiver or other AV apparatus can be connected to the RCA JACK on the rear panel of the TV receiver. CONNECTION OF THE VCR Please refer to the operation manual of your VCR for details.

  • Page 9: Battery Installation

    BATTERY INSTALLATION The remote control unit operates with two 1.5V size AA(penlight) batteries. For battery installation or replacement; 1. Turn the remote control unit upside down. Press down on the battery compart- ment grip and slide the cover in the direction of the arrow.

  • Page 10: Remote Control Unit

    REMOTE CONTROL UNIT POWER TV USE PAGE POWER MENU ENTER PR UP DATA UP TV/VIDEO MENU PR DOWN DATA DOWN VOL DOWN CURSOR DOWN VOL UP CURSOR UP TV/VIDEO MUTE NORMAL SLEEP RECALL NORMAL RECALL Q/VIEW QUICK VIEW MUTE SLEEP...

  • Page 11: Operation Of Controls

    OPERATION OF CONTROLS MAINS SUPPLY 1. This receiver is designed to operate with AC 90-260V, 50/60Hz. 2. Do not operate the receiver on DC power supplies or any other voltage range. POWER ON / OFF 1. If the TV set enter into stand-by mode when press the MAIN POWER SWITCH ( then press the POWER button ( ) on the receiver or remote control unit.
  • Page 12 PRESET Tuning function is able to operate via Preset menu. ( SUB MENU ) PRESET PR ( / PR12 AUTO SEARCH SEARCH FINE TUNING CUR. AFT ON SKIP OFF BAND VHF-L PRESET CUR. PR12 PR ( / Ê AUTO SEARCH SEARCH FINE TUNING AFT ON...
  • Page 13 SYSTEM SYSTEM function is able to operate AUTO, PAL, SECAM, 4.43NTSC, 3.58NTSC ( SUB MENU ) AUTO SECAM 4.43NTSC CUR. 3.58NTSC CUR. AUTO Ê SECAM 4.43NTSC CUR. 3.58NTSC ( MAIN MENU ) MENU CUR. AUTO PRESET Ê SYSTEM SECAM PICTURE CONTROL 4.43NTSC CLOCK CUR.

  • Page 14: Picture Control

    PICTURE CONTROL ( SUB MENU ) PICTURE CONTROL ( MAIN MENU ) BRIGHTNESS MENU CONTRAST PRESET Ê SYSTEM CURSOR / PR / COLOR PICTURE CONTROL CLOCK SHARPNESS ON/OFF TIMER TINT 1. BRIGHTNESS Adjust for natural brightness if the picture appear too dark or light. 2.

  • Page 15: On/Off Timer

    CLOCK ( MAIN MENU ) ( SUB MENU ) ( SUB MENU ) PR ( / ) MENU PRESET Ê CLOCK CLOCK SYSTEM PICTURE CONTROL CUR ( / ) AM 12:00 CLOCK ON/OFF TIMER Place the cursor at CLOCK using PR / button and ENTER( ) button.Then AM(or Ê...
  • Page 16 PRESET 1. PR. NO. The program number is changed by using PR / buttons or PR SELECT buttons 0 ~ 9, 1- ~ 4 -. 2. AUTO SEARCH AUTO SEARCH function search and store all available stations. Place the cursor at AUTO SEARCH and press ENTER button. The TV will tune automatically to all channels from 0 ~ 49, from VHF-L VHF-H UHF.
  • Page 17 5. AFT ON/OFF AFT ON/OFF is toggled by PR / buttons. Whenever toggled, it is memorized immediately. 6. SKIP ON/OFF SKIP ON / OFF is toggled by CUSOR / buttons. Whenever toggled, it is memorized immediately. A PR marked with "SKIP ON" is skipped when the PR DOWN/UP function.
  • Page 18 TV/ VIDEO In order to change from TV mode to AV mode, press the TV/VIDEO button on the remote control unit or TV/VIDEO button on the front of the receiver. At this time, the "VIDEO" is displayed on the upper left side of the screen. TV/ VIDEO TV/ VIDEO VIDEO...

  • Page 19: Quick View

    NORMAL Select one of the two possible preferred analog video preset. NORMAL (TO PICTURE Ê CONTROL MODE) USER STORE MORMAL The analog levels are as follows : Preference Brightness Contrast Colour Sharpness Tint User store User store User store User store User store User store Normal...

  • Page 20: Troubleshooting

    TROUBLESHOOTING Sometimes some performance problems can be easily solved by checking seemingly apparent but often overlooked possibilities. Before asking for service, check these items. It could save your time and money. SYMPTOM CHECK No picture or sound. Check if the TV set is plugged in. Check if VOLUME and BRIGHTNESS controls are set to the minimum position.
  • Page 21 SYMPTOM CHECK Poor reception, loss of Check if channels are correctly tuned. colour at certain channels Diagonal stripes It may be affected by an interfering signal. appear on the picture. (Eg. From nearby amateur radio transmitter, or another TV set.) Picture has "snow"...

This manual is also suitable for:

Dtc-2072
