Summary of Contents for Sima VS-HD14

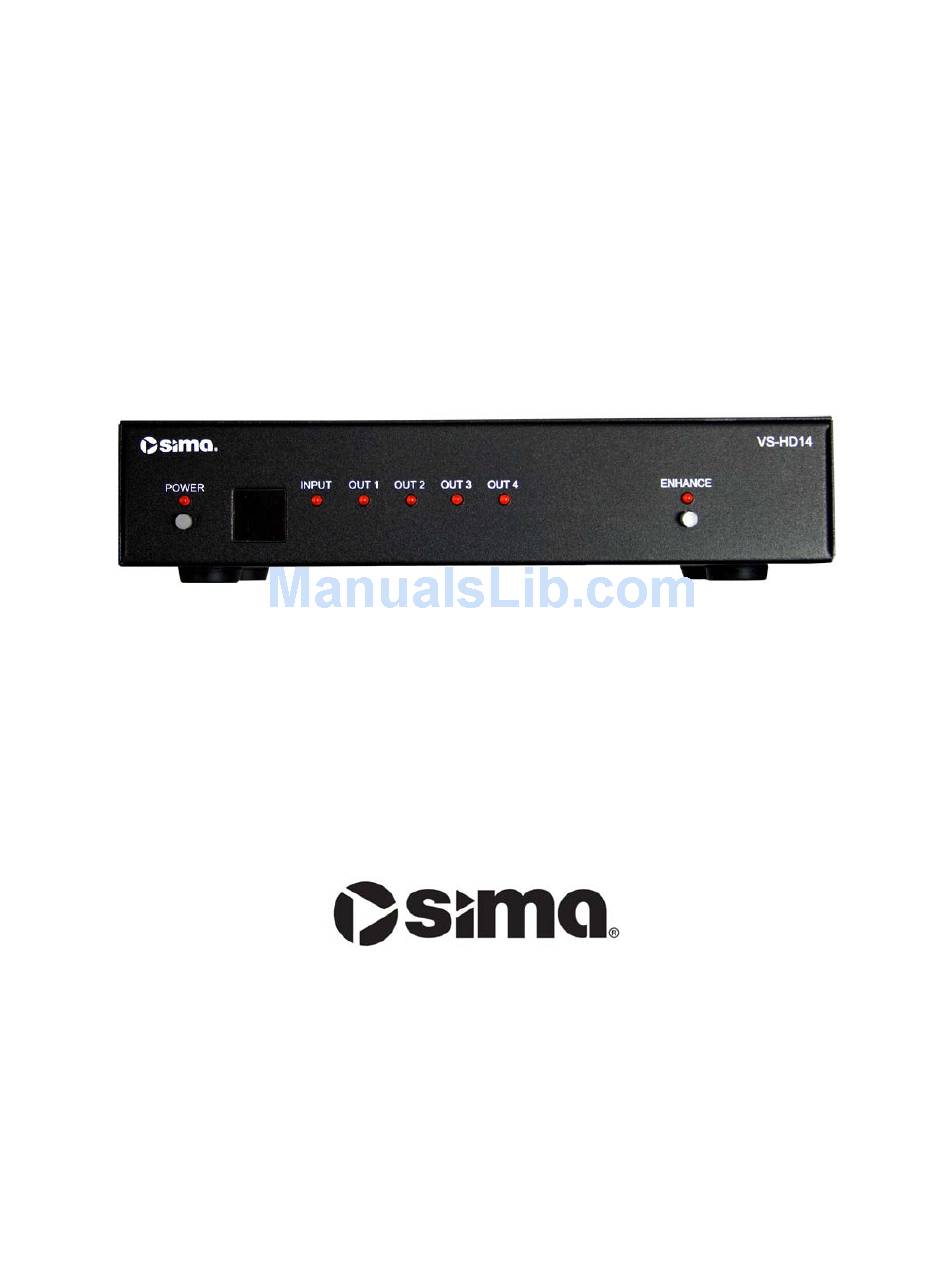

- Page 1 SIMA 1X4 HDMI Distribution Amplifier Model VS-HD14 Sima Products Corporation 140 Pennsylvania Ave. Bldg #5 Oakmont, PA 15139 800-345-7462 ©2006 Sima Products Corporation Please register online at www.simaproducts.com...
- Page 2 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment ©2006 by Sima Products Corp. All rights reserved. No part of this publication may be reproduced or transmitted in any form or by any means without prior written permission from Sima Products Corp.
- Page 3 HDMI source. Simply connect your HDMI source to the distribution amplifier input and you are ready to go. The 1x4 HDMI distribution amplifier automatically regenerates the HDMI signal for long cable runs. The VS-HD14 is ideal for any business, educational or home use where multi-HDMI display distribution is required.
-
Page 4: Panel Descriptions
User Manual VS-HD14 HDMI distribution amplifier Front and rear panel drawings PANEL DESCRIPTIONS Front Panel 1. Power button and LED indicator 2. IR sensor eye 3. Indicator LED Input 4. Indicator LED Output 1 5. Indicator LED Output 2 6. Indicator LED Output 3 7. -
Page 5: Remote Control
When connecting multiple monitors of mixed HD formats, we recommend connecting an HDMI monitor to output #1 The VS-HD14 assigns priority to output #1. For example, if a DVI monitor is connected to output #1, outputs 2, 3 & 4 may not receive an audio signal, depending on the source... -
Page 6: Rear Panel Dip Switch Settings
For example, to power off unit #2, press the Power button followed by the #2. You can connect up to 4 VS-HD14 units together and control them using the remote control. To do so, you must designate the IR address for each unit. The IR address factory default (as shown in Fig. -
Page 7: Troubleshooting
1080p video. ENHANCE Feature The ENHANCE feature of the VS-HD14 HDMI switcher provides an additional boost to the HDMI signal when using longer HDMI cables. It is recommended to leave the ENHANCE mode off for most situations. - Page 8 User Manual VS-HD14 HDMI distribution amplifier Connection Diagrams...
- Page 9 User Manual VS-HD14 HDMI distribution amplifier Connection Diagrams...
-
Page 10: Limited Warranty
Limitation of Liability and Remedies Sima shall have no liability for any damages due to lost profits, loss of use or anticipated benefits, or other incidental, consequential, special or punitive damages arising from the use of, or the inability to use, this product, whether arising out of contract, negligence, tort or under any warranty, even if Sima has been advised of the possibility of such damages.
