Frigidaire 316905000 Service Data Sheet

SERVICE DATA SHEET -
Electric Range with ES 1000 Electronic Oven Control
NOTICE - This service data sheet is intended for use by persons having electrical
and mechanical training and a level of knowledge of these subjects generally
considered acceptable in the appliance repair trade. The manufacturer cannot be
responsible, nor assume any liability for injury or damage of any kind arising from
the use of this data sheet.
Safe servicing practices
To avoid the possibility of personal injury and/or property damage, it is important that safe
servicing practices be observed. The following are examples, but without limitation, of
such practices.
1. Before servicing or moving an appliance remove power cord from electrical outlet,
trip circuit breaker to OFF, or remove fuse.
2. Never interfere with the proper installation of any safety device.
3. GROUNDING: The standard color coding for safety ground wires is GREEN or
GREEN WITH YELLOW STRIPES. Ground leads are not to be used as current
carrying conductors. It is extremely important that the service technician
reestablish all safety grounds prior to completion of service. Failure to do so
will create a potential safety hazard.
4. Prior to returning the product to service, ensure that:
• All electric connections are correct and secure.
• All electrical leads are properly dressed and secured away from sharp edges, high-
temperature components, and moving parts.

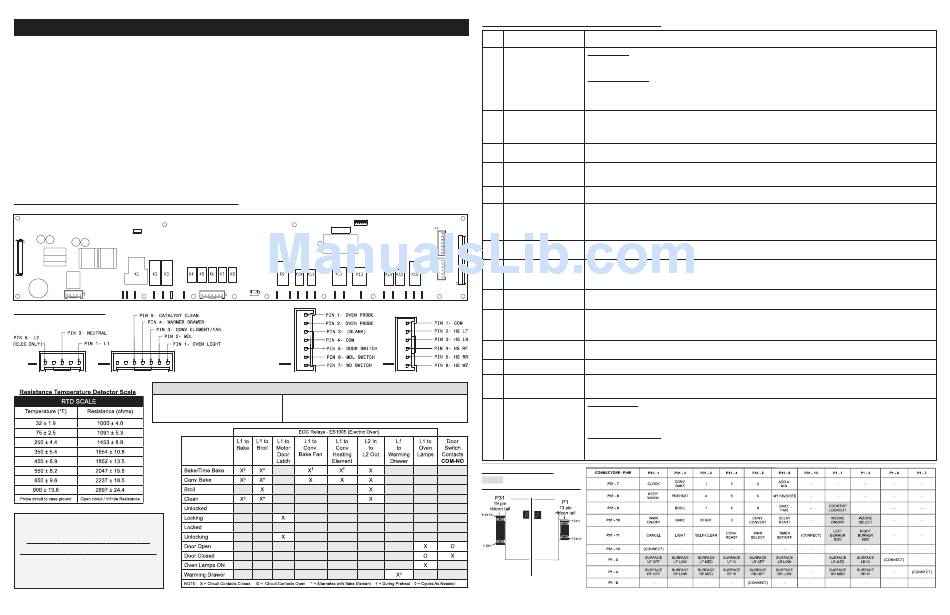

Electronic oven control (EOC) & jumper connection locations
P1
P3 P4 P5 P6 P7 P8 P9
P2
EOC jumper connections
P2 P10
EOC = Electronic Oven Control
VSC = Variable Speed Control
PS = Power Supply board (PS1 , PS2, etc.)
IMPORTANT
DO NOT REMOVE THIS BAG
OR DESTROY THE CONTENTS
WIRING DIAGRAMS AND SERVICE
INFORMATION ENCLOSED
REPLACE CONTENTS IN BAG
p/n 316905000 EN (0905)
• All uninsulated electrical terminals, connectors, heaters, etc. are adequately
spaced away from all metal parts and panels.
• All safety grounds (both internal and external) are correctly and securely
reassembled.
Oven Calibration
Set the electronic oven control for normal baking at 350°F. Obtain an average oven
temperature after a minimum of 5 cycles. Press cancel keypad to end Bake mode.
Temperature Adjustment
1. While in a non-cooking mode, press and hold the bake key pad for 6 seconds.
2. The current calibration offset (temperature adjustment) should appear in the
temperature display.
3. Use the number key pads (0-9) to enter the desired amount of adjustment (up to
35°F).
4. Press the self-clean key pad to change the sign of the adjustment to a (-) if
necessary. A positive adjustment will not display a sign.
5. Once the desired adjustment (-35° to 35° F) has been entered, press the start
key pad to accept the change or the cancel key pad to reject the change.
NOTE: Changing calibration affects all Baking modes. The adjustments made will not
change the self-cleaning temperature.
P10
P12 P13 P14 P16 P18 P19 P20 P23 P24 P25
P29 P30
Tech Sheet Abbreviations and Terminology
RTD = Resistance Temperature Device. (Temp Probe or
Temp Sensor)
TCO = Thermal Cut Out also "Thermo Disc" or "Thermal Limiter"
Electronic Oven Control Fault Code Descriptions
Fault Likely failure
Code condition/cause
F10 Runaway temperature.
Oven heats when no cook
cycle is programmed.
F11 Shorted keypad or selector
switch.
F12 EOC Internal software error
or failure.
F13
F14 Keyboard tail failure.
F15 EOC Internal hardware error
of failure.
F19
F30 Open oven sensor probe
circuit.
F31
Shorted oven sensor probe
P31
circuit.
P29
F42
EOC internal software
configuration error.
F60 EOC oven temperature.
P30
Higher than normal
temperature detected on the
EOC board.
P26 P27 P28
F62
Internal signal voltage error.
F63 Display communication error.
F64 Time Base failure - The EOC
cannot determine if
connected to 50 or 60Hz
power supply.
F65 Keyboard short circuit or
internal EOC failure.
F66 EOC internal power supply
failure.
F68 High voltage condition. L1 or
F69 L2 may be crossed with
Neutral on incoming PS.
F90 Door lock motor or latch
circuit failure.
F91
F92
F93
F94
F95
Keypad Test Matrix
for Electric models only
Left side Right side
View: control membrane overlay from front
Suggested Corrective Action
If Oven is cold:
1. If fault code is present with cold oven test oven temperature sensor probe circuit resistance. Use RTD scale found in the tech sheet.
2. Replace probe or repair wiring connections if defective.
3. If temperature sensor probe circuit is good but fault code remains when oven is cold replace the EOC.
If Oven is overheating:
1. If oven is severely overheating/heating when no cook cycle is programmed test oven temperature sensor probe circuit resistance using
the RED scale found in the service tech sheet. Also verify that the temperature sensor probe in properly installed in the oven cavity.
2. Disconnect power from the range, wait 30 seconds and reapply power. If oven continues to heat when the power is reapplied, replace
the EOC. NOTE: Severe overheating may require the entire oven to be replaced should damage be extensive.
1. Reset power supply to range - Disconnect power, wait 30 seconds and reapply power.
2. Check/reseat ribbon harness connections between touch panel and EOC.
3. Test keyboard circuits using test matrix. Replace touch panel if defective.
4. If keyboard ciruits check good replace the EOC.
Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.
1. Check/reseat ribbon harness connections between keyboard touch panel and EOC..
2. Test keyboard circuits using test matrix (below). Replace touch panel if defective.
3. If keyboard circits check good replace EOC.
Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.
1. (F30) Check resistance at room temperature & compare to RTD Sensor resistance chart. If resistance is correct replace the EOC. If
resistance does not match the RTD chart replace RTD Sensor Probe. Check Sensor wiring harness between EOC & Sensor Probe
connector.
2. (F31) Check resistance at room temperature, if less than 500 ohms, replace RTD Sensor Probe. Check for shorted Sensor Probe
harness between EOC & Probe connector. If resistance is correct replace the EOC.
Usually this failure code would only appear if the EOC has been replaced with an incorrect version. Verify that the correct replacement
part number is being used.
1. Verify proper assembly of backguard panel. Check for damaged or loose panels, brackets, endcaps, etc.
2. Check for blocked ventilation slots in control panel rear cover.
3. Inspect oven vent for proper assembly and air flow.
4. Verify operation of cooling fan (if present).
Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.
Confirm that range is connected to proper power source (50Hz or 60Hz). Generators or other portable power supplies and solar grids, etc.
may not provide proper power supply. If power source is correct replace the EOC.
1. Test keyboard circuits using test matrix. Replace touch panel if defective.
2. If keyboard circuits check good replace the EOC
Disconnect power, wait 30 seconds and reapply power. If fault returns upon power-up, replace EOC.
1. Verify proper incoming line voltage and polarity of L1, L2 and Neutral power supply connections at range terminal block.
2. If power supply voltage and polarity are correct replace EOC.
If lock motor runs:
1. Test continuity of wiring between EOC and lock switch on lock motor assy. Repair if needed.
2. Advance motor until cam depresses the plunger on lock motor switch. Test continuity of switch contacts. If switch is open replace
lock motor assemblyy.
3. If motor runs and switch contacts and wiring harness test good, replace the EOC.
If lock motor does not run:
1. Test continuity of lock motor windings. Replace lock motor assembly if windings are open.
2. Test lock motor operation by using a test cord to apply voltage. If motor does not operate replace lock motor assy.
3. If motor runs with test cord check continuity of wire harness to lock motor terminals. If harness is good replace the EOC.
To test keypad function check for continuity between indicated pin locations while pressing keypad. Example: To test the Bake keypad
use pin #2 & pin #10 on connector P31. To test cooktop keypad use pin 1 on connector P1 & pin 9 on connector P31.
