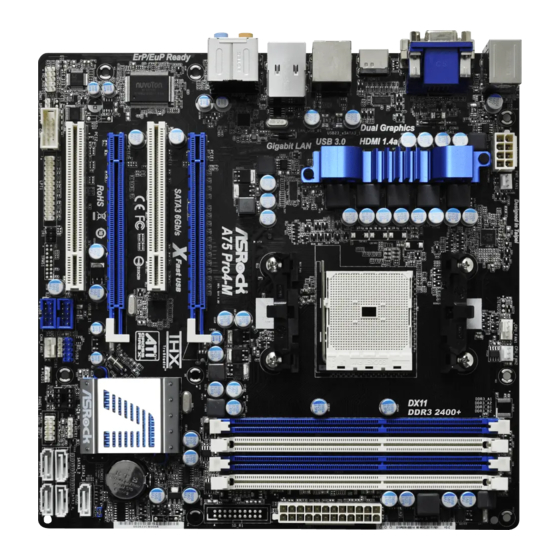

A75 Pro4-M

User Manual

Version 1.1
Published June 2011
Copyright©2011 ASRock INC. All rights reserved.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A75 Pro4-M and is the answer not in the manual?

Questions and answers

Related Manuals for ASROCK A75 Pro4-M

Summary of Contents for ASROCK A75 Pro4-M

  • Page 1: User Manual

    A75 Pro4-M User Manual Version 1.1 Published June 2011 Copyright©2011 ASRock INC. All rights reserved.

  • Page 2: Copyright Notice

    In no event shall ASRock, its directors, of cers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for...

  • Page 3: Table Of Contents

    Quad CrossFireX Operation Guide .... 20 Dual Graphics Operation Guide ..........24 Dual Monitor and Surround Display Features ......26 ASRock Smart Remote Installation Guide ......... 29 Jumpers Setup ................30 2.10 Onboard Headers and Connectors ........31 2.11 Serial ATA3 (SATA3) Hard Disks Installation ......
  • Page 4 3. UEFI SETUP UTILITY............43 Introduction ................43 3.1.1 UEFI Menu Bar ..............43 3.1.2 Navigation Keys ............... 44 Main Screen ................44 OC Tweaker Screen..............45 Advanced Screen ..............48 3.4.1 CPU Con guration ............49 3.4.2 North Bridge Con guration ..........50 3.4.3 South Bridge Con guration ..........

  • Page 5: Introduction

    In case any modi cations of this manual occur, the updated ver- sion will be available on ASRock website without further notice. You may nd the latest VGA cards and CPU support lists on ASRock website as well. ASRock website http://www.asrock.com...

  • Page 6: Specifications

    1.2 Specifications - Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Platform - All Solid Capacitor design - Support for Socket FM1 100W processors - V4 + 1 Power Phase Design - Supports AMD’s Cool ‘n’ Quiet Technology - UMI-Link GEN2 - AMD A75 FCH (Hudson-D3)
  • Page 7 - 7.1 CH HD Audio with Content Protection Audio (Realtek ALC892 Audio Codec) - Premium Blu-ray audio support - Supports THX TruStudio - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Ef cient Ethernet 802.3az - Supports PXE I/O Panel...
  • Page 8 Certifi cations - ErP/EuP Ready (ErP/EuP ready power supply is required) (see CAUTION 15) * For detailed product information, please visit our website: http://www.asrock.com WARNING Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using the third-party over- clocking tools.
  • Page 9 6-channel, and 8-channel modes. Please check the table on page 13 for proper connection. ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to ne-tune different system functions in a user-friendly interface, which is including Hardware Monitor, Fan Control, Overclocking, OC DNA and IES. In Hard- ware Monitor, it shows the major readings of your system.
  • Page 10 - ASRock APP Charger. Simply installing the APP Charger driver, it makes your iPhone charged much quickly from your computer and up to 40% faster than before. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Sus- pend to RAM (S3), hibernation mode (S4) or power off (S5).
  • Page 11 For EuP ready power supply selection, we recommend you checking with the power supply manufacturer for more details. Besides, please be noted that if you enable ASRock On/Off Play Technology, your system will not meet EuP standard. To meet EuP standard, please dis-...

  • Page 12: Motherboard Layout

    USB 3.0 T: USB4 B: USB5 PWR_FAN1 CPU_FAN2 CPU_FAN1 USB 2.0 T: USB2 B: USB3 USB 3.0 Top: T: USB0 RJ-45 B: USB1 A75 Pro4-M PCIE1 SATA3 6Gb/s Fast USB PCI1 A75 FCH CMOS (Hudson-D3) BATTERY PCIE2 Chipset RoHS CLRCMOS1 AUDIO...

  • Page 13: I/O Panel

    1.4 I/O Panel PS/2 Mouse/Keyboard Port (Green/Purple) Microphone (Pink) D-Sub Port USB 3.0 Ports (USB01) LAN RJ-45 Port *** 11 USB 2.0 Ports (USB23) Central / Bass (Orange) **** 12 eSATA3 Connector Rear Speaker (Black) HDMI Port Optical SPDIF Out Port DVI-D Port Line In (Light Blue) USB 3.0 Ports (USB45)
  • Page 14 To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will nd “Mixer” tool on your system. Please select “Mixer ToolBox” , click “Enable playback multi-streaming”, and click “ok”. Choose “2CH”, “4CH”, “6CH”, or “8CH”...

  • Page 15: Installation

    2. Installation This is a Micro ATX form factor (9.6-in x 9.6-in, 24.4 cm x 24.4 cm) motherboard. Before you install the motherboard, study the con guration of your chassis to ensure that the motherboard ts into it. Pre-installation Precautions Take note of the following precautions before you install motherboard components or change any motherboard settings.

  • Page 16: Cpu Installation

    2.1 CPU Installation Step 1. Unlock the socket by lifting the lever up to a 90 angle. Step 2. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the socket corner with a small triangle. Step 3.

  • Page 17: Installation Of Memory Modules (Dimm)

    2.3 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel con- guration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pair in the slots of the same color.

  • Page 18: Installing A Dimm

    Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the break on the slot.

  • Page 19: Expansion Slots (Pci And Pci Express Slots)

    2.4 Expansion Slots (PCI and PCI Express Slots) There are 2 PCI slots and 2 PCI Express slots on this motherboard. PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI interface. PCIE Slots: PCIE1 (PCIE x16 slot; Blue) is used for PCI Express x16 lane width graphics cards, or used to install PCI Express graphics cards to support CrossFireX function.

  • Page 20: Tm Tm

    2.5 CrossFireX and Quad CrossFireX Operation Guide This motherboard supports CrossFireX and Quad CrossFireX feature. CrossFireX technology offers the most advantageous means available of combining multiple high performance Graphics Processing Units (GPU) in a single PC. Combining a range of different operating modes with intelligent software design and an innovative interconnect mechanism, CrossFireX enables the highest possible level of performance and image quality in any 3D application.
  • Page 21 Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on CrossFire Bridge Interconnects on the top of Radeon graphics cards. (CrossFire Bridge is provided with the graphics card you purchase, not bundled with this motherboard. Please refer to your graphics card vendor for details.) CrossFire Bridge Step 3.

  • Page 22: Driver Installation And Setup

    2.5.2 Driver Installation and Setup Step 1. Power on your computer and boot into OS. Step 2. Remove the AMD driver if you have any VGA driver installed in your sys- tem. The Catalyst Uninstaller is an optional download. We recommend using this utility to uninstall any previously installed Catalyst drivers prior to installation.
  • Page 23 Although you have selected the option “Enable CrossFire ”, the Cross- FireX function may not work actually. Your computer will automatically reboot. After restarting your computer, please con rm whether the option “Enable CrossFire ” in “ATI Catalyst Control Center” is selected or not; if not, please select it again, and then you are able to enjoy the bene t of CrossFireX feature.

  • Page 24: Dual Graphics Operation Guide

    2.6 AMD Dual Graphics Operation Guide This motherboard supports AMD Dual Graphics feature. AMD Dual Graphics brings multi-GPU performance capabilities by enabling an AMD A75 FCH (Hudson-D3) integrated graphics processor and a discrete graphics processor to operate simultaneously with combined output to a single display for blisteringly-fast frame ®...
  • Page 25 Step 7. You can also click “AMD VISION Engine Control Center” on your ® Windows taskbar to enter AMD VISION Engine Control Center. AMD VISION Engine Control Center Step 8. In AMD VISION Engine Control Center, please choose “Performance”. Click “AMD CrossFire ”.

  • Page 26: Dual Monitor And Surround Display Features

    2.7 Dual Monitor and Surround Display Features Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (DVI-D, D-Sub and HDMI), you can easily enjoy the bene ts of dual monitor feature without installing any add-on VGA card to this motherboard. This mother- board also provides independent display controllers for DVI-D, D-Sub and HDMI to support dual VGA output so that DVI-D, D-sub and HDMI can drive same or different display contents.
  • Page 27 Surround Display Feature This motherboard supports surround display upgrade. With the internal VGA output support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards, you can easily enjoy the bene ts of surround display feature. Please refer to the following steps to set up a surround display environment: 1.
  • Page 28 ® For Windows 7 / 7 64-bit / Vista / Vista 64-bit OS: Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monitor according to the steps below. A.

  • Page 29: Asrock Smart Remote Installation Guide

    The Multi-Angle CIR Receiver does not support Hot-Plug function. Please install it before you boot the system. * ASRock Smart Remote is only supported by some of ASRock motherboards. Please refer to ASRock website for the motherboard support list: http://www.asrock.com...

  • Page 30: Jumpers Setup

    2.9 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration shows a 3-pin jumper whose pin1 and pin2 are “Short”...

  • Page 31: Onboard Headers And Connectors

    2.10 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage of the motherboard! Serial ATA3 Connectors These ve Serial ATA3 SATA3_5 (SATA3) connectors support...
  • Page 32 Infrared Module Header This header supports an IRTX +5VSB optional wireless transmitting DUMMY (5-pin IR1) and receiving infrared module. (see p.12 No. 26) IRRX Consumer Infrared Module Header This header can be used to connect the remote (4-pin CIR1) IRTX IRRX controller receiver.
  • Page 33 RESET (Reset Switch): Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to per- form a normal restart. PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating.
  • Page 34 CPU Fan Connectors Please connect the CPU fan FAN_SPEED_CONTROL CPU_FAN_SPEED cable to the connector and (4-pin CPU_FAN1) +12V match the black wire to the (see p.12 No. 5) ground pin. 1 2 3 4 Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin CPU fan still can work successfully even without the fan speed control function.
  • Page 35 Serial port Header This COM1 header supports a serial port module. (9-pin COM1) (see p.12 No.28) HDMI_SPDIF Header HDMI_SPDIF header, providing SPDIF audio output to HDMI (2-pin HDMI_SPDIF1) VGA card, allows the system to see p.12 No. 29) SPDIFOUT connect HDMI Digital TV/ projector/LCD devices.

  • Page 36: Serial Ata3 (Sata3) Hard Disks Installation

    2.11 Serial ATA3 (SATA3) Hard Disks Installation This motherboard adopts AMD A75 FCH (Hudson-D3) chipset that supports Serial ATA3 (SATA3) hard disks and RAID (RAID 0, RAID 1 and RAID 10) functions. You may install SATA3 hard disks on this motherboard for internal storage devices. This section will guide you to install the SATA3 hard disks.

  • Page 37: Sata3 Hdd Hot Plug Feature And Operation Guide

    * The SATA3 Hot Plug feature might not be supported by the chipset because of its limitation, the SATA3 Hot Plug support information of our motherboard is indicated in the product spec on our website: www.asrock.com 2. Make sure your SATA3 HDD can support Hot Plug function from your dealer or HDD user manual.
  • Page 38 How to Hot Plug a SATA3 HDD: Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA3 HDD damage and data loss. Please connect SATA power cable 1x4-pin Step 1 Connect SATA data cable to Step 2...

  • Page 39: Driver Installation Guide

    STEP 2: Make a SATA3 Driver Diskette. (Please use USB fl oppy or fl oppy disk.) Insert the ASRock Support CD into your optical drive to boot your system. During POST at the beginning of system boot-up, press <F11> key, and then a window for boot devices selection appears.

  • Page 40: 64-Bit / Vista

    STEP 3: Use “RAID Installation Guide” to set RAID confi guration. Before you start to con gure RAID function, you need to check the RAID installation guide in the Support CD for proper con guration. Please refer to the BIOS RAID installation guide part of the document in the following path in the Support CD: ..

  • Page 41: Installing Windows ® 7 / 7 64-Bit / Vista

    ® 2.16 Installing Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit Without RAID Functions ® If you want to install Windows 7 / 7 64-bit / Vista / Vista 64-bit / XP / XP 64-bit OS on your SATA3 HDDs without RAID functions, please follow below procedures according to the OS you install.

  • Page 42: Tm Tm

    ® 2.16.2 Installing Windows 7 / 7 64-bit / Vista / Vista 64-bit Without RAID Functions ® If you want to install Windows 7 / 7 64-bit / Vista / Vista 64-bit on your SATA3 HDDs without RAID functions, please follow below steps. Using SATA3 HDDs with NCQ and Hot Plug functions (AHCI mode) STEP 1: Set up UEFI.

  • Page 43: Uefi Setup Utility

    3. UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to con gure your sys- tem. The SPI Memory on the motherboard stores the UEFI SETUP UTILITY. You may run the UEFI SETUP UTILITY when you start up the computer. Please press <F2>...

  • Page 44: Navigation Keys

    3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cursor up or down to select items To change option for the selected items + / - To bring up the selected screen <Enter>...

  • Page 45: Oc Tweaker Screen

    3.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. CPU Confi guration Spread Spectrum This item should always be [Auto] for better system stability. AMD Turbo Core Technology This item appears only when the processor you adopt supports this fea- ture.
  • Page 46 DRAM Timing Control Power Down Enable Use this item to enable or disable DDR power down mode. Bank Interleaving Interleaving allows memory accesses to be spread out over banks on the same node, or accross nodes, decreasing access contention. Channel Interleaving It allows you to enable Channel Memory Interleaving.
  • Page 47 Refresh Cyle Time (tRFC) Use this item to change Refresh Cyle Time (tRFC) Auto/Manual setting. The default is [Auto]. RAS to RAS Delay (tRRD) Use this item to change RAS to RAS Delay (tRRD) Auto/Manual setting. The default is [Auto]. Write to Read Delay (tWTR) Use this item to change Write to Read Delay (tWTR) Auto/Manual setting.

  • Page 48: Advanced Screen

    3.4 Advanced Screen In this section, you may set the con gurations for the following items: CPU Con gu- ration, Nouth Bridge Con guration, South Bridge Con guration, Storage Con gura- tion, Super IO Con guration, ACPI Con guration, and USB Con guration. Setting wrong values in this section may cause the system to malfunction.

  • Page 49: Cpu Configuration

    3.4.1 CPU Configuration Core C6 Mode Use this item to enable or disable Core C6 mode. The default value is [Disabled]. Package C6 Mode This item appears only when you enable the item “Core C6 Mode”. Use this item to enable or disable Package C6 mode. The default value is [Dis- abled].

  • Page 50: North Bridge Configuration

    3.4.2 North Bridge Configuration Primary Graphics Adapter This item will switch the PCI Bus scanning order while searching for video card. It allows you to select the type of Primary VGA in case of multiple video controllers. The default value of this feature is [PCI Express]. Con- guration options: [Onboard], [PCI] and [PCI Express].

  • Page 51: South Bridge Configuration

    3.4.3 South Bridge Configuration Onboard HD Audio Select [Auto], [Enabled] or [Disabled] for the onboard HD Audio feature. If you select [Auto], the onboard HD Audio will be disabled when PCI Sound Card is plugged. Front Panel Select [Auto] or [Disabled] for the onboard HD Audio Front Panel. On/Off Play Use this item to enable or disable On/Off Play Technology.

  • Page 52: Storage Configuration

    3.4.4 Storage Configuration SATA Controller Use this item to enable or disable the “SATA Controller” feature. SATA Mode Use this item to adjust SATA Mode. The default value of this option is [IDE Mode]. Con guration options: [AHCI Mode], [RAID Mode] and [IDE Mode]. If you set this item to RAID mode, it is suggested to install SATA ODD driver on SATA3_5 and eSATA3 ports.

  • Page 53: Super Io Configuration

    3.4.5 Super IO Configuration Serial Port Use this item to enable or disable the onboard serial port. Serial Port Address Use this item to set the address for the onboard serial port. Con guration options: [3F8 / IRQ4] and [3E8 / IRQ4]. Infrared Port Use this item to enable or disable the onboard infrared port.

  • Page 54: Acpi Configuration

    3.4.6 ACPI Configuration Suspend to RAM Use this item to select whether to auto-detect or disable the Suspend-to- RAM feature. Select [Auto] will enable this feature if the OS supports it. Check Ready Bit Use this item to enable or disable the feature Check Ready Bit. Restore on AC/Power Loss This allows you to set the power state after an unexpected AC/power loss.
  • Page 55 ACPI HPET table Use this item to enable or disable ACPI HPET Table. The default value is [Enabled]. Please set this option to [Enabled] if you plan to use this moth- ® erboard to submit Windows Vista certi cation.

  • Page 56: Usb Configuration

    3.4.7 USB Configuration USB 2.0 Controller Use this item to enable or disable the use of USB 2.0 controller. USB 3.0 Controller Use this item to enable or disable the use of USB 3.0 controller. Legacy USB Support Use this option to select legacy support for USB devices. There are four con guration options: [Enabled], [Auto], [Disabled] and [UEFI Setup Only].

  • Page 57: Hardware Health Event Monitoring Screen

    3.5 Hardware Health Event Monitoring Screen In this section, it allows you to monitor the status of the hardware on your system, including the parameters of the CPU temperature, motherboard temperature, CPU fan speed, chassis fan speed, and the critical voltage. CPU Fan 1 &...

  • Page 58: Boot Screen

    3.6 Boot Screen In this section, it will display the available devices on your system for you to con g- ure the boot settings and the boot priority. Setup Prompt Timeout This shows the number of seconds to wait for setup activation key. 65535(0xFFFF) means inde nite waiting.

  • Page 59: Security Screen

    3.7 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it.

  • Page 60: Exit Screen

    3.8 Exit Screen Save Changes and Exit When you select this option, it will pop-out the following message, “Save con guration changes and exit setup?” Select [OK] to save the changes and exit the UEFI SETUP UTILITY. Discard Changes and Exit When you select this option, it will pop-out the following message, “Discard changes and exit setup?”...

  • Page 61: Software Support

    Click on a speci c item then follow the installation wizard to install it. 4.2.4 Contact Information If you need to contact ASRock or want to know more about ASRock, welcome to visit ASRock’s website at http://www.asrock.com; or you may contact your...

  • Page 62: Storage Con Guration

    Installing OS on a HDD Larger Than 2TB ® This motherboard is adopting UEFI BIOS that allows Windows OS to be installed on a large size HDD (>2TB). Please follow below procedure to install the operating system. 1. Please make sure to use Windows 64-bit (with SP1 or above) or ®...
