CQ-DFX602N
DISP
SRC
¡Please read these instructions carefully before using this product and keep this manual for future reference.
¡Bitte lesen Sie diese Bedienungsanleitung vor der Verwendung dieses Produktes aufmerksam durch und bewahren Sie sie danach
für spätere Nachschlagzwecke sorgfältig auf.
¡Prière de lire ces instructions attentivement avant d'utiliser le produit et garder ce manuel pour l'utilisation ultérieure.
¡Leest u deze instructie alstublieft zorgvuldig door voor u dit product in gebruik neemt en bewaar deze handleiding voor later gebruik.
¡Läs igenom denna bruksanvisning noga innan produkten tas i bruk. Spara bruksanvisningen för framtida behov.
¡Si prega di leggere attentamente queste istruzioni prima di usare questo prodotto e di conservare questo manuale per usi futuri.
¡Lea con atención estas instrucciones antes de utilizar el producto y guarde este manual para poderlo consultar en el futuro.
OPEN
P·SET
TUNE
BAND
TRACK
SET/APM
DISC
EON
·
PTY
·
CT
CD Player/Receiver with Full Dot Matrix
Display and CD Changer Control
CQ-DFX602N
Operating Instructions
Bedienungsanleitung
Bedienungsanleitung
Manuel d'instructions
Manuel d'instructions
Gebruiksaanwijzing
Gebruiksaanwijzing
Bruksanvisning
Bruksanvisning
Manuale di istruzioni
Manuale di istruzioni
Manual de Instrucciones
Manual de Instrucciones
TEXT
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Panasonic CQ-DFX602N
Summary of Contents for Panasonic CQ-DFX602N
-

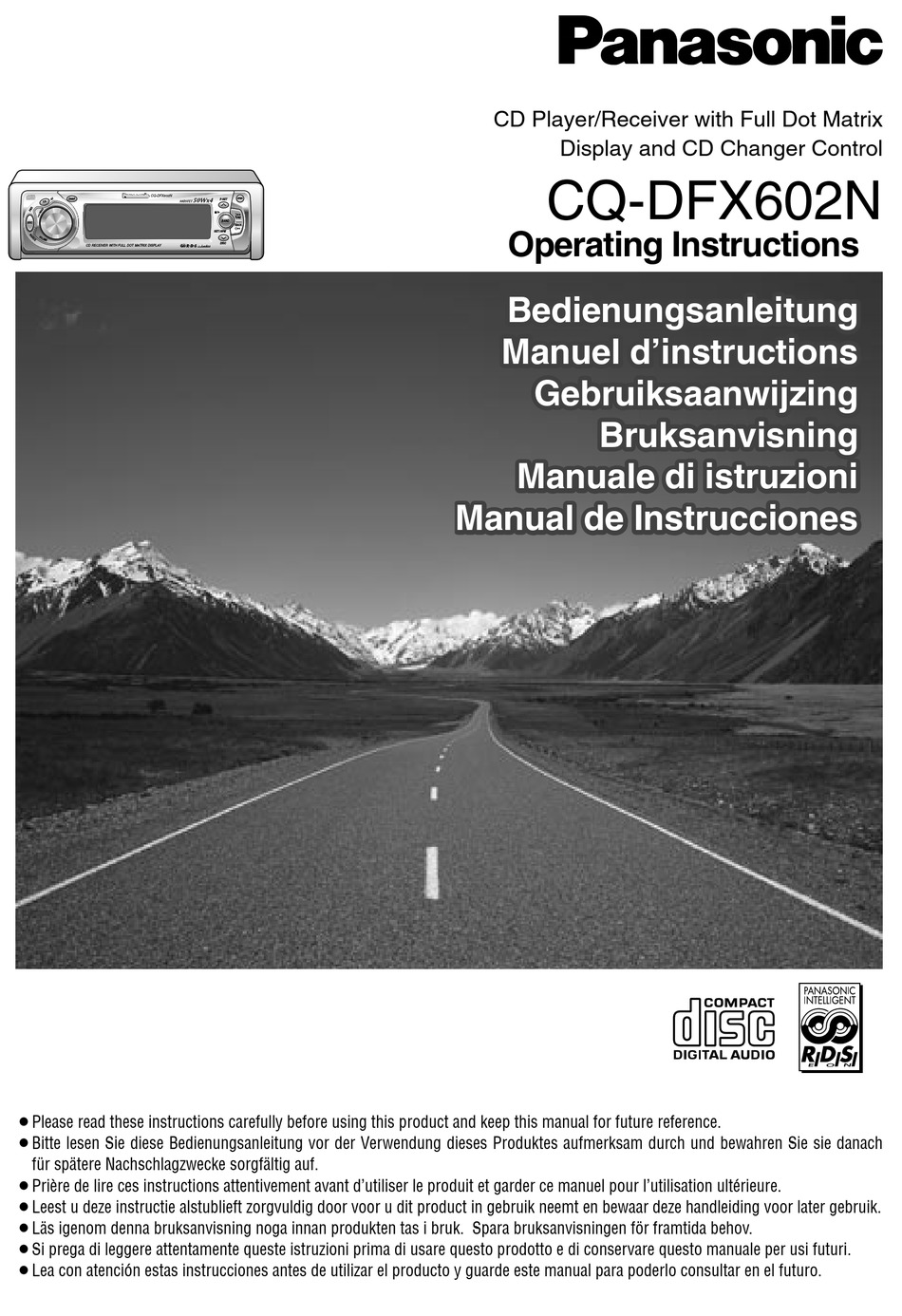

Page 1: Operating Instructions
CD Player/Receiver with Full Dot Matrix Display and CD Changer Control CQ-DFX602N CQ-DFX602N DISP OPEN P·SET TUNE BAND TRACK SET/APM Operating Instructions DISC · · Bedienungsanleitung Bedienungsanleitung Manuel d’instructions Manuel d’instructions Gebruiksaanwijzing Gebruiksaanwijzing Bruksanvisning Bruksanvisning Manuale di istruzioni Manuale di istruzioni... -
Page 2: Table Of Contents
RDS (Radio Data System) ......200 Lettore CD ........... 206 Controllo del cambia CD ......208 Pag. Indice Precauciones ..........232 Componentes ..........233 Generalidades ..........234 Radio ............236 Sistema da datos radiofónicos (RDS) ....... 238 Reproductor de CD ........244 CQ-DFX602N... - Page 3 Ajuste de audio-Menú de AUDIO....248 Fusible ............262 Ajuste de la imagen-Menú de PICTURE ... 250 Mantenimiento ..........263 Ajuste de la función-Menú de FUNCTION.. 252 Solución de problemas ......264 Instalación ........... 254 Especificaciones......... 269 Sistema antirrobo ........257 Conexiones eléctricas........ 258 CQ-DFX602N...
-
Page 4: Precautions
Panasonic welcomes you to their constantly growing family of electronic products owners. We endeavor to give you the advantages of precise electronic and mechanical engineering, manufactured with carefully selected components, and assembled by people who are proud of the reputation their work has built for our company. -
Page 5: Components
Battery Notes Remove and dispose of an old battery immediately. Battery Information: ¡Battery Type: Panasonic lithium battery (CR2025) (Included) ¡Battery Life: Approximately 6 months under normal use (at room temperature) Caution: Improper use of batteries may cause overheating, an explosion or ignition, resulting in injury or a fire. -
Page 6: General
Press [SRC] / [SOURCE] to change the source. CD Player Radio (CD is in the player. Page 16) Page 8) Auxiliary CD Changer Note: Connect to external (Optional CD changer devices. is connected and magazine is in the changer. Page 18) CQ-DFX602N... - Page 7 When Power is OFF... ( ACC ON Press [DISP] . Display OFF Clock Display (Back light is on) (Back light is off) Note: When RDS’s Clock Time (CT) service is not received, “NO CT” is displayed. Adjust the clock. Page 22) CQ-DFX602N...
-
Page 8: Radio
FM broadcast station. LOCAL ON : In seek tuning, only strong stations are detected. LOCAL OFF : Relatively weak stations are picked up. Note: Press [MENU] / [SEL] or [DISP] to return to the regular mode. CQ-DFX602N... -
Page 9: Manual Preset
Press [}] or [{] to select the preset number for tuning in the preset station. Preset Station Calling Entering numbers directly from the remote control Press one of the preset button from [1] to [6] on the remote control. CQ-DFX602N... -
Page 10: Radio Data System (Rds)
RDS FM stations provide a program type identification signal. Example: news, rock, classical music, etc. Page 13) Note: If Mode & Clock display is selected by pressing [DISP], the frequency disappears and the following display appears. Page 7 for Display Change) CQ-DFX602N... -
Page 11: Reg Mode
(Select) If reception is poor when tuning in a preset station, (Set) press the same preset number button. The same station with better reception will be searched for. Press the same preset number button again to cancel. [DISP] (Return) CQ-DFX602N... - Page 12 When set to TA on with the unit in another mode (CD, CD changer, AUX), it will automatically switch to radio mode and output the traffic announcement. When the traffic announcement has finished, the unit will return to [DISP] []] [[] (TP seek tuning) (Return) the previous mode. CQ-DFX602N...
- Page 13 / RELIGION / PHONE IN / TRAVEL LEISURE / JAZZ / COUNTRY / NATION M / / FOLK M / DOCUMENT OLDIES [DISP] (Return) Note: When there is no corresponding program type station, []] [[] (PTY select) “NONE” is displayed for 2 seconds. CQ-DFX602N...
- Page 14 *On the remote control, select the program type and press and hold the preset button for more than 2 seconds. Preset buttons [1] to [6] Program Type Preset Number [}] [{] (PTY preset call/Change) Note: To suspend preset write, press [DISP]. [BAND] (Preset PTY search) CQ-DFX602N...
- Page 15 EON also keeps track of locally available TP stations for quick Note: Emergency announcements are broadcast at the reception. TA volume level. Page12) CQ-DFX602N...
-
Page 16: Cd Player
¡To avoid damaging the front panel, do not push it down or place objects on it while it is open. ¡ Do not pinch your finger or hand in the front panel. Do not insert foreign matter into the disc slots. CQ-DFX602N... -
Page 17: Random Play
(Random) Press [5] . The first 10 seconds of each track play in sequence. Press [5] again to cancel. (Scan) (Repeat) Random and Repeat Play (Setting with Remote Control) Press [4] (Random) / [6] (Repeat). Press again to cancel. CQ-DFX602N... -
Page 18: Cd Changer Control
CD Changer Control CD changer functions are designed for optional Panasonic Insert the Magazine CD changer unit. Page 32 and 33 for connection) Playback starts. Notes: ¡The power will be turned on automatically when a magazine is loaded. ( ACC ON ¡The unit returns to previous mode when the... -
Page 19: Random Play
Random and Repeat Play (Setting with Remote Control) Press [4] (Random) / [6] (Repeat). Press again to cancel. Press and hold [4] (Disc Random) / [6] (Disc Repeat) for more than 2 seconds. Press and hold again to cancel. CQ-DFX602N... -
Page 20: Audio Setting-Audio Menu
Press [BAND] to set. Setting range : 15 levels each FUNCTION Press [}] or [{] to Sub-Woofer Volume select SUB WOOFER Default : 0 ∞), Setting range : Mute (– –6 to +6 dB Press [BAND] to set. (in 2 dB step) CQ-DFX602N... - Page 21 Press [[] or []] to select “ BAS ” (Bass) or “ TRE ” (Treble). w [}] : Enhanced [{] : Decrease [[] : Right enhanced []] : Left enhanced [}] : Front enhanced [{] : Rear enhanced [[] : Up []] : Down CQ-DFX602N...
-
Page 22: Display Setting-Picture Menu
Press [}] or [{] to Clock Adjustment select When receiving an RDS station, the Clock CLOCK ADJ Time (CT) service automatically adjusts the time. ( Page 10) If CT service is not Press [BAND] to set. available, adjust the clock. CQ-DFX602N... - Page 23 : Small clock display is on. : Small clock display is off. q Press [[] or []] to select hour or minute display. w [}] : Put forward hour/minute. [{] : Put back hour/minute. e Press [BAND] to set. (24 hour system) CQ-DFX602N...
-
Page 24: Function Setting-Function Menu
ACC Selection Press [}] or [{] to Default : OFF select Caution: Be sure to select OFF when your car has no ACC position in the ignition switch. Failure to do this could cause the battery to go dead. CQ-DFX602N... - Page 25 ACC position. shown and the panel removal alarm sounds (at Security Function ON setting). ACC OFF ¡When power is turned off, the security message is shown and the panel removal alarm sounds (at Security Function ON setting). CQ-DFX602N...
-
Page 26: Installation
Mounting Collar installer, if possible. In case of difficulty, please consult your nearest authorized Panasonic Service Center. (b) Using the Rubber Cushion (Option) 1. This system is to be used only in a 12-volt, DC battery system (car) with negative ground. - Page 27 (a) or (b) shown on the previous page. Insert Trim Plate t. After installation reconnect the nega- tive (–) battery terminal. Engage the Mounting Springs ( C ) in the mounting holes of the Mounting Mounting Collar q firmly. Hole Mounting Spring CQ-DFX602N...
- Page 28 “ click ” is heard. Insert end in the w Pull out the unit while pushing the plates outer groove. further inside. “ Click ” u Lock Cancel Plate Pull out Remove the unit pulling with both hands. CQ-DFX602N...
-
Page 29: Anti-Theft System
¡Do not touch the contacts on the face plate or on the main unit, since this may result in poor electrical contacts. ¡If dirt or other foreign substances get on the contacts, wipe them off with clean and dry cloth. ¡To avoid damaging the front panel, do not push it down or place objects on it while it is open. CQ-DFX602N... -
Page 30: Electrical Connections
¡For car types A and B, change the wiring of the Antenna red and yellow leads as shown at below. ¡After connection, insulate the portions marked CQ-DFX602N (C) with insulating tape. Note: For cars other than types A and B, please consult your local car shop. - Page 31 (L) (White) CD Changer Input Cord C1 : External Mute Lead (Orange) To the Navi Mute lead of the Panasonic car navigation system or car telephone mute lead. C2 : Dual CD Changer Control Lead (Brown w/white stripe) (Orange)
- Page 32 4 Channel Power Amplifier (CY-M9054EN) and (CX-DP9061/DP9060EN, CX-DP88N, CX-DP801/DP Stereo/Mono Power Amplifier (CY-M7052EN) 803EN or CX-DP601EN) and optional extension cord. ¡For details consult your nearest authorized Panasonic CD text recognizable Dealer. CD changer ¡For connection to a CD changer, refer to the operating...
- Page 33 CD·C-2 RCA Cord (L) (White) (Supplied to Dual CD Changer CA-CD55EN) Selector CA-CD55EN TWIN CD·C-CONT Dual CD Changer Control Lead CQ-DFX602N (Brown w/white stripe) e Power Connector (White) (Red) Power Connector CD text recognizable (Supplied to CX-DP9061EN) CD changer CX-DP9061EN...
-
Page 34: Speaker Connections
Use fuses of the same specified rating (15 A). Using different substitutes or fuses with higher ratings, or connecting the unit directly without a fuse, could cause fire or damage to the unit. If the replacement fuse fails, contact your nearest authorized Panasonic Service Center. CQ-DFX602N... -
Page 35: Maintenance
¡This player cannot play the CD-R/RW discs if the session is not closed. ¡This player cannot play the CD-R/RW discs which contains other than CD-DA data (MP3, Video CD, etc.). ¡Be sure to observe the instructions of CD-R/RW disc for handling it. CQ-DFX602N... -
Page 36: Troubleshooting
Product Service If the suggestions in the charts do not solve the problem, we recommend that you take it to your nearest authorized Panasonic Service Center. The product should be serviced only by a qualified technician. ■ Common... - Page 37 Battery cable is not correctly connected. Preset station is reset. aConnect the battery cable to the terminal that is always live. CQ-DFX602N...
-
Page 38: Installation
Disc is not ejected. aOpen the panel and press [u]. If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Service Center to ask for repairs. The 1st track of a mix mode disc was reproduced. (Mix mode is a format in... -
Page 39: Sound Setting
Battery polarities (+) (–) are reversed. aInsert the battery correctly. Wrong battery. aCheck the battery. Buttons are invalid for operation. Battery has run down. aReplace the battery. Remote control is in the wrong direction. aDirect the remote controller at REMOTE (sensor) on the panel. CQ-DFX602N... - Page 40 If failure persists, press the reset switch on the CD changer. If normal operation is not restored, call the store where you purchased the unit or the nearest Panasonic Service Center to ask for repairs. Return to previous mode The display continues if the power is not turned off automatically.
-
Page 41: Specifications
DA Converter : MASH• 1 bit/4 DAC System Pre-Amp Output Voltage : 2.5 V (CD mode) Error Correction System : Panasonic Super Decoding Pre-Amp Output Impedance : 200 Ω Algorithm Sub-Woofer Output Voltage : 2.5 V Pick-Up Type : Astigma 3-beam... - Page 42 Matsushita Electric Industrial Co., Ltd. Central P.O. Box 288, Osaka 542-8588, Japan Dalian Matsushita Communication Industrial Co., Ltd. Daxinzhaizi, Ganjingzi District, Dalian, China P.C. 116033 YEFM283831 D0202-0 Printed in China...
