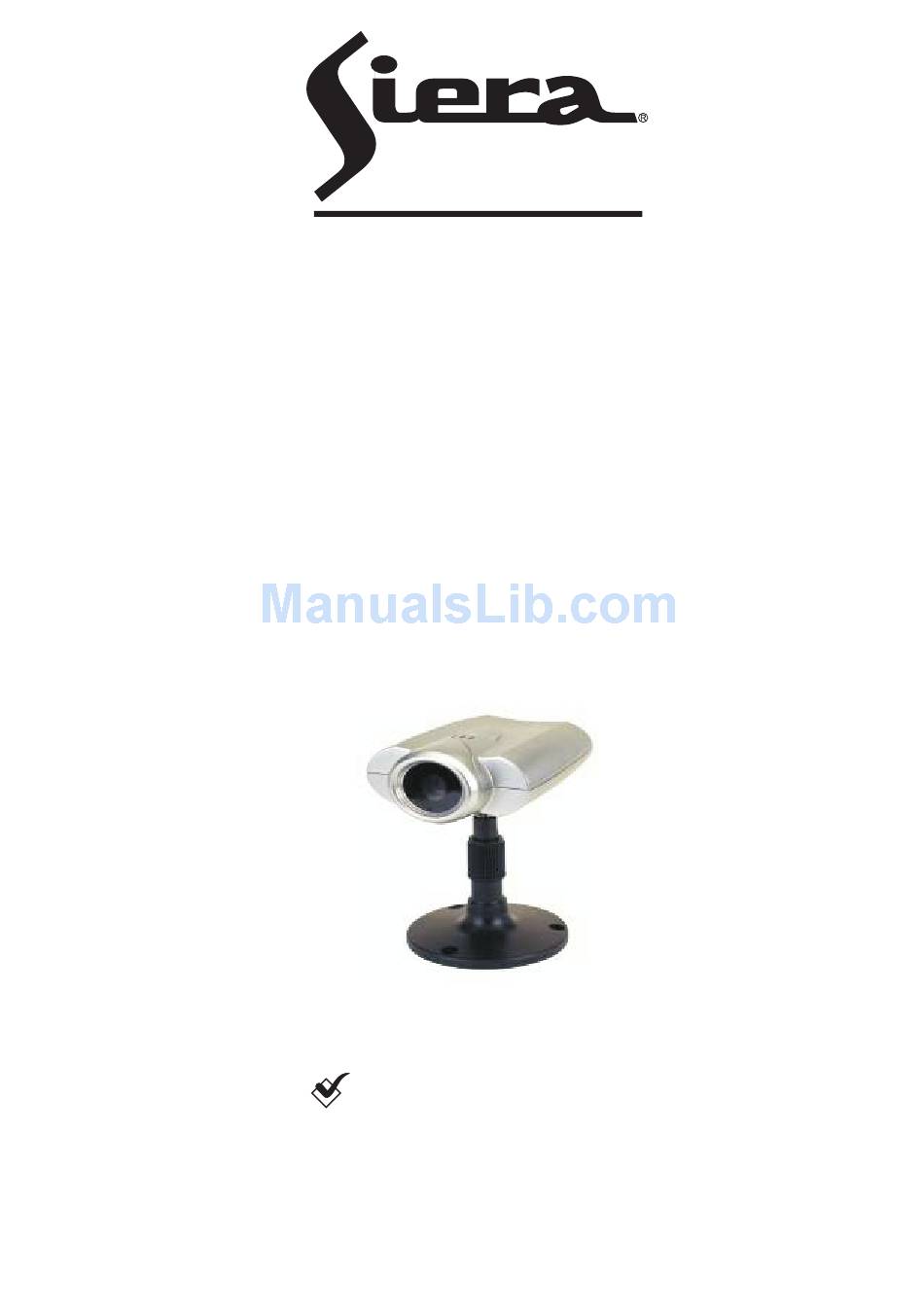

  • Page 1 SIERA ELECTRONICS S O U N D & S E C U R I T Y IP CAMERA INSTRUCTION MANUAL VSP 3001 IP CAMERA www.sieraelectronics.com...
  • Page 2 PREFACE Warning: Please read this manual carefully before using. include Complete package should the following items: AC adaptor 1 pc category 5 cross cable 1 pc I/O terminal cable 1 pc manual instruction 1 pc...
  • Page 3: Table Of Contents

    CONTENTS 1 Introduction 1.1 technology support 1.2 system requirements 2 Panel description 2.1 front view 2.2 rear view 3 Installation 3.1 cautions 3.2 step 4 Illustration for net connection 4.1 onnect with PC directly by category 5 cable 4.2 connect to INTRANET through HUB/Switch 4.3 connect to INTERNET through HUB/Switch/Router 5 IP camera pages 5.1 home page...
  • Page 4: Introduction

    1 INTRODUCTION 1.1 Features Built-in web server, high quality JPEG image can be displayed through Internet browser upon connection with Ethernet. Motion JPEG can be up to 15 frames per second with high resolution 640x480. Through Internet, pan/tilt heads and lens can be conveniently controlled to meet with long-range monitoring.
  • Page 5: Panel Description

    2 PANEL DESCRIPTION 2.1 Front view Power indicator Lens 2.2 Rear view Ethernet indicator Ethernet port I/O connector DC in jack...
  • Page 6: Installation

    INSTALLATION 3.1 Cautions Please read all safety instructions carefully before installation. VSP-3001 IP camera should installed indoors generally. The prolonged exposure under the sunlight or other strong lights shall accelerate the aging of the shell and shorten the using term. Please install the IP camera at safe site.
  • Page 7: Illustration For Net Connection

    4 ILLUSTRATION FOR NET CONNECTION VSP-3001 He common connection programs for network camera: 4.1 Connecting directly to PC(through category 5 cross cable) Cross reticle Users For this program, the page browsing requires the basic configuration as below for PC and IP camera: A Connect correctly with the IP camera as above illustration.
  • Page 8: Connect To Internet Through Hub/Switch/Router

    4.3 Connecting to Internet through HUB/Switch/Router INTERNET Users Link Builder / Switcher Router Users Reticle Record server For this program, not only the basic setup of PC and IP camera but also the setup of Port Forwarding function of Router is required, so the visit for network camera besides Intranet is accessible.
  • Page 9: Ip Camera

    5 IP CAMERA PAGES 5.1 Home page There are 3 options on home page: 1) image browsing (single camera screen/multi camera screen) 2) configuration 3) help 5.2 Video page Click single camera screen mode, following dialogue box appears: In put network password Please input users and password Webserver: 192.
  • Page 10: Setup Page

    Enter user name and password of administrator and general user, then following dialogue box appears: click left operation bars to adjust the image directly: Brightness 17 levels Resolution 640 480 320 240 160 120 Quality favor clarity standard favor motion Image size 5.3 Setup page Click system configuration, following dialogue box will appear if the setup of...
  • Page 11: Time

    Enter user name and password of administrator, then setup page appears. network set up network parameters time set up date and time administrator set up user name and password of administrator Basic setup general user set up user name and password of general user image set up image size multi-camera screen...
  • Page 12: Network

    5.4 Network 4-15 English characters and 2-7 Chinese characters Name of network camera The range is 1-65535(default:80). If there are 2 or more network cameras in 1 LAN and connect to Internet or other Port no net through router, it will be possible to set different port no. for each network camera.
  • Page 13 5.5 Time item description settings remarks 1.current date Display current date and and time time of IP camera. 2.set up date Adjust internal clock and time Take the internal clock (1) have the of network camera same time with the same time with PC of the PC.
  • Page 14: General User

    5.6 Administrator [Authentication] [None]: anyone can access all pages. [administrator only]:for setup page [administrator]for setup page and [general user] for viewer page [user name and password]:user name should be 4-15 English words or 2-7 Chinese characters. Password should be 4-15 English words or numbers. User name and password should not be blank, [”], ['], [#], [&], [%], [=], [+], [ ], [<], [>], [ ].
  • Page 15: Image Settings

    5.8 Image settings [brightness adjust]:17 levels, control the function for brightness adjustment. [Header display]: display the name of network camera and time on image or not. [Power line frequency]: 50HZ and 60HZ optional. Select correct power frequency and prevent fluorescent light interfering the image. [Power indicator]: indicate the network camera is power on or not.
  • Page 16: Alarm Trigger

    5.10 Alarm trigger The alarm mode means the transmission of pre and/or post alarm images held in the buffer to specified address. Alarm: select enable to confirm the alarm mode function. [Alarm occur condition]: the alarm is subject to the rising or falling of voltage detected by the I/O connector.
  • Page 17 [Image setting]: select the parameters for the image which shall be transferred. Image resolution: 640 480 / 320 240 / 160 120. Image quality: favor clarity / standard / favor motion [Image buffer setting]: the images held in the buffer pre and/or post alarm in short-term. Select the image buffer frequency and the number of images which shall be transferred into the buffer pre and/or post alarm.
  • Page 18: Transfer Image In The Timer Mode

    5.11 Transfer image in the timer mode Timer mode means sending images to specified address when the clock reaches the pre-assigned time. [Timer]: select the function of transferring image in the timer mode or not. [Timer setting]: 8 timers is optional. [Image setting]: select the parameters of images which shall be sent when it reaches the pre-assigned time.
  • Page 19: Background Recording Function

    5.12 Background recording function Background recording means sending images to background FTP server for recording at specified intervals. [Record]: select the background recording function or not. [Image setting]: select the parameters of the image recorded in background. Resolution: 640 480 / 320 240 / 160 120. Image quality: favor clarity/stand/ favor motion [image buffer frequency setting]: select the frequency for sending images for recording.
  • Page 20: Recording Function

    6 RECORDING FUNCTION 6.1 Activex control recording ActiveX control recording function is for IE browser only, and can not for Netscape Navigator browser. Please right-click the mouse at the image and select the recording setting in the option box appeared when browsing. [File path]: select the folder in which JPEG files saved.
  • Page 21: O Description

    I/O DESCRIPTION 7.1 About I/O The I/O connector controls input and output of signal, and it includes 1 I/O input terminal, 1 I/O output terminal and 1 RS-232 converter or half duplex RS-485 port. Port description: Port Name Description AGND analog ground 485B/RXD 485A/TXD...
  • Page 22: Appendix

    8 APPENDIX Appendix 1: Reset to factory default In some case, we need reset the server to factory default which can operate on Setup Page. If the user can not login the Setup Page(such as forgetting the user name and the password), it will be available for resetting to factory default through ARP and PING to re-assign the IP address.
  • Page 23 clear ARP: enter<arp d>. Set up ARP: enter<arp s 192.168.1.61 00-0c-e8-00-00-01>. PING: enter<ping t 192.168.1.61>. Turn off the network camera. Turn on the network camera again. Enter Ctrl-c after Pinging, and enter <arp-d> to clear ARP statistics. Enter <exit> to quit the DOS. Display as below: C:\>arp -d C:\>arp -s 192.168.1.61 00-0c-e8-00-00-01...
  • Page 24: Troubleshooting

    Appendix 2: Troubleshooting Remedy Cause Problem can not Please check the VSP-3001 network camera, the Hub, the the problem of Ethernet Switch and Ethernet indicator. Check their connection if access the connection there is any abnormity. network Disconnect the Ethernet connection, perform PING. The conflict of IP camera via success of PING shows a conflict for IP address, so re-assign...
  • Page 25 Appendix 3: Specification CPU: 32 Bits RISC ROM: 2M Bytes Flash ROM RAM: 16M Bytes SDRAM Hardware 1 RJ-45 for Ethernet 1 I/O input terminal and 1 I/O output terminal mage size 100 levels are optional Image Brightness Resolution NTSC/PAL: 640x480, 320x240, 160x120 Ethernet(10 Base-T) Ethernet port TCP/UDP/IP, ARP, ICMP, HTTP, TFTP, Telnet, SMTP...
