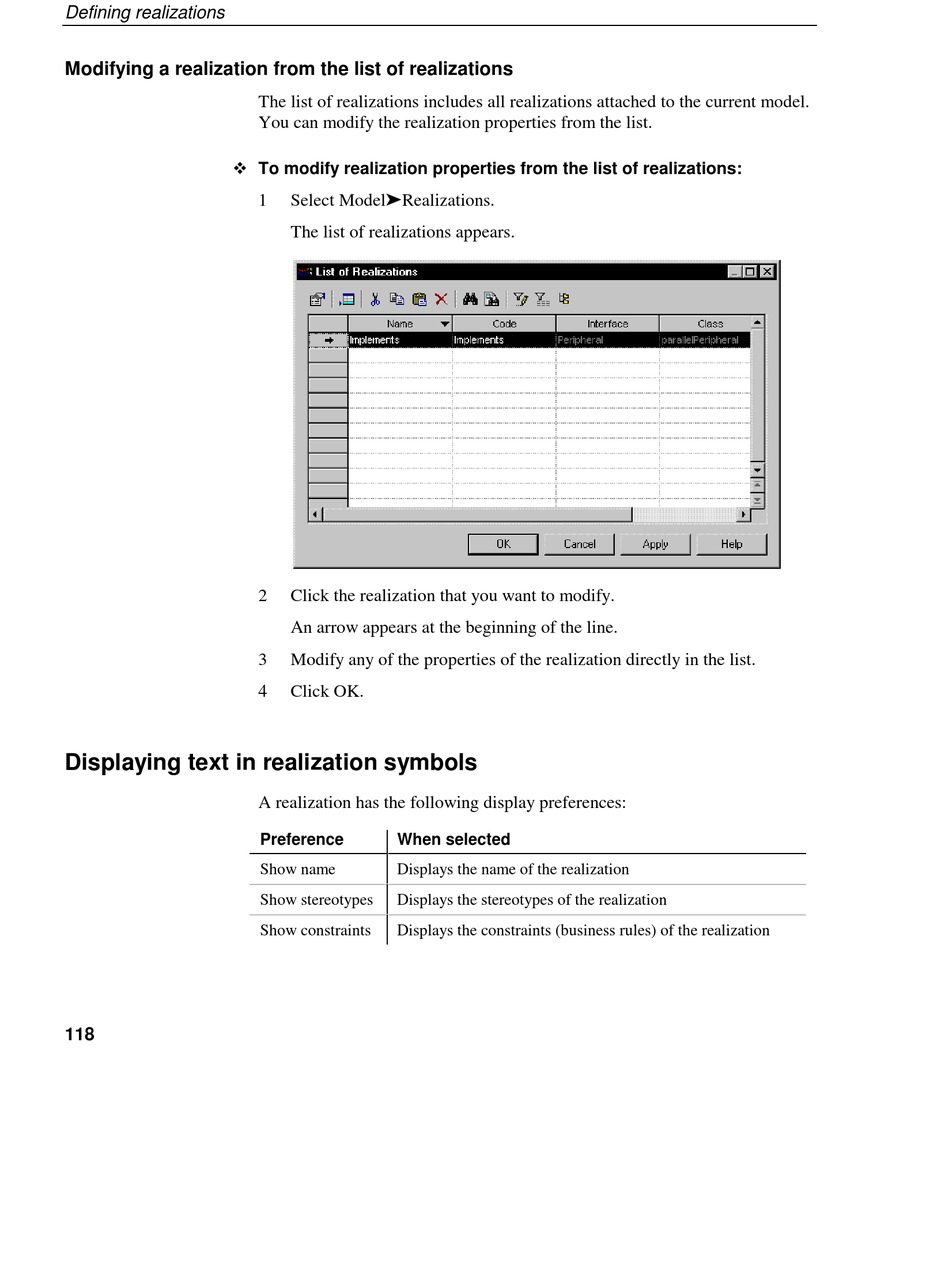

Defining realizations
Modifying a realization from the list of realizations
v To modify realization properties from the list of realizations:

Displaying text in realization symbols

118
The list of realizations includes all realizations attached to the current model.
You can modify the realization properties from the list.
1 Select Model Realizations.
The list of realizations appears.
2 Click the realization that you want to modify.
An arrow appears at the beginning of the line.
3 Modify any of the properties of the realization directly in the list.
4 Click OK.
A realization has the following display preferences:
Preference When selected
Show name Displays the name of the realization
Show stereotypes Displays the stereotypes of the realization
Show constraints Displays the constraints (business rules) of the realization
