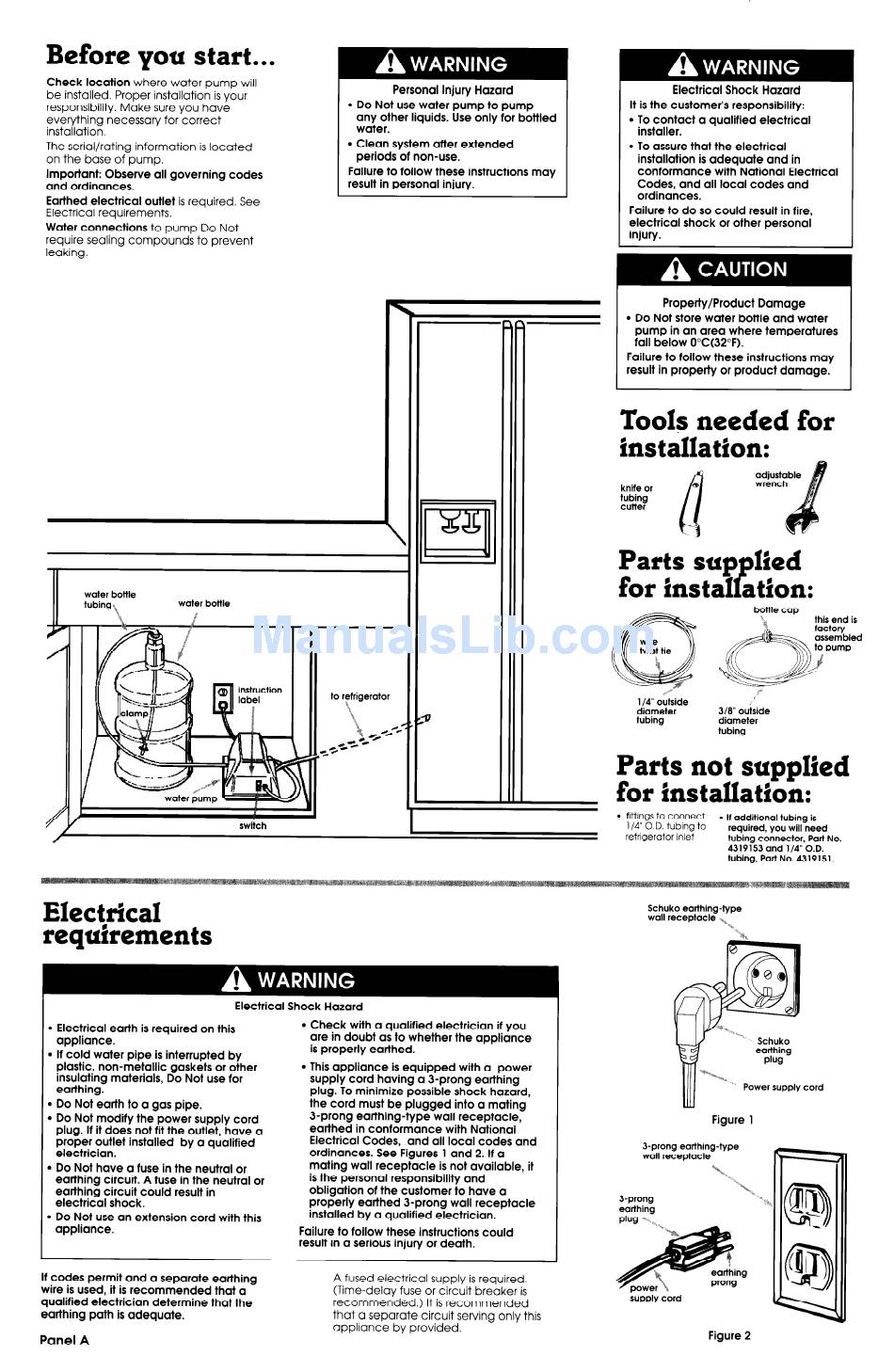

Before you start...
Check
location
where water pump will
be installed.
Proper installation
is your
responsibility.
Make sure you have
everything
necessary
for correct
installation,
Personal Injury Hazard
l
Do Not use water pump to pump
any other liquids.
Use only for bottled
water.
The serial/rating
information
is located
. Clean system after extended
on the base of pump.
periods of non-use.
Important:
Observe
all governing
codes
Failure to follow these instructions
may
and ordinances.
result in personal
injury.
Earthed electrical
outlet is required.
See
Electrical
requirements,
Water connections
to pump Do Not
require sealing compounds
to prevent
leaking.
Electrical
Shock Hazard
It is the customer's
responsibility:
l
To contact
a qualified
electrical
installer.
l
To assure that the electrical
installation
is adequate
and in
conformance
with National
Electrical
Codes, and all local codes and
ordinances.
Failure to do so could
result in fire,
electrical
shock or other personal
injury.
Property/Product
Damage
l
Do Not store water bottle and water
pump in an area where temperatures
fall below O°C(320F).
Failure to follow these instructions
may
result in property
or product
damage.
Tools needed for
installation:
knife or
6
tubing
cutter
a
.
Parts sup lied
for hstal P atgon:
water bottle
tubing%
water bottle
bottle cap
4. "83
this end is
to rffrigerator
"$
",
a
t.
-.z#
l/4" outside
diameter
tubing
3/S" outside
diameter
tubing
P
Parts not supplied
for installatiron:
I
switch
l
fittings to connect
l/4" 0. D. tubing
to
l
If additional
tubing is
refrigerator
inlet
required,
you will need
tubing connector,
Pat-l No.
4319153 and l/4" O.D.
tubing,
Part No. 4319151.
Electrical
requirements
Schuko earthing-type
wall receptacle
t%
""a,
Electrical
Shock Hazard
. Electrical
earth is required
on this
appliance.
. If cold water pipe is interrupted
by
plastic,
non-metallic
gaskets or other
insulating
materials,
Do Not use for
earthing.
. Do Not earth to a gas pipe.
l
Do Not modify the power supply
cord
plug. If it does not fit the outlet, have a
proper outlet installed
by a qualified
electrician.
l
Do Not have a fuse in the neutral or
earthing
circuit.
A fuse in the neutral
or
earthing
circuit
could
result in
electrical
shock.
l
Do Not use an extension
cord with this
appliance.
l
Check
with a qualified
electrician
if you
are in doubt as to whether
the appliance
is properly
earthed.
l
This appliance
is equipped
with a power
supply cord having
a 3-prong
earthing
plug. To minimize
possible
shock hazard,
the cord must be plugged
into a mating
3-prong
earthing-type
wall receptacle,
earthed
in conformance
with National
Electrical
Codes,
and all local codes and
ordinances.
See Figures 1 and 2. If a
mating
wall receptacle
is not available,
it
is the personal
responsibility
and
obligation
of the customer
to have a
properly
earthed
3-prong
wall receptacle
installed
by a qualified
electrician.
Failure to follow these instructions
could
result in a serious injury or death.
Schuko
earthing
plug
Ngliqdg
*' "
Power supply cord
uu
Figure
3-prong
earthing-type
wall receptacle
\
-%
1
3-prong
earthing
If codes permit and a separate
earthing
wire is used, it is recommended
that a
qualified
electrician
determine
that the
earthing
path is adequate.
A fused electrical
supply is required.
(Time-delay
fuse or circuit
breaker
is
recommended.)
It is recommended
that a separate
circuit serving only this
appliance
by provided.
Panel A
supply
cord
Figure 2
