Summary of Contents for Zephyr AK8200

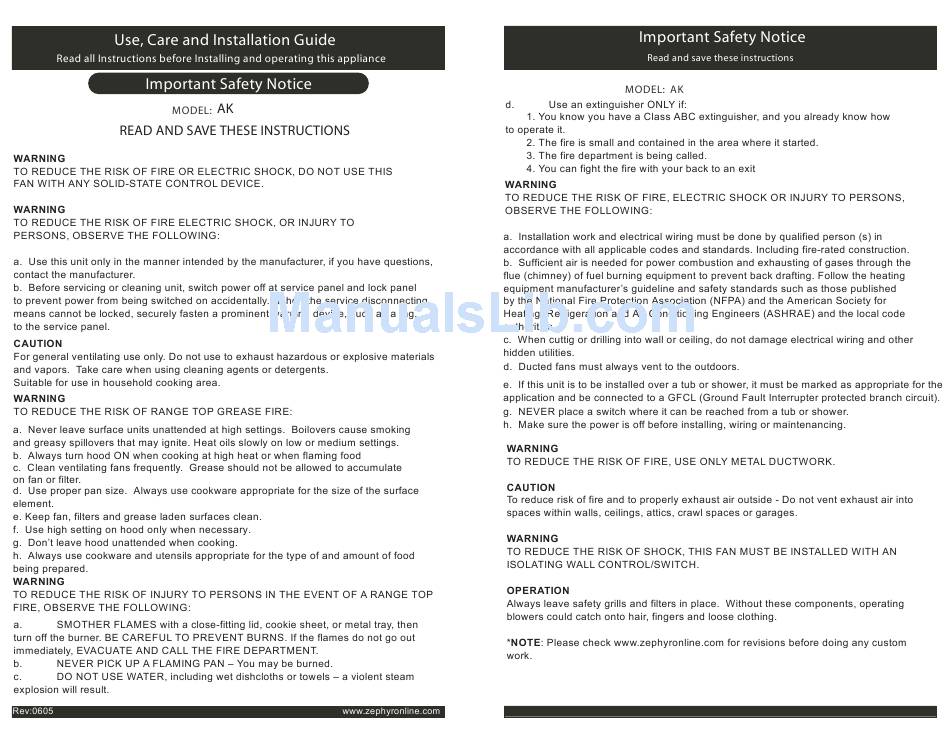

- Page 1 8100, AK8200 8100 , AK8200...
- Page 3 INSTALLATION INSTALLATION DUCTING SPECIFICATIONS Tornado 1 unit (AK 8100 SS) WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling,attics or garages. All exhaust must be ducted to the outside. 26-5/8" Use Metal ductwork only. 11-1/4"...
- Page 4 INSTALLATION INSTALLATION SPECIFICATIONS INSTALLATION Mounting the Range Hood Tornado 2 unit (AK 8200 SS) 1. Determine and mark the mounting position of the range hood with a pencil. Ductwork connection 33-3/8" 2. Cut out the opening where the range hood will be installed. 16-3/16"...
- Page 5 CONTROLS & FEATURES MAINTENANCE CONTROLS & FEATURES CLEANING Surface Maintenance: Speed Selection Lights On/Off Clean periodically with hot soapy water and clean cotton cloth. Do not use corrosive or abrasive detergent (e.g. comet powder scrub, EZ-Off oven cleaner), or steel wool/scoring pads which will scratch and damage surface.
- Page 6 Damaged because of improper connection with equipment of other manufacturers. Repaired or modified by anyone other than Zephyr's Authorized Agents. What is Not Covered: Consumable parts such as light bulbs, filters, and fuses.
- Page 7 TO OBTAIN SERVICE UNDER WARRANTY or any Service Related Questions, please call: 1-888-880-8368 Have your product proof of purchase with date ready for warranty issues. Or write to: Zephyr Corporation Service and Warranty Department 395 Mendell Street San Francisco, CA 94124...
