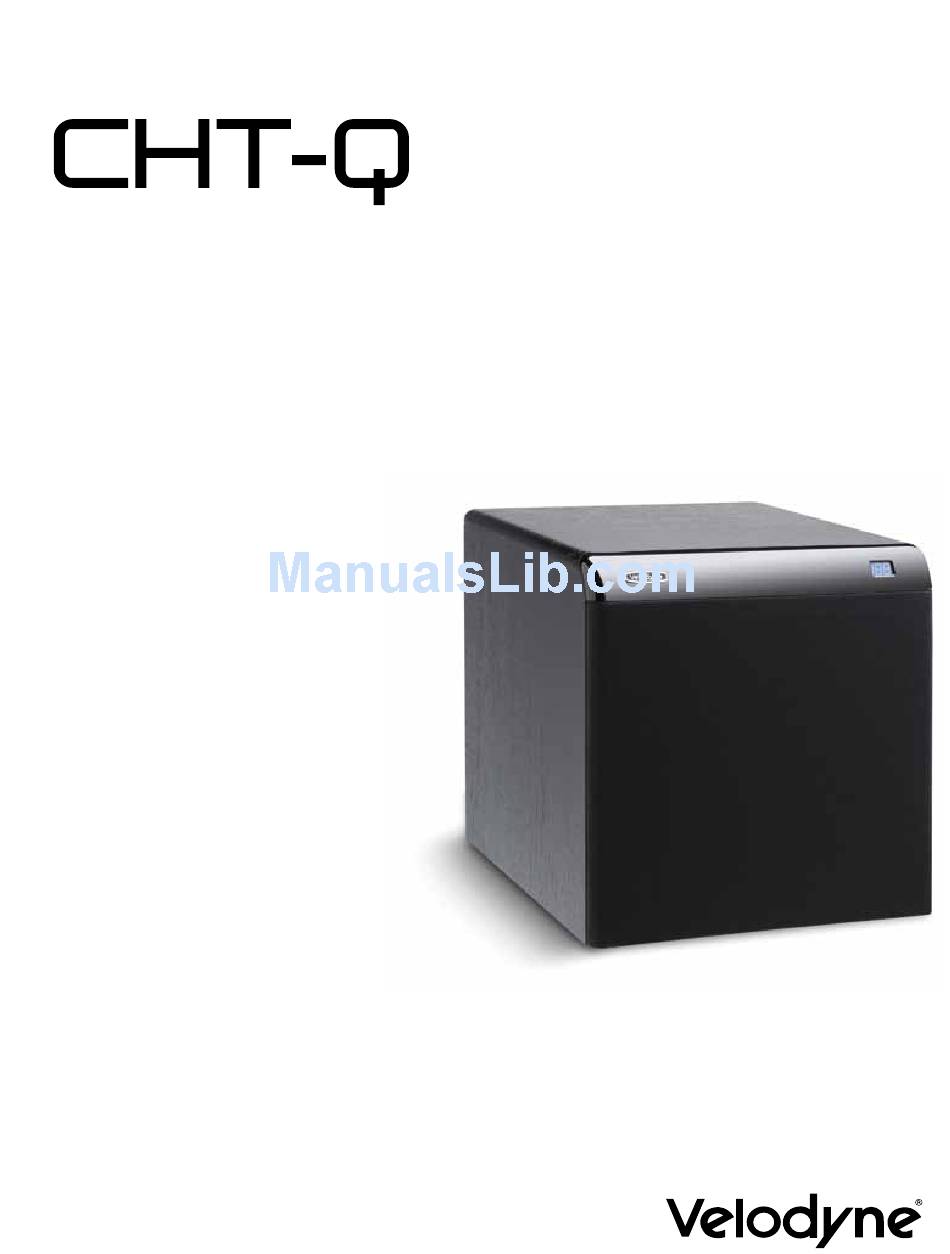

- Page 1 USER’S MANUAL SERIES Remote Controlled Home Theater Subwoofers CHT- 8Q CHT-10Q CHT-12Q CHT-15Q...
- Page 2 Enjoy. Thank you for choosing a Velodyne. Our passion for high performance, low-distortion bass is the driving force behind our worldwide reputation in audio and technical innovation. We are pleased to bring the Velodyne sound experience to your home.
- Page 3 CHT-Q Series User’s Manual - i...
-
Page 5: Table Of Contents
Velodyne Products ........ -
Page 7: Congratulations
To prevent fire or shock hazard, do not expose this product to rain or moisture. To avoid electrical shock, do not open the speaker enclosure or amp chassis cover. Please observe all warnings on the equipment itself. There are no user serviceable parts inside. Please refer all service questions to your authorized Velodyne dealer. Prior to Installation: Please unpack the system carefully. -
Page 8: Prepare For Installation
Your Velodyne CHT-Q subwoofer is NOT magnetically shielded. Should you find it necessary to use it with an older CRT monitor or TV, keep it at least two feet from the monitor. Experiment for correct distance by minimizing distortion of the picture and colors. -
Page 9: Installation
If your main speakers are smaller with limited low frequency output, you may wish to choose a higher frequency (such as 100 - 120 Hz) than you would with larger speakers which have greater low frequency output. The default crossover setting is 80 Hz. With larger speakers, you may want to set this even lower, for example 70 Hz. Phase Adjustment - 0°/90°/180°/270° This control allows you to change the phase of the subwoofer’s output signal to correct for any possible mismatch and resulting cancellation between the subwoofer and your main speakers/amplifier. To adjust, simply listen to www.velodyne.com CHT-Q Series User’s Manual - 3... - Page 10 If the Sub-Out channel signal level from your receiver is too weak, this feature will not operate properly and shut the subwoofer off while you are listening to it. To correct this, see the VOLUME CONTROL section on previous page. 4 - CHT-Q Series User’s Manual www.velodyne.com...
-
Page 11: Front Panel
Following are brief descriptions of the controls and connections described in Figure 1. (1) REMOTE CONTROL SENSOR IR sensor window receives a signal from the included remote control. (2) LED READOUT 2.5 digit, eight segment LED readout displays volume, phase and Auto-EQ. (3) MIC JACK Connector for the supplied microphone to use during the Auto-EQ process. www.velodyne.com CHT-Q Series User’s Manual - 5... -
Page 12: Rear Panel Connections
(1) SPEAKER LEVEL INPUT Terminals Connect these input terminals to the speaker output terminals of your amplifier or receiver. If you use this method of connection, when you go to the receiver speaker set up menu, make sure you select the large speaker option. 6 - CHT-Q Series User’s Manual www.velodyne.com... - Page 13 Use this knob to select the frequency above which you wish to cut off the signal to the subwoofer. when the knob is turned all the way to the left, the Subwoofer direct feature is invoked and the subwoofer plays all frequencies up to 120 Hz. Rear Panel Connections — Detailed Explanation Your new subwoofer is equipped with both speaker-level and line-level inputs. Use the RCA/Phono type “INPUT” jacks when connecting your subwoofer to a pre-amp, signal processor, or line-level crossover. The “SPEAKER LEVEL INPUT” jacks connect directly to the speaker outputs of an integrated amplifier or receiver. Your amplifier section will notice no additional loading effects when you use these inputs because of their high impedance. Note: Do not use both the RCA/Phono “INPUT” connections and “SPEAKER LEVEL INPUT” connections simultaneously. www.velodyne.com CHT-Q Series User’s Manual - 7...
- Page 14 If your main speakers are smaller units with limited low frequency output, you may wish to choose a higher frequency (such as 100-120 Hz) than you would with larger speakers which have greater low frequency output. With larger speakers, you might start with this control set lower, such as 70 Hz. Subwoofer Direct Subwoofer Direct is a setting on the low-pass crossover knob and will allow frequencies up to 120 Hz into the subwoofer. See below for a more detailed explanation of this feature Figure 3. CHT-15Q Rear Panel Connections 8 - CHT-Q Series User’s Manual www.velodyne.com...
-
Page 15: Crossovers
CROSSOVERS Receiver/Processor Subwoofer Outputs The Velodyne subwoofer is designed to operate using the full range audio signal for input when using the built- in crossover. Many home theater processors/receivers (Dolby Digital™, DTS™, THX™) have a “subwoofer out” jack (sometimes labeled “LFE”) that is internally filtered, settable at the receiver/processor, and designed to be used with a powered subwoofer. In some installations, it may be beneficial to use BOTH the Velodyne crossover and the receiver/processor crossover, resulting in a steeper ultimate crossover slope. In some rare cases, combining both an external crossover and the one internal to the subwoofer may result in low output and increased noise. - Page 16 SUBWOOFER OUTPUT JACK FRONT AMPLIFIER REAR Figure 4. Line-Level Subwoofer Connection Diagram 10 - CHT-Q Series User’s Manual www.velodyne.com...
- Page 17 Figure 5. Line-Level Subwoofer Connection Diagram www.velodyne.com CHT-Q Series User’s Manual - 11...
-
Page 18: Interconnect Cables
INTERCONNECT CABLES when installing your new Velodyne subwoofer using the line level connections, you should always use shielded phono cables. There are many high quality cables available today. It is recommended that you keep the length of cable as short as possible to avoid any potential noise problems. - Page 19 • PRESETS — T here a re f our l istening p resets, c onsisting o f M ovies, R &B – R ock, J azz – C lassical, a nd G ames. The presets provide the following characteristics for bass reproduction: Movies: Maximum output and impact for explosions and other action adventure movie content. R&B – Rock: Provides the driving bass found in today’s rock music. Jazz – Classical: T he tightest, cleanest, lowest distortion bass. The flattest frequency response of the four presets. Games: Maximum loudness available for the impact of video games. www.velodyne.com CHT-Q Series User’s Manual - 13...
- Page 20 The following table shows the settings for the various presets: Subsonic Filter Volume Preset Frequency Frequency Level Differential movies 25 Hz 37 Hz +3 dB +5 dB R&B - Rock 28 Hz 50 Hz +3 dB +1 dB Jazz - Classical (Reference) 15 Hz Games 34 Hz +3 dB +4 dB 14 - CHT-Q Series User’s Manual www.velodyne.com...
-
Page 21: Restoring Defaults
The unit’s volume is reset to level 30 out of 80. CARE OF YOUR SUBWOOFER your Velodyne subwoofer does not require any regular maintenance. normal dusting or cleaning of the surface for appearance purposes is all that is required. we suggest you avoid any harsh detergents or chemicals when cleaning the cabinet. Abrasives, detergents, or cleaning solutions may damage the finish on the cabinet. We... -
Page 22: Troubleshooting And Service
8. Is the remote non-responsive? we recommend replacing the batteries in the remote. If the protection circuitry is active, the unit may cycle on and off until operating parameters return to normal. Under more serious conditions, the unit may shut off completely. Normal operation should return upon cooling, but you may be required to turn the power off and then on again to reset the unit. The following conditions require service by a qualified technician: 1. The power cord has become damaged 2. The unit does not appear to operate normally or exhibits a marked change in performance 3. The unit has been exposed to water 4. Some part of the chassis or circuitry is physically damaged Thank You for Purchasing a Velodyne CHT-Q Series Subwoofer Product! 16 - CHT-Q Series User’s Manual www.velodyne.com... -
Page 23: Specifications
Five years (drivers) Five years (drivers) Five years (drivers) Shipping Weight (approx.) 44 lbs. (20 Kg) 55 lbs. (25 Kg) 61 lbs. (28 Kg) 75 lbs. (34 Kg) Specifications are subject to change without notice. www.velodyne.com CHT-Q Series User’s Manual - 17... -
Page 24: Velodyne Products
VELODYNE PRODUCTS 115 -120V Impact Series SMS™-1 Series ® dd-10 Impact - mini dd-12 Impact -10 SubContractor™ Series dd-15 Impact -12 SC-1250 dd-18 SC-10 digital drive 1812 Signature edition microVee ™ SC-12 SC-15 deQ-R Series SC-Iw miniVee ® SC-IF/IC deQ-8R SC-600 Amp... -
Page 25: For Your Records
The warranty information indicated above refers to products purchased in the United States and Canada only. If you purchased your product outside of the United States or Canada, please consult your local authorized Velodyne dealer for warranty registration and information. www.velodyne.com... - Page 26 SERIES 63CHT-QR_RevC_MAY2012 Velodyne Acoustics, Inc. 408.465.2800 voice Service e-mail: service@velodyne.com 345 Digital Drive 408.779.9227 fax Product e-mail: help@velodyne.com Morgan Hill, CA 95037 408.779.9208 service fax Technical e-mail: techhelp@velodyne.com www.velodyne.com...
