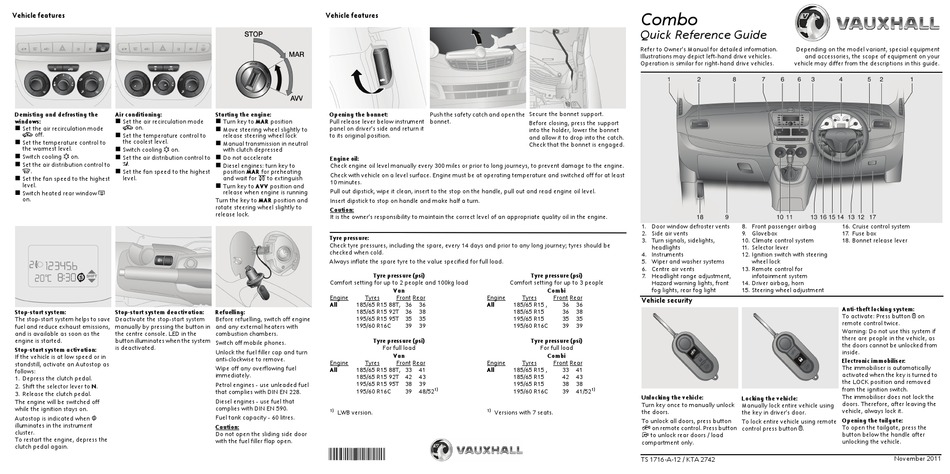

Vauxhall Combo Quick Reference Manual

Vehicle features
Demisting and defrosting the Air conditioning:
windows: Set the air recirculation mode
4 on.
Set the air recirculation mode
4 off.
Set the temperature control to
the coolest level.
Set the temperature control to
the warmest level.
Switch cooling n on.
Switch cooling n on.
Set the air distribution control to
M.
Set the air distribution control to
V.
Set the fan speed to the highest
level.
Set the fan speed to the highest
level.
Switch heated rear window Ü
on.
Stop-start system: Stop-start system deactivation:
The stop-start system helps to save Deactivate the stop-start system
fuel and reduce exhaust emissions, manually by pressing the button in
and is available as soon as the the centre console. LED in the
engine is started. button illuminates when the system
is deactivated.
Stop-start system activation:
If the vehicle is at low speed or in
standstill, activate an Autostop as
follows:
1. Depress the clutch pedal.
2. Shift the selector lever to N.
3. Release the clutch pedal.
The engine will be switched off
while the ignition stays on.
Autostop is indicated when ^
illuminates in the instrument
cluster.
To restart the engine, depress the
clutch pedal again.
Vehicle features
Starting the engine: Opening the bonnet:
Turn key to MAR position Pull release lever below instrument
panel on driver's side and return it
Move steering wheel slightly to
release steering wheel lock to its original position.
Manual transmission in neutral
with clutch depressed
Do not accelerate
Engine oil:
Diesel engines: turn key to Check engine oil level manually every 300 miles or prior to long journeys, to prevent damage to the engine.
position MAR for preheating
Check with vehicle on a level surface. Engine must be at operating temperature and switched off for at least
and wait for ! to extinguish
10 minutes.
Turn key to AVV position and
Pull out dipstick, wipe it clean, insert to the stop on the handle, pull out and read engine oil level.
release when engine is running
Turn the key to MAR position and
Insert dipstick to stop on handle and make half a turn.
rotate steering wheel slightly to
Caution:
release lock.
It is the owner's responsibility to maintain the correct level of an appropriate quality oil in the engine.
Tyre pressure:
Check tyre pressures, including the spare, every 14 days and prior to any long journey; tyres should be
checked when cold.
Always inflate the spare tyre to the value specified for full load.
Tyre pressure (psi)
Comfort setting for up to 2 people and 100kg load
Van
Engine Tyres
All 185/65 R15 88T, 36
185/65 R15 92T 36
Refuelling:
195/65 R15 95T 35
Before refuelling, switch off engine
195/60 R16C
and any external heaters with
combustion chambers.
Tyre pressure (psi)
Switch off mobile phones.
For full load
Unlock the fuel filler cap and turn
Van
anti-clockwise to remove.
Engine Tyres
Wipe off any overflowing fuel
All 185/65 R15 88T, 33
immediately.
185/65 R15 92T 42
195/65 R15 95T 38
Petrol engines - use unleaded fuel
195/60 R16C
that complies with DIN EN 228.
Diesel engines - use fuel that
complies with DIN EN 590.
1)
LWB version.
Fuel tank capacity - 60 litres.
Caution:
Do not open the sliding side door
with the fuel filler flap open.
*KTA-2742*
Push the safety catch and open the Secure the bonnet support.
bonnet.
Before closing, press the support
into the holder, lower the bonnet
and allow it to drop into the catch.
Check that the bonnet is engaged.
Tyre pressure (psi)
Comfort setting for up to 3 people
Combi
Front Rear Engine Tyres Front Rear
36 All 185/65 R15 , 36 36
38 185/65 R15 36 38
35 195/65 R15 35 35
39 39 195/60 R16C 39 39
Tyre pressure (psi)
For full load
Combi
Front Rear Engine Tyres Front Rear
41 All 185/65 R15 , 33 41
43 185/65 R15 42 43
39 195/65 R15 38 38
1)
39 48/52 195/60 R16C 39 41/52
1)
Versions with 7 seats.
Combo

Quick Reference Guide

Refer to Owner's Manual for detailed information.
Illustrations may depict left-hand drive vehicles.
Operation is similar for right-hand drive vehicles.
1. Door window defroster vents 8. Front passenger airbag
2. Side air vents 9. Glovebox
3. Turn signals, sidelights, 10. Climate control system
headlights 11. Selector lever
4. Instruments 12. Ignition switch with steering
5. Wiper and washer systems wheel lock
6. Centre air vents 13. Remote control for
7. Headlight range adjustment, infotainment system
Hazard warning lights, front 14. Driver airbag, horn
fog lights, rear fog light 15. Steering wheel adjustment
Vehicle security
1)
Unlocking the vehicle: Locking the vehicle:
Turn key once to manually unlock Manually lock entire vehicle using
the doors.
the key in driver's door.
To unlock all doors, press button
To lock entire vehicle using remote
Ä on remote control. Press button
control press button e.
Å to unlock rear doors / load
compartment only.
TS 1716-A-12 / KTA 2742
Depending on the model variant, special equipment
and accessories, the scope of equipment on your
vehicle may differ from the descriptions in this guide.
16. Cruise control system
17. Fuse box
18. Bonnet release lever
Anti-theft locking system:
To activate: Press button e on
remote control twice.
Warning: Do not use this system if
there are people in the vehicle, as
the doors cannot be unlocked from
inside.
Electronic immobiliser:
The immobiliser is automatically
activated when the key is turned to
the LOCK position and removed
from the ignition switch.
The immobiliser does not lock the
doors. Therefore, after leaving the
vehicle, always lock it.
Opening the tailgate:
To open the tailgate, press the
button below the handle after
unlocking the vehicle.
November 2011
