Front, Rear and Bottom Panel Descriptions

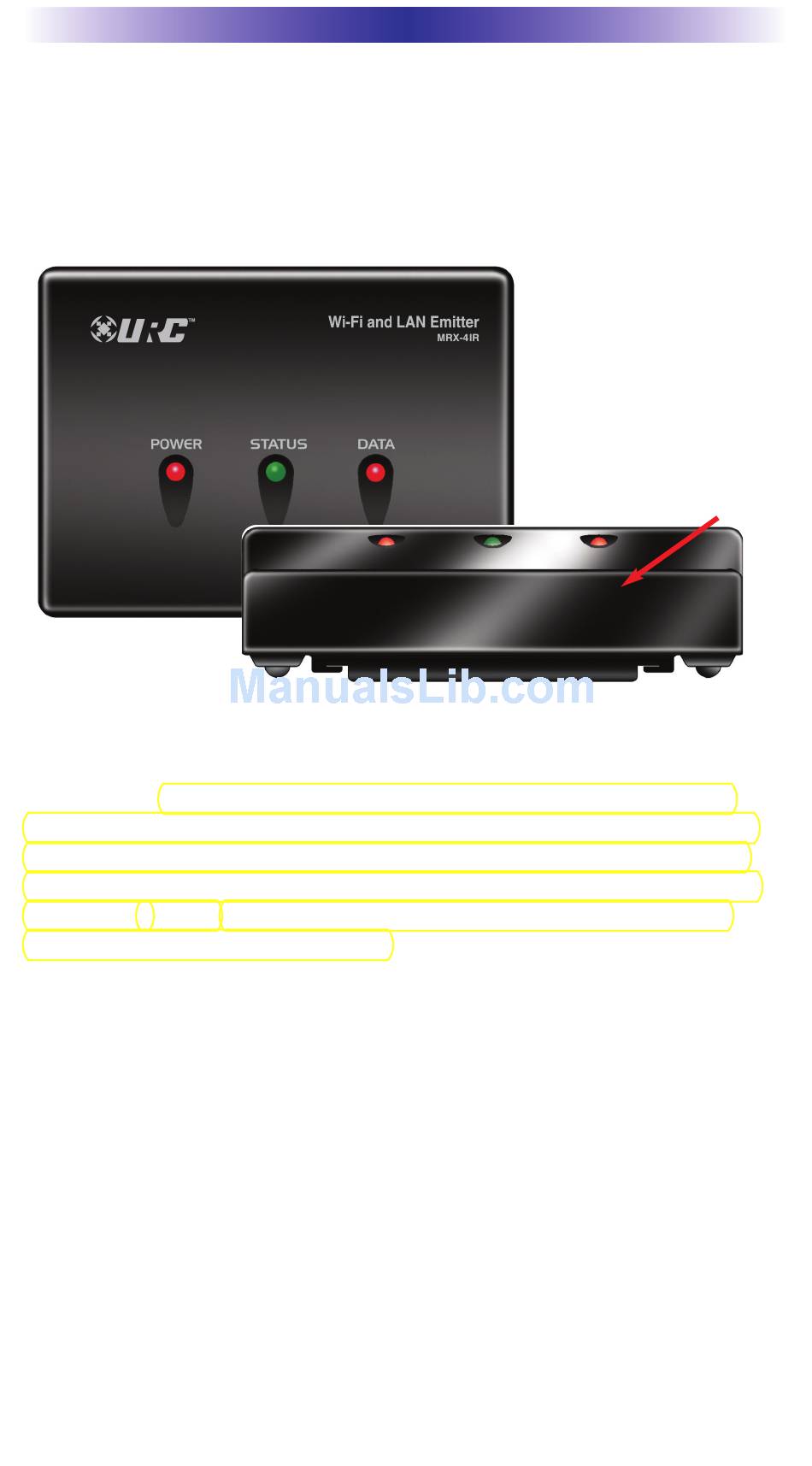

Front Panel
The front panel consists of 3 indicator lights and an IR Blaster.
IR Blaster
Power LED: The Power LED illuminates when the unit is powered.
Status LED: When the MRX-4IR powers up, both the Status and
Data LEDs blink. When a network connection is made, the Status
LED color will vary depending upon its "connected state": good
signal strength is represented by "Green", poor signal strength by
"Orange" (which is only present when a wireless connection is
used) and no connection is OFF.
Data LED: The Data LED flashes as the MRX-4IR transmits IR data.
IR Blaster: The front IR Blaster sends IR signals to one or more
components placed in direct line of sight.
