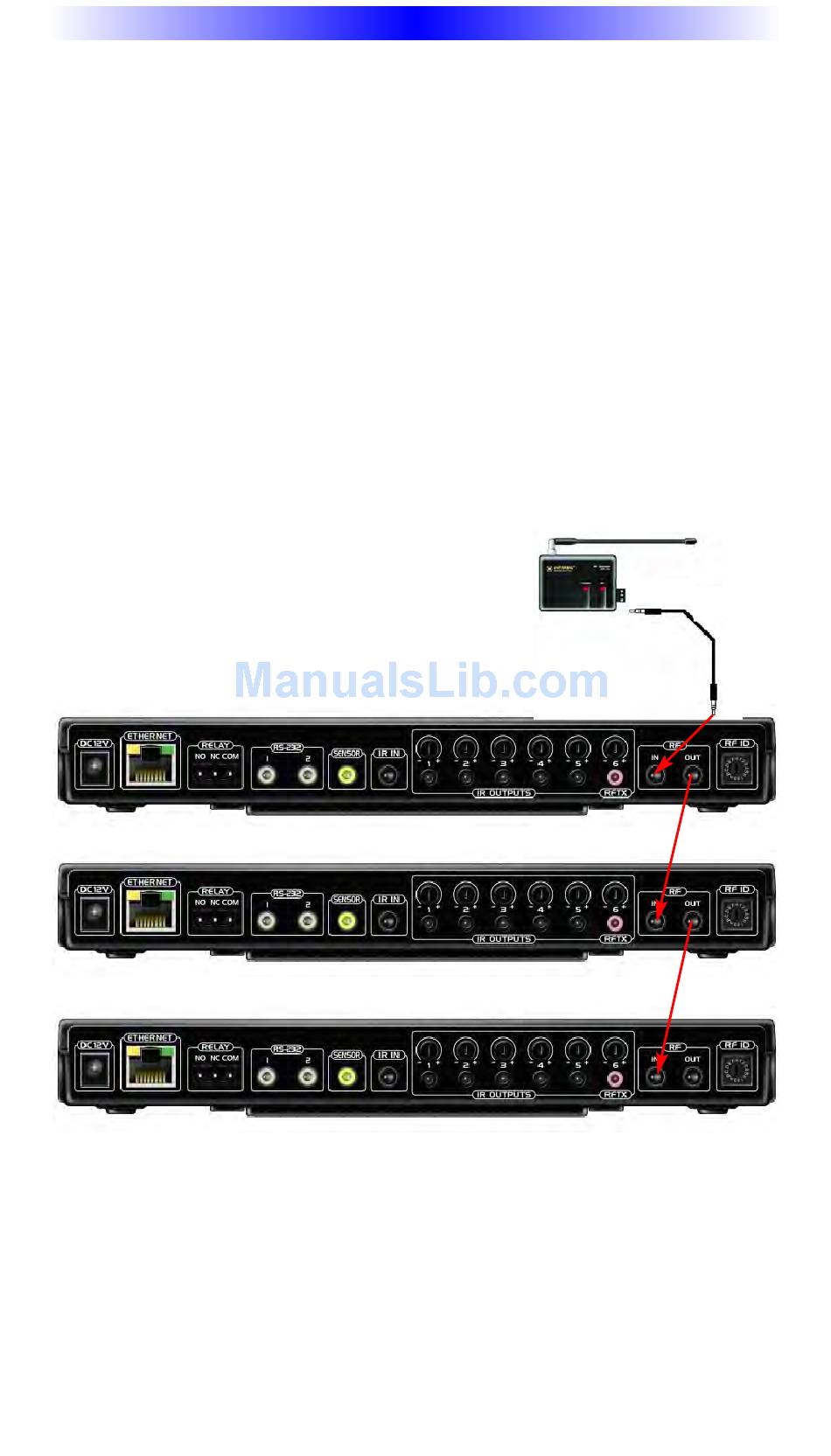

Connecting multiple MRX-1's via RF Out

Multiple MRX-1 units can be daisy chained to control an unlimited
amount of components in a home theater equipment rack. Follow
the procedure below to daisy chain two or more MRX-1 units.
1. Connect the RFX-250 to the RF In 3.5 mm jack of the first MRX-1
unit.
2. Use another 3.5mm cable included with each MRX-1 to connect
to RF Out of the first MRX-1 to RF In of the second.
3. Repeat Step 2 for multiple MRX-1 units.
RF IN: using the included 10' three circuit mini-mini plug cable.
POLARITY: Tip=+5VDC; RING=data; SLEEVE=GND.
RF Out:TIP=data; Sleeve=GND.
Page 20
