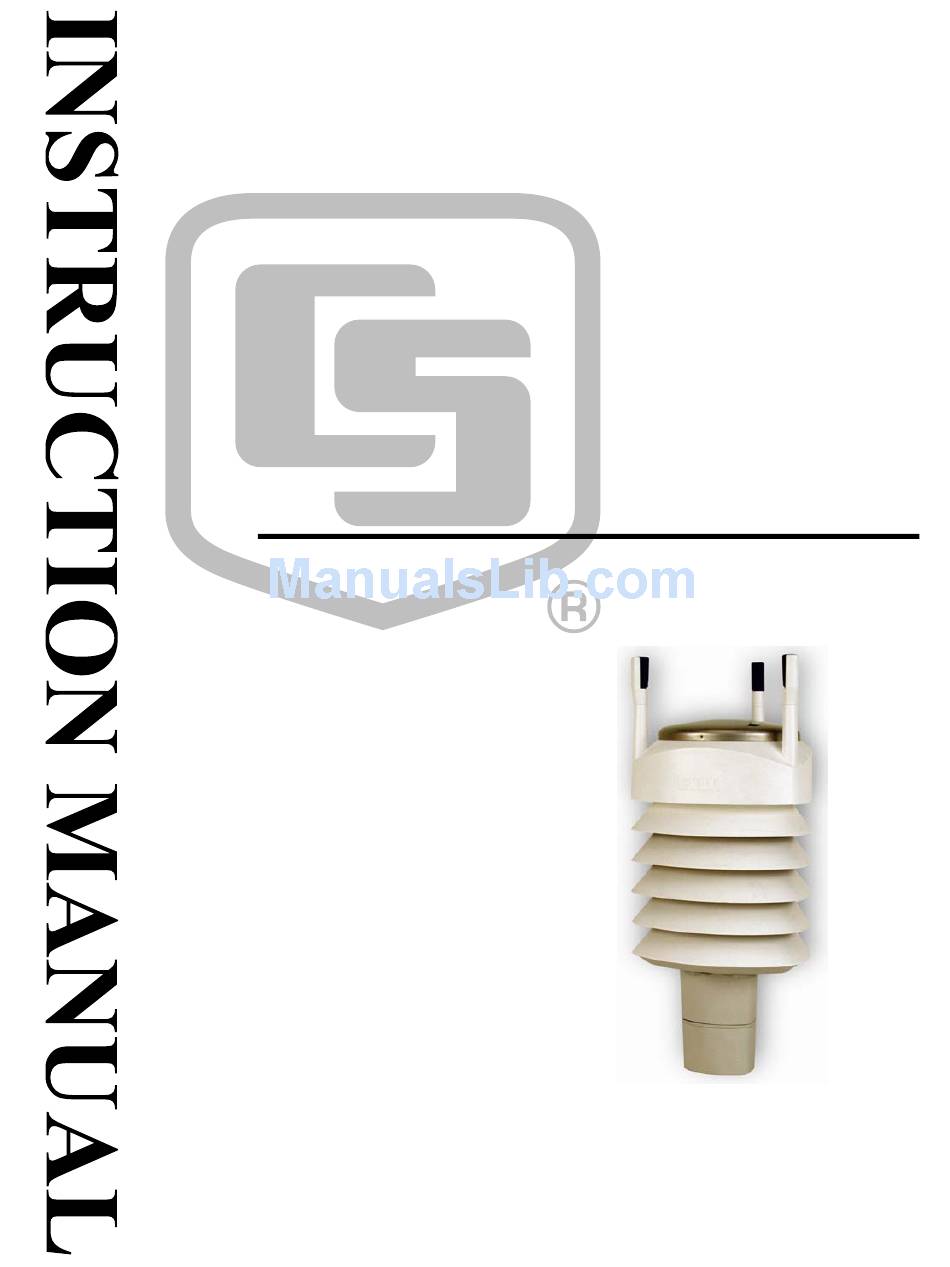

WXT510 Weather Transmitter
Revision: 4/07
C o p y r i g h t
©
2 0 0 6 - 2 0 0 7
C a m p b e l l
S c i e n t i f i c ,
I n c .

Advertisement

Table of Contents
loading

Related Manuals for Campbell WXT510

Summary of Contents for Campbell WXT510

  • Page 1 WXT510 Weather Transmitter Revision: 4/07 C o p y r i g h t © 2 0 0 6 - 2 0 0 7 C a m p b e l l S c i e n t i f i c ,...
  • Page 2 CAMPBELL SCIENTIFIC, INC. CAMPBELL SCIENTIFIC, INC. will return such products by surface carrier prepaid. This warranty shall not apply to any CAMPBELL SCIENTIFIC, INC. products which have been subjected to modification, misuse, neglect, accidents of nature, or shipping damage. This warranty is in lieu of all other warranties, expressed or implied, including warranties of merchantability or fitness for a particular purpose.

  • Page 3: Table Of Contents

    A. Configuring the WXT510 ........A-1 Figures 1. Opened WXT510 with the PTU at the right..........3 2. A WXT510 with the PTU inserted inside of it ...........3 A-1. Connection Setup Screen..............A-1 A-2. Device Settings Screen ..............A-2 A-3. Sensor Settings Screen ..............A-2...
  • Page 4 WXT510 Table of Contents Table 1. Connections to Campbell Scientific Dataloggers........4...

  • Page 5: General Description

    The WXT510’s SDI-12 signal can be measured by any of our SDI-12 equipped dataloggers. The WXT510 is about the size of our larger Gill radiation shield, making it ideal for use with our CR200-series dataloggers in applications requiring quick, short-term deployment.

  • Page 6: Wind Direction

    3. Installation 3.1 Assembling the WXT510 1. Lift off the top of the transmitter. 2. Remove the PTU from the plastic bag and insert it into the WXT510 (see Figures 1 and 2). 3. Replace the top. 4. Tighten the three fixing screws.

  • Page 7: Opened Wxt510 With The Ptu At The Right

    WXT510 Weather Transmitter FIGURE 1. Opened WXT510 with the PTU at the right. FIGURE 2. A WXT510 with the PTU inserted inside of it.

  • Page 8: Mounting To A Campbell Scientific Crossarm

    WXT510. A complete program will include output processing instructions. wind direction wind speed ; Get WXT510 Values 1 - 6 (Dn=Wd min, Dm=Wd avg, Dx=Wd max, Sn=Ws min, Sm=Ws avg, Sx=Ws max) 22: SDI-12 Recorder (P105) ; 1: 0 SDI-12 Address...

  • Page 9: Cr1000 Program

    Delay After Ex (0.01 sec units) 4: 0 mV Excitation rain hail ; Get WXT510 Values 10 - 15 (Rc= amount, Rd= duration, Ri= intensity, Hc= amount, Hd= duration, Hi = intensity) 26: SDI-12 Recorder (P105) 1: 0 SDI-12 Address 2: 3 Start Measurement (aM3!) ;...
  • Page 10 'final data format goes here Minimum(1,Batt_Volt,FP2,False,False) EndTable 'Main Program BeginProg Scan(15,Sec,1,0) 'Default Datalogger Battery Voltage measurement Batt_Volt: Battery(Batt_Volt) 'WXT510 SDI-12 Sensor measurements 1-6: SDI12Recorder(WXT510(1),7,"0","M1!",1,0) 'WXT510 SDI-12 Sensor measurements 7-9: SDI12Recorder(WXT510(7),7,"0","M2!",1,0) 'WXT510 SDI-12 Sensor measurements 10-15: SDI12Recorder(WXT510(10),7,"0","M3!",1,0) 'Call Data Tables and Store Data CallTable(Table1)

  • Page 11: A-1. Connection Setup Screen

    1. Connect one end of the grey Configuration Cable to a COM port on the PC and the other end of the cable to the “Service” connector on the WXT510. 2. Connect a 9 V battery to the Configuration Cable’s battery clip. The female contact of the battery clip is (+).

  • Page 12: A-2. Device Settings Screen

    Appendix A. Configuring the WXT510 6. Go to the Device Settings Screen and enter the settings for each of the parameters (see Figure A-2). Default settings are: • Device—Address: 0 • Heating and self diagnostic—verify Enable Heating is NOT selected.

  • Page 13: A-4. Message Settings Screen

    Appendix A. Configuring the WXT510 9. Click on the OK button. 10. Go to the Message Settings Screen and verify that Message Settings are as desired. The default settings are shown in Figure A-4. Note: Hail accumulation should be checked.
  • Page 14 Appendix A. Configuring the WXT510 This is a blank page.
  • Page 15 This is a blank page.
  • Page 16 Campbell Scientific Companies Campbell Scientific, Inc. (CSI) 815 West 1800 North Logan, Utah 84321 UNITED STATES www.campbellsci.com info@campbellsci.com Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Somerset West 7129 SOUTH AFRICA www.csafrica.co.za cleroux@csafrica.co.za Campbell Scientific Australia Pty. Ltd. (CSA)
