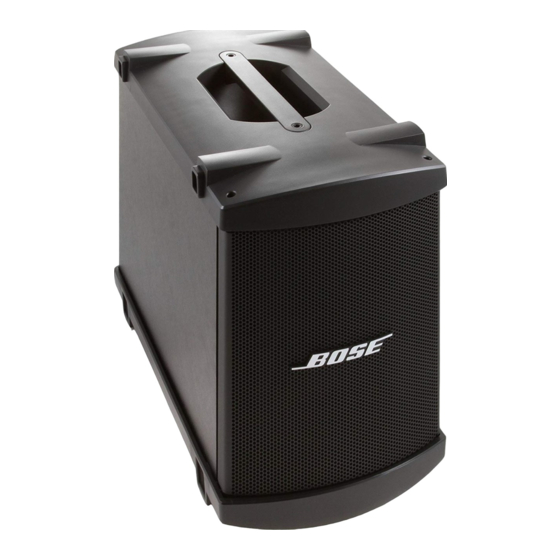

Bose B2 Owner's Manual

Bass module

Hide thumbs Also See for B2:

Bass Module

Owner's Guide

Guía de usario

Notice d'utilitsation

Table of Contents

Need help?

Do you have a question about the B2 and is the answer not in the manual?

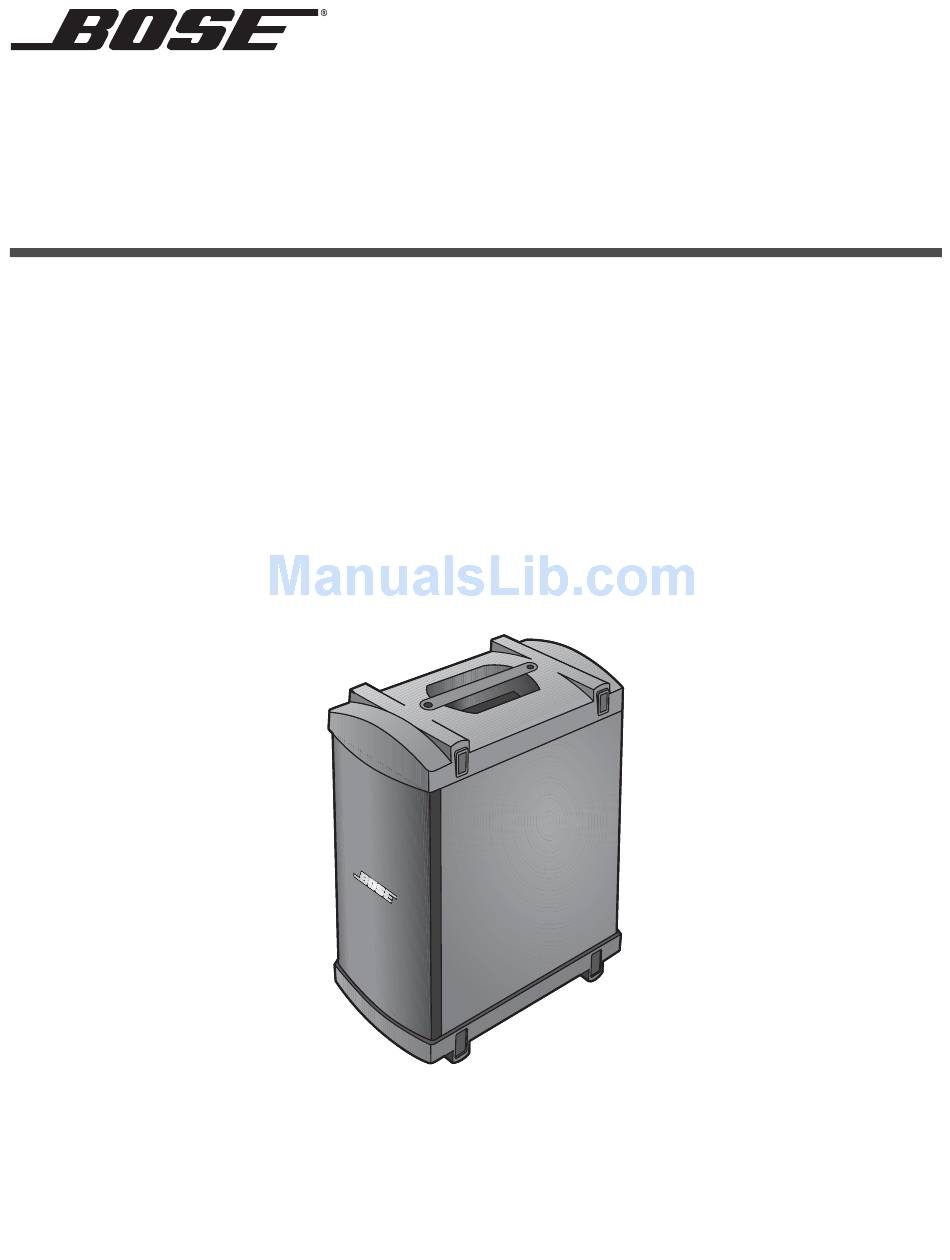

Page 1 Bass Module Owner’s Guide Guía de usario Notice d’utilitsation...
Page 2 The L1 power stand bass module output can adequately drive one B2 bass module. A second B2 bass module can be added (to your L1 model II system only) by using a Model A1 PackLite power amplifier connected to the bass line output of the power stand.
Page 3 2. Plug the other end of the cable into the Bass Module Out connector on the power stand. Rotate the plug clockwise to lock it. Note: To disconnect a B2 cable, slide back the metal tab on the body of the plug, rotate the plug counterclockwise and pull it out of the connector.
Page 4 Figure 5 Bass Level switch Attention L1 Model II users: In order to take advantage of the B2 rear panel bass level features you must upgrade your power stand firmware to version 1.4 or higher. If your power stand firmware is not current, the rear panel switch must be in the Normal position. + or - switch positions will not work.
Page 5 Weight: 45 lb (20.41 kg) Impedance: 4 ohms This product conforms to all applicable EU directive requirements. The complete declaration of conformity can be found at www.Bose.com/compliance. PackLite is a registered trademark of Bose Corporation in the U.S. and/or other countries.
