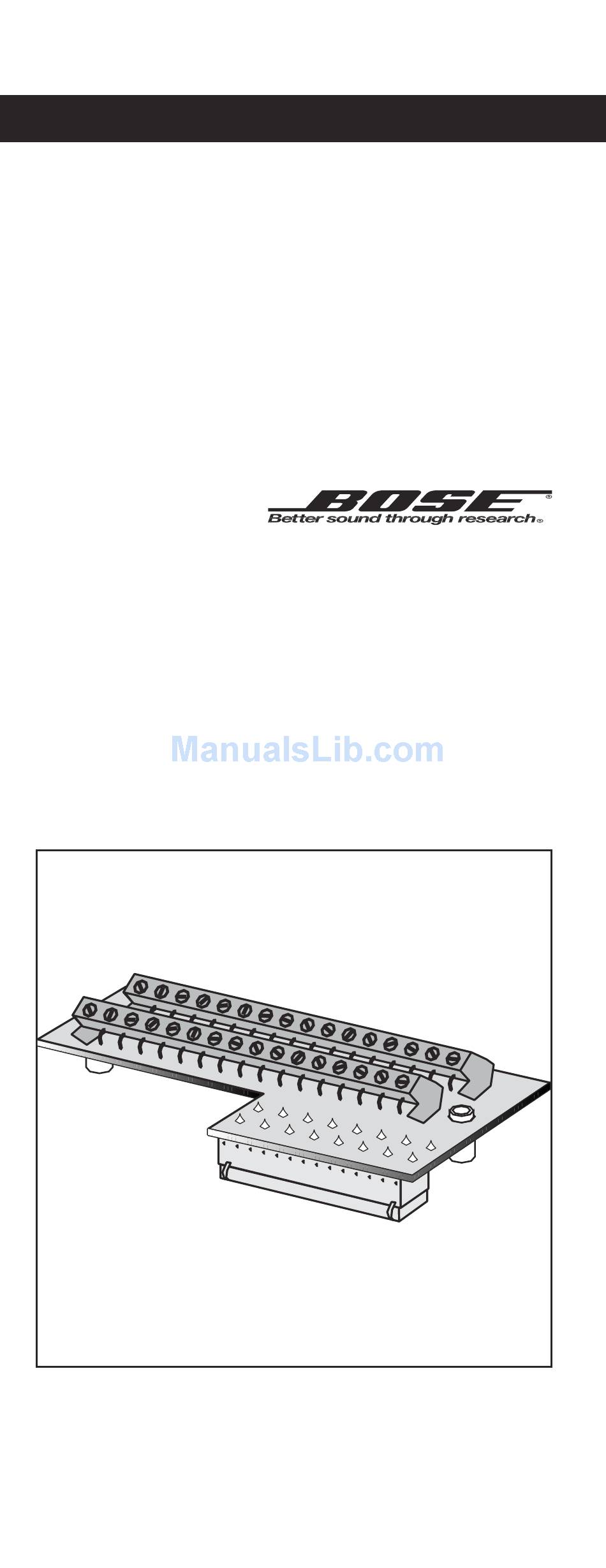

- Page 1 ® ® Bose FreeSpace 6 Business Music System Expansion Module Installer’s Guide...
-
Page 2: Table Of Contents
Safety Warning To reduce the risk of fire or electric shock, do not expose ® the expansion module or FreeSpace 6 business music system to rain or moisture. CAUTION RISK OF ELECTRICAL SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). -
Page 3: Product Contents, Warranty
The Bose FreeSpace 6 expansion module, when used with a FreeSpace 6 amplifier can power 1 to 12 additional FreeSpace 6 loudspeakers. System expansion requires connecting loud- speaker cable from each loudspeaker to the expansion module and plugging the expansion module into block 13 of the FreeSpace 6 system electronics. -
Page 4: Applications
The recommended wiring configurations are shown in the following figures. 1.2 Loudspeaker placement ® Consult the Bose FreeSpace 6 Business Music Systems Installer’s Guide for complete loudspeaker placement guide- lines. 1.3 Polarity For correct phasing between loudspeakers, connect them with consistent polarity. -
Page 5: Expansion Module Installation
2.0 Installation 2.1 Expansion module installation 1. Route each loudspeaker’s cable from the loudspeaker to the expansion module. Note: It is not necessary to connect any one loudspeaker to another. All loudspeaker networking is accomplished within the expansion module. The following illustration shows how the expansion module works. - Page 6 13 of the system electronics. Secure the expansion module to the system electronics using the two screws provided. Do not over tighten them. 5. Place the cover on the FreeSpace 6 system electronics. Phono cable Low level inputs...
-
Page 7: Asymmetrical Loads
In order for customers to hear paging announcements, each loudspeaker requires more than 2 Watts. Four loudspeakers provide adequate coverage in the lounge. ® For technical assistance, call the Bose Application and Design Support hotline at 1-800-992-2673 or contact your authorized Bose Professional Products dealer. -
Page 8: Figure 1: Checkerboard Pattern
3.0 Miscellaneous Figure 1: Checkerboard pattern Left Right... -
Page 9: Figure 2: 3–Loudspeaker Layout
3.0 Miscellaneous Figure 2: 3–Loudspeaker layout Actual wiring to the expansion module – – 89 dB – – 89 dB – – – 89 dB – – – – Figure 3: 5–Loudspeaker layout Actual wiring to the expansion module – –... -
Page 10: Figure 4: 6–Loudspeaker Layout
3.0 Miscellaneous Figure 4: 6–Loudspeaker layout Actual wiring to the expansion module Left – – 89 dB – – 89 dB – – 89 dB – – 89 dB – – 89 dB – – 89 dB – – Figure 5: 7–Loudspeaker layout Actual wiring to the expansion module –... -
Page 11: Figure 6: 8–Loudspeaker Layout
3.0 Miscellaneous Figure 6: 8–Loudspeaker layout Actual wiring to the expansion module Left – – 90 dB (84dB–90dB if the – – left channel gain 90 dB pot is used) – – 90 dB – – 90 dB – Right –... -
Page 12: Figure 7: 12–Loudspeaker Layout
3.0 Miscellaneous Figure 7: 12–Loudspeaker layout Actual wiring to the expansion module Left – – 89 dB – (83dB–89dB if the – 89 dB left channel gain – pot is used) – 89 dB – – 89 dB – – 89 dB –... -
Page 13: Figure 8: 16–Loudspeaker Layout
3.0 Miscellaneous Figure 8: 16–Loudspeaker layout Actual wiring to the expansion module Left – – 88 dB – (82dB–88dB if the – 88 dB left channel gain – pot is used) – 88 dB – – 88 dB – – 88 dB –... -
Page 14: Figure 9: Sample Business Layout
3.0 Miscellaneous Figure 9: Sample business layout Kitchen and Stock Area FreeSpace 6 with expansion module. ® Music source is a CD changer. Dining Area Music only in this area Music and Paging Music and Paging in this area in this area Hostess Station Paging Mic... - Page 16 © 1995 Bose Corporation, The Mountain, Framingham, MA 01710-9168 USA JN95766 PN178160 8/95...
