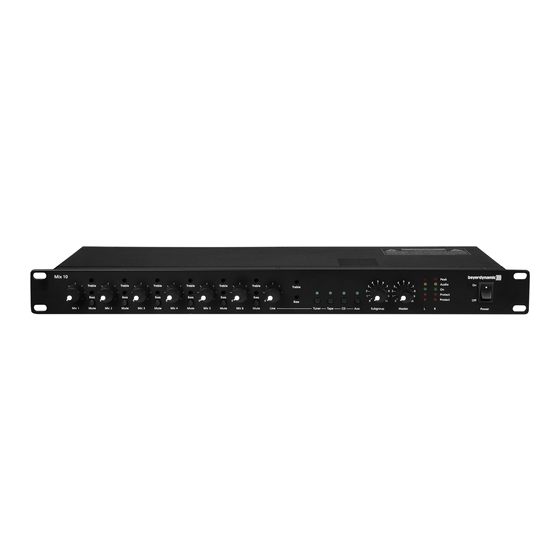

Summary of Contents for Beyerdynamic MIX 10 NG2

  • Page 1 BEDIENUNGSANLEITUNG OPERATING INSTRUCTIONS MIX 10 NG2 10-Kanal-Stereo-Mischsystem 10-Channel-Stereo-Mixing-System...

  • Page 3: Table Of Contents

    MIX 10 NG2 – Contents 1. Version ................20 2.

  • Page 4: Version

    The MIX 10 NG2 can be operated via a standard serial RS 232 interface and the supplied software. The MIX 10 NG2 provides a separate treble/bass control and mute switch per microphone input. All signals can be routed via Dip switches on the rear to the master output or the sub group output.
  • Page 5 • Always install in accordance with the manufacturer’s instructions. • Only use attachments/accessories specified by the manufacturer. Exemption from liability • beyerdynamic GmbH & Co. KG will not be liable if any damage, injury or accident occurs due to negligent, incorrect or inappropriate operation of the product. Location •...

  • Page 6: Controls And Indicators

    Tuner input with separate volume control (23) MIX INP - Stereo input with separate volume control for the connection of mixing consoles or more MIX 10 NG2 (24) MIC 1 - MIC 6 - Electronically balanced microphone inputs with gain control (input sensitivtity), 3-pin terminals...

  • Page 7: Connections

    Line Inputs Four separate line inputs (RCA phono) are on the rear of the MIX 10 NG2. One of these four line inputs can be selected with the appropriate input selection control (3). The inputs are unbalanced and suitable for the connection of stereo devices. The input gain can be adjusted for each input on the rear (Level).

  • Page 8: Sub Group Output

    8. Fix this setting of the power amplifier. The fine tuning can be done with the control on the front of the MIX 10 NG2. Remote Control via RS 232 To operate and configure the MIX 10 NG2 via a PC or media control system, the MIX 10 NG2 is equipped with an RS 232 connection (9-pin Sub D, male).

  • Page 9: Operation

    Here you can manually prompt the attenuation of the channel without priority. Normally, this is done for testing purposes. Preset The internal memory of the Mix 10 NG2 allows storing up to 3 presets. One preset stores all settings which can be selected with the software such as volume settings, priority switching and so on.

  • Page 10: Preferences

    (level reduction). If the ducking function does not work properly even when the threshold has been set to minimum, the microphone input sensitivity (gain) must be increased at the rear of the MIX 10 NG2. Attenuation Here you can select how deep the signal without priority is reduced when it is faded out.

  • Page 11: Com

    Switch-on state Here you can enter the switch-on state of the MIX 10 NG2. You can select one of the previously saved presets. After turning on, the MIX 10 NG2 will load the settings of the selected preset 1, 2 or 3. Alternatively, you can save the state when the device was turned off by selecting the “as switched off”...

  • Page 12: Specifications Of The Rs 232 Interface

    Pin 3 = Tx Pin 5 = GND The data exchange between the MIX 10 NG2 and the superior control is done via two-byte commands which are integrated in a data packet with subsequent check sum. The structure of the commands is as follows: Device –>...
  • Page 13 MIX 10 NG2 – RS 232 Interface Data0 Data1 Command Data0 Data1 00~1F 10~15 Change mic volume by “N”-steps mic no Bit 6 Higher or lower 0 = higher, 1 = lower 00~02 Ducking manually 02 = on 00 = off...
  • Page 14 “10” ~ “15” represent the channels MIC1~MIC6. “00” ~ “04” represent the channels LINE, SUB-L, SUB-R, MASTER-L,MASTER-R. An acknowledged message is directly sent from the MIX 10 NG2 after having received a request. Example: Selection of the CD line input PC –>...
  • Page 15 MIX 10 NG2 – RS 232 Interface Check Sum The check sum results from a vertical XOR comparison of the individual command bytes in the binary system. The check sum for the example on the previous page results in: Hex number...

  • Page 16: Technical Specifications

    MIX 10 NG2 – Technical Specifications Technical Specifications Frequency response....20 - 22,000 Hz (-3 dB) Gain ....... 0 dB - 56 dB Distortion (THD) .

  • Page 17: Block Diagram

    MIX 10 NG2 – Block Diagram Block Diagram...

  • Page 18: Ec-Declaration Of Conformity

    Theresienstrasse 8, 74072 Heilbronn, Germany Type of Equipment: Mixing Amplifier Model Numbers: MIX 10 NG2 I, the undersigned, as an employee of beyerdynamic, hereby declare that the equipment specified conforms to the above Directive and Standards. Manufacturer’s Signature: Date: 1 February 2008...
  • Page 20 Theresienstr. 8 | 74072 Heilbronn – Germany Tel. +49 (0) 7131 / 617 - 0 | Fax +49 (0) 7131 / 617 - 224 info@beyerdynamic.de | www.beyerdynamic.de Weitere Vertriebspartner weltweit finden Sie unter www.beyerdynamic.de For further distributors worldwide, please go to www.beyerdynamic.com...
