Page 1: Technical Specifications

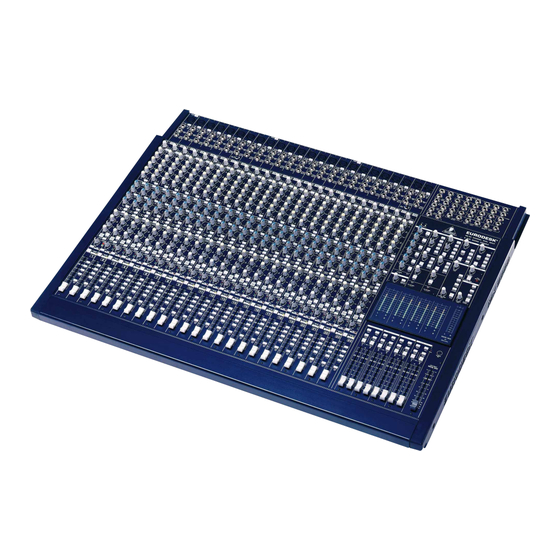

Technical Specifications Version 1.1 May 2000 www.behringer.com... - Page 2 s Additional 24 input Mix-B channels, all with individual 2-band EQ, level, pan and mute s Dedicated 4-band EQ with 2 semi-parametric mid bands offering an extremely wide swept range from 50 Hz to 20 kHz s Up to 6 assignable aux sends buses, all switchable pre- / post-fader s 6 stereo aux returns with multiple routing options s 8 subgroups simultaneously feed 24 multitrack outputs s Optionally available meterbridge with meters for each channel and main mix, monitoring eihter the channel...
-
Page 3: Block Diagram
BLOCK DIAGRAM... -
Page 5: Specifications
SPECIFICATIONS Main channel strip Mic input electronically balanced, discrete input configuration Mic E.I.N. (22 Hz to 22 kHz) -129.0 dBu, 150 Ohms source -117.3 dBqp, 150 Ohms source -132.0 dBu, input shorted -122.0 dBqp, input shorted Distortion (THD & N) 0.007 % at +4 dBu, 1 kHz, bandwidth 80 kHz Gain range +10 dB to +50 dB... - Page 6 27.3 kg (without PSU) BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may differ from those listed or illustrated.
- Page 7 BEHRINGER Spezielle Studiotechnik GmbH. BEHRINGER and EURODESK are registered trademarks. ALL RIGHTS RESERVED.
