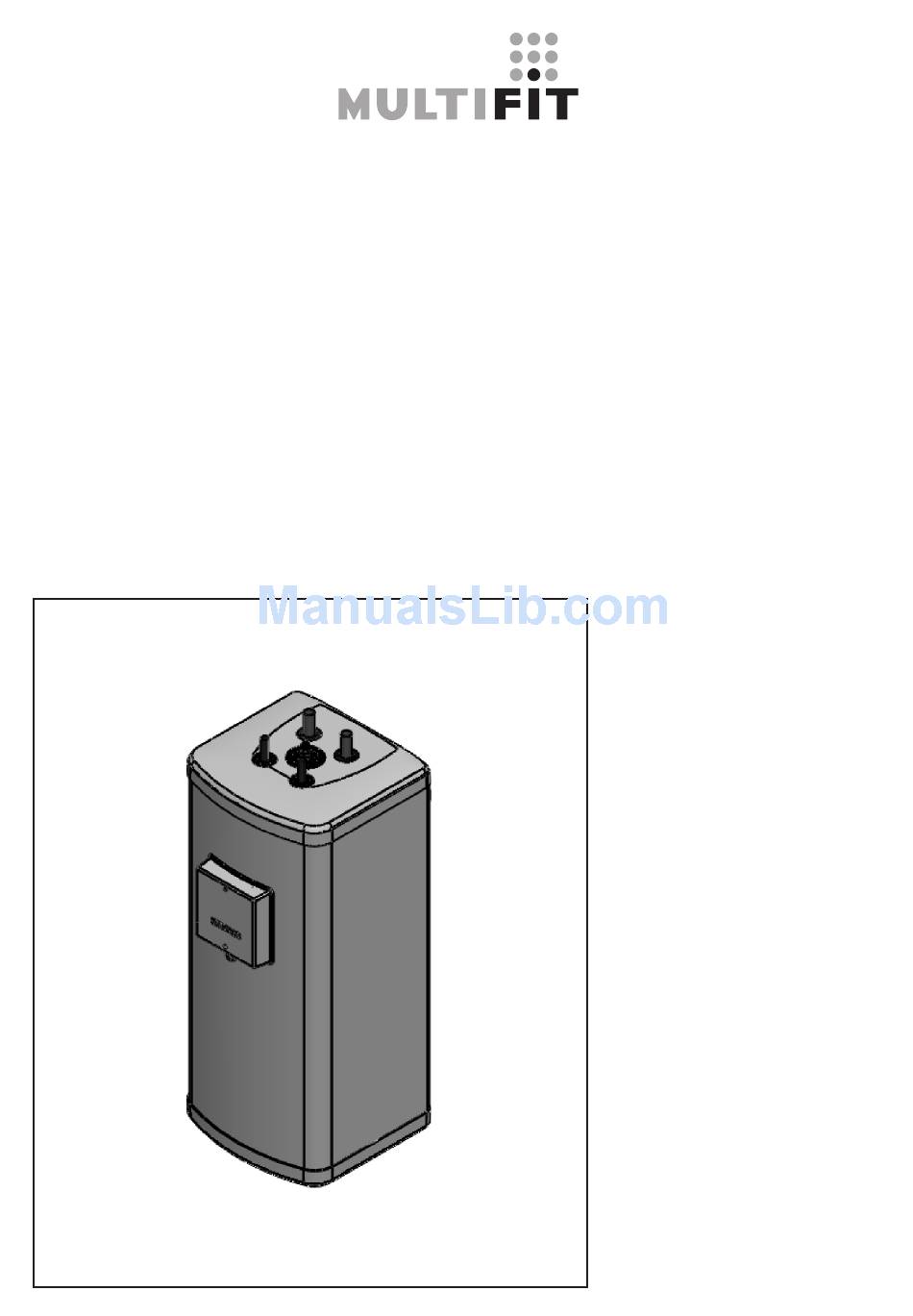

Advance & HeatSaver Systems
Hot Water System incorporating:-
Passive Flue Gas Heat Recovery Device
50 Litre Temporal Store
Condensing Combination Boiler (Advance System only)
'Low Profile' Flue Elbow (Advance System only)
Part No. 720589801 - Advance System
Part No. 720721001 - HeatSaver System
© Baxi Heating UK Ltd 2010
I N S TA L L AT I O N I N S T R U C T I O N S
Please leave these instructions with the
user for safe keeping, along with the boiler
Installation & Servicing Instructions.
Advertisement
Table of Contents
Summary of Contents for MULTIFIT Advance & HeatSaver Systems
- Page 1 I N S TA L L AT I O N I N S T R U C T I O N S Advance & HeatSaver Systems Hot Water System incorporating:- Passive Flue Gas Heat Recovery Device 50 Litre Temporal Store Condensing Combination Boiler (Advance System only) ‘Low Profile’...
-
Page 2: System Operation
System Operation The MULTIFIT Advance & HeatSaver Systems have been designed to deliver domestic hot water at a high level of performance more efficiently, for example the Advance System can provide18 l/min at temperatures of 50°C and above for long periods of demand using less energy than a typical hot water storage system utilising a large cylinder. -
Page 3: Technical Data
Technical Data General Cylinder External Dimensions W = 366 D = 410 H = 910 Outer Case Steel - White paint Cylinder Insulation Material PUR foam DHW System * Note: If inlet water pressure Maximum Inlet Water Pressure 500 kPa (5 bar)* is above 500 KPa (5 bar) Minimum Inlet Water Pressure 20 kPa (0.2 bar) - Page 4 Service Clearance & Weights Minimum Clearances* for Servicing 150 mm . g i Drain Point (RH Side Only) 100 mm f i L n i t 24 kg Weight (full) including DHW and Primary Circuit 74 kg 50 Litre Temporal Location Clearances &...
-
Page 5: Stack Installation
Stack Installation If it is desired to install the major components of the Advance System in stack format a MINIMUM floor-to-ceiling height of 2320mm is required (Fig. 2). The boiler template should be positioned that the centreline of the horizontal fixing slots in the wall mounting frame is 1780mm from the floor (Fig. -
Page 6: System Wiring
System Wiring Store Wiring (internal wiring shown as dotted lines) Valve 1 (DHW safety) Valve 3 (Heating) Valve 2 (DHW) Motor Motor Motor S Plan S Plan S Plan Valve Valve Valve Programmer DHW On HGT On Earth Neutral Live Room Stat Boiler Wiring Note: All earth connections must be linked back to the mains earth. -
Page 7: General Information
General Information System Pipework The Advance & HeatSaver Systems and pipework should be installed as shown in the schematic diagram below. It is important that the three 2 port valves are installed so that they are fully accessible for any subsequent maintenance. Where the immersion coil is fitted future access should also be taken into consideration. -
Page 8: Flushing The Heating System
Multifit Solar PV 1st fix 1 panel roof kit (slate-tile) with D.C. element 720724001 5033313022860 Multifit Solar PV 1st fix 1 panel roof kit (rosemary-tile) with D.C. element 720724101 5033313022877 Multifit Solar PV 1st fix 1 panel wall kit wall mountings kit with D.C. element 720575901 5033313022396... -
Page 9: Installation
Installation Unpacking Note: When delivered on site do not unpack until ready for installation and store in a dry area. Check all components are present (see Section 1.0 Introduction). Fit the Boiler & GasSaver The boiler, flue and GasSaver must be fitted as described in the instructions supplied with the boiler and the GasSaver. Advance System ONLY:- It is necessary to remove the blue/blue flow regulator from the cold water inlet connection on the boiler wall frame (Fig. -
Page 10: Short Parts List
Short Parts List Item Spare Part No. 8 litre expansion vessel 90003638 22mm Blending Valve 30°C 720576501 2 Port Valve 40615035 Routine Inspection It is recommended that the 50 litre Temporal Store should be subject to a general condition inspection at each boiler maintenance interval. -
Page 11: Inspection Report
Inspection Report It is recommended that the Advance or HeatSaver System is inspected regularly and that you complete the appropriate Inspection Record below. Service Provider: Before completing the appropriate Inspection Record below, please ensure you have carried out the boiler service as described in the boiler instruction manual. Inspection 2 Inspection 1 Date:... - Page 12 All goods are sold subject to our standard Conditions of Sale which are available on request. MULTIFIT A R e gist e r e d Tra de ma rk of Baxi H eating UK Ltd (3 879156) Brooks House, Coventry Road, Warwick.
