Summary of Contents for Avocent CYCLADES PM IPDU
- Page 1 CYCLADES PM IPDU ® Installer/User Guide...
- Page 2 FCC Warning Statement The Cyclades PM IPDU has been tested and found to comply with the limits for Class A digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 3 Cyclades PM IPDU Installer/Administrator/User Guide Avocent, the Avocent logo, The Power of Being There, Cyclades and DSR are registered trademarks of Avocent Corporation or its affiliates in the U.S. and other countries. All other marks are the property of their respective owners.
- Page 4 Instructions This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. Dangerous Voltage This symbol is intended to alert the user to the presence of uninsulated dangerous voltage within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
-
Page 5: Table Of Contents
Features and Benefits ........................1 Alarms and monitoring ....................... 1 Sequential power application ..................... 1 Support for daisy chaining ......................1 Integration with Avocent management products ................ 2 Hardware Configuration Options...................... 2 Standalone configuration ......................2 Daisy chained configuration....................... 3 Integrated configuration...................... - Page 6 Cyclades PM IPDU Installer/Administrator/User Guide Daisy chained PM IPDUs in the login prompt................. 13 Logging in to the PM IPDU...................... 13 Commands ............................14 adduser............................. 14 alarm ..............................14 assign ............................... 15 buzzer ............................... 16 current.............................. 16 currentprotection ..........................17 cycle ..............................
- Page 7 Table of Contents upgrade ............................32 ver ..............................33 voltage.............................. 34 whoami............................. 34 Appendices........................35 Appendix A: Specifications ......................35 Appendix B: Safety Instructions....................... 38 Appendix C: Circuit Breakers......................42 Appendix D: Technical Support....................... 48...
- Page 8 Cyclades PM IPDU Installer/Administrator/User Guide...
-
Page 9: List Of Figures
List of Figures Figure 1.1: Standalone Configuration....................2 Figure 1.2: Daisy Chained PM IPDUs with an Avocent Management Device......... 3 Figure 2.1: Rack Mount Bracket Installation on a PM IPDU............6 Figure 2.2: A Sample PM IPDU (PM42 Shown)................8 Figure C.1: PM10-L30A IPDU Circuit Breakers ................ - Page 10 Cyclades PM IPDU Installer/Administrator/User Guide...
-
Page 11: List Of Tables
LIST OF TABLES List of Tables Table 1.1: Standalone Configuration Descriptions ................2 Table 2.1: PM IPDU Shipping Box Contents and Description ............5 Table 2.2: PM IPDU Optimum Installation Environment..............7 Table 2.3: Cyclades PM42 IPDU Callout Descriptions..............8 Table A.1: PM IPDU Specifications.................... - Page 12 Cyclades PM IPDU Installer/Administrator/User Guide...
-
Page 13: Chapter 1: Introduction
Cyclades Power Management (PM) Intelligent Power Distribution Unit (IPDU) family. The Cyclades PM IPDU enables remote power control of servers and network gear. When used in ® conjunction with DSR switches or console servers, the PM IPDU delivers easier management capabilities and faster problem solving by integrating console/KVM access and power control into one single interface. -
Page 14: Integration With Avocent Management Products
Cyclades PM IPDU Installer/Administrator/User Guide Integration with Avocent management products The PM IPDU can be combined with an ACS console server or DSR KVM switch to provide enhanced functionality. Please refer to the appropriate product documentation for more information on how to use the PM IPDU with your specific implementation. -
Page 15: Daisy Chained Configuration
Figure 1.2: Daisy Chained PM IPDUs with an Avocent Management Device Integrated configuration In an integrated configuration, the PM IPDU is configured to work in conjunction with an Avocent management product. A user connects to the PM IPDU by accessing the appropriate console port of the Avocent management product. - Page 16 Cyclades PM IPDU Installer/Administrator/User Guide...
-
Page 17: Chapter 2: Installation
Used to gain temporary access to the PM IPDU. PM IPDU to DSR switch cable adaptor Used to connect a PM IPDU to an Avocent switch’s SPC port. Mounting brackets and screws (2 spares) Use to mount the Cyclades PM10 IPDU and PM10i IPDU to a for PM10 IPDU and PM10i IPDU rack or wall. -
Page 18: Optional Outlet Cable Package
Cyclades PM IPDU Installer/Administrator/User Guide NOTE: The Cyclades PM 10i-32Au IPDU ships with an unterminated power cord. If necessary, contact Avocent Technical Support for guidelines on approved power plug installation. Optional outlet cable package The following cable packages may be ordered separately for the IEC PM IPDU models: •... -
Page 19: Installation Environment
Chapter 2: Installation Installation environment When installing the PM IPDU, ensure that the following environment specifications are met. Table 2.2: PM IPDU Optimum Installation Environment Environment Factor Recommendation Temperature The manufacturer's maximum recommended ambient temperature for the PM IPDU is 122 ºF (50 ºC). Elevated Operating Ambient If the PM IPDU is installed in a closed or multi-unit rack assembly, the Temperature... -

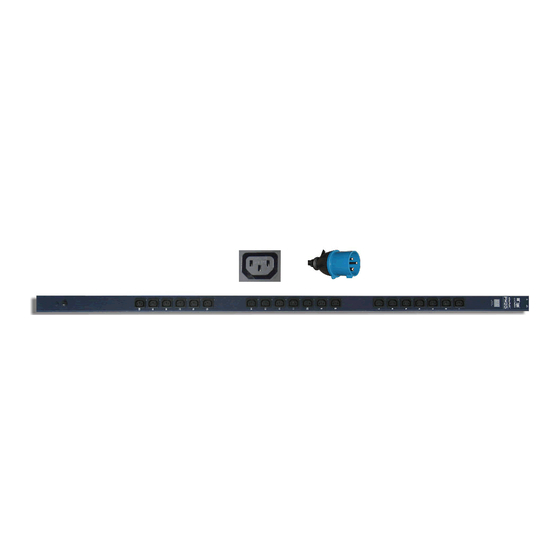

Page 20: Figure 2.2: A Sample Pm Ipdu (Pm42 Shown)
Cyclades PM IPDU Installer/Administrator/User Guide Figure 2.2: A Sample PM IPDU (PM42 Shown) Table 2.3: Cyclades PM42 IPDU Callout Descriptions Number/Letter Description Outlet, IEC320-C13, 14 each for bank XY, YZ and XZ RS-232 (IN) Port MULTI (OUT) Port HWOCP Reset Button... -
Page 21: Daisy Chaining Pm Ipdus
Connect one end of an RJ-45 cable to the OUT port of the main PM IPDU, which is connected to a workstation or management appliance. Connect the other end of the RJ-45 cable to the IN port of the secondary Cyclades PM IPDU. Repeat these steps until you have connected the desired number of PM IPDUs. -
Page 22: Console Access Through A Management Device
To connect a PM IPDU to an Avocent DSR switch: Use the included RJ-45 cable adaptor to connect a PM IPDU to an Avocent DSR switch. Plug the male end of the adaptor into the DSR switch’s SPC port. -
Page 23: Resetting The Admin Password
Chapter 2: Installation To create users with the adduser command: Log in to the PM IPDU. Enter the command followed by the new username. adduser Enter the password when prompted. To assign outlets to users with the assign command: Log in to the PM IPDU. Enter the command followed by the outlet number(s) and username. -
Page 24: Upgrading The Pm Ipdu Firmware
PM IPDU. To upgrade PM IPDU firmware: Download the new PM IPDU firmware from the Avocent web site. Using terminal emulation software, log into the PM IPDU as admin and type in the command: pm>upgrade <IPDU#>... -
Page 25: Chapter 3: Accessing The Pm Ipdu Via The Command Line Interface
CHAPTER Accessing the PM IPDU via the Command Line Interface When using the PM IPDU independently of other Cyclades products, users and administrators may access the PM IPDU command line interface through a terminal emulation program. PM IPDU User Interface You may access the PM IPDU user interface by following the instructions provided in Direct console access on page 9. -
Page 26: Commands
Cyclades PM IPDU Installer/Administrator/User Guide After a successful login, the PM IPDU command prompt appears after which you may use any of the commands described in this chapter. Commands NOTE: When a range of outlets is used in a command and the range spans more than one PM IPDU in a daisy chain, the range of outlets must not be specified by name. -
Page 27: Assign
Chapter 3: Accessing the PM IPDU via the Command Line Interface Arguments number in a daisy chain or identification string set by the id IPDU <IPDU# or ID> command Value of the threshold current above which IPDU enters alarm condition. <threshold>... -
Page 28: Buzzer
Cyclades PM IPDU Installer/Administrator/User Guide Arguments Outlet number, such as “5”, outlet name such as “sunfire”, or group of <outlet_number> outlets such as “1, 3-5” Desired username <user> Examples To assign outlet 4, 6, 7 and 8 to user tess, enter: pm>assign 4, 6-8 tess... -
Page 29: Currentprotection
Chapter 3: Accessing the PM IPDU via the Command Line Interface For PM42 IPDUs: current [<ipdu number or ID> X|Y|Z] For 30A IPDUs: current [<ipdu number or ID> A|B] For other IPDU models: current [<ipdu number or ID>] Arguments number in the daisy chain or identification string set previously set IPDU <IPDU# or ID>... -
Page 30: Cycle
Cyclades PM IPDU Installer/Administrator/User Guide Arguments Enables over current protection Disables over current protection Displays the current protection status status Examples To display current protection status for all units, enter: pm> currentprotection status To enable current protection status for all units, enter: pm>currentprotection ON... -
Page 31: Dbsync
Chapter 3: Accessing the PM IPDU via the Command Line Interface dbsync The dbsync command synchronizes the user database for all PM IPDUs in the chain. This command is available to the admin user only. Syntax dbsync Arguments none Examples To synchronize the user database for all PM IPDUs in the chain, enter: pm>dbsync deluser... - Page 32 Cyclades PM IPDU Installer/Administrator/User Guide NOTE: The decimal point will be at the top of the display when the display command is issued with 180-degree rotation on PM IPDUs with seven-segment displays. The PM42 IPDU has dot matrix display which will display values with the decimal point correctly positioned in inverted mode.
-
Page 33: Exit
Chapter 3: Accessing the PM IPDU via the Command Line Interface exit The exit command exits the session. Syntax exit Arguments none Examples To exit the current session, enter: pm>exit factory_default The factory_default command resets the unit to its factory configuration. When used with a daisy chain, and no argument is given, this command resets all units in the chain. -
Page 34: Humidity
Cyclades PM IPDU Installer/Administrator/User Guide Syntax <command> help Arguments <command> Any available command Examples To view the system help message for a specific command, enter the command followed by help pm>syslog help To view the system help message for all commands, enter: pm>help... -
Page 35: Hwocp
Chapter 3: Accessing the PM IPDU via the Command Line Interface hwocp The hwocp command without argument checks the status of the hardware overcurrent protection. When an overload of the PM IPDU with hwocp occurs, the hwocp will trip, similar to a conventional circuit breaker, and all outlets will be shut off. -
Page 36: Interval
Cyclades PM IPDU Installer/Administrator/User Guide Arguments <IPDU#> IPDU number in a daisy chain Identification string previously set by the id command <IPDU_ID> Displays the IDs of all PM IPDUs in the daisy chain no argument If <IPDU_ID> follows <IPDU#>, or if the <IPDU_ID> parameter is typed twice, the latest entry of the <IPDU_ID>... -
Page 37: List
Chapter 3: Accessing the PM IPDU via the Command Line Interface Examples To display the interval of outlet 1, enter: pm>interval 1 To set the interval of outlets 2, 4, 5, and 6 to a value of 2.4, enter: pm>interval 2,4-6 2.4 NOTE: The PM42 IPDU will not accept entries with decimal places. -
Page 38: Name
Cyclades PM IPDU Installer/Administrator/User Guide Examples To lock outlets 1, 2 and 6, enter: pm>lock 1,2,6 name The name command lists the outlet number <outlet#> as name <name>. The name command is limited to 16 characters, cannot start with a number and commas (,) are not allowed. This command is available to the administrator user only. -
Page 39: Outcycledelay
Chapter 3: Accessing the PM IPDU via the Command Line Interface Examples To turn all outlets off, enter: pm>off all To turn off outlets 2 through 7 (or all outlets except 1 and 10 in a single PM10 IPDU), enter the following. -
Page 40: Passwd
Cyclades PM IPDU Installer/Administrator/User Guide passwd The passwd command sets a password. Regular users may change or set their own password only. The administrator may change his or her own password or any regular user’s password. Syntax passwd <user_name> Arguments Name of the user whose password is being changed <user_name>... -
Page 41: Restore
Chapter 3: Accessing the PM IPDU via the Command Line Interface restore The restore command restores the configuration currently saved in Flash. This command is available to the admin user only. Syntax restore Arguments Examples To restore the configuration currently saved in Flash, enter: pm>restore save The save command saves the current configuration in the Flash device built in to all PM IPDU... -
Page 42: Syslog
Cyclades PM IPDU Installer/Administrator/User Guide Arguments <outlet_string> Outlet number, such as “5”, outlet name such as “sunfire”, or group of outlets such as “1, 3-5” Displays the status of all outlets in a PM IPDU or PM IPDU daisy chain... -
Page 43: Temperature
Chapter 3: Accessing the PM IPDU via the Command Line Interface temperature The temperature command displays the PM IPDU’s surrounding temperature and the maximum temperature the unit has registered (temperature peak). It may also be used to clear the saved peak temperature value. -
Page 44: Unlock
Cyclades PM IPDU Installer/Administrator/User Guide Arguments <outlet_string> Outlet number, such as “5”, outlet name such as “sunfire”, or group of outlets such as “1, 3-5” <user> Desired username Examples To unassign outlet 2 and 4 from user diderot, enter: pm>unassign 2,4 diderot unlock The unlock command unlocks an outlet or group of outlets in the current state. -
Page 45: Ver
Chapter 3: Accessing the PM IPDU via the Command Line Interface Arguments <IPDU#> IPDU number in a daisy chain <IPDU_ID> Identification string previously set by the id command If you wish to upgrade more than one IPDU, it is recommended that you upgrade the most remote IPDU first. -
Page 46: Voltage
Cyclades PM IPDU Installer/Administrator/User Guide voltage The voltage command shows the true RMS voltage between two phases. Syntax voltage [<IPDU#>|<IPDU_ID> [AB|AC|BC]] Arguments IPDU number in a daisy chain <IPDU#> Identification string previously set by the id command <IPDU_ID> Phases to select... -
Page 47: Appendices
APP ENDICE S Appendices Appendix A: Specifications Table A.1: PM IPDU Specifications Input Max Output Max Output Operating Unit Voltage Current Each Outlet Temp Weight Width Depth Height PM10-15A 100-125 VAC 15A (12A) 15A (12A) 10-50 ºC 3.64 kg 17 in 8 in 1.75 in PM10-20A,... -
Page 48: Table A.2: Pm42 Ipdu Specifications
Cyclades PM IPDU Installer/Administrator/User Guide Table A.2: PM42 IPDU Specifications Characteristics Electrical Input Voltage Three phases, phase to phase 208 VAC Max Input Current Max Output Current Total 16A on any single bank (XY, YZ or XZ) -or- 13.8A evenly distributed on each bank (XY, YZ or XZ) - Page 49 Appendices Table A.3: Pinouts for IN and OUT RS-232 Serial Ports (Continued) Signal Name/Function IN Pin OUT Pin Data Set Ready...
-
Page 50: Appendix B: Safety Instructions
Cyclades PM IPDU Installer/Administrator/User Guide Appendix B: Safety Instructions Follow the safety precautions in this document when installing and operating the PM IPDU. Safety Instructions Read all the following safety guidelines to protect yourself and your Cyclades PM. DANGER! All outlets of the PM IPDU output high voltage. Necessary precautions should be taken. - Page 51 Wichtig: Bitte schütten Sie keine Nahrungsmittel oder Flüssigkeiten auf den PM IPDU. Falls das Gerät naß werden sollte trennen Sie bitte sofort die Netzverbindung und kontaktieren Avocent. Wichtig: Bitte halten Sie Ihren PM IPDU vor Hitzequellen entfernt.
-
Page 52: Instrucciones De Seguridad
Importante: Não derrame alimentos ou líquidos sobre o PM IPDU. Se o produto for molhado, disconete-o da tomada imediatamente e entre em contato com a Avocent. Importante: Mantenha o PM IPDU longe de fontes de calor. - Page 53 Importante: No derrame alimentos o líquidos en el PM IPDU. Si se hubiera mojado, desconecte la energía inmediatamente y entre en contacto con Avocent. Importante: Mantenga su PM IPDU lejos de fuentes de calor.
-
Page 54: Appendix C: Circuit Breakers
Cyclades PM IPDU Installer/Administrator/User Guide Appendix C: Circuit Breakers The PM IPDU circuit breakers are designed to turn the power off to some or all of the PM IPDU outlets in case the rated current is exceeded. The circuit breaker mechanism for each PM IPDU model is explained in the following sections. -
Page 55: Figure C.1: Pm10-L30A Ipdu Circuit Breakers
Appendices PM10-L30A IPDU The PM10-L30A IPDU has two 15-amp circuit breakers. The first circuit breaker controls outlets 1 through 5 and the power supply to the controller; the second circuit breaker controls outlets 6 through 10. If the total current flow to outlets 6 through 10 exceeds 15 amps due to equipment connected to these outlets, then the second circuit breaker will trip, causing outlets 6 through 10 to shut down. -
Page 56: Figure C.2: Pm10I-L30A Ipdu Circuit Breakers
Cyclades PM IPDU Installer/Administrator/User Guide Figure C.2: PM10i-L30A IPDU Circuit Breakers Table C.2: PM10i-L30A IPDU Circuit Breakers Descriptions Number Description Number Description Controller First Circuit Breaker Power Supply Second Circuit Breaker 15A to Outlets 1 - 5 Independent Power to Controller... -
Page 57: Figure C.3: Pm20-L30A Ipdu Circuit Breakers
Appendices Refer to Table C.5 to determine the time it takes for the circuit breaker to trip based on the amount of current overload. 11 12 13 14 15 16 18 19 Figure C.3: PM20-L30A IPDU Circuit Breakers Table C.3: PM20-L30A IPDU Circuit Breakers Descriptions Number Description Number Description Controller... -
Page 58: Figure C.4: Pm20I-L30A Ipdu, Pm20I-32A Ipdu And Pm20I-32Au Ipdu Circuit Breakers
Cyclades PM IPDU Installer/Administrator/User Guide 11 12 13 14 15 16 18 19 Figure C.4: PM20i-L30A IPDU, PM20i-32A IPDU and PM20i-32Au IPDU Circuit Breakers Table C.4: PM20i-L30A IPDU, PM20i-32A IPDU and PM 20i-32Au IPDU Circuit Breakers Descriptions Number Description Number Description... -
Page 59: Table C.5: Circuit Breaker Trip Time
Appendices Circuit breaker trip time Depending on the model, the PM IPDU uses either one 10 amp, one 20 amp, two 15 amp, or two 16 amp circuit breakers. Table C.5 shows the circuit breaker trip time for all PM IPDU models except the PM42 IPDU. -
Page 60: Appendix D: Technical Support
Appendix D: Technical Support Our Technical Support staff is ready to assist you with any installation or operating issues you encounter with your Avocent product. If an issue should develop, follow the steps below for the fastest possible service. To resolve an issue: Check the pertinent section of this manual to see if the issue can be resolved by following the procedures outlined. - Page 62 For Technical Support: www.avocent.com/support 590-667-501D...
