Hotpoint RB797BBBB Manual

RB797BBBB - Hotpoint 30" Free-Standing Self-Clean Electric Convection Oven

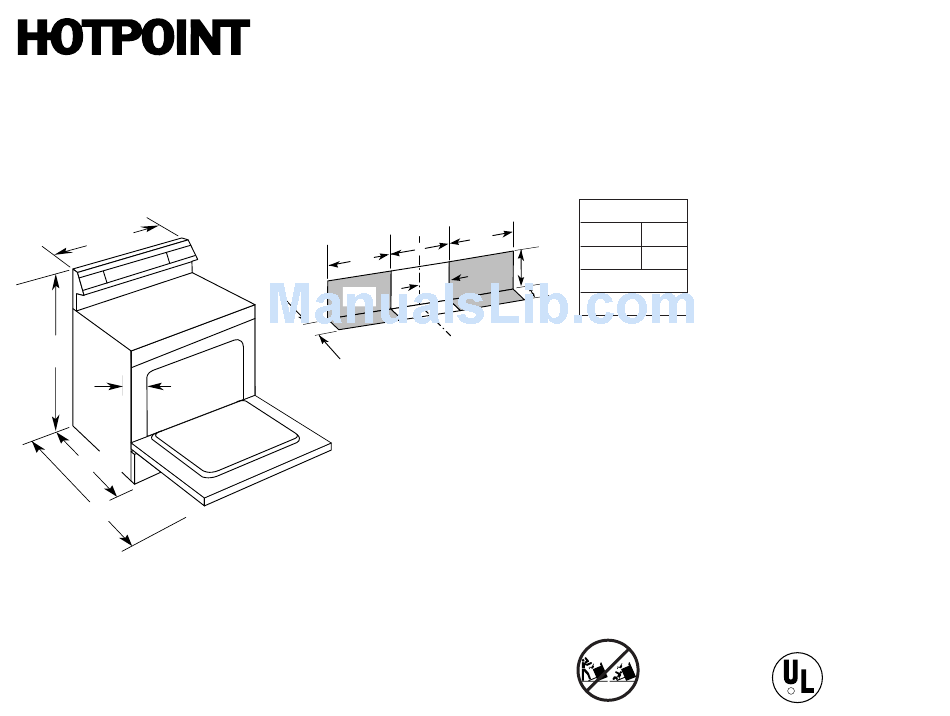

Dimensions (in inches)

29-7/8
45-1/8
1/4 †
25-7/16
46-1/8
†
Specification Created 7/99
7-1/2
REAR
WALL
2-1/4
The range may be placed with
0" clearance (flush) at the back
wall and side walls if the range
side trims extend beyond the
cabinet fronts at least 1/4" .
Self-Clean models only
KW Rating
240V
7-1/2
7
208V
5
3-1/2 Breaker Size
2-1/4
† Note: Check local codes for required breaker size.
CENTER LINE
A properly grounded branch circuit with a 3 prong grounding type
receptacle is required for Hotpoint ranges.
Note: 30" Electric Ranges conform to U.L. requirements for 0" spacing
from walls below countertops. However some kitchen cabinet
finishes can be damaged by heat from the range heating elements. It
is recommended that a clearance of at least 1-1/2 inches be maintained
to walls. Where varnished wood or plastic film finishes are used, a
minimum clearance of 6 inches should be maintained.
Receptacle Locations: Locally approved flexible service cord or conduit
must be used because terminals are not accessible after range
installation. See shaded area in drawing for location of electrical outlet
box. Recommended outlet locations allow range to be installed directly
against rear wall.
Installation Information: Before installing, consult installation
instructions packed with product for current dimensional data.
10.6
8.0
40 Amps †
All Hotpoint ranges are equipped
with an Anti-Tip device. The
installation of this device is
an important, required step in
the installation of the range.
