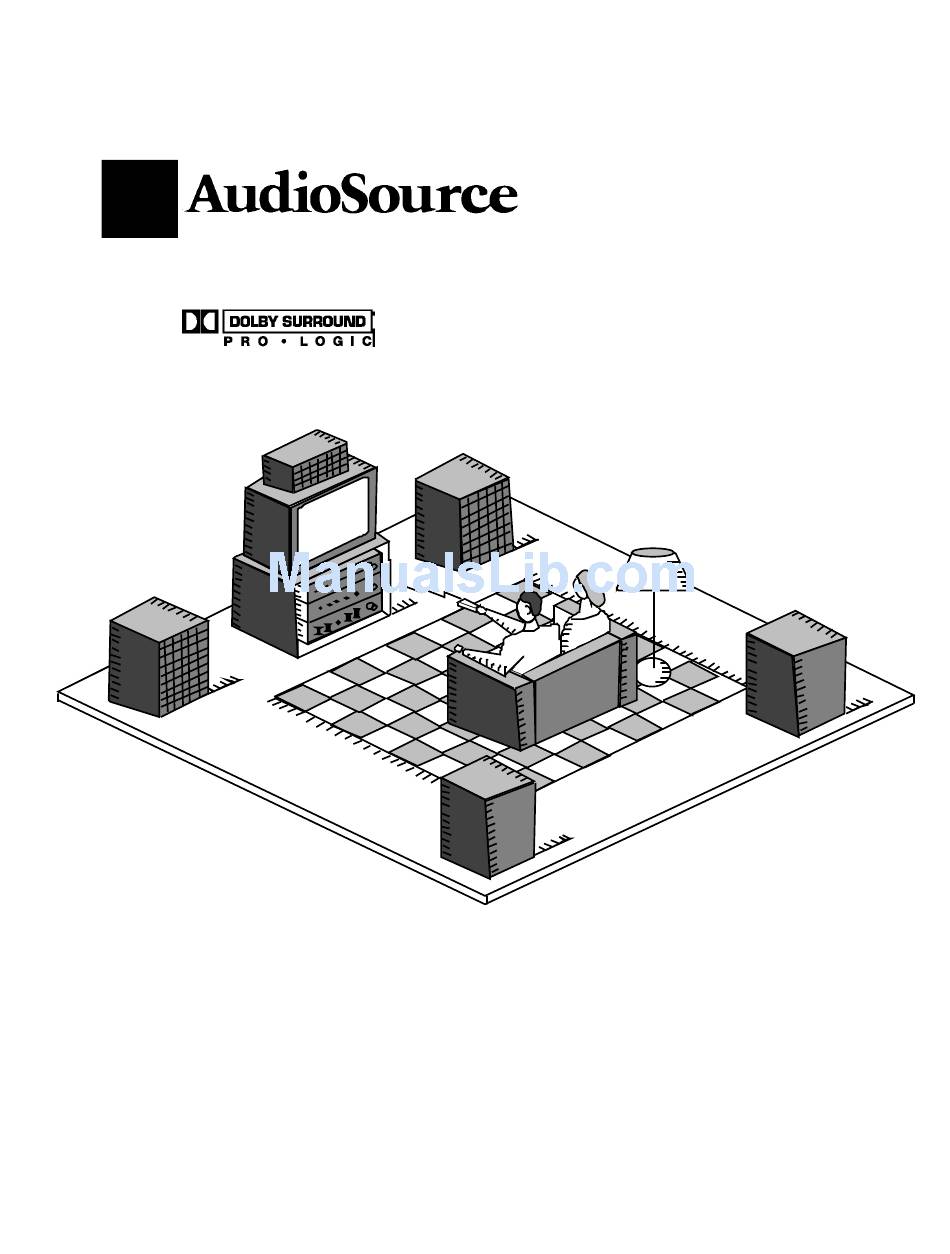

SS Five
with Rear and Center Channel Amplifiers,
plus Remote Control
Congratulations on your new purchase and welcome to the AudioSource family of satisfied
customers. We trust that you will continue to enjoy the value and quality of your AudioSource SS
Five Dolby Surround Sound Processor. In order to make sure that you are experiencing the best
performance out of your unit, please take a few moments to read this manual before you get started.
Also, be sure to retain this manual should you need to refer to it in the future.
Surround Sound Processor
Owner's Manual
© 1994 AudioSource, Inc.
Advertisement
Table of Contents
Related Manuals for AudioSource SS Five
Summary of Contents for AudioSource SS Five
- Page 1 Congratulations on your new purchase and welcome to the AudioSource family of satisfied customers. We trust that you will continue to enjoy the value and quality of your AudioSource SS Five Dolby Surround Sound Processor. In order to make sure that you are experiencing the best performance out of your unit, please take a few moments to read this manual before you get started.
- Page 2 There are two basic ways to integrate the SS Five into your system. The first method is referred to as an " In- Line " hook-up. In this fashion, the SS Five is inserted between two components, a VCR and a Television, for example.
-
Page 3: Using The Controls
Input Level "pop-up" knob on the front panel. For each and every button on the remote control, there is a red L.E.D. status indicator on the front panel of the SS Five to verify that the commands from the remote control have been received... - Page 4 Using the Controls Meters The SS Five features four LED meters; S = Surround, L = Left, C = Center, R = Right. The meters as a group perform three separate functions. Primarily, they are input meters, and will display how much signal is present in each channel. This information can be extremely useful, for example in determining if any surround information is present during a certain scene of a movie.
- Page 5 Audio signals travel OUT of one component and IN to another. All of your connections should also go from OUT to IN. When you are using the SS Five in a loop from your receiver or pre-amp, the MONITOR switch on that receiver or pre-amp must be engaged. Refer to Some System Guidelines on page 1.
- Page 6 SS Five Specifications Amplifier Power Output:------------------------- Selectable;24 Watt Peak Center + 24 Watt Peak Rear, Or; 24 Watt Peak Rear + 24 Watt Peak Rear Frequency Response: ----------------------------- Dolby Surround; 100 Hz to 7k Hz Matrix; 20 Hz to 20k Hz Hall;...
