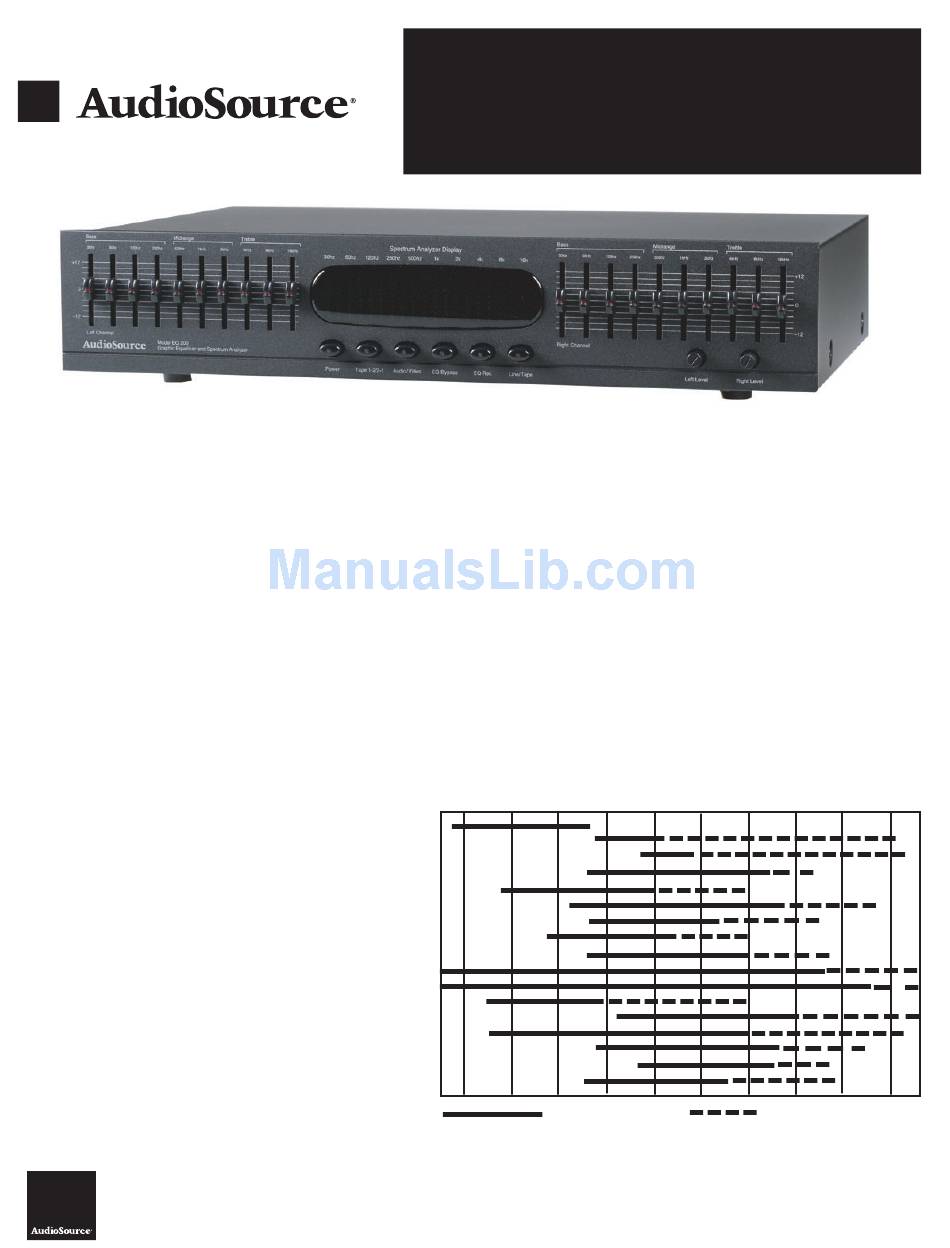

EQ 200
Ten-Band Stereo Graphic Equalizer

FEATURES:

Ten Bands from 30 Hz to 16 kHz +/-12dB
Spectrum Analzyer Display
Tape 1 / Tape 2 play-record loops
Audio and Video inputs
Main Output
EQ Bypass
Front panel Right and Left Level controls

SPECIFICATIONS

Frequency Response: 10 Hz - 50 kHz +/- 1 dB
Harmonic Distortion:
0.03% of nominal output
Signal to Noise Ratio:
-95 dB
Input Impedance:
100k ohms
Output Impedance:
600 ohms
Load Impedance:
10k ohms or more
Inputs:
Audio, Video,
Tape 1, Tape 2
Outputs:
Main, Tape 1, Tape 2
Control Center Points:
30 Hz, 60 Hz, 120 Hz,
250 Hz, 500 Hz, 1 kHz,
2 kHz, 4 kHz, 8 kHz, 16 kHz
Control Range:
+/- 12 dB
Dimensions:
16-1/2" x 3-1/2" x 11-1/4"
(W x H x D)
(419 x 89 x 286 mm)
Net Weight:
8 lbs. (3.63 kg)
Power Consumption:
14 Watts
AudioSource®
13970 SW 72nd Ave
Portland, OR 97223
503.914.4688
www.audiosource.net
Congratulations on your purchase of the AudioSource® EQ 200.
Please take a few moments to read this entire manual, and be sure to
retain this document for future reference. Please read and observe all
safety instructions detailed on page 2.
NOTE: If any part of this product is damaged or missing, please call your
dealer or AudioSource® directly at 1.877.715.5439 or 503.914.4688.
Please read your warranty and retain your receipt and original carton
for possible future use.
For more information about AudioSource® electronics, speakers and
accessories please visit www.audiosource.net
The chart below will help you identify which sliders on the GRAPHIC EQUALIZER Section will
most affect the sound and balance of particular instruments by illustrating where they lie in the
overall sonic spectrum.
30
60
KICK DRUM
SNARE DRUM
CYMBALS
CHIMES
BASS GUITAR
LEAD GUITAR
FEMALE VOCAL
MALE VOCAL
SAXAPHONE
ORGAN
PIANO
STRING BASS
VIOLIN
CELLO
CLARINET
FLUTE
TRUMPET
120
250
1,000
500
Fundamental Note
EQ 200
OWNER'S MANUAL
16,000
4,000
8,000
2,000
Harmonic or Overtone
