Summary of Contents for AudioBahn ATB8ET

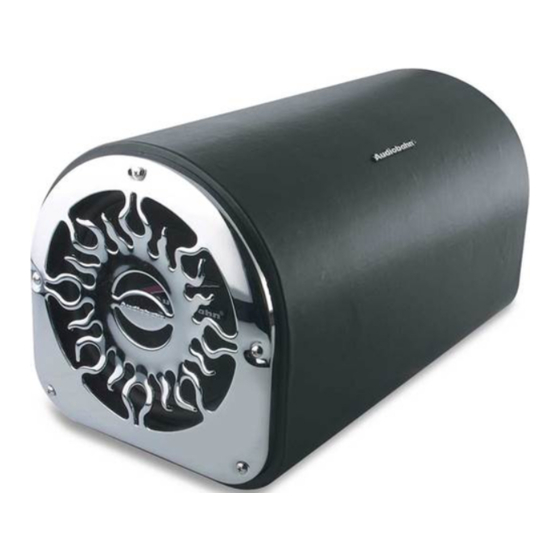

- Page 1 QUALITY, RELIABILITY, & PURE BLISS EMPTY FLAT-BOTTOM BASS TUBE ATB8ET / ATB10ET / ATB12ET OPERATING INTSTRUCTIONS PLEASE RETAIN MANUAL FOR FUTURE USE AND REFERENCE...
- Page 2 With four levels of play, one is right for you to get started in the Audiobahn family. Our Technical Department and entire staff look to strive above and beyond the rest of the pack by going that extra mile to help you out.
-
Page 3: Table Of Contents
Other information can be located by using the table of contents. We at Audiobahn Inc. have worked very hard to make sure that all of the information in this manual is current, but, as we are costantly finding new ways to improve our product, this information is subject to change without notice. -
Page 4: Introduction
Authorized Audiobahn Dealer, as we provide specialized training through our Audiobahn Installer Training Programs. Please read your warranty, keep your receipt, and original carton for possible future use. To get a free brochure on Audiobahn products in the US call (714) 988-0400 or e-mail us at sales@audiobahn.com. WARNING Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. -
Page 5: Contents Of Carton
4. Route all of the RCA cables close together, and away from any power wires. 5. Use high quality connectors that can be found in the Audiobahn Connections catalog. This will minimize signal and power loss. 6.Think before you drill! Be careful not to cut or drill into gas tank, fuel lines, brake or hydraulic lines, vacuum lines, or electrical wiring when working on any vehicle. -
Page 6: Mounting
Mounting The mounting position of your amplified tube will have a great effect on the sound performance produced. TRUNK MOUNTING Mounting the tube in the trunk provides a good overall performance. PASSENGER COMPARTMENT MOUNTING Mounting the tube in the passenger compartment provides optimum sound, but reduces the area for passenger seating. -
Page 7: Wiring
Wiring The empty ported flat-bottom bass tube box has a single set of terminals to wire the sub up with. The left terminal is negative (-) and the right side is positive (+) for each set. -
Page 8: Specifications
Specifications Model Number: ATB8ET ATB10ET ATB12ET Driver Size: 8" 10" 12" Overall Dimensions: Height: 9 1/2" 11 3/8" 13 1/2" Width:: 9 3/8" 11 1/2" 13 3/8" Length: 22 3/4" 21 1/8" 22 5/8"... -
Page 9: Troubleshooting
Troubleshooting If you start having problems with distorted sound or loss of performance after installing your subs in your empty enclosure, you can follow the instructions below to try and locate what is causing the problem. If you have any distorted sound, loss of performance, or rattling from your subs, check the connections running from your amplifier or other processor to the box. -
Page 10: Warning And Disclaimer
Using a fuse of a different type or rating may result in damage to this system which is not covered by the warranty. Disclaimer Specifications are subject to change with out notice. For the most updated Specifications call Audiobahn, your local Authorized Audiobahn Dealer, or check the Audiobahn web site. www.audiobahn.com... -
Page 11: Warranty
Audiobahn products are manufactured with the highest quality components and some of the most advanced technology available. Because of this, we recommend that you have your new products installed by an Authorized Audiobahn Dealer. (A list of Authorized Audiobahn Dealers can be found on our web page). - Page 12 Dealer look at the product to confirm the source of the problem. Any product found to have a manufacturer defect will be replaced with a new piece of the same or similar model, or repaired at the discretion of Audiobahn. Any product found to have no manufacturer defect will be returned to the sender at their cost.
