Planet POE-151S-5V User Manual

Ieee 802.3af power over ethernet splitter

Advertisement

Quick Links

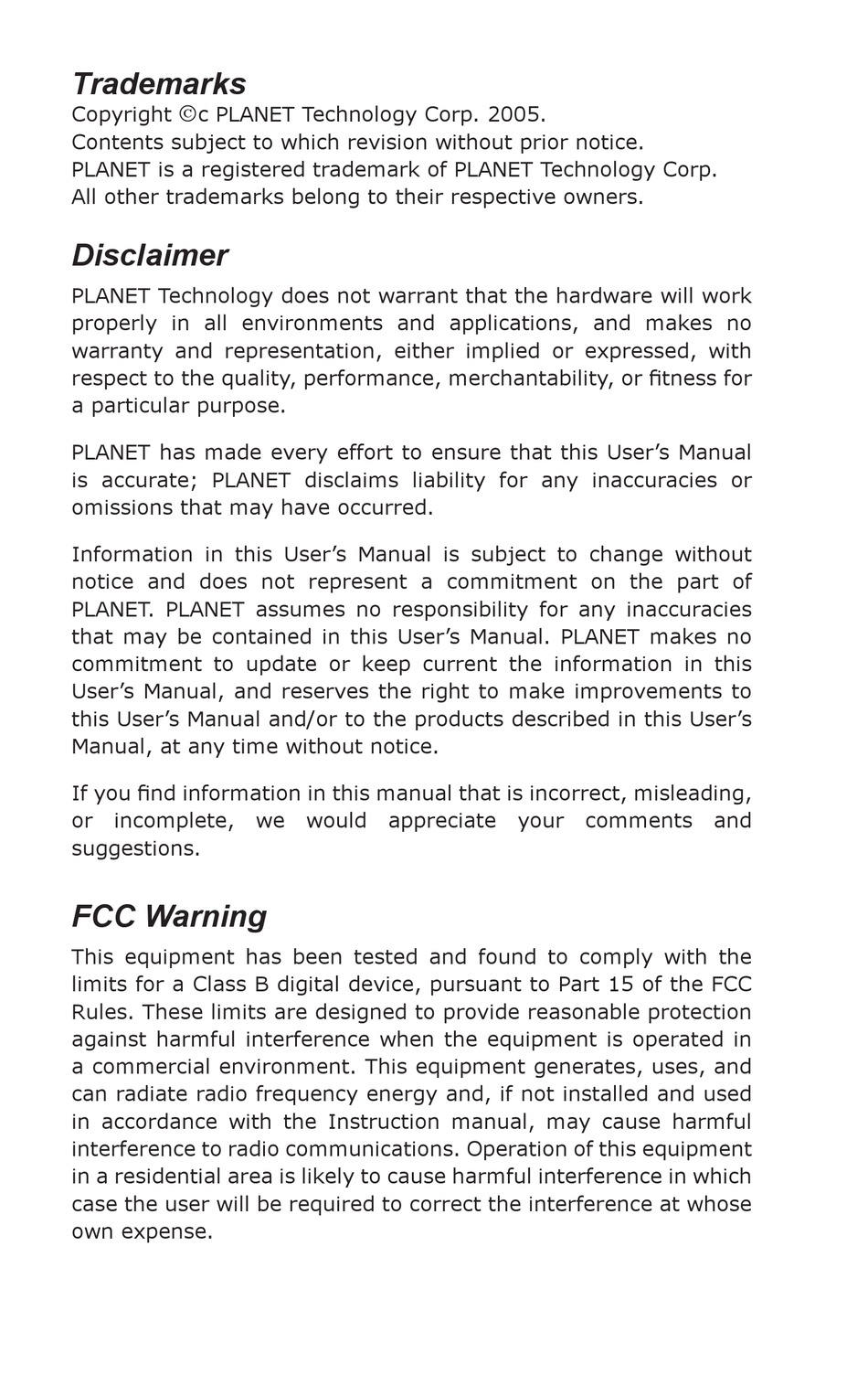

Trademarks
Copyright
c PLANET Technology Corp. 2005.
Contents subject to which revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp.
All other trademarks belong to their respective owners.
Disclaimer
PLANET Technology does not warrant that the hardware will work
properly in all environments and applications, and makes no
warranty and representation, either implied or expressed, with
respect to the quality, performance, merchantability, or fitness for
a particular purpose.
PLANET has made every effort to ensure that this User's Manual
is accurate; PLANET disclaims liability for any inaccuracies or
omissions that may have occurred.
Information in this User's Manual is subject to change without
notice and does not represent a commitment on the part of
PLANET. PLANET assumes no responsibility for any inaccuracies
that may be contained in this User's Manual. PLANET makes no
commitment to update or keep current the information in this
User's Manual, and reserves the right to make improvements to
this User's Manual and/or to the products described in this User's
Manual, at any time without notice.
If you find information in this manual that is incorrect, misleading,
or incomplete, we would appreciate your comments and
suggestions.
FCC Warning
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in
a commercial environment. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used
in accordance with the Instruction manual, may cause harmful
interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which
case the user will be required to correct the interference at whose
own expense.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POE-151S-5V and is the answer not in the manual?

Questions and answers

Summary of Contents for Planet POE-151S-5V

  • Page 1 PLANET is a registered trademark of PLANET Technology Corp. All other trademarks belong to their respective owners. Disclaimer PLANET Technology does not warrant that the hardware will work properly in all environments and applications, and makes no warranty and representation, either implied or expressed, with respect to the quality, performance, merchantability, or fitness for...
  • Page 2 Do not dispose of WEEE as unsorted municipal waste and have to collect such WEEE separately. Revision PLANET IEEE 802.3af Power over Ethernet Splitter FOR MODELS: POE-151S-5V/9V/12V Rev: 1.0(December, 2005) Part No.2010-AF0110-000...
  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Introduction 1.1 Packet Contents 1.2 Key Features 1.3 Technical Specification 1.4 Product Outlook Chapter 2 Installation 2.1 Hardware Installation 2.2 Connect with 802.af devices APPENDIX A: RJ-45 pin assignment and cable system 6 A1 Pin assignment A2 Cable System APPENDIX B: T roubleshooting...
  • Page 4 This page is intentionally left blank...
  • Page 5: Chapter 1 Introduction

    AC wiring and reduces the installation time. 1.1 Packet Contents Open the box of the POE-151S-5V/9V/12V and unpack it carefully. The box should contain the following items:  Power over Ethernet Splitter ...
  • Page 6: Technical Specification

    Data out) 10/100Mbps (vary on Ethernet de- Data Rate vice attached) Vary on model: Output Voltage/ POE-151S-5V: 5VDC, 2A max Current POE-151S-9V: 9VDC, 1.3A max POE-151S-12V: 12VDC, 1A max Number of Device can be powered Ethernet Cable TIA/EIA-568, Category 5/5e cable...
  • Page 7: Product Outlook

    Ethernet Device conveniently and easily. The POE-151S separates the power out and provide three kind of power output by different model and it shown as below: POE-151S-5V: 5VDC/2A POE-151S-9V: 9VDC/1.3A POE-151S-12V:12VDC/1A Please check the power requirement of the device that is going to get the power from POE-151S.
  • Page 8: Hardware Installation

    2.1 Hardware Installation 1. Connect a standard network cable from “Ethernet+DC” of POE-150 to “Ethernet+DC” of POE-151S. The POE LED of POE-150S/POE-150 will start to flash continuously. POE-151S only accept IEEE 802.3af power supply equipment, any other in-line  power device sending power through UTP wire Warning: connect to POE-151S may cause the POE-151S malfunction.
  • Page 9: Connect With 802.Af Devices

    2.2 Connect with 802.3af devices The POE-151S can also provide the alternative to make the non- IEEE 802.3af devices the possibility to connect with an IEEE 802.3af in-line power device like Power over Ethernet Switch, the figure is as below. Comply with IEEE 802.3af standard, the POE- 151S also can co-work with IEEE 802.3af end- ...
  • Page 10: Pin Assignment And Cable System

    APPENDEX A RJ-45 pin assignment and cable system A1 Pin assignment The following table and diagram show the standard RJ-45 receptacle/ connector and their pin assignments RJ-45 Connector pin assignment MDI-X Con- Media Dependant Media Dependant tact Interface Interface -Cross Tx + (transmit) Rx + (receive) Tx - (transmit)
  • Page 11: A2 Cable System

    A2 Cable System The standard cable, RJ-45 pin assignment There are 8 wires on a standard UTP/STP cable and each wire is color-coded. The following shows the pin allocation and color of straight cable and crossover cable connection: Figure A-1: Straight-Through and Crossover Cable Please make sure your connected cable is with same pin assignment and color as above picture before deploying the cables into your network.
  • Page 12: Appendix B: Troubleshooting

    Appendix B: Troubleshooting 1. The device connected to POE-151S cannot be powered? Answer: a. Please check the POE-151S is connect with an IEEE 802.3af complied in-line device like POE-150, and check if the POE LED indicator at POE-151S is steady blink once attach to the IEEE 802.3af in-line power device.
  • Page 14 Part No.:2010-AF0110-000...

This manual is also suitable for:

Poe-151s-9vPoe-151s-12v
