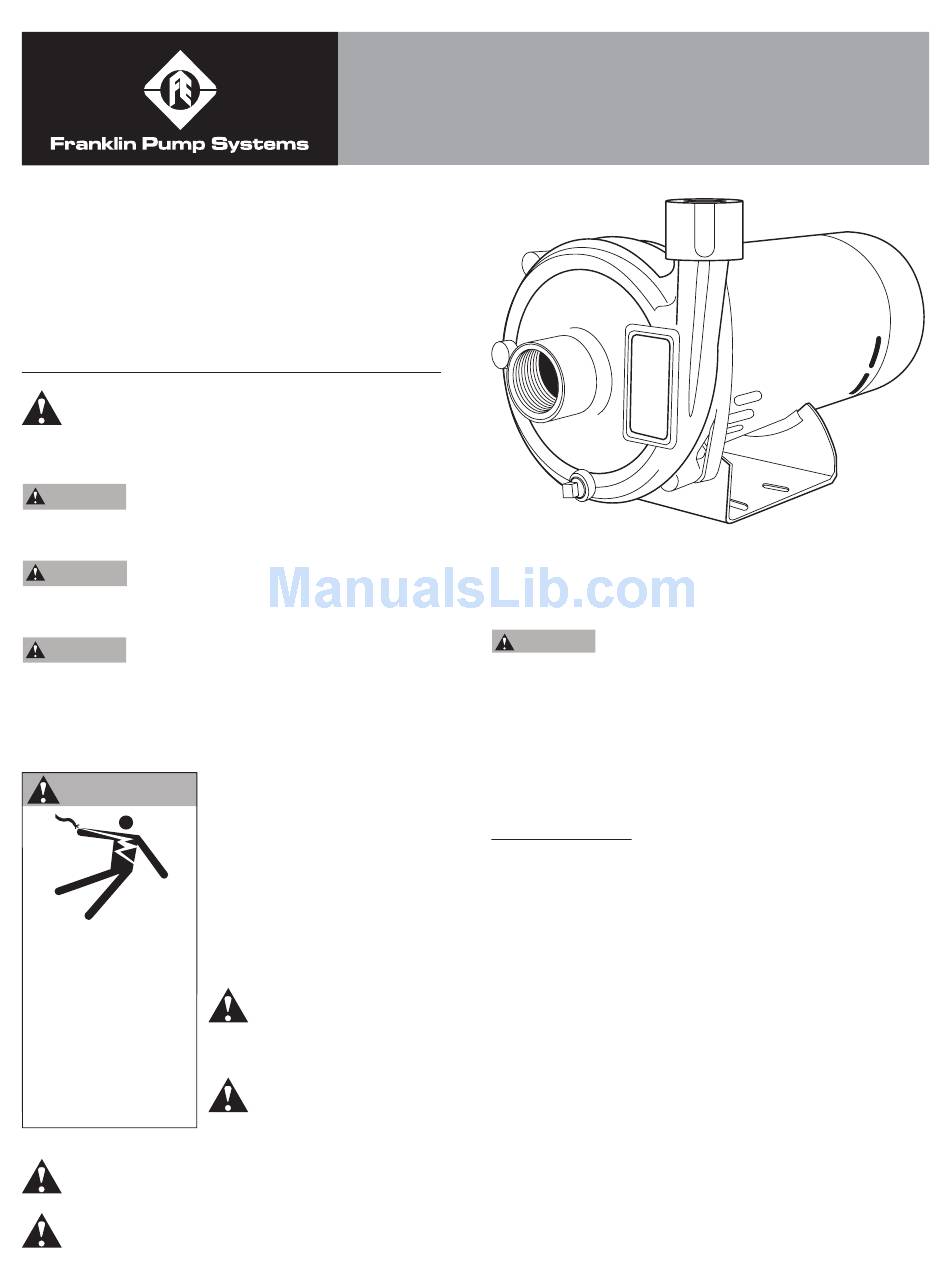

Franklin Pump Systems DDD Series Owner's Manual

READ AND FOLLOW SAFETY INSTRUCTIONS
This is the safety alert symbol. When you see
this symbol on your pump or in this manual, look
for one of the following signal words and be alert to the
potential for personal injury:
warns about hazards that
D A N G E R
serious personal injury, death or major property damage
if ignored.
warns about hazards that can cause
W A R N I N G
serious personal injury, death or major property damage
if ignored.
warns about hazards that will or can
C A U T I O N
cause minor personal injury or major property damage if
ignored.
The label NOTICE indicates special instructions, which
are important but not related to hazards.
WA R N I N G
Hazardous voltage.
Can shock, burn, or
cause death.
Ground pump before
connecting to power
supply. Disconnect
power before working
on pump, motor
or tank.
Meet National Electrical Code, Canadian Electrical
Code, and local codes for all wiring.
Follow wiring instructions in this manual when
connecting motor to power lines.
CENTRIFUGAL PUMPS
DDD/DDS SERIES
OWNER'S MANUAL
will
cause
Carefully read and follow all
safety instructions in this
manual and on pump.
Keep safety labels in good
condition.
Replace missing or damaged
safety labels.
Wire motor for correct
voltage. See "Electrical"
section of this manual and
motor nameplate.
Ground motor before
connecting to power supply.
BEFORE INSTALLING PUMP, BE SURE TO READ
THIS OWNER'S MANUAL CAREFULLY.
C A U T I O N
Mechanical shaft seals do not run dry.
Fill pump with water before starting or pump will be
damaged. The motor on this pump is guaranteed by
the manufacturer and in event of failure it must be
returned to an authorized service station for repairs.
Motor warranty is void if repairs aren't made by an
authorized repair station.
INSTALLATION
Suction Piping
The pump should be installed as close as possible to
the source of water in order to minimize the length of
suction piping. The suction pipe should never be smaller
in diameter than the suction opening of the pump. It
must be free of all leaks, and should slope continuously
upward from the water source to the pump, with no high
spots, which can trap air. A foot valve must be used to
maintain the prime.
General Piping Instructions
In order to avoid strain on the pump, both the suction
and discharge piping should be properly supported,
and a pipe wrench should be put on the suction and
discharge bosses when installing pipes in them.
Electrical Connections
Remove the end cover (canopy) from the motor, and
using the diagram on top of the motor, make sure it is
connected for the correct voltage.
