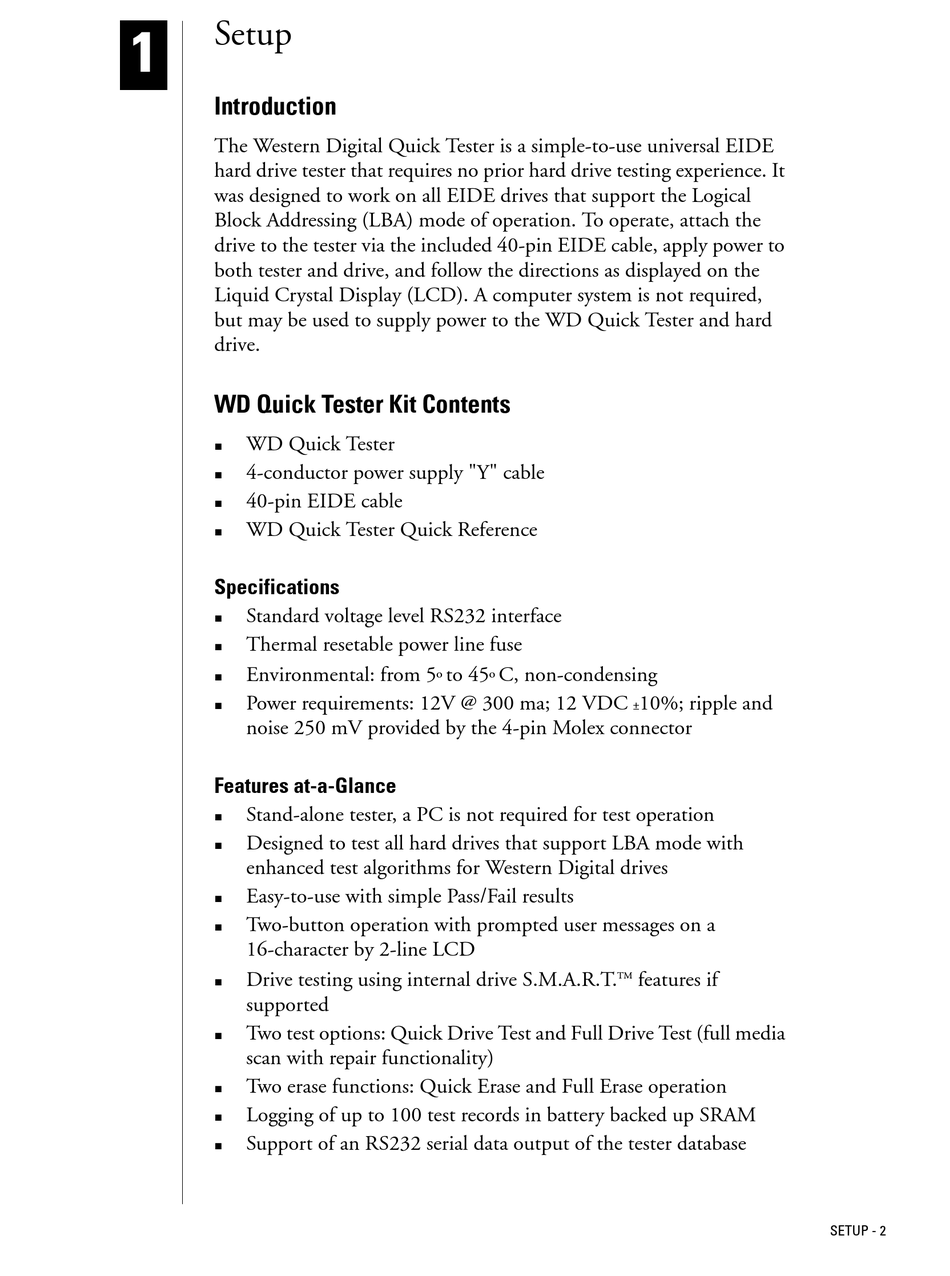

Setup

1

Introduction

The Western Digital Quick Tester is a simple-to-use universal EIDE
hard drive tester that requires no prior hard drive testing experience. It
was designed to work on all EIDE drives that support the Logical
Block Addressing (LBA) mode of operation. To operate, attach the
drive to the tester via the included 40-pin EIDE cable, apply power to
both tester and drive, and follow the directions as displayed on the
Liquid Crystal Display (LCD). A computer system is not required,
but may be used to supply power to the WD Quick Tester and hard
drive.

WD Quick Tester Kit Contents

WD Quick Tester
!
4-conductor power supply "Y" cable
!
40-pin EIDE cable
!
WD Quick Tester Quick Reference
!

Specifications

Standard voltage level RS232 interface
!
Thermal resetable power line fuse
!
Environmental: from 5
!
Power requirements: 12V @ 300 ma; 12 VDC
!
noise 250 mV provided by the 4-pin Molex connector

Features at-a-Glance

Stand-alone tester, a PC is not required for test operation
!
Designed to test all hard drives that support LBA mode with
!
enhanced test algorithms for Western Digital drives
Easy-to-use with simple Pass/Fail results
!
Two-button operation with prompted user messages on a
!
16-character by 2-line LCD
Drive testing using internal drive S.M.A.R.T.
!
supported
Two test options: Quick Drive Test and Full Drive Test (full media
!
scan with repair functionality)
Two erase functions: Quick Erase and Full Erase operation
!
Logging of up to 100 test records in battery backed up SRAM
!
Support of an RS232 serial data output of the tester database
!
to 45 C, non-condensing
o o
10%; ripple and
±
features if
TM
SETUP - 2
