TurboTorch
Cutting and Brazing Tools
RSP-PRC023-EN
June 2003

Advertisement

Table of Contents
loading

Related Manuals for Trane TurboTorch

Summary of Contents for Trane TurboTorch

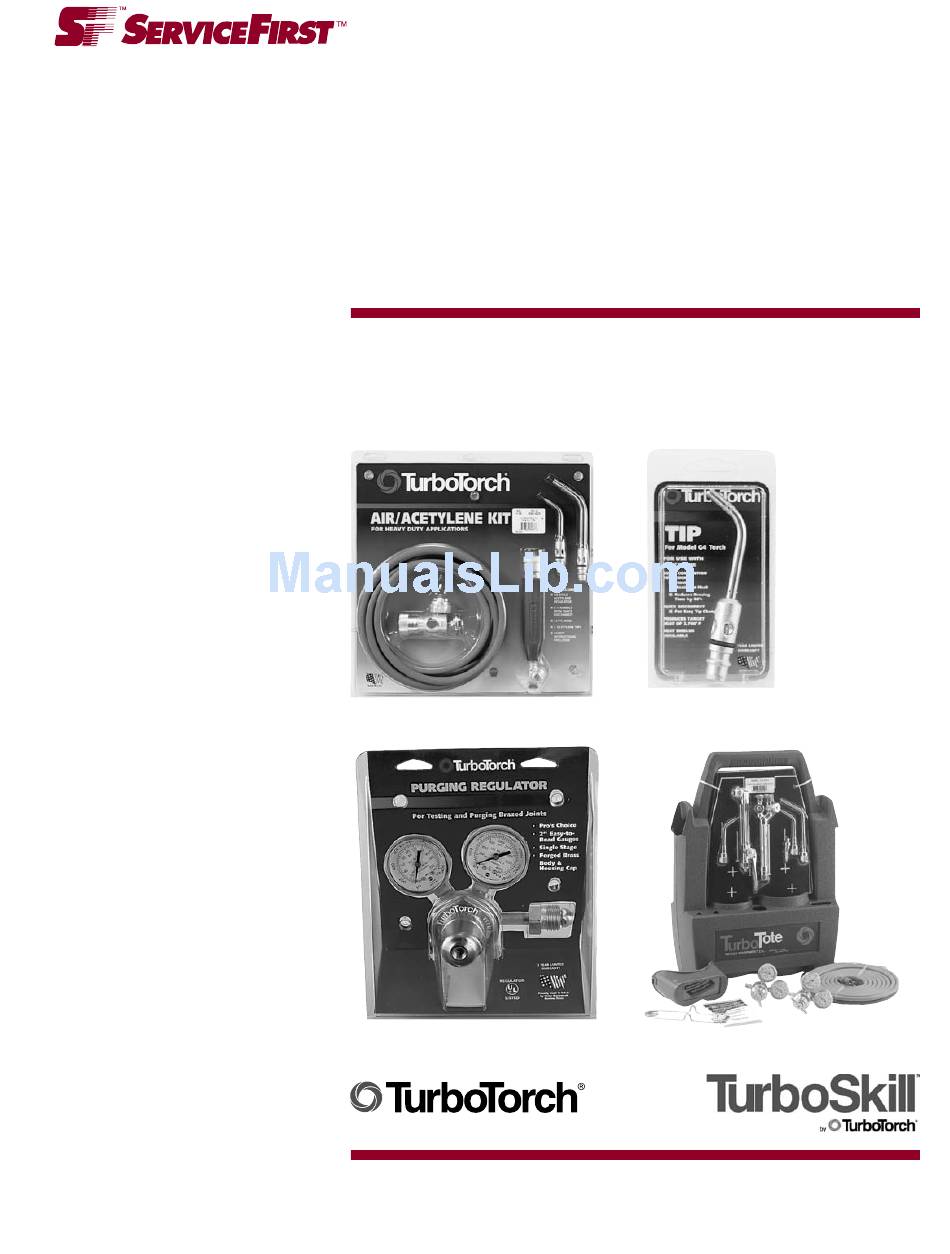

  • Page 1 ® TurboTorch Cutting and Brazing Tools RSP-PRC023-EN June 2003...
  • Page 2 © 2003 American Standard Inc. All rights reserved. RSP-PRC023-EN...

  • Page 3: Table Of Contents

    Contents Air Acetylene ® Propane and Mapp Oxygen Acetylene Regulators and Kits ® TurboTotes Turbo Cylinders and Tanks Accessories Plasma Cutting Systems Oxy/Fuel Kits Cutting Welding and Brazing Hand Torches and Purging Kits Cross Reference ServiceFirst Item No. to Manufacturer No. Manufacturer No.

  • Page 4: Air Acetylene

    Air Acetylene Swirl Air Acetylene Kits KIT08307 KIT08306 X-6MC Kit (0386-0339) X-5B Kit (0386-0338) All-purpose kit for work using “MC” Flexible lighter-duty kit. tank. Components: Components: • AR-B (CGA 520) Regulator • AR-MC (CGA 200) Regulator • G-4 Handle • G-4 Handle •...
  • Page 5 Air Acetylene Swirl Air Acetylene Kits KIT08309 KIT08338 PL-8ADLX-MC Kit (0386-0834) PL-5ADLX-MC KIT (0386-0832) Components: Components: • AR-MC (CGA-200) Regulator • AR-MC (CGA-200) Regulator • G4 Handle • G4 Handle • AH-12 Hose • AH-12 Hose • PL-8A Tip • PL-5A Tip •...
  • Page 6 Air Acetylene Swirl Air Acetylene Tips TIP00131 TIP00142 A-2 (0386-0100) A-3 (0386-0101) TIP00143 TIP00144 A-5 (0386-0102) A-8 (0386-0103) TIP00145 A-11 (0386-0104) TIP00146 A-14 (0386-0105) TIP00132 A-32 (0386-0106) Tip Size Gas Flow Copper Tubing Size Capacity Replacement ServiceFirst @14 PSI (0.9 BAR) Soft Solder Silver Braze Orifice...
  • Page 7 Air Acetylene Swirl Air Acetylene Tips TIP00147 TIP00148 TIP00149 TIP00150 PL-3A (0386-0874) PL-5A (0386-0818) PL-8A (0386-0819) PL-12A (0386-0820) Tip Size Gas Flow Copper Tubing Size Capacity Replacement Replacement ServiceFirst @14 PSI (0.9 BAR) Soft Solder Silver Braze Orifice Item No. Mfg.
  • Page 8 Air Acetylene Swirl Air Acetylene Components HDL00915 G-4 TurboTorch Handle (0386-0308) Ergonomically designed handle with valve and quick disconnect. Fits all Proline and TurboTorch tips. “A” size 3/8 in.-24 hose connection. Now Includes Gauge Guard Acetylene Regulators REG00433 AR-B (0386-0725)

  • Page 9: Propane And Mapp

    ® Propane and Mapp ® Swirl Propane and Mapp Kits KIT08305 KIT08340 LP-1 Kit (0386-0247) PL-4TDLX KIT (0386-0838) Components: Components: • R-LP Adjustable regulator, CGA-510 • RL-P Regulator, CGA-510 • H-4 Handle • H-4 Handle • H-12 Hose • H-12 Hose •...
  • Page 10 Tips / Components TIP00135 T-2 (0386-0150) TIP00136 T-3 (0386-0151) TIP00133 TIP00134 T-4 (0386-0152) T-5 (0386-0153) TIP00137 T-6 (0386-0154) TurboTorch Tips Copper Tubing Size Capacity Copper Tubing Size Capacity Tip Size Gas Flow Propane Gas Mapp ® Replacement ServiceFirst @24 PSI @36 PSI...
  • Page 11 REG00439 Ergonomically designed handle with R-LP Regulator valve rear and quick disconnect. Fits all (0386-0705) Proline and TurboTorch tips. “B” size ® Brass regulator for use with MAPP 9/16 in.-18 hose connections. Propane, and other LPG fuel gas. Adjustable to 60 psi. Fits standard POL valve and 9/16 in.-18 LH hose nut.
  • Page 12 ® Propane and Mapp Hand Torches and Components ® Propane and Mapp Gases TOL02011 STK-9 Kit (0386-0403) Components: • STK-R Pressure regulator CGA-600 • ST-3 Tip • Easy-to-change orifice • Swivels 360° • Instruction manual TOL02012 STK-99 Kit (0386-0851) Components: •...
  • Page 13 ® Propane and Mapp ® Propane and Mapp Hand Torches / Tips TIP00140 ST-33 Self-Igniting Tip Assembly Only (0386-0850) • Fits existing STK-9 and STK-99 torches TIP00138 ST-3 (0386-0171) ® Copper Tubing Size Capacity with Mapp Replacement ServiceFirst Soft Solder Silver Braze Orifice Item No.
  • Page 14 Self-Lighting Torch (0386-1273) ® • MT-1 MAPP Tank • Great for light application jobs: • TurboTorch swirl combustion • TSR Tank rack with retainer - Soldering technology gives you the best burn in a - Thawing frozen pipes • Instruction manual self-lighting package.

  • Page 15: Oxygen Acetylene

    Oxygen-Acetylene Oxygen-Acetylene Cutting and Brazing Equipment High Pressure Low Pressure Delivery ServiceFirst Gauge Gauge Range Item No. Mfg. No. Model No. psig psig psig REG00441 0386-0786 221-05FP Oxygen CGA-540 4000 28,000 4–80 28–570 REG00441 221-05FP RSP-PRC023-EN...
  • Page 16 Oxygen-Acetylene Cutting and Brazing Equipment KIT08350 CWK-5 Kit (0386-0055) Components: • 221-05FP Oxygen regulator CGA-540 • 201-05FP Acetylene regulator CGA-200 • 103-01FP Handle • 2-W-J and 4-W-J Nozzle with mixer • Reverse flow check valves • 252-03P 3/16 in. x 12-1/2 ft Twin hose •...
  • Page 17 Brazing capacity: 1/4 in. to 1-3/4 in. For use with CWK Series handle. Brazing capacity: 1/8 in. to 2-5/8 in. ADP01029 VM-J (0386-0554) Mixer-Adapters For TurboTorch oxy-acetylene handles. Fits CWK kit handle No. 103-01FP (Forward valve) TIP00152 VW-2 TIP00151 VW-1 Wrapper Tips For complete distribution.

  • Page 18: Regulators And Kits

    Regulators and Kits Nitrogen Purging Equipment and Accessories Purging Regulator (245-03P) TurboTorch offers a nitrogen regulator with easy-to-read 2 in. (51 mm) gauges. Constructed of forged brass, designed for testing and purging brazed joints. This regulator is recommended by many air-conditioning code organizations for joint testing at commercial job sites.

  • Page 19: Turbototes

    ® TurboTotes Tank Carriers and Totes TOL02005 TT-150 (1421-0016) Durable composite construction fits “B” tank. Features include a hose rack for storage while not in use and to help protect the regulator from accidental damage. A large handle keeps your tank portable.

  • Page 20: Turbo Cylinders And Tanks

    MT-1 (0916-0009) • Propane replacement tank for use with • MAPP ® Gas replacement tank for use all TurboTorch hand torches. Also for with TurboTorch dual-fuel hand use with TurboTorch No. TT-LP leak torches. Also use with TurboTorch detector. No. TT-LP leak detector.

  • Page 21: Accessories

    Accessories Acetylene Hose ServiceFirst Part Item No. Mfg. No. Number Description HSE01407 0386-1090 AH-12 12 ft. Hose "A" Fitting HSE01413 0386-1091 AH-24 24 ft. Hose "A" Fitting "Total LP" Hose ServiceFirst Part Item No. Mfg. No. Number Description HSE01414 H-12 1412-0080 12 ft.

  • Page 22: Plasma Cutting Systems

    Plasma Cutting Systems TOL02003 TPC-18 1/8 in. Cutting System (1445-0900) Specifications Output: 12 A fixed Input: 120 V (+/-10%) 1 ph, 60 Hz, 20 A Cut Capacity: 1/8 in. (3.2 mm) Duty Cycle: Panel Controls: On/off lighted Dimensions: Height: 10 in. (254 mm) Width: 9 in.

  • Page 23: Oxy/Fuel Kits Cutting Welding And Brazing

    Oxy/Fuel Kits, Cutting Welding and Brazing Portable Oxy-Fuel Outfit Features • Brass handle • Heavy-duty brass regulators • Solid one-piece tip and mixer design • Packaged for P .O.P . Tote Combination Chart ServiceFirst Item No. Mfg. No. Description TOL02014 SKMC-1 (0426-0004) TOTE w/o Cutting Attachment TOL01997...

  • Page 24: Hand Torches And Purging Kits

    Hand Torches and Purging Kits TOL01999 KIT08345 SK-7000 SKP-40T Self-Lighting (Hand Torch) Purging Kit (0426-4001) (0426-0009) • Self-lighting • 40 cu ft nitrogen cylinder (0916-0028) • Preset flame • Durable 6 ft hose (1412-0145) • 180° swivel tip • OSHA rated blow gun (0660-0105) •...

  • Page 25: Cross Reference

    Cross Reference Cross Reference – ServiceFirst Item No. to Manufacturer No. ServiceFirst ServiceFirst Item No. Mfg No. Page No. Item No. Mfg No. Page No. ADP01029 VM-J (0386-0554) TIP00135 T-2 (0386-0150) CYL00201 AC-B (0916-0005) TIP00136 T-3 (0386-0151) DST00867 TGD-25 (1445-0905) TIP00137 T-6 (0386-0154) ELC00066...

  • Page 26: Manufacturer No. To Servicefirst Item No

    Cross Reference Cross Reference – Manufacturer No. to ServiceFirst Item No. ServiceFirst ServiceFirst Mfg No. Item No. Page No. Mfg No. Item No. Page No. 110-01FP Kit (0386-0038) KIT08336 SK-7000 (0426-4001) TOL01999 111-01FP Kit (0386-0039) KIT09131 SKMC-1 (0426-0004) TOL02014 221-05FP (0386-0786) REG00441 SKMC-1T (0426-0005) TOL01997...
  • Page 28 Literature Order Number Tool and Test Equipment/Welding and Brazing Products Filing Hierarchy Date June 2003 Supersedes Stocking Location Inland Trane has a policy of continuous product and product data improvement and reserves the right to change design and specifications without notice.
