PROCEDURE
1
Hang the Flybar on an appropriate and properly
installed chain motor or hoist. Always use a licensed
rigger to install the chain motor.
PLUNGER
BALL STOP
LOAD RATING
Safe working load is 4000 lb./Module.
Calculated at 5:1 safety factor + pull tested.
Maximum column length is 10 Modules.
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# KF860 Tech Notes 999274 (A)/4p/12/28/97 • Printed In USA
RIGGING HARDWARE TECH NOTE KF860
ADJUSTABLE
RIGGING PLATE
SAFETY
PINS
2

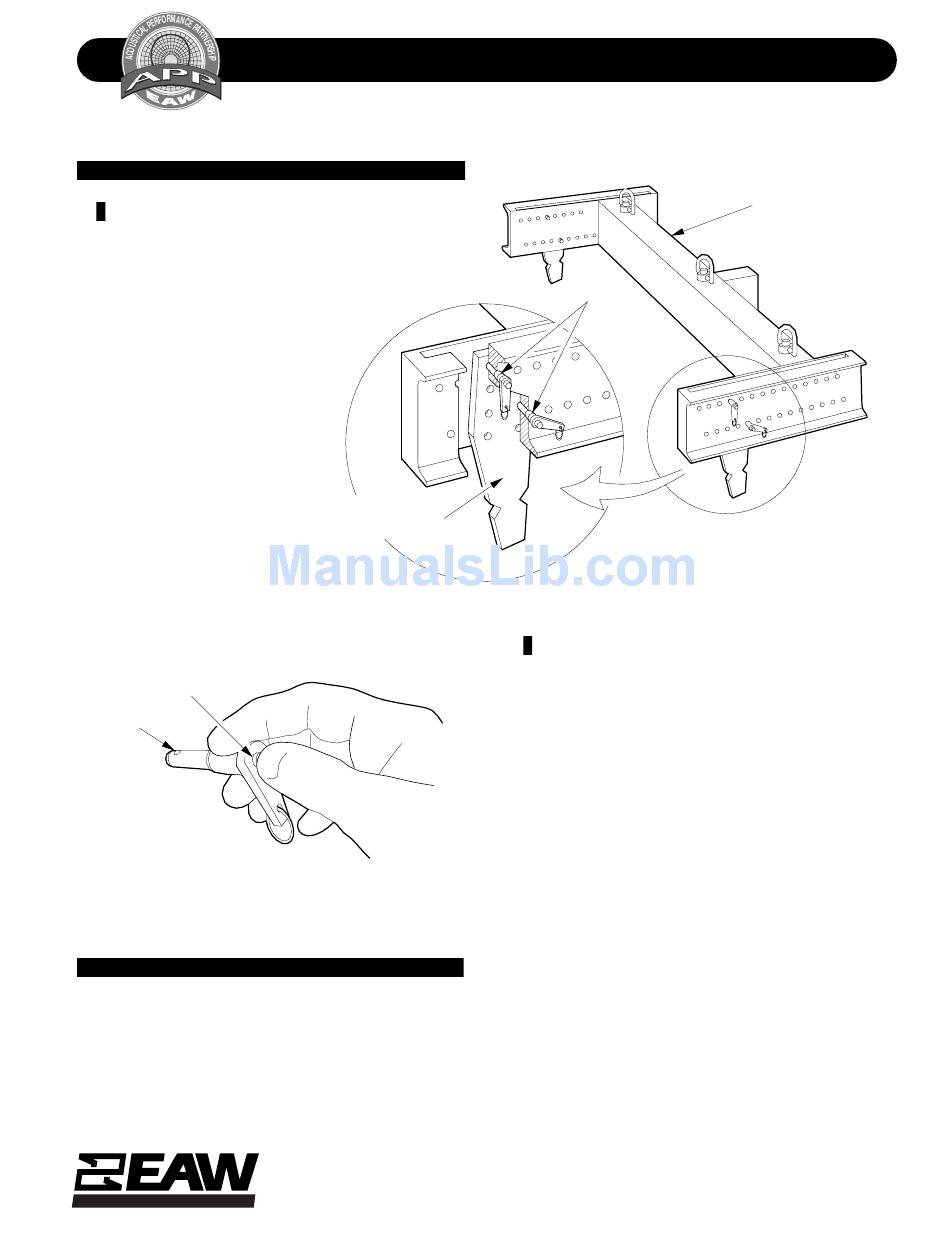

Install Rigging Plates (angled edge forward) into the
