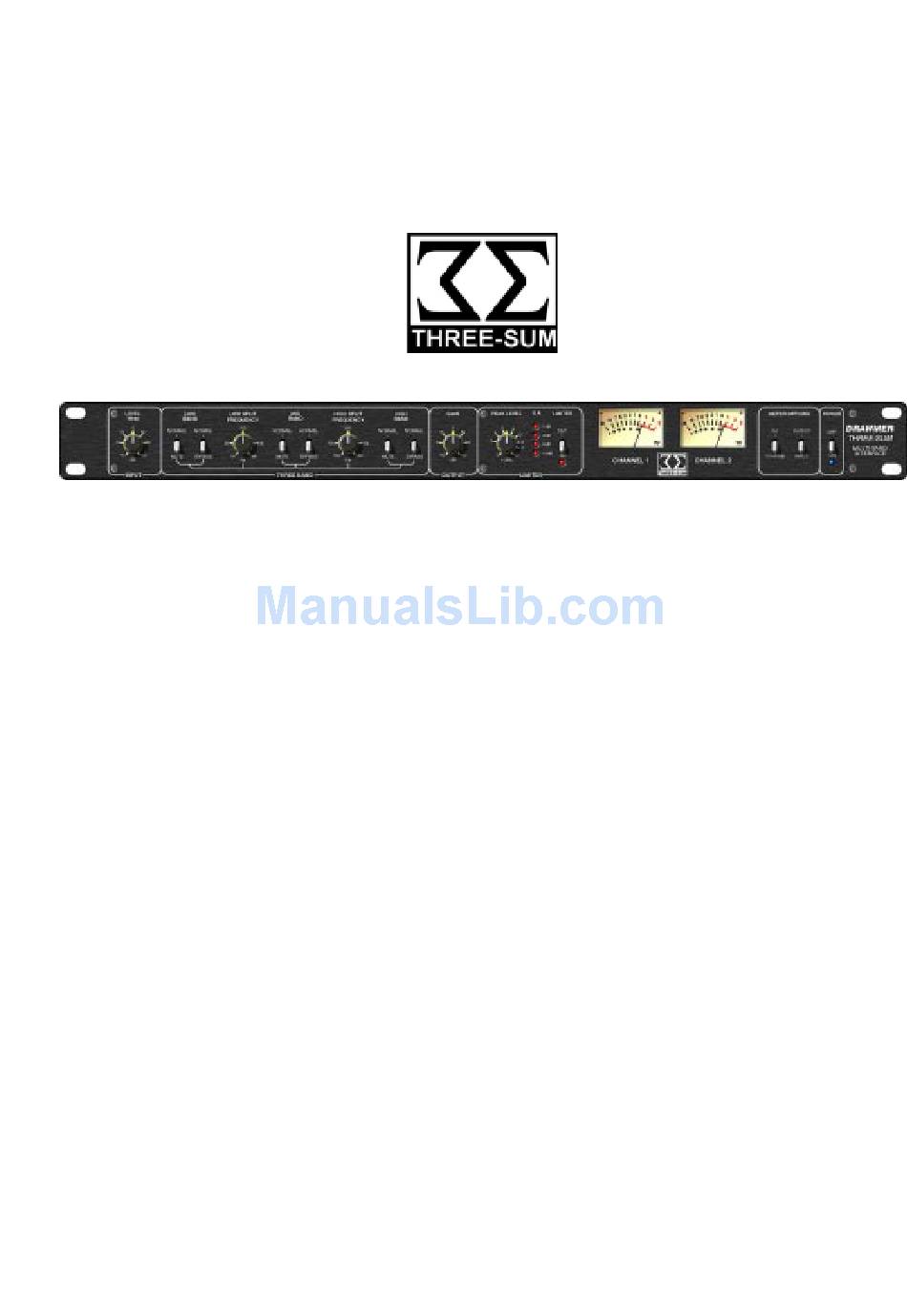

    DRAWMER THREE-SUM Multi-Band Interface OPERATOR’S MANUAL CONTENTS Warranty ............2 Safety Consideration .
  • Page 2: Warranty

    COPYRIGHT This manual is copyrighted © 2005 by Drawmer Electronics Ltd. With all rights reserved. Under copyright laws, no part of this publication may be reproduced, transmitted, stored in a retrieval system or translated into any language in any form by any means, mechanical, optical, electronic, recording, or otherwise, with- out the written permission of Drawmer Electronics Ltd.
  • Page 3: Introduction

    The THREE-SUM has been designed for use in high-end detail and enhancement is not necessarily available from mastering and general recording applications, alternatively, any one manufacturer.
  • Page 4: Installation

    If such measures are necessary, balanced nection on the XLR connector as opposed to connect- operation is recommended. ing to pin1. The Three-Sum conforms to the EMC standards. fig.1 TYPICAL THREE-SUM SETUP DRAWMER T HREE PERATOR’S...
  • Page 5: Power Connection

    POWER CONNECTION The Three-Sum unit will be supplied with a power cable suitable for domestic power outlets in your country. For your own safety, it is important that you use this cable to connect to the mains supply earth. The cable must not be tampered with or modified.
  • Page 6: Control Description

    Output Gain: -10dB - +10dB After the three bands have returned to the Three-Sum the signal is summed back to a single stereo band. If at this point the signal is too low or so high that eccessive limiting occurs then it would be difficult to adjusts all three gain controls of each compressor whilst maintaining the low/mid/high balance, for this reason a single OUTPUT GAIN control has been incorporated.
  • Page 7 In the output positon the signal level comes after the three band signal has been summed and passed through the output gain and limiter. If any of the bands have been muted or bypassed this is also reflected in the meter. DRAWMER T HREE PERATOR’S...
  • Page 8: Operation

    Drawmer Three-Sum allows the three signals to be sent to three so that the limiter only activates on fast signal peaks. independent compressors, each giving their own unique Setting up the Cross-Over Points.
  • Page 9 Remember, The Drawmer Three-Sum can be used to very good effect any gain should be controlled by the three individual during the recording stages.
  • Page 10: Chapter 4 - General Information

    CHAPTER 4 GENERAL INFORMATION It is the responsibility of the installer to ensure that the continuous power rating of the speakers is not exceeded, as Drawmer Electronics Ltd will not accept any responsibitlity for speaker damage caused by incorrect settings.
  • Page 11: Block Diagram

    BLOCK DIAGRAM Three-Sum ver 01 B 15/06/06 DRAWMER T HREE PERATOR’S ANUAL...
