SPEAKER FACTS FOR DLS REFERENCE SERIES
Model Woofer
RS5N 13 cm / 5,25"
RS6N 16,5 cm / 6,5"
R4 10 cm / 4"
R5A 13 cm / 5,25"
R6A 16,5 cm / 6,5"
R1073 7 x 10"/ 50 mm mid.
MS5A 13 cm / 5,25"
RUNNING-IN PERIOD
Allow the speakers to play for at
least 15-20 hours. After this time the
performance is correct.
SPEAKER PHASING
To be sure to have the correct speaker polarity (phase) you can
check this by using a 1,5 Volt battery.
Connect a cable from the battery plus-pole to the speaker plus,
and a cable from the battery minus to the speaker minus.
If the speakers are correctly connected the speaker cone should
move outwards on both right and left channel.
This check must be made on the cables going from the speakers,
to the output terminals of your car stereo or amplifier.

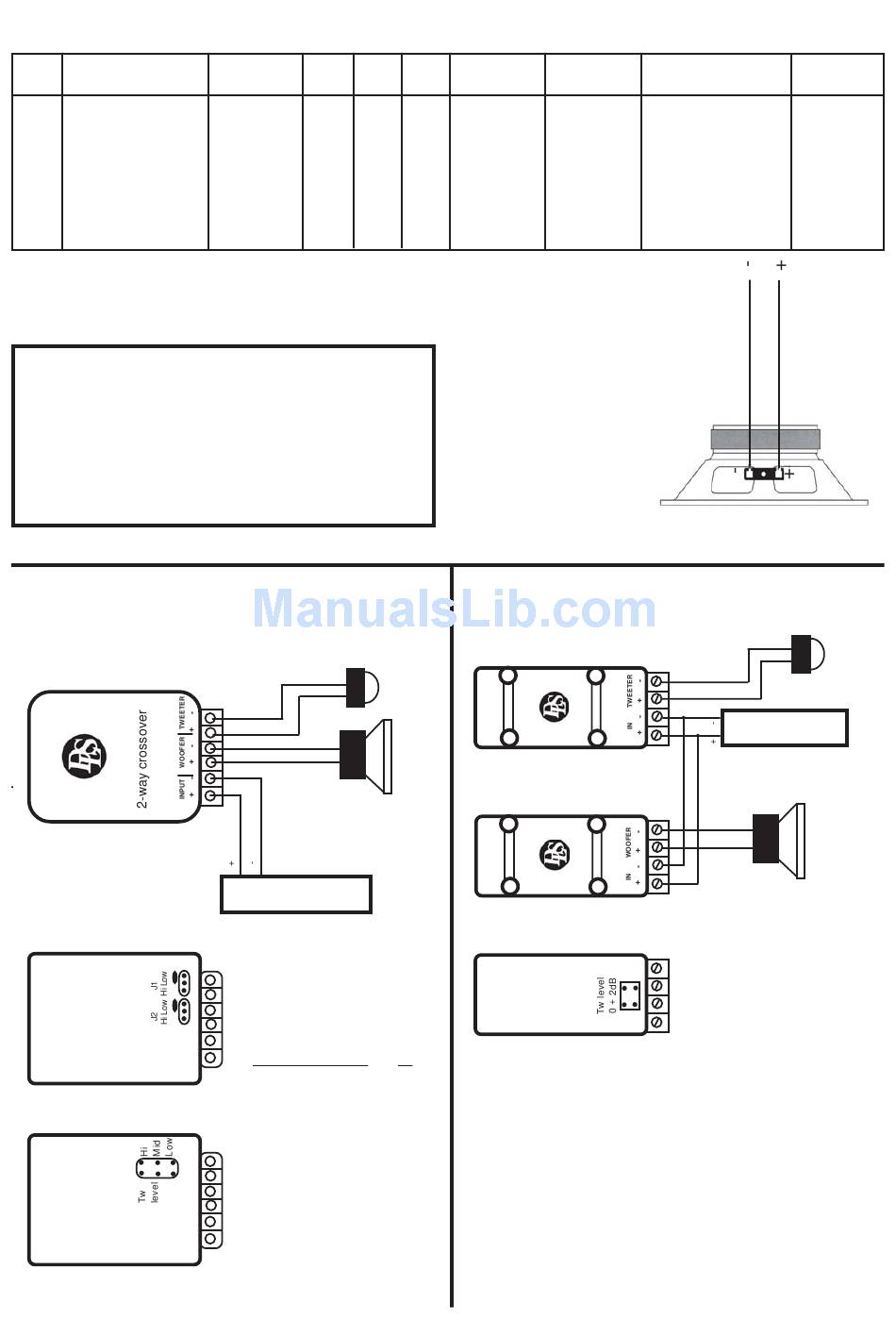

FILTER/CROSSOVER INSTALLATIONS
Filter installation and connection of
R4, R5A & R6A
Tweeter Nom. Max
power power
25 mm / 1" 50 W 80 W
25 mm / 1" 50 W 80 W
20 mm / 0,8" 50 W 80 W
25 mm / 1" 80 W 120 W
25 mm / 1" 80 W 120 W
20 mm / 1" 100 W 150 W
28 mm / 1,1" 80 W 120 W
Tweeter
-
+
Silver
Silver/red
Black -
Black/blue
+
Woofer
Head unit / amp.
R4 tweeter level
select:
Select tweeter level
moving the jumpers inside the
filter box between high or low.
Make your own tests for best
result.
Tweeter level:
Jumper position J1
High Hi
Mid Hi
Low Lo
R5A, R6A tweeter
level select:
Select tweeter level
moving the jumper inside the
filter box between high, mid
or low. Make your own tests
for best result.
Sensi- Magnet Inst.
tivity size depth
92 dB 90 mm / 3,54" 45 mm / 1,77"
92 dB 90 mm / 3,54" 53 mm / 2,09"
94 dB 80 mm / 3,15" 60 mm / 2,36"
94 dB 90 mm / 3,54" 60 mm / 2,36"
94 dB 100 mm / 4" 76 mm / 3"
93 dB 145 mm / 5,7" 80 mm / 3,15"
90 dB 90 mm / 3,54" 58 mm / 2,28"
CONNECTION OF
SPEAKERS
Make sure you connect
the cables with correct
polarity to the speakers.
Observe the markings on
the terminal. The small
terminal is minus.
Filter installation and connection of
RS5N & RS6N
by
J2
Hi
Lo
Lo
by
Mounting Crossover
hole
117 mm / 4,6" Separate boxes
146 mm / 5,75" Separate boxes
102 mm / 4" Separate box
120 mm / 4,72" Separate box
140 mm / 5,5" Separate box
156x225 mm / 6,15x8,86" Separate box
120 mm / 4,72" Separate box
-
+
Silver
Tweeter
Silver/red
Head unit / amp
Black
-
Woofer
Black/blue
+
Tweeter level
select:
Select tweeter level by
moving the jumper inside
the filter box between +2
dB (high level) or 0 (low
level). Make your own tests
for best result.
