DLS Reference R6.2 Owner's Manual page 2

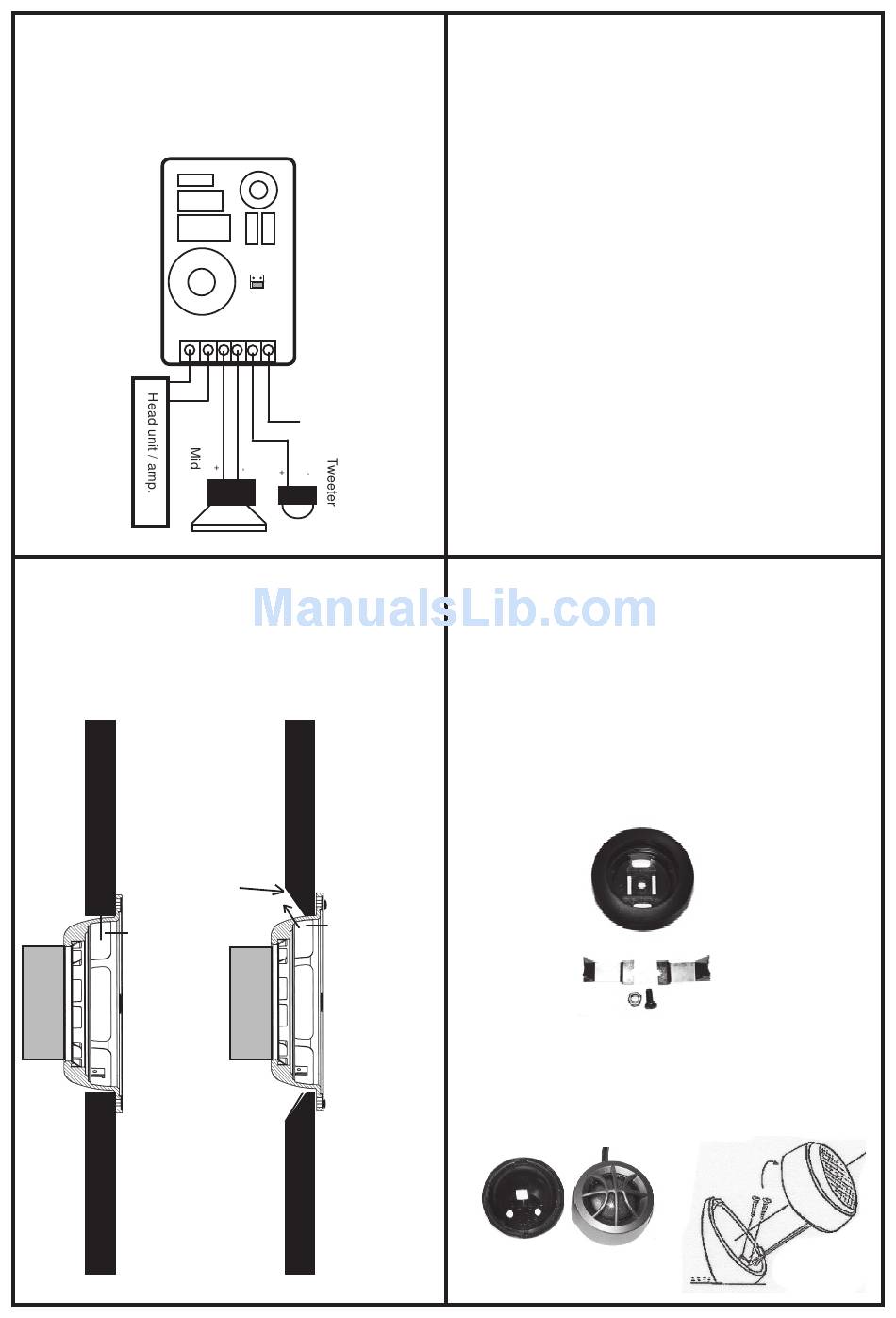

Connect to crossover box:
TWEETER LEVEL SELECTOR
Select between two different tweeter levels
by moving the jumpers inside the filter box.
+
+
-
Installation in baffles:
If you plan to use extra baffles for the installation it is very important
that the baffle is stable, but it is just as important that it is shaped
in a way that allows the driver to "breath" backwards, otherwise
there will be a lack in the drivers bass reproduction.
Wrong way
Correct way
with chamfer-
ed edges
Bad air flow
HI
LOW
Tweeter
select
IN WO TW
- + - + -
Correct way
Max 5 mm
Free air flow
Facts DLS R6.2 bass driver
Art.no, driver
Size
Impedance
Nom. RMS power
Max. power
Peak power
Freq. range
Sensitivity
Fs
Qts
Vas
Cone material
Magnet size
Installation hole
Inst. depth
Facts DLS T25 tweeter
Art.no
Size
Impedance
Nom. power
Max power
Freq. range
Sensitivity
Fs
Overall dimensions
Magnet
Mounting depth
Mounting hole
Cone material
Installation of T25 tweeter:
T25 can be installed on the dashboard with the angled cup or reces-
sed in the door side with the flush cup.
Recessed mounting:
You need a hole with a diameter of 46 mm / 1,81" in the door side.
Put the two metal wings through the two tracks in the center of the
cup, just as the picture shows, and attach them with the M4 screw
and nut through the center hole. The cup is attached to the door
side when the metal wings is pressed to the back side of the door.
Put the tweeter driver into the cup with the cable going out through
the bottom hole. Then attach the driver into the cup and turn it
clockwise to attach to the cup. When removing the tweeter driver
from the cup, turn it ccw and lift it up.
Angled surface mounting:
For angled surface mount together with the angled cup:
The tweeter driver is attached to the cup by fitting the three wings on
the angled cup into the tracks of the driver and then turn it clockwi-
se. When removing the driver from the cup, turn it ccw and lift it up.
R6.2
8-20062
165 mm / 6,5"
4 ohm
100 Watt
200 Watt
300 Watt
30Hz-6 kHz
86,7 dB
48,6 Hz
0,70
15,3 litres
Woven glass fibre
100 mm / 4"
140 mm / 5,51"
78 mm / 3,07"
10-21025
25 mm
4 ohm
50 Watt RMS
80 Watt max
1,5 kHz-20 kHz
93 dB
1400 Hz
43 mm / 1,7"
25 mm / 1"
18 mm / 0,71"
46 mm / 1,81"
Hand treated fabric
