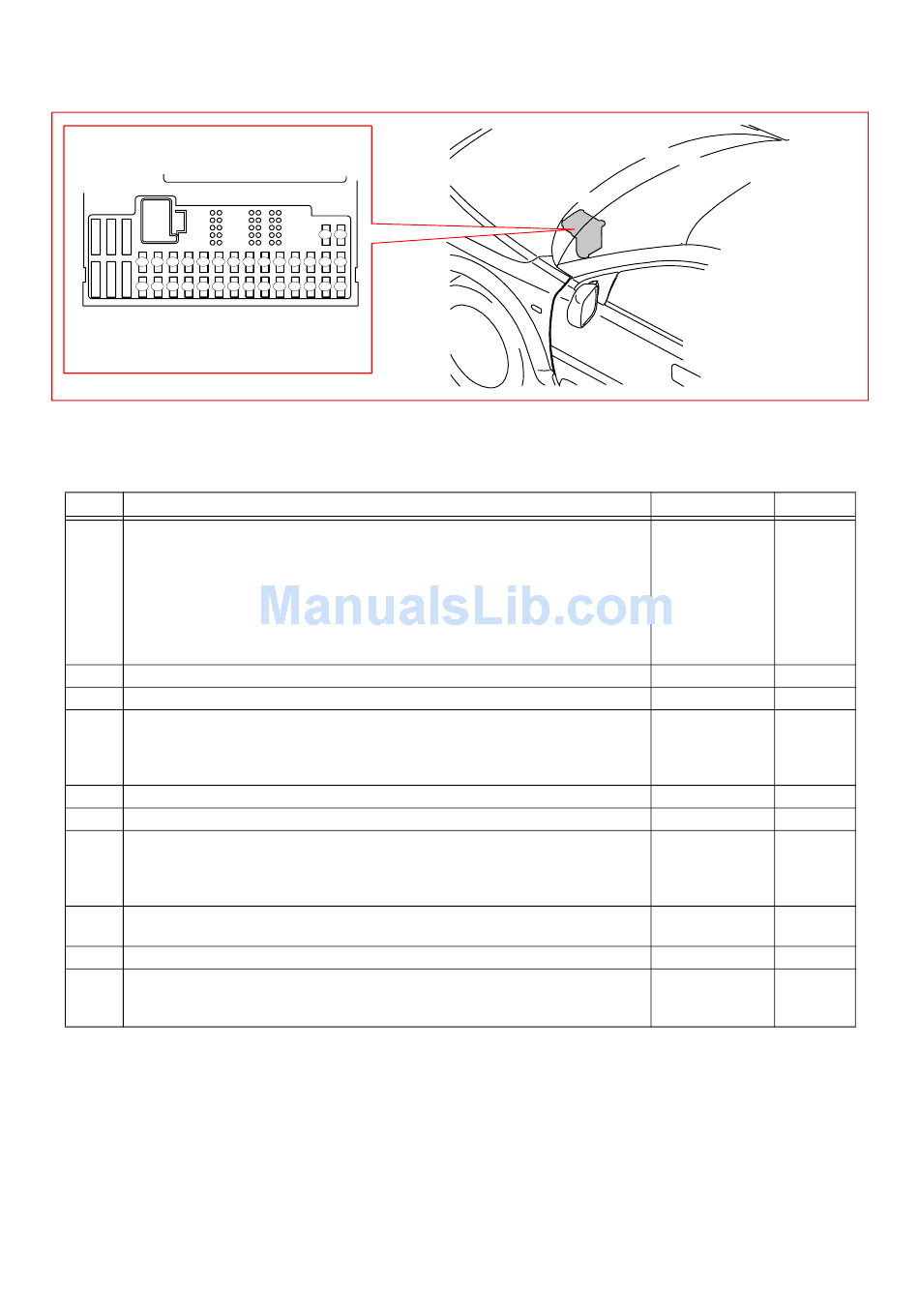

Central Electronic Module (CEM) F16-F34

31 32 33
6
3 4 5 7 8 9
34 35 36
18 19 20 21
17 22 23
4/56 Central Electronic Module (CEM)
No. Fuse function
F16 4/99 Electronic power steering control module
6/38 Left-hand headlight level adjustment motor
6/39 Right-hand headlight adjustment motor
8/88 Rear solenoid, fuel tank, Bi-Fuel
8/89 Front left solenoid, fuel tank, Bi-Fuel
8/90 Front right solenoid, fuel tank, Bi-Fuel
10/1 Left front lamp housing, Bi-Xenon
10/2 Right front lamp housing, Bi-Xenon
F17 10/5 Front left fog light
F18 10/6 Front right fog light
F21 3/156 Gear Selector Module (GSM)
4/28 Transmission Control Module (TCM)
8/36 Shift lock solenoid
8/134 Solenoid, reverse interlock, manual
F22 10/68 Left-hand high beam
F23 10/64 Right-hand high beam
F28 3/27 Switch unit, power passenger seat
16/1 Audio Module (AUM)
16/46 RTI display
16/93 Control module, cellular telephone handsfree
F30 27/3 Left Camera Module (LCM)
27/4 Right-hand Camera Module (RCM)
F33 6/114 Vacuum pump
F34 6/3 Right-hand headlight wiper motor
6/4 Left-hand headlight wiper motor
6/127 Washer motor
1 2
10
11 12 13 14 15
16
28 30
24 25 26 27 29
TP3988202 S60/S60R/S80 2006
via A
- 10
-
-
4/58
4/58
4/58
-
-
- 7.5
- 7.5
- 10
-
3/156
-
- 10
- 10
- 5
-
-
-
- 5
-
8/84 20
- 15
-
-
18
