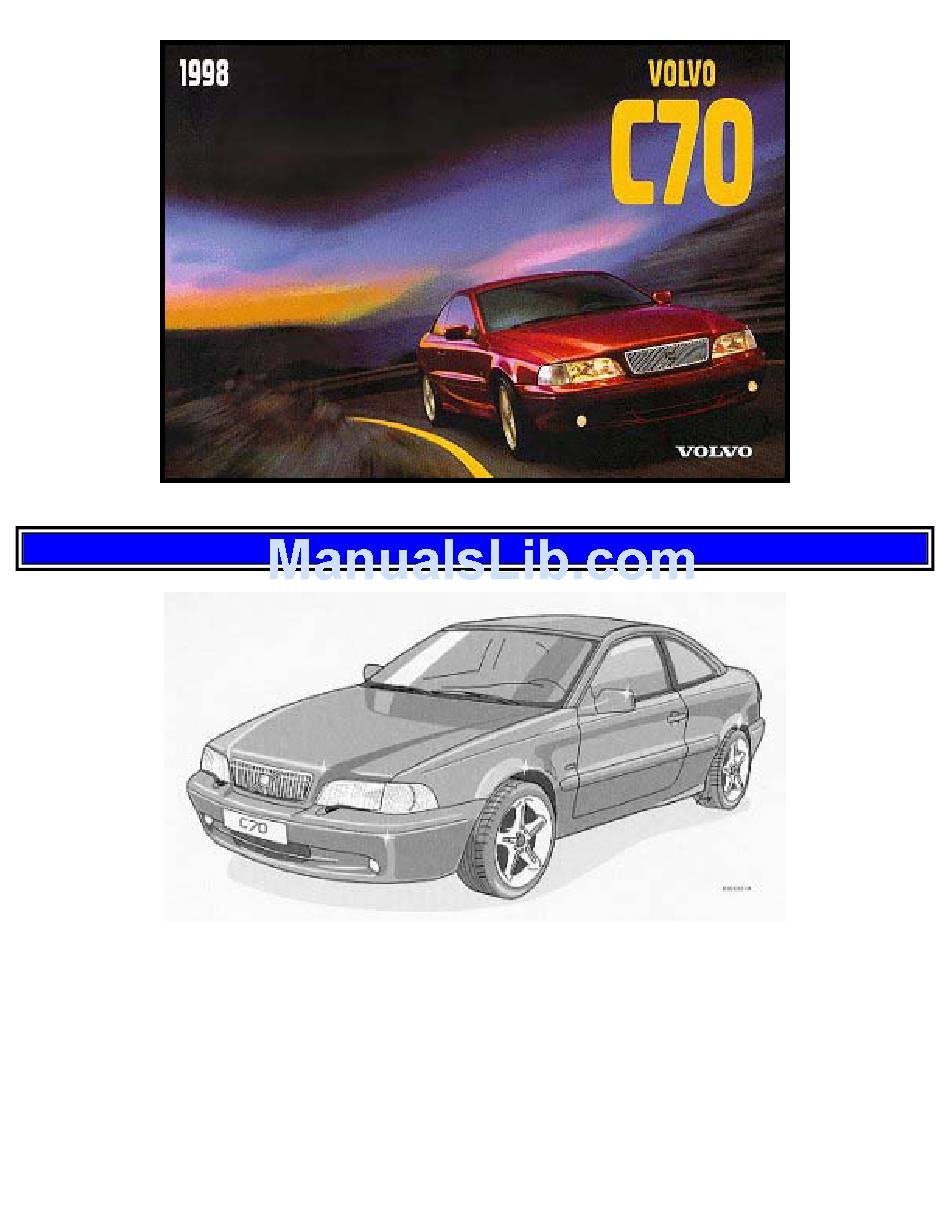

Page 1 This manual deals with the operation and care of your Volvo. Welcome to the world-wide family of Volvo owners. We trust that you will enjoy many years of safe driving in your Volvo, an automobile designed with your safety and comfort in mind. To help ensure your satisfaction with this vehicle, we encourage you to familiarize yourself with the equipment descriptions, operating instructions and maintenance requirements/recommendations in this manual.
Page 2 Volvo and the environment Volvo is committed to the well being of our customers. As a natural part of this commitment, we care about the environment in which we all live. Caring for the environment means an everyday involvement in reducing our environmental impact.
Page 3 All information, illustrations and specifications contained in this manual are based on the latest product information available at the time of publication. Volvo reserves the right to make model changes at any time, or to change specifications or design, without notice and without incurring obligation.
Page 4: Table Of Contents
Chapter 4 - Starting and driving Chapter 5 - Wheels and tires Chapter 6 - In case of an emergency Chapter 7 - Car care Chapter 8 - Volvo Service 105 Chapter 9 - Specifications 123 Chapter 10 - Audio systems 131 Index 188 Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_00.htm (4 of 4)12/30/2006 1:49:05 PM...
Page 5: Chapter 1 - Occupant Safety
Despite our strongest recommendations, and your best intentions, not wearing a seat belt is like believing "It'll never happen to me!". Volvo urges you and all adult occupants of your car to wear seat belts and ensure that children are properly restrained, using an infant, car or booster seat determined by age, weight and height.
Page 6 1998 C70 Adjusting the shoulder belt Lap portion of the seat belt should sit low To buckle: Pull the belt out far enough to insert the latch plate into the receptacle (buckle for rear seats) until a distinct snapping sound is heard. The seat belt retractor is normally "unlocked" and you can move freely, provided that the shoulder belt is not pulled out too far.
Page 7 The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts are provided. The center position should never be used to seat a passenger.
Page 8 1998 C70 WARNING! The rear seat of the Volvo C70 is intended for two occupants only. Only two three-point seat belts are provided. The center position should never be used to seat a passenger. Never use a seat belt for more than one occupant.
Page 9 As an enhancement to the three-point seat belt system, your Volvo is equipped with a Supplemental Restraint System (SRS). The Volvo SRS consists of an airbag (2) and knee bolster (5) on both the driver's and passenger's sides and seat belt tensioners in both front door pillars (4). The system is designed to supplement the protection provided by the three-point seat belt system.
Page 10 Do not attempt to service any component of the SRS yourself. Attempting to do so may result in serious personal injury. If a problem arises, take your car to the nearest authorized Volvo retailer for inspection as soon as possible.
Page 11 The SRS decal on your car shows the month and year servicing is due. This service must be performed by an authorized Volvo retailer. Should you have any questions about the SRS system, please contact your authorized Volvo retailer or Volvo Customer Support: pg.
Page 12 1998 C70 SRS text at far right of instrument panel Passenger side air bag SRS texts on inside of both sun visors SRS texts on outside of both sun visors WARNING! Do not use child safety seats or child boosters cushions/backrests in the front passenger's seat.
Page 13 If the airbags have been deployed, we recommend the following: Have the car towed to an authorized Volvo retailer. Never drive with the airbags deployed. Have an authorized Volvo retailer replace the SRS system components. Use only new, Genuine Volvo Parts when replacing SRS components (airbags, seat belts, tensioners, etc.)
Page 14 Seat belts - the heart of the Volvo safety system The heart of the Volvo safety system is the three-point seat belt (a Volvo invention)! In order for the SRS system to provide the protection intended, seat belts must be worn at all times by everyone in the car.
Page 15: Sips Airbag
1998 C70 pg. 8 Volvo Side Impact Protection System (SIPS) airbag SIPS airbag decal * SIPS airbag As an enhancement to the structural Side Impact Protection System built into your car, your car is also equipped with Side Impact Protection System (SIPS) airbags. The SIPS airbag system consists of airbag modules built into the sides of both front seat backrests (1), cables (2) from these modules to the mechanical sensor units (3) and gas generators (4).
Page 16: Child Restraint Anchorages
This may cause airbag deployment which could result in personal injury. Have the car towed to an authorized Volvo retailer for repairs.
Page 17 Because of the size of the air bag and its speed of inflation, a child should never be placed in the front seat, even if he or she is properly belted or strapped into a child safety seat. Volvo has been an innovator in safety for over fifty years, and we'll continue to do our part.
Page 18: Child Safety
1998 C70 disconnect the air bag system in your vehicle. Volvo strongly recommends that ALL children sit in the rear seat of any vehicle and that they be properly restrained. A child should NEVER sit in the front passenger seat of any vehicle equipped with a front passenger side airbag.
Page 19: Seat Belt Maintenance
A specially designed and tested booster cushion (not available in Canada ) for children between 22.7 - 36 kg (50 - 80 lbs) and 117- 137 cm (46 - 54") can be obtained from your Volvo retailer. WARNING! Do not use child safety seats or child booster cushions/backrests in the front passenger's seat.
Page 20 However, NHTSA cannot become involved in individual problems between you, your retailer, or Volvo Cars of North America. To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHSTA, U.S.
Page 21: Chapter 2 - Instruments, Switches And Controls
1998 C70 Chapter 2 - Instruments, switches and controls pg. 14 Instruments, switches and controls Click on numbered item below for more information pg. 15 Instruments, switches and controls file:///K|/ownersdocs/1998/1998_C70/98c70_04.htm (1 of 4)12/30/2006 1:49:07 PM...
Page 22 1998 C70 Page Air vents Headlights, parking lights Instrument illumination Rear fog light Front fog lights (optional) 6 Space for additional equipment 7 Space for additional equipment Instruments 14-15 Traction control system (optional) Trip computer (optional) 26-28 Electrically operated sun roof (optional) Rear window demister/heated door mirrors Air mix Air vents...
Page 23 1998 C70 Parking brake Horn/SRS Trunk open control Power window controls Power mirror controls Fuel tank open control Central locking button Some of the items above are available on certain models only. Shiftlock (automatic transmission only) When your car is parked, the gear selector is locked in the (P)ark position. To release the selector from this position, turn the ignition key to position II (or start the engine), depress the brake pedal, press the button on the front side of the gear selector and move the selector from (P)ark.
Page 24: Temperature Gauge
1998 C70 1 Fuel gauge The fuel tank holds approximately 18.4 US gals. (70 liters). When the warning light comes on there is approximately 1.8 US gals. (8 liters) of fuel remaining. See "Refueling" for further information. 2 Temperature gauge Do not drive the car with the pointer in the red range.
Page 25 1998 C70 pg. 17 Indicator and warning lights Click on numbered light for more information 1. Turn signal, left 9. Bulb failure warning sensor 19. Low coolant level 2. Turn signal, right 10. (Not in use) 20. Traction control system 3.
Page 26: Malfunction Indicator Lamp
WARNING! If the fluid level is below the MIN mark in either section of the reservoir: DO NOT DRIVE. Tow the car to a Volvo retailer and have the brake system checked and any leakage repaired. pg. 19 Warning lights (cont.)
Page 27: Coolant Level Sensor
If the light comes on (or stays on after the vehicle has started), the SRS diagnostic system has detected a fault. Drive to an authorized Volvo retailer for an inspection of the system. See the SRS section for more information.
Page 28 1998 C70 one of the tail lights one of the brake lights when the brake pedal is depressed. Check the fuse and bulb. See sections "Replacing bulbs" and "fuses". Should the warning light come on after a defective outside bulb has been replaced, the corresponding bulb on the other side of the car should also be replaced.
Page 29: Headlights And Parking Lights
1998 C70 pg. 20 Headlights, Parking lights, Turn signals Headlights and parking lights O All lights off * Parking lights on ** Headlights and parking lights are on if starting (ignition) switch is in positions I or II. If the headlight switch is in position all lights will go out when starting switch is switched off.
Page 30: Turn Signals
1998 C70 Turn signals 1 Lane change position. In maneuvers such as lane changing, the driver can flash the turn signals by moving the turn signal lever to the first stop and holding it there. The lever will return to the neutral position when released.
Page 31: Instrument Illumination
1998 C70 O Locked position: Remove the key to lock the steering wheel* WARNING! Never turn the key to position O while driving or when the car is being towed. I Intermediate position: Certain accessories, radio, etc. on, daytime running lights off. II Drive position: Key position when engine is running.
Page 32 1998 C70 For the rear fog light to function, the low beam headlights must be switched on. * By design, there is one rear foglight only, located in the driver's side tail light cluster. 3 - Front fog lights (option) The front fog lights, located in the front spoiler, will only function in combination with the low beam headlights.
Page 33: Hazard Warning Flashers
1998 C70 pg. 23 TRACS, Sun roof, Trip computer, Hazard warning flashers, Demister 6 - TRAction Control System (TRACS) - option TRACS is a system designed as an aid when starting/driving off if one of the drive wheels has poor traction due to weather conditions or the road surface and is connected to the ABS control module.
Page 34 1998 C70 pg. 24 Daytime running lights Automatic daytime running lights Screw A in the illustration (available on U.S. models only) is used to control the automatic daytime running lights when the headlight switch is in position 0. To adjust, press in the screw with a small screwdriver and turn to one of the following positions: Automatic daytime running lights Automatic daytime running lights The daytime running lights will also function when the headlight switch is in position...
Page 35 1998 C70 h = hours m = minutes Maintain the pressure on the buttons for more than four seconds to change the time more quickly. Ambient temperature sensor This sensor indicates the temperature slightly above the road surface and represents air temperature where road icing may occur.
Page 36: Trip Computer
1998 C70 pg. 26 Trip computer (certain models) Trip computer The trip computer offers six functions which are presented in a single display. The cursor indicates the selected function. The trip computer's clock is shown permanently in the left-hand field. Refer to the previous page for more detailed information regarding the clock function.
Page 37 1998 C70 Average speed Ø mph (Canada: km/h) Average speed since the function was last reset. When the ignition is switched off, the average speed is stored in memory and is used as the basis for the new figure when the engine is started again. It can be reset by pressing the reset button on the trip computer control.
Page 38 1998 C70 Driving distance on current fuel reserve mile - 0 (Canada: km) Shows the distance which can be driven on the fuel remaining in the tank, calculated on the basis of the average fuel consumption and the amount of fuel remaining in the tank at the time of the reading. When the quantity of fuel drops to below approximately 1.8 US gals.
Page 39: Cruise Control
1998 C70 pg. 29 Cruise control Cruise control The cruise control switches are located on the turn signal lever. To engage and set the desired speed: 1. Set switch (B) to ON. 2. Accelerate to the desired cruise speed. 3. Press the + or - area of the SET button (A) to set the desired speed. NOTE: The cruise control cannot be engaged at speeds below 22 mph (35 km).
Page 40: Heated Front Seats
1998 C70 WARNING! The cruise control should not be used in heavy traffic or when driving on wet or slippery roads. Do not use or resume cruise control in reverse gear. NOTE: When the ignition is switched off, any information stored in the cruise control memory is erased.
Page 41: Front Ashtray
1998 C70 Parking brake (hand brake) The lever is situated between the front seats. The brake is applied to the rear wheels. WARNING! Always use the parking brake (hand brake) when parking. On hills, also turn the front wheels toward the curb. pg.
Page 42: Auxiliary Socket
1998 C70 Rear ashtrays To open the rear ash tray, pull it straight out. To empty the rear ash tray, pull it out, lift up the rear edge and remove. Auxiliary socket* Auxiliary socket This 12 volt socket can be used to plug in certain accessories such as cellular telephones, etc. NOTE: The "OBD II"...
Page 43: Steering Wheel Adjustment
1998 C70 Pull down... Steering wheel adjustment Both the height and the reach of the steering wheel can be adjusted to a comfortable position for the driver. Pull down the lever on the left of the steering column. Adjust the steering wheel to a suitable position and press the lever back into place to lock the steering wheel in the new position.
Page 44: Heating And Air Conditioning
Vent - open (A)/closed (B) Heating and air conditioning Your Volvo is equipped with a heating system combined with air conditioning. Depending on which function you select, warm or cool/cold air is distributed to the different parts of the passenger compartment.
Page 45 - R134a. This substance will not deplete the ozone layer. The system contains 1.65 lbs (0.75 kg) R134a and uses ZXL 100PG (type PAG) oil. NOTE: All maintenance on the climate control systems should be carried out by an authorized Volvo service technician only.
Page 46 1998 C70 ** When the function selector is in the defrost setting, the A/C system is always ON and the blower will function at its highest speed if it is in the AUT position. Function selector Air distribution automatically regulated. Air through panel vents Defrost.
Page 47: Additional Information
1998 C70 Set the function selector and blower control to AUT and select the desired temperature. If the driver's side temperature selector is set to either the max heating or max cooling position, the blower will run at its maximum speed. Optimum defrosting Set the function selector to and move the blower control to the position AUT (as far to the left as...
Page 48 The RECIRCULATION ON and AC OFF lights will flash for approximately 20 seconds if a fault is detected in the ECC system. If this flashing recurs the next time the system is switched on, the climate control unit should be checked by an authorized Volvo retailer. Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_10.htm (5 of 5)12/30/2006 1:49:09 PM...
Page 49 1998 C70 pg. 36 Electrically-operated front windows, Central locking button A- Left front, B- right front, C- central locking button Electrically-operated windows (A/B) The electrically-operated windows are controlled by switches in the driver's door (A and B in the illustration above). The starting (ignition) switch must be ON (intermediate position I) for the electrically-operated windows to function.
Page 50 1998 C70 pg. 37 Rear windows, Fuel tank cover Opening the rear windows The rear windows can be opened to a "ventilation position" by depressing the lock button and pushing the catch outward (see illustration above). Opening the fuel tank cover The fuel tank cover is locked and must be popped open using the control on the driver's door.
Page 51 1998 C70 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_11.htm (3 of 3)12/30/2006 1:49:09 PM...
Page 52: Body And Interior
1998 C70 Chapter 3 - Body and interior pg. 39 Body and interior Body and interior The seats, sun roof, mirrors, etc. are described on the following pages. Storage compartments 40 Sun roof 41 Keys, doors and locks 42 Remote keyless entry system 43 Alarm 44 Front seats 46 Rear/side view mirrors 48...
Page 53 1998 C70 1 Glove compartment 2 Coin holder 3 Compartment in door 4 Pocket on rear of front seat 5 Compartment between front seats/Cup holder WARNING! Packages on the rear window shelf can obscure vision and may become dangerous projectiles in the event of a sudden stop or an accident. pg.
Page 54 1998 C70 Electrically-operated sun roof The switch for operating the sun roof is located on the instrument panel. The starting (ignition) key must first be turned to the drive position (position II). The sun roof is also equipped with a one-touch, AUTO- open function.
Page 55: Doors And Locks
NOTE: As an added anti-theft measure, new keys have been developed which may take slightly longer to copy or replace if the original keys are misplaced. Duplicate keys may be ordered from your Volvo retailer. The key number codes are stamped on a separate tag supplied with the keys. This tag should be separated from the key ring and kept in a safe place.
Page 56 1998 C70 One turn with the key towards lock in the drivers door locks both doors and the trunk. Use the switch on the front door armrests to lock/unlock the car from the inside. Check the action of the buttons on the other door to verify its function (lock/unlock). WARNING! The doors should not be locked while driving.
Page 57: Using The Remote Control
The car can also be locked/unlocked with the key. As an extra security precaution in certain situations (valet parking,etc.), Volvo recommends that the transmitter not be included when the keys are given to anyone. The service key can be used instead. If one of transmitters is misplaced, contact the nearest authorized Volvo retailer for assistance.
Page 58 If the alarm LED glows continuously for 5 seconds, this indicates a fault in the system or that a door is not properly closed. WARNING! Volvo does not recommend using the transmitter to lock the doors from inside the car. On cars equipped with an alarm, the alarm would be activated and would sound when one of the doors is opened.
Page 59: Disarming The Alarm
1998 C70 The battery is disconnected (if the car is equipped with the optional backup battery siren) Arming (setting) the alarm Press the LOCK button on the remote control, lock the car using the key in the driver’s door or press the central lock button on one of the front doors with the door open.
Page 60 LED flashed rapidly for 15 seconds after the ignition has been switched on - a fault has been detected in the alarm system. Contact a Volvo retailer. Batteries Each remote transmitter is powered by a three volt battery, type CR2016. If the range of the transmitter is noticeably reduced, this indicates that the battery is weak and should be replaced.
Page 61 1998 C70 CAUTION: Do not attempt to service or repair any components of the alarm system yourself. This should only be done by an authorized Volvo retailer. Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_13.htm (5 of 5)12/30/2006 1:49:10 PM...
Page 62 1998 C70 pg. 46 Front seats Electrically operated seats with memory function 1 Lumbar support control 2 Strap for controlling front seat for rear seat passengers 3 Backrest release control lever 4 Power seat control panel WARNING! Do not adjust the seat while driving. The seat should be adjusted so that the brake pedal can be depressed fully.
Page 63 1998 C70 Three seat positions can be programmed. To program a seat position: 1 Adjust the seat to the desired position. 2 Depress the MEM button. 3 Press button 1 to program the current position of the seat. Buttons 2 and 3 can be programmed in the same way. To move the seat to a programmed position, depress button 1, 2 or 3 until the seat stops.
Page 64 1998 C70 To exit the rear seat: Pull the strap on the lower inside corner of the seat. Push the backrest forward. The seat will slide forward until the strap is released*. * If the backrest is in the upright position, the seat will slide rearward until the strap is released. WARNING! Make sure the seats are securely locked into position after they have been adjusted.
Page 65 1998 C70 Auto-dim function (certain models) A Auto-dim ON B Auto-dim OFF The Auto-dim function reacts to high beams from the car behind you and switches the mirror automatically to "night" position. NOTE: If the right indicator light in the lower (see inset illustration above) is on, The Auto-dim function is disabled (off).
Page 66 1998 C70 pg. 49 Interior lights, Vanity mirrors Front courtesy lights The front courtesy lighting consists of two reading lights for the front seat occupants. Front and rear reading lights always on 0 Front and rear reading lights always off Front and rear reading lights come on when a door is opened Left or right reading light illuminates if the center switch is in position The courtesy lights remain illuminated for 30 seconds after the doors have been closed but will be...
Page 67: Vanity Mirrors
1998 C70 Light is on if the front switch is in position Light turns on if any door is opened. Vanity mirrors The light illuminates when the cover is opened. pg. 50 Long load storage Long load storage There is a flap located in the panel behind the rear seat which makes it possible to carry long loads such as skis, etc.
Page 68 1998 C70 WARNING! Always turn the engine off and apply parking brake when loading/unloading the vehicle. Place the transmission in the P (PARK) position to help prevent inadvertent movement of the gear selector. Long loads should be secured to the folded down armrest to help prevent movement and possible injury in the event of sudden braking or stops.
Page 69: Opening The Trunk
1998 C70 pg. 52 Trunk Opening the trunk The trunk can be opened by: Pressing the button on the remote control (A) Using the master key in the trunk lock Using the trunk control on the driver's door (B) Locking the trunk The trunk lock is incorporated in the central locking system.
Page 70: Trunk Light
1998 C70 Trunk Light A Light always off B Light is on when the trunk lid is open Spare tire The spare tire is located under the carpet in a special well under the floor of the trunk. The jack is placed inside the wheel rim.
Page 71: Securing Cargo
1998 C70 Eyelets in trunk Securing cargo As a safety precaution, your car is equipped with four eyelets to which straps can be attached to secure luggage. WARNING! The eyelets are not to be used as passenger restraints or as anchorages for child restraints.
Page 72 1998 C70 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_16.htm (4 of 4)12/30/2006 1:49:10 PM...
Page 73: Chapter 4 - Starting And Driving
1998 C70 Chapter 4 - Starting and driving pg. 55 Starting and driving Starting and driving This section on starting and driving contains items such as starting the engine, operating the gear selector, towing, trailers, etc. Break-in period Fuel requirements, Refueling 56-57 Driving economy Starting the engine Manual transmission...
Page 74: Manual Transmission
Unleaded Fuel Each Volvo has a three-way catalytic converter and must use only unleaded gasoline. U.S. and Canadian regulations require that pumps delivering unleaded gasoline be labeled "UNLEADED". Only these pumps have nozzles which fit your car's filler inlet. It is unlawful to dispense leaded fuel into a vehicle labeled "unleaded gasoline only".
Page 75: Octane Rating
To meet seasonal air quality restrictions, some states require the use of "oxygenated" fuel in certain areas. Volvo allows the use of the following "oxygenated fuels; however, the octane ratings listed on this page must still be met. Alcohol — Ethanol Fuels containing up to 10% ethanol by volume may be used.
Page 76 NOTE: If the fuel filler cap is not closed tightly or if the engine is running when the car is refueled, the Malfunction Indicator Lamp may indicate a fault. Use only Volvo original or approved fuel filler caps. CAUTION: Avoid spilling gasoline during refueling. Gasolines containing alcohol can cause damage to painted surfaces, which may not be covered under the New Vehicle Limited Warranty.
Page 77: Starting And Stopping
1998 C70 pg. 58 Driving economy Economical driving conserves natural resources Better driving economy may be obtained by thinking ahead, avoiding rapid starts and stops and adjusting the speed of your vehicle to immediate traffic conditions. Observe the following rules: Bring the engine to normal operating temperature as soon as possible by driving with a light foot on the accelerator pedal for the first few minutes of operation.
Page 78 1998 C70 WARNING! Before starting, check that the seat and steering wheel are adjusted properly. Make sure the brake pedal can be depressed completely. Move the seat closer if necessary. Refer to section "front seats". 2. Apply the parking brake, if not already set. The gear selector (automatic transmission) is locked in the (P)ark position (SHIFT LOCK).
Page 79: Shift Positions
1998 C70 CAUTION: Never race the engine immediately after starting. Oil flow may not reach some lubricated points fast enough to prevent engine damage. Do not race the engine just prior to switching off! Hydraulic valve lifters This engine features hydraulic valve lifters which means that valve clearance is adjusted automatically. It is possible that the valve lifters will produce a ticking sound for the first few seconds after the engine is started, while the oil pressure is increasing.
Page 80: Engaging Reverse Gear
1998 C70 Engaging reverse gear The gear lever must first be moved to neutral in order to engage reverse gear. CAUTION: Be careful that you do not inadvertently engage reverse while moving forward. Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_18.htm (4 of 4)12/30/2006 1:49:11 PM...
Page 81 1998 C70 pg. 61 Automatic transmission P (Park) Use this position when starting the engine or parking the car. Never use P while car is in motion. The parking brake should also be used when parking on grades. The gear selector is mechanically locked in the P position (SHIFT LOCK). To release the selector, start the engine and depress the brake pedal.
Page 82 1998 C70 L (Low position) No upshift can occur when L is engaged. Select position L for driving in first and second gears. Use this position to select low gear with no upshift, e.g. when ascending and descending steep grades. The transmission will noticeably shift down from second to first if road speed drops to below 40 km/h (25 mph) when driving in E Mode and below 10 km/h (6 mph) in S Mode.
Page 83 The Malfunction Indicator lamp will also light up if a fault is detected. If the transmission does not shift properly, place the gear selector in position L. Please contact your Volvo retailer if this occurs.
Page 84 1998 C70 Sport Mode This mode is adapted to "sporty" driving characteristics. The transmission upshifts at higher engine speeds and less accelerator pedal pressure is required to initiate a downshift. pg. 63 Automatic transmission Special tips - automatic transmission For driving down steep hills and when driving for prolonged periods at low speeds, position L should be selected.
Page 85: Cooling System
1998 C70 pg. 64 Points to remember Cooling system The risk for engine overheating is greatest, especially in hot weather, when: towing a trailer up steep inclines for prolonged periods at wide open throttle and low engine rpm. stopping the engine suddenly after high speed driving (so-called "after-boiling" can occur). To avoid overheating, the following rules should be followed: Do not drive for prolonged periods at engine speeds above 4500 rpm if you are towing a trailer in hilly terrain,...
Page 86 The radio must be turned off before the battery is disconnected. The anti-theft code must be re-entered before the radio will function properly. The electrical system in your car is designed to accomodate Volvo accessories. It also has an accessory connector located beneath the dashboard on the driver's side.
Page 87 Anchor the cargo correctly with appropriate tie-down equipment. Drive carefully. Avoid rapid starts, fast cornering and hard braking. Max. roof load is 220 lbs (100 kg) when Volvo approved removable roof racks are attached to the points indicated in the illustration.
Page 88 1998 C70 Rear eyelet Front eyelet Precautions when the car is in tow Steering must be unlocked. Please check with state and local authorities before attempting this type of towing, as vehicles being towed are subject to regulations regarding maximum towing speed, length and type of towing device, lighting, etc.
Page 89 1998 C70 pg. 67 Vehicle towing information Only use flat bed equipment * CAUTION: Sling-type equipment applied at the front will damage radiator and air conditioning lines. It is equally important not to use sling-type equipment at the rear or apply lifting equipment inside the rear wheels;...
Page 90: Jump Starting
1998 C70 Jump starting If the 12-volt booster battery to be used is in another car, check that the cars are not touching to prevent premature completion of a negative circuit. Note the position of the battery terminals and using jumper cables: First connect the booster battery positive (+) terminal (1) to car battery positive (+) terminal (2).
Page 91 1998 C70 Three-way catalytic converter cautions Keep your engine properly tuned. Certain engine malfunctions, particularly involving the electrical, fuel or distributor ignition systems, may cause unusually high three-way catalytic converter temperatures. Do not continue to operate your vehicle if you detect engine misfire, noticeable loss of power or other unusual operating conditions, such as engine overheating or backfiring.
Page 92: Anti-Lock Brake System (Abs)
WARNING! If the fluid level is below the MIN mark in either section of the reservoir: DO NOT DRIVE. Tow the car to a Volvo retailer and have the brake system checked and any leakage repaired. Moisture on brake discs and brake pads affects braking Driving in rain and slush or passing through an automatic car wash can cause water to collect on the brake discs and pads.
Page 93: Chapter 5 - Wheels And Tires
Do not connect the trailer's brake system directly to the vehicle's brake system. More frequent vehicle maintenance is required. Remove the ball and drawbar assembly when the hitch is not being used. Volvo recommends the use of synthetic engine oil when towing a trailer over long distances or in mountainous areas. NOTE: Refer to section "Automatic transmission"...
Page 94: Cold Weather Precautions
It is therefore advisable to check the state of charge more frequently and spray an anti-rust oil on the battery posts. Volvo recommends the use of snow tires on all four wheels for winter driving - see section "Wheels and tires".
Page 95: Before A Long Distance Trip
Before a long distance trip It is always worthwhile to have your car checked at a Volvo retailer before driving long distances. Your retailer will also be able to supply you with bulbs, fuses, spark plugs and wiper blades for your use in the event that problems occur.
Page 96: Wheels And Tires
1998 C70 Chapter 5 - Wheels and tires pg. 75 Wheels and tires Wheels and tires The handling and riding comfort of the vehicle is dependent on the inflation pressure and the type of tires fitted. Read the following pages carefully. General information, Wear indicator, Tire economy, Flat spots 76 Snow chains, Winter tires 77 Inflation pressure 78...
Page 97: Snow Chains
Snow chains should be installed on front wheels only. Use only Volvo approved snow chains. Snow chains may be mounted on tire dimension 195/65R15. Tire dimension 205/55R16 requires a special type of snow chain. Consult your Volvo retailer. Snow chains may not be used on 205/55R16 tires.
Page 98 Failure to do so could reduce traction to an unsafe level or adversely affect handling. Do not mix tires of different design as this could also negatively affect overall tire road grip. Volvo recommends 195/65 R15 winter tires on 15" steel wheels on all C70 models including those equipped with 16", 17"...
Page 99: Vehicle Loading
Vehicle Loading The tires on your Volvo will perform to specifications at all normal loads when inflated as recommended on the tire information label* located on the rear facing edge of the passenger's door. This label lists both the tire and vehicle design limits.
Page 100 1998 C70 poor traction performance. WARNING! The traction grade assigned to this tire is based on braking (straight-ahead) traction tests and does not include cornering (turning) traction. TEMPERATURE The temperature grades are AA (the highest), A, B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.
Page 101: Chapter 6 - In Case Of An Emergency
1998 C70 Chapter 6 - In case of emergency pg. 81 In case of an emergency In case of an emergency Even if you maintain your car in good running condition, there is always the possibility that something might go wrong and prevent you from driving, such as a punctured tire, blown fuse or bulb, etc. For additional information, see section "ON CALL Road Assistance".
Page 102 1998 C70 The spare wheel is located under the carpet on the trunk floor. The jack and crank are secured in the wheel recess. Engage the parking brake. Put the gear selector in (P)ark (automatic) or in Reverse (manual). With the car still on the ground, use the lug wrench to loosen the wheel bolts 1/2 - 1 turn. Turn the bolts counterclockwise to loosen.
Page 103 1998 C70 Clean the contact surfaces on the wheel and hub. Lift the wheel and place it on the hub. Make sure that you align the wheel with the guide stud on the wheel hub prior to installation. Install the wheel bolts crosswise (see illustration) and tighten by turning lightly clockwise.
Page 104 Temporary Spare tire is used on. In the event of damage to this tire a new one can be purchased from your Volvo retailer. CAUTION: The car must not be driven with wheels of different dimensions or with a spare tire other than the one that came with the car.
Page 105: Replacing Bulbs
1998 C70 pg. 85 Replacing bulbs Replacing bulbs Make sure when installing bulbs, that the guide pin on the socket fits into its corresponding recess. When installing Halogen bulbs, do not touch the glass with your fingers since grease, oil or any other impurities can be carbonized onto the bulb and damage the reflector.
Page 106: Headlight Adjustment
Turn the height adjustment knob until the bubble in the level aligns with the "0" marks or within the dark marking lines. Lateral headlight adjustment should only be carried out by an authorized Volvo retailer. The lateral adjustment scale (B) should be preset to "0".
Page 107 1998 C70 proper position. 6. Press the retaining clamp back into position. 7. Reinstall the plastic cover. Catch B should snap into position. pg. 87 Replacing bulbs (cont.) Lamp location- right Location of bulbs in holders side Tail light bulbs 1.
Page 108 1998 C70 21W/32 cp BA 15s Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_25.htm (4 of 4)12/30/2006 1:49:15 PM...
Page 109: License Plate Lights
1998 C70 pg. 88 Replacing bulbs (cont.) Insert screwdriver and turn Trunk light Switch off the lights. Press in the catch with a screwdriver and remove the bulb holder. Replace the bulb and reinstall the bulb holder. License plate lights Switch off the lights Unscrew the screw Insert the screwdriver and turn gently to loosen the glass lens...
Page 110 1998 C70 Insert screwdriver, turn and pull downward Front courtesy lights Switch off the ignition. Insert a screwdriver and turn carefully to loosen the glass lens. Replace the bulb and press the glass lens back into place. pg. 89 Replacing bulbs (cont.) Insert a screwdriver and turn Rear reading lights Switch off the ignition.
Page 111: Vanity Mirror
1998 C70 Insert a screwdriver and turn Vanity mirror Switch off the ignition. Insert a screwdriver under the lower edge and turn to loosen the glass lens. Push out the bulb and replace it. Press the lower edge of the lens into place above the four catches. Press the upper edge of the lens into place.
Page 112: Front Fog Lights
Replace the bulb. Reinstall the plate. Press the lamp unit back into place. NOTE: Other bulbs may be difficult for the owner to replace. Let your Volvo retailer replace these bulbs if necessary. Front fog lights in spoiler Front fog lights Switch off the lights.
Page 113 1998 C70 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_26.htm (5 of 5)12/30/2006 1:49:15 PM...
Page 114: Replacing Fuses
(written on the fuse). Spare fuses are stored in a compartment in the fuse box. If fuses burn out repeatedly, have the electrical system tested at a Volvo retailer. If you find it difficult to remove a fuse, you will find a special fuse tool clipped in the fuse box.
Page 115 Relay/Main fuse box Fuses in the main fuse box protect the entire electrical system. If one the fuses blows, there is a serious electrical fault. Do not change any of these fuses. Contact your nearest Volvo workshop for a closer analysis.
Page 116 1998 C70 13 Control module - automatic transmission 10 A 14 A/C relay 10 A * Some of the equipment/systems listed may be available on certain models only. pg. 93 Fuses (supplementary fuse box) Location* Amperage 1 Trunk open switch solenoid 10 A 2 Central locking, driving mode selectors (aut.
Page 117 ** This is an automatic circuit breaker located in the fuse box and does not normally need to be replaced. For more detailed information concerning function and location of relays, fuses, etc., refer to the Volvo Service Manuals. These can be purchased directly through your Volvo retailer.
Page 118: Installation Of Accessories
In order to help avoid interference and damage to your car's electrical system, your car is equipped with an accessory connector located under the instrument panel on the driver's side. Please consult your Volvo retailer if you have any questions before connecting accessory or optional equipment to the vehicle's electrical system.
Page 119: Replacing Wiper Blades
1998 C70 pg. 95 Replacing wiper blades Replacing wiper blades Lift the wiper arm off the windshield and hold the blade at right angles to the arm. Pinch the end of the plastic clip located at the back of the arm.
Page 120 1998 C70 Replacing headlight wiper blades Pull the wiper blade in the direction indicated by the arrow in the illustration to remove it. Press the new wiper into place. Check that the new blade is properly attached to the wiper arm. pg.
Page 121 1998 C70 Manually opening the fuel tank cover The fuel tank cover can be opened manually by removing the cover over the right tail light housing and pulling the wire (A) until the fuel tank cover opens. Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_28.htm (3 of 3)12/30/2006 1:49:16 PM...
Page 122: Chapter 7 - Car Care
Minor scratches can be repaired by using Volvo touch-up paint. NOTE: When ordering touch-up paint from your Volvo retailer, use the paint code indicated on the model plate. The plate is located in the engine compartment, on the inside of the left front fender.
Page 123 1998 C70 60° F (15° C). Scars on the surface If the stone chip has not penetrated down to the metal and undamaged layer of paint remains, the touch- up paint can be applied as soon as the spot has been cleaned. pg.
Page 124: Washing The Car
1998 C70 pg. 102 Washing Washing the car The car should be washed at regular intervals since dirt, dust, insects and tar spots adhere to the paint and may cause damage. NOTE: It is particularly important to wash the car frequently in the wintertime to prevent corrosion, when salt has been used on the roads.
Page 125: Polishing And Waxing
1998 C70 NOTE: When washing the car, remember to remove dirt from the drain holes in the doors and sills. Bumpers: Wash the bumpers with the same cleaning agent used on the rest of the car. Never clean the bumpers with gasoline or paint thinner. Difficult spots can be removed with denatured alcohol. To avoid scratches, do not dry the bumpers with paper.
Page 126: Cleaning The Upholstery
Leather upholstery can be cleaned with a soft cloth and mild soap solution. For more different spots, Volvo offers a leather care kit. On no account must gasoline, naphtha or similar cleaning agents be used on the plastic or the leather since these can cause damage.
Page 127: Chapter 8 - Volvo Service
1998 C70 Chapter 8 - Volvo Service pg. 105 Volvo Service Service - an investment An investment which will pay dividends in the form of improved reliability, durability, and resale value. Label information Maintenance service, Warranty Maintenance schedule 108-109 Servicing 110-111...
Page 128: Chapter 9 - Specifications
6 Federal Motor Vehicle Safety Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) Standards (Canada) Your Volvo is designed to meet all applicable safety standards, as evidenced by the certification label on the facing side of the driver's door. For further information regarding these regulations, please consult your Volvo retailer.
Page 129: Maintenance Service
The maintenance services contain several checks which require special instruments and tools and therefore must be performed by a qualified technician. To keep your Volvo in top condition, specify time tested and proven Genuine Volvo Parts and Accessories.
Page 130 1998 C70 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_31.htm (4 of 4)12/30/2006 1:49:17 PM...
Page 131: Maintenance Schedule
See "Service Reminder indicator", page 19. 2) For services beyond 60,000 miles (96,000 km), consult your "Maintenance Records booklet". 3) For proper functioning of the vehicle and its emission control system, Volvo recommends that the timing belt be replaced every 70,000 miles (112,000 km).
Page 132 1998 C70 Maintenance Operation thousand miles (thousand km) (16) (32) (48) (64) (80) (96) ENGINE SYSTEM MAINTENANCE ENGINE Fuel (Line) Filter¹ PCV Nipple (orifice)/hoses,clean Battery BRAKES Inspect brakes, replace components as necessary Brake Fluid² STEERING/SUSPENSION Rotate tires/check wear (align front end if needed.) Check power steering fluid level Grease front link arm stops...
Page 133: Replacing Spark Plugs
1998 C70 Polishing Cleaning pg. 110 Servicing The following precautions must be observed when carrying out repairs to the vehicle WARNING! The distributor ignition system operates at very high voltages. Special safety precautions must be followed to prevent injury. Always turn the ignition off when: Replacing distributor ignition components e.g.
Page 134: Air Cleaner
Unstable idle, misfiring, or poor emission control is often caused by leaking vacuum hoses or connections. Check all vacuum hoses and connections. Idle air control system Your Volvo is equipped with an electronically controlled idle air control system that requires no checking or adjustment. Timing belt For proper functioning of the vehicle and its emission control systems, Volvo recommends that the timing belt be replaced every 70,000 miles (112,000 km).
Page 135 1998 C70 Turbo-charged engines employs a turbo-compressor to force air into the engine inlet manifold and a charge air cooler to cool the compressed inlet air. The resulting increase in air flow raises pressure in the intake manifold by approx. 8.7 psi (over atmospheric pressure) and engine power output by approx. 50 horsepower over that developed by the normally-aspirated engine.
Page 136: Fuel System
1998 C70 pg. 112 Fuel/emissions systems Fuel System The fuel system is all-electronic and is microprocessor-controlled. It can continually compensate for variation in engine load, speed and temperature to give the best economy and power. A mass air flow sensor measures the inducted air. In this way the system can make instantaneous adjustments for changes in air temperature or density, thus always assuring the best economy with the lowest possible exhaust emissions.
Page 137 1998 C70 Evaporative control system The car is equipped with a gas evaporative control system, which prevents gasoline fumes from being released into the atmosphere. The system is comprised of an expansion chamber in the fuel tank, a rollover valve on the cross member in front of the fuel tank and a charcoal canister with a built-in vacuum valve under the left-front wheel housing.
Page 138: Checking The Oil Level
Front seat slide rail and latch To avoid rattles and unnecessary wear, the body should be lubricated at regular service intervals. This should be done by an authorized Volvo retailer. pg. 114 Engine oil Checking the oil level The oil level should be checked every time the car is refuelled. This is especially important during the engine break-in period (up to the first service).
Page 139 WARNING! The oil may be very hot. If you change the engine oil and filter yourself, your Volvo retailer can assist you in disposing of the used oil. Engine oil can be harmful to your skin - gloves should worn when performing this work.
Page 140 Do not use oils with other viscosity ratings. The use of incorrect viscosity oil can shorten engine life. Volvo recommends the use of energy-conserving oils. Look for the API label. Synthetic oils complying with oil quality requirements are recommended for: Driving in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances or for a prolonged driving in mountainous areas.
Page 141: Power Steering Fluid
15,000 miles (25,000 km) when driving under extremely hard conditions (mountain driving, etc.) Check, without removing the cap, that the level is above the "MIN" mark of the fluid reservoir. Always entrust brake/clutch fluid changing to an authorized Volvo retailer. pg. 117 Automatic transmission fluid...
Page 142 1998 C70 Check the oil level as follows: Park the car on a level surface with the engine idling. Slowly move the gear selector lever through all the shift positions and then to position P. Wait 3 minutes before checking the oil level. As the illustration shows, the dipstick has a COLD and a HOT side.
Page 143: Washer Fluid Reservoir
1998 C70 Belt check Check the belt regularly to make sure it is in good condition and is clean. A worn or dirty belt can cause poor cooling and low generator output as well as impair the operation of the power steering and the air conditioning unit.
Page 144 1998 C70 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_34.htm (4 of 4)12/30/2006 1:49:19 PM...
Page 145: Check Coolant Level
Capacity: 7.4 US qts. (7.0 liters) Coolant: Volvo Genuine Coolant/Antifreeze only NOTE: Do not top up with water only. Water by itself reduces the rust-protective and anti-freeze qualities of the coolant and has a lower boiling point. It can also cause damage to the cooling system if it should freeze.
Page 146 1998 C70 WARNING: If the engine is warm and you are going to top up coolant, unscrew the cap slowly in order to allow any excess pressure to escape. CAUTION: The cooling system must always be kept filled to correct level. If it is not kept filled, there can be high local temperatures in the engine which could result in damage.
Page 147: Battery Maintenance
1998 C70 WARNING! The cooling fan may start or continue to operate (for up to 6 minutes) after the engine has been switched off. pg. 122 Battery maintenance Battery maintenance Driving habits and conditions, climate, the number of starts, etc. all affect the service life and function of the battery.
Page 148 1998 C70 Keep away from children Corrosive No smoking, no open flames, no sparks Explosion Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_35.htm (4 of 4)12/30/2006 1:49:19 PM...
Page 149 Meeting API specification SG, SG/CD, SH or Energy Conserving (EC) II For best fuel economy and engine protection, consult with your authorized Volvo retailer for recommended oils. Oil with a different quality rating may not provide adequate engine protection. Synthetic oils complying with oil quality requirements are recommended for : driving in areas of sustained temperature extremes (hot or cold), when towing a trailer over long distances or for prolonged driving in mountainous areas.
Page 150 Automatic transmission Quality: ATF Dexron IIE/ III and Mercon Capacity: 8 US qts. (7.6 liters) fluid Manual transmission fluid Quality: Volvo synthetic gearbox oil Capacity: 2.2 US qts (2.1 liters) 1161423 Power steering fluid Quality: ATF Capacity: 0.85 US qts. (0.8 liters)
Page 151 1998 C70 All specifications are subject to change without notice. Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_36.htm (3 of 3)12/30/2006 1:49:20 PM...
Page 152: Front Suspension
126 Specifications Cooling system Type: Positive pressure, closed system Thermostat begins to open at 180°F (87°C) Coolant: Volvo original coolant/anti-freeze Capacity: 7.4 US qts. (7.0 liters) Fuel system The engine is equipped with a multiport fuel injection system Distributor ignition system...
Page 153 Vehicle Loading The tires on your Volvo should perform to specifications at all normal loads when inflated as recommended on the tire information label. The label is located on the inside of the fuel filler flap. The label lists both tire and vehicle design limits.
Page 154 520 A/100 min (certain markets) 420 A/75 min The battery contains corrosive and poisonous acids. It is of the utmost importance that old batteries are disposed of correctly. Your Volvo retailer can assist you in this matter. Generator Rated output 1400 W Max.
Page 155 BA 9s Rear reading lights – BA 9s All specifications are subject to change without notice pg. 129 Specifications (cont.) Dimensions and weights - Volvo C70 Length 185.8 in. (472 cm) Width 71.7 in. (182 cm) Height 55.1 in. (140 cm) Wheelbase 104.7 in.
Page 156 All specifications are subject to change without notice. pg. 130 Service manuals, Road assistance Service Manuals for your Volvo are available for purchase. These are the same manuals used by competent Volvo technicians. Major sections within the Service Manual System include: 0- General Information; 1- Lubrication and Service; 2- Engine;...
Page 157 Volvo at peak operating condition. NOTE: The above pertains to the USA only. Your new Volvo comes with a four year road assistance program named ON-CALL. Additional information, features, and benefits are described in a separate information package in your glove compartment.
Page 158: Chapter 10 - Audio Systems
1998 C70 Chapter 10 - Audio systems pg. 131 Audio systems Audio systems This chapter describes the audio system in your car. SC-813 132 SC-816 145 SC-900 161 General Information 184 pg. 132 Audio system SC-813 (certain models) The following pages describe the use of your SC-813 Cassette radio and CD remote control file:///K|/ownersdocs/1998/1998_C70/98c70_38.htm (1 of 4)12/30/2006 1:49:21 PM...
Page 159 1998 C70 1. On/off (push) 11. Dolby B NR button 19. Cassette slot 12. Cassette eject 20. Display 3. Volume (turn) 13. Not in use 21. Waveband selector (AM) 4. Pause/Mute (push) 14. Scan 22. Waveband selectors (FM) 5. Balance (pull) 15.
Page 160 1998 C70 To enter the code After installation or when the set has been disconnected from power, the set displays "COdE" when it is switched on. Enter the 4-digit code using the preset buttons. If the correct code is entered, "on" is displayed and the set is ready to use.
Page 161 1998 C70 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_38.htm (4 of 4)12/30/2006 1:49:21 PM...
Page 162 1998 C70 pg. 134 Radio SC-813 A - On/off switch Push the button to switch on the radio. Press the button slightly longer to turn the radio off. B - Volume control Turn the button clockwise to increase the volume. The volume control is electronic and has no end stop. C - Waveband selector The desired waveband is set by pressing one of the waveband selector buttons.
Page 163 1998 C70 A - Seek tuning up/down Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The radio seeks the next audible station and stops there. If you wish to continue the seek tuning, press the tune button again.
Page 164 1998 C70 This function automatically seeks and stores up to 8 strong AM or FM stations. This is especially useful when travelling in areas where radio stations are unfamiliar. 1. Depress and hold the "AUTO" button for at least 1 second. A number of strong stations (max. 8) on the chosen waveband are now automatically stored in the memory.
Page 165 1998 C70 D - Scan Press this button to listen to each station for five seconds. Press it again to stop scanning. "Scan" will be displayed during scanning. E - Active sound control (ASC) The ASC function automatically adjusts the volume level of the audio system according to driving speed. To deactivate ASC depress the "ASC"...
Page 166 1998 C70 pg. 138 Cassette deck A - Cassette slot The cassette is inserted with the open side to the right (side 1 or A of the cassette upwards). When the cassette is inserted, the radio is disengaged and the cassette will start to play automatically. "TAPE "...
Page 167 1998 C70 A- Next selector Press the " " button and the tape will automatically advance to the next song. There must be a gap (no audio sound) of approx. 5 seconds between songs for this function to operate. B - Previous selector Press the "...
Page 168 1998 C70 If the button is pressed the tape will stop and the cassette will be ejected. The radio will be automatically engaged. The radio or CD changer will engage automatically (depending on which mode was activated before the tape was played). B - To re-enter Radio mode Push one of the waveband selector buttons When the unit re-enters Radio mode, the cassette will not be ejected.
Page 169 *The functions pertaining to the CD-changer are only applicable if the unit has been connected to the Volvo CD-changer, which is sold separately as an accessory. If no CD-changer is connected to the unit "EEEE" will be displayed if you happen to choose CHGR mode.
Page 170 1998 C70 A - Changing the selected track number Press " " for forward selection or " " for backward selection. The chosen disc number and track number will be displayed. B - Playing-time display When the "CHGR" button is pressed the playing time for the current track is displayed for 5 seconds. C - Scan Press this button to listen to the first ten seconds of each track.
Page 171 1998 C70 B - Pause If you press the "volume" knob the disc is stopped, the unit is silent and "PAUSE" is displayed. To restart the disc press the knob again. C - To re-enter Radio mode Push one of the waveband selector buttons. D - To re-enter Tape mode If a cassette is already inserted, the tape deck will reengage if the "TAPE"...
Page 172 1998 C70 4-track, 2 channel stereo Full logic electronic tape transport Tape speed: 4.76 cm/sec. Channel separation 53 dB Frequency range 30-15000 hz S/N (120 µV) 56 dB without Dolby B NR S/N (120 µV) 66 dB with Dolby B NR Wow and Flutter <...
Page 173 1998 C70 pg. 145 Audio system SC-816 (certain models) The following pages describe the use of your SC-816 1. On/off (push) 10. Dolby B NR button 19. CD slot 11. CD-random play 20. Cassette slot 3. Volume (turn) 12. Cassette eject 21.
Page 174 1998 C70 Anti-theft code The radio features anti-theft circuitry. If the set is removed from the vehicle or if the battery power is disconnected, a special code must be entered to enable operation of the set. Refer to the radio code card supplied with your vehicle or ask your retailer for the correct code. When the car is parked with ignition key removed the anti-theft LED will flash.
Page 175 1998 C70 the unit must be turned on Make sure the headlights are turned off to help prevent battery drain (please refer to page 24 for information on turning the headlights off). Enter the code again once this time has elapsed. pg.
Page 176 1998 C70 ST will be displayed to indicate stereo FM reception. pg. 148 Radio SC-816 A - Seek tuning up/down Press the left side tune button to tune to lower frequencies and the right side to tune to higher frequencies. The radio seeks the next audible station and stops there. If you wish to continue the seek tuning, press the tune button again.
Page 177 1998 C70 A- Automatic programming (Auto) Please note that this function will not interfere with pre-stored stations on buttons 1-6. This function automatically seeks and stores up to 8 strong AM or FM stations. This is especially useful when travelling in areas where radio stations are unfamiliar. 1.
Page 178 1998 C70 A- Fader control Adjust front/rear speaker balance by sliding the control up or down. (UP to direct more sound to the front speakers DOWN to direct more sound to the rear speakers). The "detent" indicates "equalized" front /rear balance position. B - Pause function Press the "volume"...
Page 179 1998 C70 pg. 151 Cassette deck A - Cassette slot The cassette is inserted with the open side to the right (side 1 or A of the cassette upwards). When the cassette is inserted, the radio is disengaged and the cassette will start to play automatically. "TAPE "...
Page 180 1998 C70 A- Next selector Press the " " button and the tape will automatically advance to the next song. There must be a gap (no audio sound) of approx. 5 seconds between songs for this function to operate. B - Previous selector Press the "...
Page 181 1998 C70 A - Cassette eject If the button is pressed the tape will stop and the cassette will be ejected. The radio will be automatically engaged. The radio, CD or CD changer will engage automatically (depending on which mode was activated before the tape was played).
Page 182 1998 C70 pg. 154 CD - Single A - CD slot With the audio system on, insert a disc into the slot with the label side up. When the CD is inserted, the radio is disengaged and the CD will start to play automatically. The CD can be inserted or ejected even when the unit is switched off.
Page 183 1998 C70 A- Music search Press the " " or " " button to search within a track. While the button is depressed the playing time for this track will be displayed. B - Changing the selected track number Press " "...
Page 184 1998 C70 displayed when this function is engaged. * The random function may cause a disc to be played more than once before playing through all discs. B - Pause If you press the "volume" knob the disc is stopped, the unit is silent and "PAUSE" is displayed. To restart the disc press the knob again.
Page 185 *The functions pertaining to the CD-changer are only applicable if the unit has been connected to the Volvo CD-changer, which is sold separately as an accessory. If no CD-changer is connected to the unit "EEEE" will be displayed if you happen to choose CHGR mode.
Page 186 1998 C70 A - Changing the selected track number Press " " for forward selection or "" for backward selection. The chosen disc number and track number will be displayed. B - Playing-time display When the "CHGR" button is pressed the playing time for the current track is displayed for 5 seconds. C - Scan Press this button to listen to the first ten seconds of each track.
Page 187 1998 C70 If you press the "volume" knob the disc is stopped, the unit is silent and "PAUSE" is displayed. To restart the disc press the knob again. C - To re-enter Radio mode Push one of the waveband selector buttons. D - To re-enter Tape mode If a cassette is already inserted, the tape deck will reengage if the "TAPE"...
Page 188 1998 C70 Cassette deck 4-track, 2 channel stereo Full logic electronic tape transport Tape speed: 4.76 cm/sec. Channel separation 53 dB Frequency range 30-15000 hz S/N (120 µV) 56 dB without Dolby B NR S/N (120 µV) 66 dB with Dolby B NR Wow and Flutter <...
Page 189 1998 C70 pg. 161 Audio system SC-900 (certain models) The following pages describe the function and operation of your SC-900. 1. On/off (press) 21. Fast rewind 2. Volume (turn) 12. Autostore memory 22. CD - backwards search 3. Balance (pull out and 13.
Page 190 1998 C70 (AM) pg. 162 Anti-theft code Anti-theft code The radio features anti-theft circuitry. If the set is removed from the vehicle or if the battery power is disconnected, a special code must be entered to enable operation of the set. Refer to the radio code card supplied with your vehicle or ask your retailer for the correct code.
Page 191 1998 C70 pg. 163 Radio SC-900 A- On/off switch Press the button to switch the radio on/off. B - Volume control Turn this knob clockwise to increase the volume. The volume control is electronic and has no stop point. C - Waveband selector Press the "FM"...
Page 192 1998 C70 A - Automatic programming of stations Please note that this function will not interfere with pre-stored stations on buttons 1-6. This function automatically seeks and stores up to 10 strong AM or FM stations in a separate memory. This is especially useful when travelling in areas where radio stations are unfamiliar.
Page 193 1998 C70 A- Bass control Adjust the bass by pressing the button to extend the control and then fuming it to the left (less bass) or to the right (more bass). A "detent" indicates "equalized" bass. Press the button back in when you have set the level.
Page 194: Automatic Tuning
Please refer to pages 168-173 regarding specific descriptions and operation of these functions. Volvo was among the first to pioneer this technology throughout Europe and it is slowly making its way to North America. Coverage by local broadcasters may be limited at this time, but as the technology and benefits grow, you will find the SC-900 radio ready to advantage of this system.
Page 195 1998 C70 B - Scanning Press this button to listen to each station for five seconds. If the unit is in tape or CD mode, each track will play for ten seconds. pg. 167 Traffic Program Traffic Program (TP) This feature may not apply in your area and only functions with FM broadcasts. Please refer to the RDS information on page 168.
Page 196 1998 C70 NEWS This feature may not apply in your area and only functions with FM broadcasts. Please refer to the RDS information on page 166. Press the NEWS button to seek a station broadcasting news programs. If you press the NEWS button for less than 1 second while tuned to a news station, the radio will switch back to the previously selected station.
Page 197 1998 C70 pg. 169 Program type - PTY Program type The 'PTY' function enables you to select different types of program. If you want to search for a specific program type: 1. Press the PTY button for less than 1 second. The program type of the currently selected radio station will be displayed.
Page 198 1998 C70 PTY preset buttons Program types are factory-preset as follows: Button 1 - Top 40 Button 2 - Classical Button 3 - News Button 4 - Rock Button 5 - R&B Button 6 - Country These settings can be reprogrammed according to your preferences. To change the default settings: 1.
Page 199 1998 C70 B - Automatic volume control The Auto Volume function adjusts both the volume and frequency response according to vehicle speed. To enable/disable (switch on or off) this function: Hold down preset button 1 while switching on the radio. The current setting (ON or OFF) will be displayed.
Page 200 1998 C70 pg. 172 Cassette deck A - Cassette slot Insert the cassette with the open side to the right (side 1 or A upwards). When the cassette is inserted, the radio is automatically switched off and the cassette will start to play. 'Tape side A' or 'Tape side B' will appear in the display to indicate which side of the tape is being played.
Page 201 1998 C70 pg. 173 Cassette deck A- Pause If you press the 'TAPE' button, the tape will stop, the sound will cut off and 'PAUSE' will appear in the display. Press the 'TAPE' button to restart the tape. B - Dolby B noise reduction Press this button if you are playing a tape which has been recorded with the Dolby B noise reduction system.
Page 202 1998 C70 If you press this button, the tape will stop and the cassette will be ejected. The radio, CD 3 player or CD 6 changer will be automatically switched on depending on which mode was used before the tape was played.
Page 203 1998 C70 pg. 175 CD 3 player A - CD 3-slot When you insert a cartridge, the unit will automatically switch modes and the CD 3 will start playing. A cartridge can be inserted even if the unit is switched off. To operate: Insert the discs into the cartridge, label side up.
Page 204 1998 C70 A- Music search Press the 'FF' or 'REW' buttons to search within a track. While the button is pressed, the playing time for this track is displayed. B - Changing tracks Press 'NXT' to move forward to the next track, 'RPT' to repeat the previous track or turn the manual tuning knob.
Page 205 1998 C70 * The random function may cause a disc to be played more than once before playing through all discs. B - Pause If you press the CD 3 button, the CD 3 player stops, the sound is switched off and 'Pause' appears in the display.
Page 206 1998 C70 pg. 178 CD 6 changer (dealer option) CD 6 changer The CD 6 changer, which is available separately, is loaded with a cartridge which can accommodate 6 discs. If no CD 6 changer is connected, pressing the CD 6 button will have no effect. To operate: Pull out the tray and place the disc on it, label up.
Page 207 1998 C70 A - Changing the selected track number Press 'NXT' to move forward to the next track, 'RPT' to repeat the previous track or turn the manual tuning knob. The selected disc number and track number will be displayed. B - Playing-time display When the 'FF' or 'REW' buttons are pressed, the playing time for the current track is displayed for 5 seconds.
Page 208 1998 C70 C - To return to the radio mode Press the FM or the AM button. D - To return to the tape mode If a cassette is already inserted, you can return to tape mode by pressing the 'TAPE' button. E - To return to the CD3 mode If the CD 3 player has been switched off but the cartridge has not been ejected, you can return to the CD 3 mode by pressing the CD 3 button.
Page 209 1998 C70 pg. 181 Dolby Pro Logic Surround Sound (certain models) Dolby Pro Logic Surround Sound Together with a center speaker mounted at the center of the dash, Dolby Pro Logic Surround Sound offers much clearer and more realistic sound. Through a connection to a special decoder (optional on certain models), as well as a center speaker (option), the normal left-right stereo channels are divided into left-center-right.
Page 210 1998 C70 The button on the rear console is used to turn the optional speakers behind the rear seat backrest on or off. * Will not function in Radio mode (FM or AM). pg. 182 Other settings A - Settings for individual markets Settings for individual markets are usually adjusted in the factory or at the dealer.
Page 211 4 Ohms System voltage: 12 V, negative ground Radio Volvo's SC-900 stereo system contains a microprocessor-controlled radio receiver with PLL (Phase Lock Loop), designed for RDS (Radio Data System). The SC-900 must be connected to a separate power amplifier. Frequency range: 530 - 1710 kHz 87.9 - 107.9 MHz...
Page 212 CAUTION: The supplementary amplifier may be mounted under the front passenger's seat. If the floor of the car has become soaked for any reason, do not turn on the radio. This would cause damage to the amplifier. Contact a Volvo retailer. Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_52.htm (4 of 4)12/30/2006 1:49:26 PM...
Page 213 Take up slack using a pen or a pencil before inserting a cassette in the cassette slot. Cassette cleaning We recommend the use of the Volvo Cleaning Cassette available as a genuine Volvo accessory. Regular use improves sound quality, cleans vital parts and prevents tape tangle.
Page 214 1998 C70 Sending signals The FM waves do not follow the earth's surface nor do they bounce off the atmosphere. For this reason their range is limited. The AM waves follow the earth's surface and reflect against the atmosphere, giving them a wide range. Weak reception (fading) Because of the limited range of the FM senders and the fact that these waves are very reflective, this problem usually occurs with FM reception.
Page 215 1998 C70 Static The reason why FM but not AM is audible in covered parking areas, under bridges, etc. is that FM signals reflect against solid objects such as buildings. Because these waves are very reflective, static can result. This static is the result of the reflected signal and the direct signal reaching your antenna at slightly different times causing a cancellation of all signals.
Page 216 1998 C70 FM - reasons for distortion FM is affected by the electrical systems of nearby vehicles, especially those without suppression. The distortion increases if the station is weak or poorly set. The FM reception is not as sensitive to electrical disturbance as AM.
Page 217 Reception conditions are not always optimum and this is, of course, beyond our control. However, we have endeavored to make the Volvo Audio System of a quality that will enable you to enjoy the best possible reception no matter what the reception conditions may be.
Page 218: Air Vent.
1998 C70 pg. 188 Index ABS........17 Air conditioning......35 Air mix........33 Air vents........33 Airbag (SIPS).......8 Airbag (SRS)........4 Alarm........44 Ambient temperature sensor....25 Anti-lock Brake System (ABS)..17,19,70 Ashtrays........31 Audio systems General information.....184 SC-813........132 SC-816........145 SC-900........161 Auto-dim (rear-view mirror)....48 Automatic car washing.....103 Automatic daytime running lights...24 Automatic transmission...61,62,63,127 Driving mode selector....62 Automatic transmission fluid..117,124...
Page 219 1998 C70 Bulb failure warning....17,19 Bulbs........128 Bulbs - replacing......85 Capacities........127 Catalytic converter......69 Central locking button.....36 Chains (snow)......77 Changing a wheel......82 Child booster cushion......11 Child Restraint Anchorages....9 Child safety.......11 Clock........16 Clock - resetting......25 Clutch fluid......116 Coolant - checking/changing....120 Coolant level sensor.......19 Coolant level warning light....17 Cooling system......64,126 Courtesy lights - front....49...
Page 220 1998 C70 Electrically heated front seats....30 Electrically operated front seats..46,47 Electrically operated sun roof.....41 Electrically-operated windows....36 Emergency towing......66 Emergency warning flashers....23 Engine........125 Engine compartment......121 Engine oil......114,115,124 Engine oil - checking/changing....114 Engine oil pressure......17 Fog light - rear......17,22 Fog lights - front......22 Front courtesy lights......49 Front fog lights......22 Front seats........46...
Page 221: Instrument Illumination
1998 C70 Hand brake.........30 Handling........65 Hazard warning flashers....23 Headlight wiper blades - replacing..96 Headlights.........20 Heated front seats......30 Heated side-view mirrors....23 Heating........35 Heating and air conditioning....33 High beams.........17 Hoisting the car......110 Hood........51 Ignition switch......21 Instrument illumination....22 Instruments......14,15 Jack.........53,82,83 Jump starting......68 Keyless entry system.......43 Keylock........59 Keys........42 Kick-down........61...
Page 222 1998 C70 Long distance trips......73 Long load storage......50 Lubrication.......113 Maintenance schedule......108 Maintenance service.......107 Malfunction indicator lamp....17,18 Manual transmission....60,127 Manual transmission fluid....124 Memory function - front seats....46 Mirrors - rear/side view....48 Occupant safety......12 Octane rating......57 Odometer........16 Oil (engine)......114,115,124 Oil pressure warning light....18 On-call........130 Paint touch-up......100 Parking brake......17,30...
Page 223: Rear Fog Light
1998 C70 SC-816........145 SC-900........161 Radio Data System - RDS....166 Reading lights......49 Rear (side) windows - opening....37 Rear fog light......17,22 Rear suspension......126 Rear window demister.......23 Rear/side-view mirrors....48 Refueling........57 Remote control (central locking system)..43 Remote keyless entry system....43 Replacing bulbs.....85,86,87,88,89,90 Replacing fuses......91 Reporting Safety Defects....12 Road Assistance......130 Roadholding........65...
Page 224 1998 C70 Spare tire......53,84 Spark plugs.......126 Spark plugs - replacing....110 Specifications......123 SRS........5,6,7 SRS (airbag)........4 SRS diagnostic system......19 SRS warning light.....5,17,19 Starting the engine......59 Steering wheel adjustment....32 Steering wheel lock......21 Storage compartments.......40 Studded tires......77 Sun roof........23,41 Supplemental Restraint System (SRS)..4 Tachometer.........16 Temperature gauge......16 Temporary spare tire.......84 Three-way catalytic converter....69...
Page 225 1998 C70 Vanity mirrors......49 Vehicle Identification Number (VIN)..106 Vehicle loading......127 Volvo On Call......130 Warning flashers......23 Warning lights......18,19 Warranty........107 Washer fluid level......17 Washer fluid reservoir....119 Washing........102 Waxing........103 Weights........129 Wheel changing......82,83 Wheels and tires......76 Windows - electrically-operated....36 Windshield washer nozzles....119 Windshield washers/wipers....21 Windshield wiper blades - replacing..95...
Page 226 Your car is equipped with an accessory connector located under the dashboard on the driver's side. Please consult your Volvo retailer before connecting accessory or optional equipment to the vehicle's electrical system.
Page 227 1998 C70 Top up if the level drops to the ADD mark with ATF fluid. page 116. 4 Engine oil level should be between the dipstick marks. The distance between the marks represents approx. 1.6 US qts (1.5 liters) or 1 US qt. (1 liter) on certain models. See page 114.
Page 228 BAU 15 - 21 W BA 15s 1156 See pages 85-87 for more detailed information. Volvo Car Corporation Göteborg, Sweden TP 4062/1 (Canada & USA) 8000.02.97 Printed in Sweden, Graphic Systems AB, Göteborg 1997 Contents Top of Page file:///K|/ownersdocs/1998/1998_C70/98c70_55.htm (3 of 3)12/30/2006 1:49:28 PM...
