© 2012, Moog Videolarm, Inc. All Rights Reserved

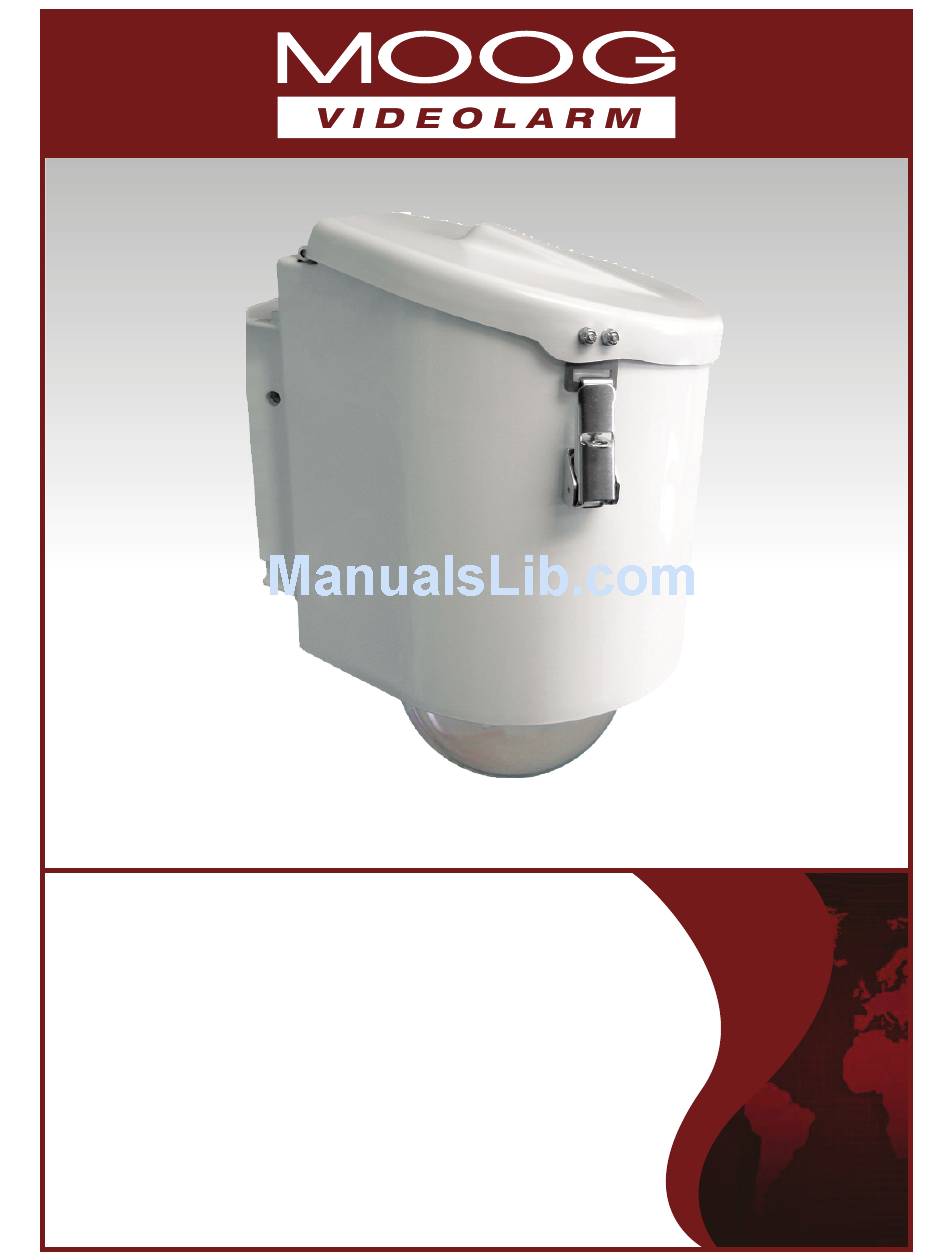

F r e e d o m D o m e
Modular All Weather Dome Enclosure
Installation and Operation Instructions for the following model:
LDW75C2N
Ruggedized dome enclosure with space for peripheral equipment.
110/220VAC input. Designed to work with Moog Videolarm IP Ready
camera housings.
Before attempting to connect or operate this product, please read these instructions completely.
www.moogvideolarm.com
W81-IN5477
07-25-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Moog Videolarm Freedom Dome LDW75C2N
Summary of Contents for Moog Videolarm Freedom Dome LDW75C2N
- Page 1 Installation and Operation Instructions for the following model: LDW75C2N Ruggedized dome enclosure with space for peripheral equipment. 110/220VAC input. Designed to work with Moog Videolarm IP Ready camera housings. W81-IN5477 07-25-2012 Before attempting to connect or operate this product, please read these instructions completely.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE Do not block any of the ventilation openings. -
Page 3: Terms And Conditions
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Electrical Specifications
Content of Box Electrical Specifications LDW75C2N Input Power: 110Vac/220Vac 1A/0.5A. Power Consumption: 1Amp (120 watts) at 120Vac. Power Output: 96Va at 24Vac, 52 watts heater/blower Camera Power: 32 watts. An all pole main switch with a contact of at least 3mm in English each pole shall be incorporated in the electrical installation of the building. - Page 5 Power Feed Locations: LIQUID TIGHT PLUG FOR 3G ANTENNA BULKHEAD CONNECTOR HOLE. LIQUID TIGHT PLUG FOR OPTIONAL MAIN POWER HOLE. LIQUID TIGHT PLUG FOR OPTIONAL MAIN POWER HOLE. LIQUID TIGHT STRAIN RELIEF FOR MAIN POWER HOLE.
- Page 6 POLE MOUNTING Holes for steel straps LDW75C2N unit is ready to mount. Use marked Use the steel straps to mount the unit to a pole. holes to attach steel straps. • Utilice las correas de acero para montar la unidad al •...
-
Page 7: Wall Mounting
WALL MOUNTING Tilt the unit to align the grooves (holes) to the Affix the wall mount bracket to the surface lips on the bracket. of the wall as shown. • Incline la unidad para alinear los surcos (agujeros) con • Ponga el soporte del montaje de la pared a la los labios en el soporte. - Page 8 To install a camera or for the maintenance of the Remove the dome and follow the specified unit (if needed) you should flip so that the dome is camera mounting options. facing upwards. • Quite la bóveda y siga las opciones especificadas del •...
-
Page 9: Replacement Parts
Replacement Parts LDW75C2N Freedom Dome PART # DESCRIPTION 1 RP40VL3707 TOP COVER ASSEMBLY 2 RPLBHNG TOP COVER HINGES, LEFT&RIGHT 3 RP30VL3708 HINGE PLATE 4 RP96GK3710 TOP COVER GASKET 5 RP70TRANS12 REPLACEMENT TRANSFORMER 96 VA 6 RP954GLTCH LATCHE SIERRA 210-120SS 7 RP30VL3701 WALL MOUNT BRACKET 8 RP71VLBL03 Fusion Dome BLOWER 40x40x10mm, 1.0 watt, RoHS... - Page 10 06-04-2012 C a m e r a M o u n t i n g I n s t r u c t i o n s NOTE: For all RHP, RHW, LDW and IGDW models, Für alle RHP, RHW, LDW und IGDW Modelle, add an additional ½”...
- Page 11 ARECONT: AV8185 / AV8365 / AV20185 / AV20365 • Mounting holes (4-#8 x ¾”) (75mm) 1” 2” AVIGILON: HD-Dome Series • Mounting holes (3-#8) (100mm) 1” 1” 2”...
- Page 12 AXIS: 215 • Mounting holes (4-#8) (100mm) 1” 1” 2” AXIS: 233D • Mounting holes (4-#8) (25mm) 1” BASLER: BIP2-1000C-DN / BIP2-1300C-DN / BIP-D1000C-DN / BIP-D1300C-DN • Mounting holes (3-#8) (100mm) 1” 1” 2”...
- Page 13 CANON: VB-C60 • Mounting holes (64mm) ½” 2” CANON: VB-M40 • Mounting holes (64mm) ½” 2” CANON: VB-C300 • Mounting holes (88mm) ½” 1” 2”...
- Page 14 ELMO: PTC 400C • Mounting holes (4-#8) (100mm) ½” ½” 1” 2” JVC: VN-V686BU / VN-V685U • Mounting holes (3-#8) (38mm) ½” 1” PANASONIC: BB-HCM580/581 • Mounting holes (88mm) ½” 2” 1”...
- Page 15 PANASONIC: WV-CS580 Series • Mounting holes (4-#8) (38mm) ½” 1” PANASONIC: SC386 • Mounting holes (4-#8) (25mm) 1” PANASONIC: WV-CS574 • Mounting holes (4-#8) (50mm) 2”...
- Page 16 PANASONIC: WV-CS954 / WV-NS954 • Mounting holes (4-#8) (13mm) ½” PANASONIC: WV-NS202 / WV-SC385 / WV-SC384 • Mounting holes (4-#8) (75mm) 1” 2” PIXORD: P-463 • Mounting holes (3-#8) (25mm) 1”...
- Page 17 SANYO: VCC-HD 5400 • Mounting holes (2-#8) (64mm) ½” 2” SONY: EP / ER Series (520 / 550 / 580) • Mounting holes (4-#8) (38mm) ½” 1” SONY: RX Series (RX530 / RX550 / RX570) • Mounting holes (4-M3)
-
Page 18: Sony: Snc-Rz25
SONY: SNC RH/RS Series (RH124 / RS44 / RS46) • Mounting holes (4-#8) (25mm) 1” SONY: SNC-RZ25 • Mounting holes (2-M3) (13mm) ½” SONY: SNC-RZ50 • Mounting holes (2-M3) (50mm) 2”... -
Page 19: Toshiba: Ik-Wb21A
TOSHIBA: IK-WB16A • Mounting holes (88mm) ½” 2” 1” TOSHIBA: IK-WB21A • Mounting holes (4-#8) (75mm) 1” 2” VIDEO IQ: VIQ-CT / CID / CRD / HD-CRD • Mounting holes (4-M4x10) (75mm) 1” 2”... -
Page 20: Product Registration/Warranty
Should a problem arise, rest assured that Moog Videolarm stands behind its products by offering impressive 3 Year and 5 Year warranties, depending on the product purchased. See full warranty details at www.moogvideolarm.com/technical-support/warranty-plan/...
