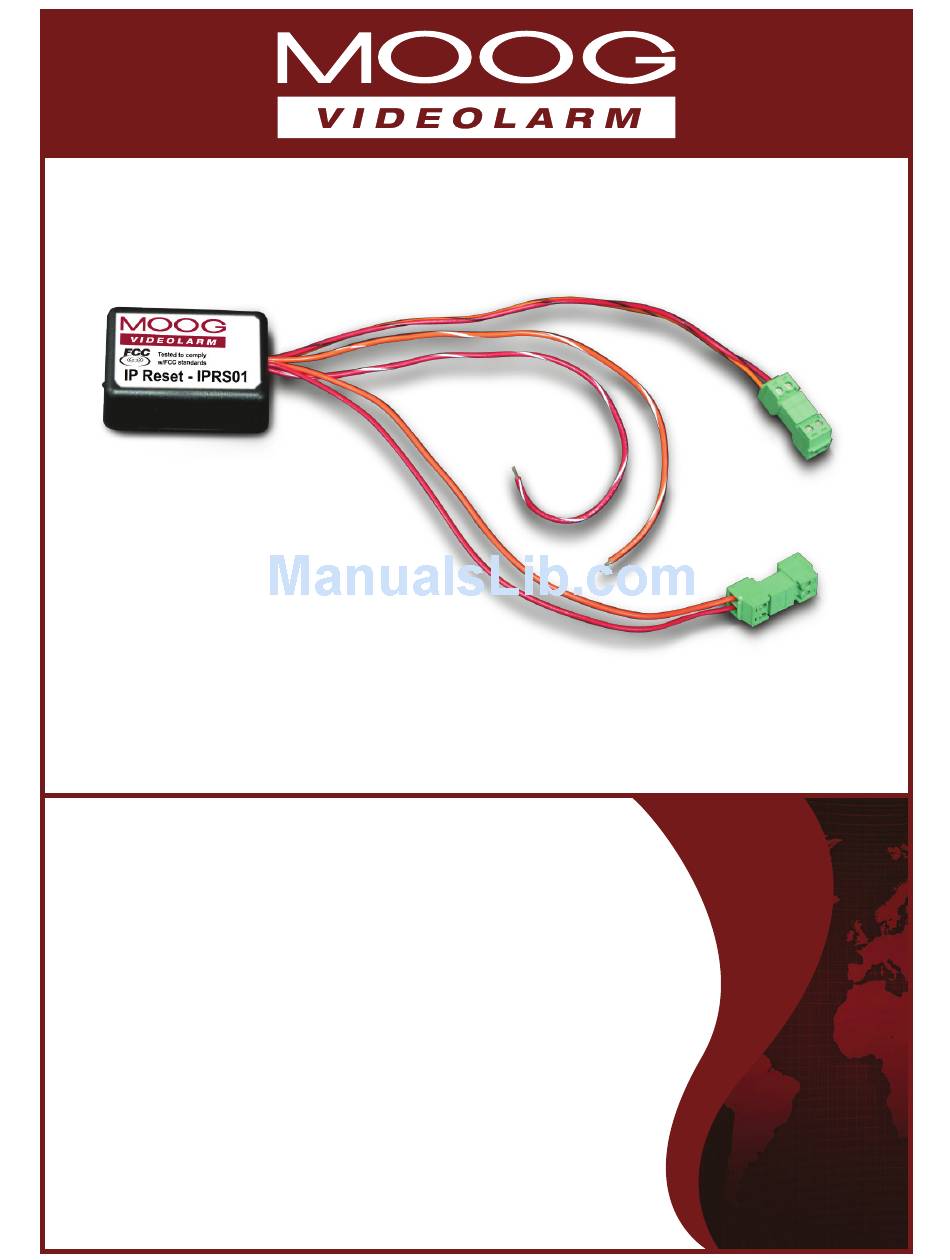

IP Reset Device
Installation and Operation Instructions for the following model:
IP Reset
IP Reset- provides a systematic solution for resetting IP cameras
or wireless systems, lock-ups caused by network issues, wiring
problems and power fluctuations by monitoring the output of an IP
camera's digital signal.
Installation Steps
1.
Check the package contents
2.
Select Operation Mode
3.
Install Hardware
4. Read LED Operation instructions
5. Install Software- see IP Reset Manager Software (on CD-ROM)
Before attempting to connect or operate this product, please read these instructions completely.
a. Timed Reset Mode
b. Intelligent Reset Mode
www.videolarm.com
81-IN5416
01-11-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Moog Videolarm IPRS01
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved I P R S 0 1 IP Reset Device www.videolarm.com Installation and Operation Instructions for the following model: IP Reset IP Reset- provides a systematic solution for resetting IP cameras or wireless systems, lock-ups caused by network issues, wiring problems and power fluctuations by monitoring the output of an IP camera’s digital signal.
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). -
Page 3: Product Category
If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period. -
Page 4: Product Specifications
50mm x 35mm x 20mm NOTES: ² Ratings can be changed to meet customer’s requirements for large orders. For the IPRS01 Reset Mode, your equipment must have an I/O. If I/O cable is not connected (or incorrectly connected). IPRS01 will operate in Timed Mode. -
Page 5: Operating Modes
Operating Modes The IP Reset operates in one of two modes, Intelligent Reset Mode and Timed Reset Mode. IP Reset automatically detects the operating mode by monitoring the I/O Detect input. If IP Reset detects a change in the I/O Detect input, it will enter the Intelligent Reset mode. Otherwise, IP Reset will remain in Timed Reset mode. You can choose to use Timed Mode by twisting the I/O Detect wires together and securing them with the wire nut. - Page 6 Output Relay Configuration and Connections Output Relay Configuration The relay output configurations vary based on the manufactures design. Because of these variations, the IP Reset I/O Detect input needs to operate in one of three ways. Refer to your camera user manual for more information regarding the output relay configuration of your camera. Dry Contact The first and most common method requires the IP Reset to supply current to the dry contacts of a relay.
-
Page 7: Hardware Installation
Hardware Installation The hardware installation depends upon the desired operating mode - Timed Reset Mode or Intelligent Reset Mode. Timed Reset Mode Installation 1. Do not connect I/O Detect cable. Instead, twist wires together with provided wire nut. 2. Connect the power output pin from the IP Reset to the Power input on your device 3. -
Page 8: Led Operation
Hardware Installation (cont.) IP Reset® LED Operation LED Operation Green LED – Device Power Indicator • : Power On to Device • : Power Off to Device Yellow LED – Communication/Signal Status • Timed Mode : Flashes every second • Intelligent Mode : Flashes every 90 Seconds (On = input High, Off = input Low) Red LED –... - Page 9 Software Installation (For a windows based PC) If there is a preexisting version of the IP Reset Manager Software on your computer go to “Add/Remove Programs “from the MS Windows Control Panel and remove it before beginning a new software installation. To remove a preexisting IP Reset Manager Installation, go to the Windows “Control Panel”...
- Page 10 Software Installation (For a windows based PC continued) In response to the confirmation box “Add or Remove Programs” message. Click “Yes”. A window may show up as follows: Let this window run to completion. Following the above window if you are removing the application from a computer with the Windows Vista operating system, a window (not shown) may appear with the title “User Account Control”.
- Page 11 IP Reset Manager Software Installation Guide After you have fully removed any preexisting installations of IP Reset Manager (see section “Removing IP Reset Software” from your system), insert the CDROM that came with your IP Reset device into the hard drive of the networked computer that will run the IP Reset Manager Software (computer must be on the same network with the video cameras) If the installation file doesn’t launch automatically, Double click on “setup.msi”...
- Page 12 IP Reset Manager Software Installation Guide Continued A Window pops up that says “Select Installation Folder”, if the radio button “just me” is selected, (shown below) than change it to the radio button “Everyone”, as shown below A window will appear that says, “Confirm Installation”, Click “Next >” to confirm the installation!
- Page 13 IP Reset Manager Software Installation Guide Continued Following the above window if you are installing the IP Reset application from a computer with the Windows Vista operating system, a window (not shown) may appear with the title “User Account Control”. It will say “An Unidentified Program Wants to Access Your Computer”, if this window appears you should click the “Allow”...
- Page 14 Older machines may require downloading Microsoft Dot Net If you are on an older windows machine that does not have a current version of Microsoft’s Dot Net libraries, you may get a message from Windows requiring you to download the latest version of Microsoft .Net. At this point you will have log on to Microsoft at: http://msdn.microsoft.com/en-us/netframework/default.aspx And download the latest version of Microsoft’s .Net libraries.
- Page 15 You are now ready to run the IP Reset Configuration Software. For usage information refer to application users document “IP ResetSoftwareUsersGuide.pdf” which is enclosed as a PDF with the CD-ROM. After successful installation the user’s guide and operations guide can be found on your computer in the following directory: “C:\Program Files\Videolarm\IP Reset\IP Reset_Software_User_s Guide.pdf”...
-
