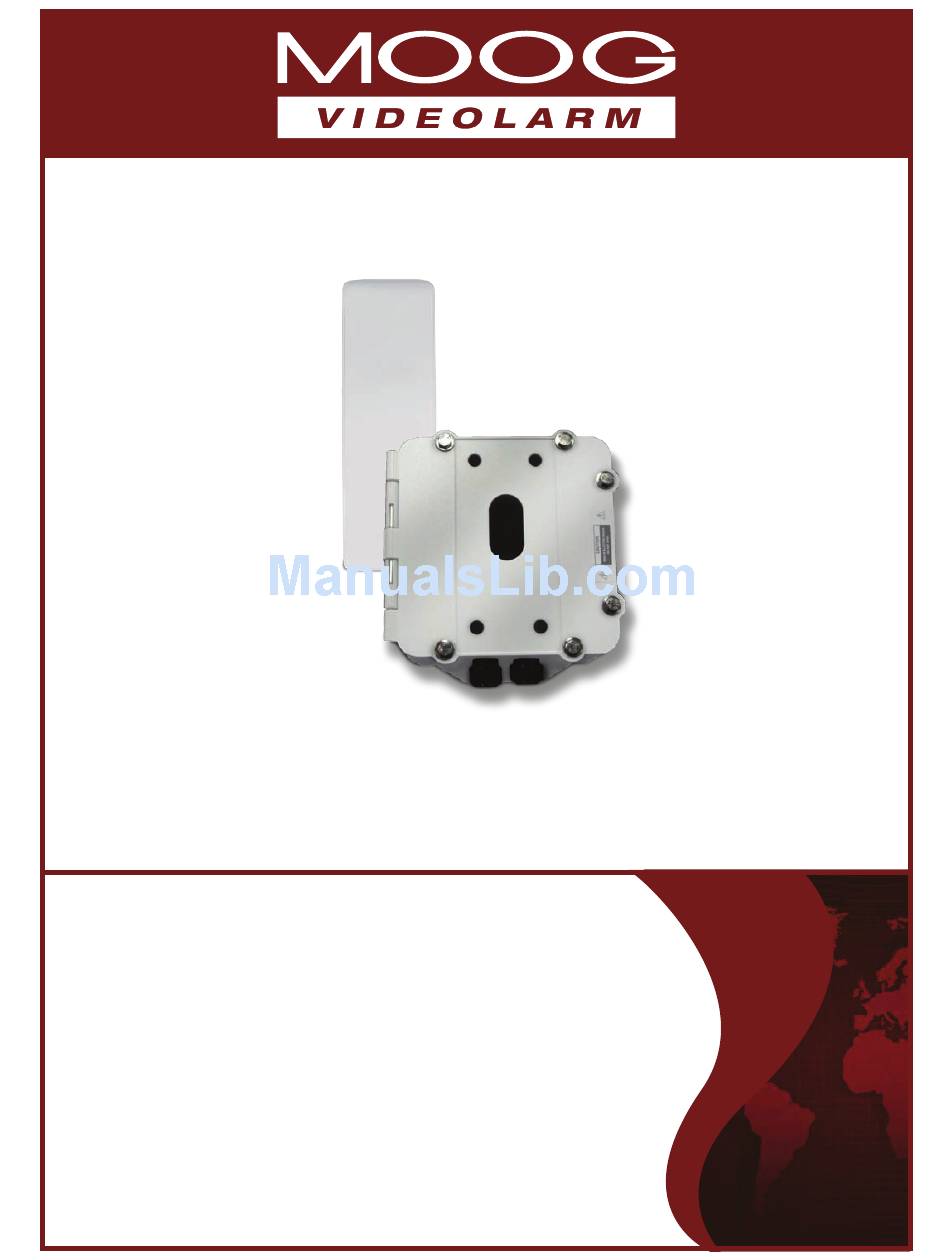

P B 2 4 M 2 4 / 5 8
MIMO Wireless Solutions
Installation and Operation Instructions for the following models:
PB24M24 Rugged outdoor wireless box, with a 220/110Vac input and 24Vac output for
camera, fuse protected with a wireless 2.4GHz MIMO transmitter. Directional
antenna. Pole mounting clips included.
PB24M58 Rugged outdoor wireless box, with a 220/110Vac input and 24Vac output for
camera, fuse protected with a wireless 5.8GHz MIMO transmitter. Directional
antenna. Pole mounting clips included.
Before attempting to connect or operate this product, please read these instructions completely.
www.videolarm.com
81-IN5465
4-16-2012
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Moog Videolarm PM24M58
- Page 1 © 2011, Moog Videolarm, Inc. All Rights Reserved P B 2 4 M 2 4 / 5 8 MIMO Wireless Solutions www.videolarm.com Installation and Operation Instructions for the following models: PB24M24 Rugged outdoor wireless box, with a 220/110Vac input and 24Vac output for camera, fuse protected with a wireless 2.4GHz MIMO transmitter. Directional antenna. Pole mounting clips included. PB24M58 Rugged outdoor wireless box, with a 220/110Vac input and 24Vac output for camera, fuse protected with a wireless 5.8GHz MIMO transmitter. Directional antenna. Pole mounting clips included. 81-IN5465 4-16-2012...
-
Page 2: Important Safeguards
IMPORTANT SAFEGUARDS SAFETY PRECAUTIONS Read these instructions. Keep these instructions. CAUTION Heed all warnings RISK OF ELECTRIC SHOCK DO NOT OPEN Follow all instructions. Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF Clean only with damp cloth. ELECTRIC SHOCK, DO NOT REMOVE COVER ( OR BACK). - Page 3 If Purchaser believes that the Product is defective in material or workmanship, then written notice with an explanation of the claim shall be given promptly by Purchaser to Moog Videolarm. All claims for warranty service must be made within the warranty period.
-
Page 4: Electrical Specifications
Electrical Specifications Contents of Box Input Power: 120VAC/240VAC 1A/.5A Power Consumption: 1Amp (120Watts) at 120VAC Power Output: 96VA at 24VAC 52Watts Heater/Blower 32Watts Camera Power English An all pole main switch with a contact of at least 3mm in each pole shall be incorporated in the electrical installation of the building. -
Page 5: Wall Mount
Installing the Power Box Wall Mounting: Attach unit securely with (4) 5/16”- 3/8” or 8mm hardware (not supplied). • A template is provided in the instructions with the 2 x 8 bolt pattern required for the mounting of this product. •... - Page 6 OUTPUT: (24VAC) HEATERS CAMERA Optional 24Vac 24Vac Power Output Main To Housing Switch Internal resettable fuses are supplied for the main 24VAC output lines. Do not connect heaters to camera output. The PB24 is not designed for 3 phase or 208V systems. Los fusibles restaurables internos se proveen para las líneas de salida principales 24VAC.
- Page 7 Connect IP cable between power. • Conecte el cable del IP entre la energía. • Reliez le câble d'IP entre la puissance. • Schließen Sie IP-Kabel zwischen Energie an. • Conecte o cabo do IP entre o poder. • Colleghi il cavo del IP fra potere.
- Page 8 Configure the Wireless Pre-configuring PC Setup Prior to the PB24M Series configuration, a computer with its Local Area Connection set to a static IP address is required to pre-configure the device (i.e. 192.168.1.XX). In order to do so, select the “Start” menu, “Control Panel” and then “Network Connections”.
- Page 9 • Connect to the PB24M24/58 by opening a web browser and connecting to http://192.168.1.100. Login to the device using videolarm for the username and camera for the password. Click on the Network tab on the configuration page. Note that a static IP address of 192.168.1.100 has been assigned to the unit as default.
- Page 10 Wireless Security Options Encryption for the wireless link is also set from the main Wireless configuration page. Select the Encryption method that is desired and enter the appropriate encryption key. Note that this same key will need to be entered in all devices connecting to the wireless network.
- Page 12 For your convenience and future reference, the following form has been included to record your wireless surveillance systems IP and Mac addresses. Once completed, remove the form from instruction packet and place in a secure place or inside the Moog Videolarm wireless product. The information recorded will prove bene cial when servicing or expanding your wireless system.
-
Page 13: Product Registration/Warranty
Product Registration/Warranty Thank you for choosing Moog Videolarm. We value your patronage and are solely committed to providing you with the highest quality products available and superior customer service. Should a problem arise, rest assure that Moog Videolarm stands behind its products by offering impressive warranty plans: 3 Years on all Housings, Poles, Power Supplies, and Accessories and 5 Years on camera systems (SView, QView, Warriors), and InfraRed Illuminators. Register Your Products Online Take a few moments and validate your purchase via the Online Product Registration Form at www.videolarm.com/productregistration.jsp Register your recent Moog Videolarm purchases and benefit from the following: • Simple and Trouble-Free RMA process • Added into customer database to receive product updates / news • Eliminate the need to archive original purchase documents: Receipts, Purchase Orders, etc…...
