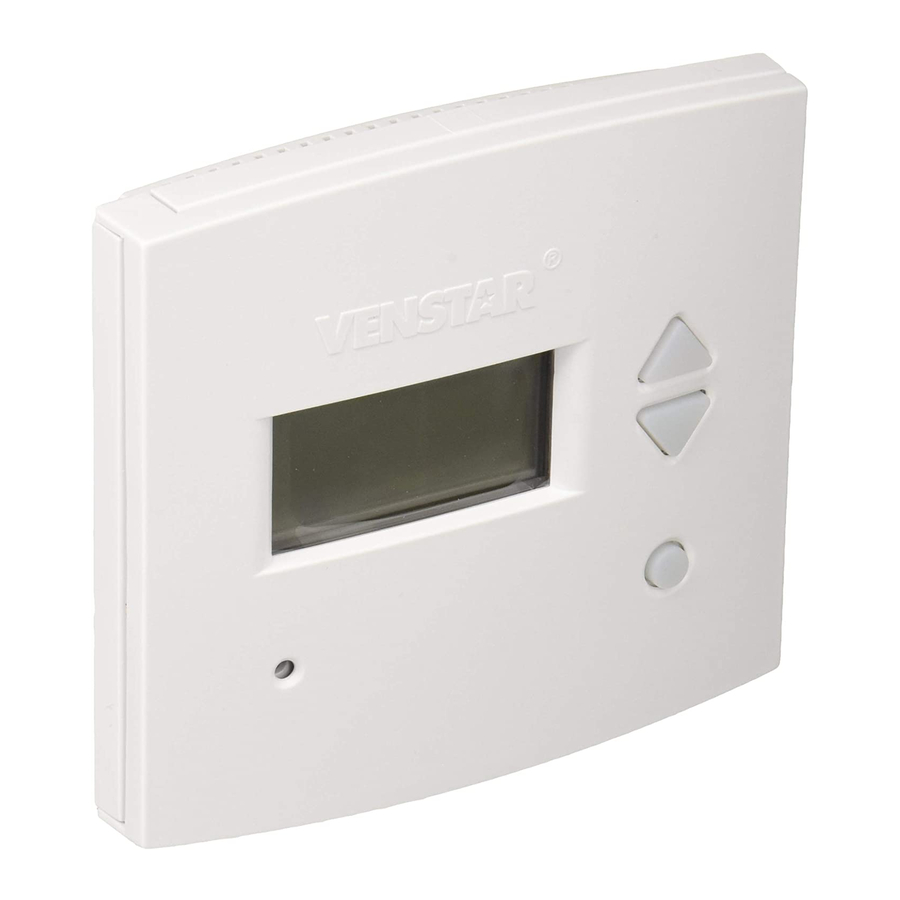

Venstar T2800 Specification

Venstar Programmable Thermostat

STANDARD FEATURES:

•
Up to 3-Occupied, 1-Unoccupied periods per day, with copy command for easy programming
•
Accepts humidification/dehumidification control module (Venstar part number ACC0430)
•
Auto changeover, 3-stage heat, 2-stage cool for use with gas/electric, heat pump, electric & hydronic heat
•
Configurable for manual changeover, also configurable programmable or non-programmable
•
Adjustable deadbands and timers
•
3 configurable outputs for maximum flexibility (MISC1, MISC2, MISC3)
•
th th
Extra 6 and 7 outputs (beyond our standard thermostat)
•
Smart Fan (keeps the fan from running during unoccupied periods)
•
Smart recovery
•
Display shows both heating an cooling setpoints and room temperature simultaneously
•
All programming and setpoints stored in non-volatile memory, and are never lost in power failure
•
Service filter and service UV lamp indicators
•
Red/Green LED shows whether thermostat is calling for heating or cooling
•
5-minute compressor time guard and adjustable cycle limit, both defeatable for servicing equipment
•
Outdoor sensor ready with high and low temperature of the day
•
Thermoglow backlit electro-luminous display and backlit color coded keys and legends
•
Accepts accessory IR Remote Control system (Venstar part number ACC0431)
•
Accepts accessory EZ Programmer (Venstar part number ACC0432)
•
For accessory locking cover use (Venstar part number ACC0620)

MODEL:

T2800

JOB NAME:

LOCATION:

BUYER:

ENGINEER:

T2800

QUANTITY:

DATE:

BUYER P.O.#:
