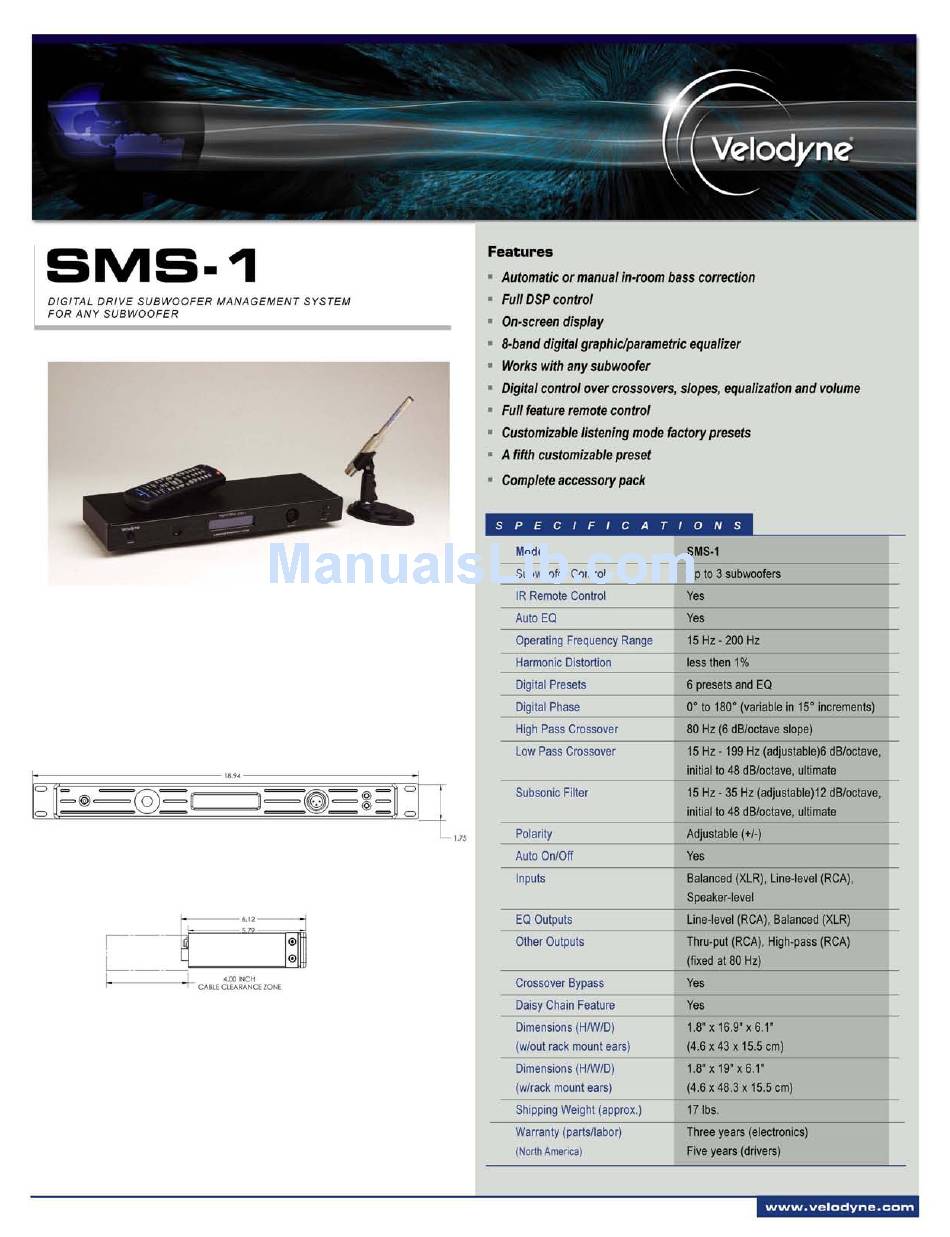

Velodyne SMS·1 Specifications

SMS·1
D I G I TA L DR IVE SU BWO OFER MANAGEMENT SYS TEM
F OR A N Y S UBWOO FER
18.94
5Z9 ~ ~ n
i
6 . I 2 Jj
4.00 INCH
C ABLE CLEARANCE ZONE
1.75
Features
• Automatic or manual in-room bass correction
• Full DSP control
• On-screen display
• 8-band digital graphic/parametric equalizer
• Works with any subwoofer
• Digital control over crossovers, slopes, equalization and volume
• Full feature remote control
• Customizable listening mode factory presets
• A fifth customizable preset
• Complete accessory pack
Model SMS-1
Subwoofer Control Up to 3 subwoofers
IR Remote Control Yes
Auto EQ Yes
Operating Frequency Range 15 Hz - 200 Hz
Harmonic Distortion less then 1%
Digital Presets 6 presets and EQ
Digital Phase 0° to 180° (variable in 15° increments)
High Pass Crossover 80 Hz (6 dB/octave slope)
Low Pass Crossover 15 Hz - 199 Hz (adjustable)6 dB/octave,
initial to 48 dB/octave, ultimate
Subsonic Filter 15 Hz - 35 Hz (adjustable)12 dB/octave,
initial to 48 dB/octave, ultimate
Polarity Adjustable (+/-)
Auto On/Off Yes
Inputs Balanced (XLR), Line-level (RCA),
Speaker-level
EQ Outputs Line-level (RCA), Balanced (XLR)
Other Outputs Thru-put (RCA), High-pass (RCA)
(fixed at 80 Hz)
Crossover Bypass Yes
Daisy Chain Feature Yes
Dimensions (H/W/D)
1.8' x 16.9' x 6.1 '
(w/out rack mount ears) (4.6 x 43 x 15.5 cm)
Dimensions (H/W/D) 1.8' x 19' x 6.1'
(w/rack mount ears) (4.6 x 48.3 x 15.5 cm)
Shipping Weight (approx.)
171bs.
Warranty (parts/labor) Three years (electronics)
(North America) Five years (drivers)
