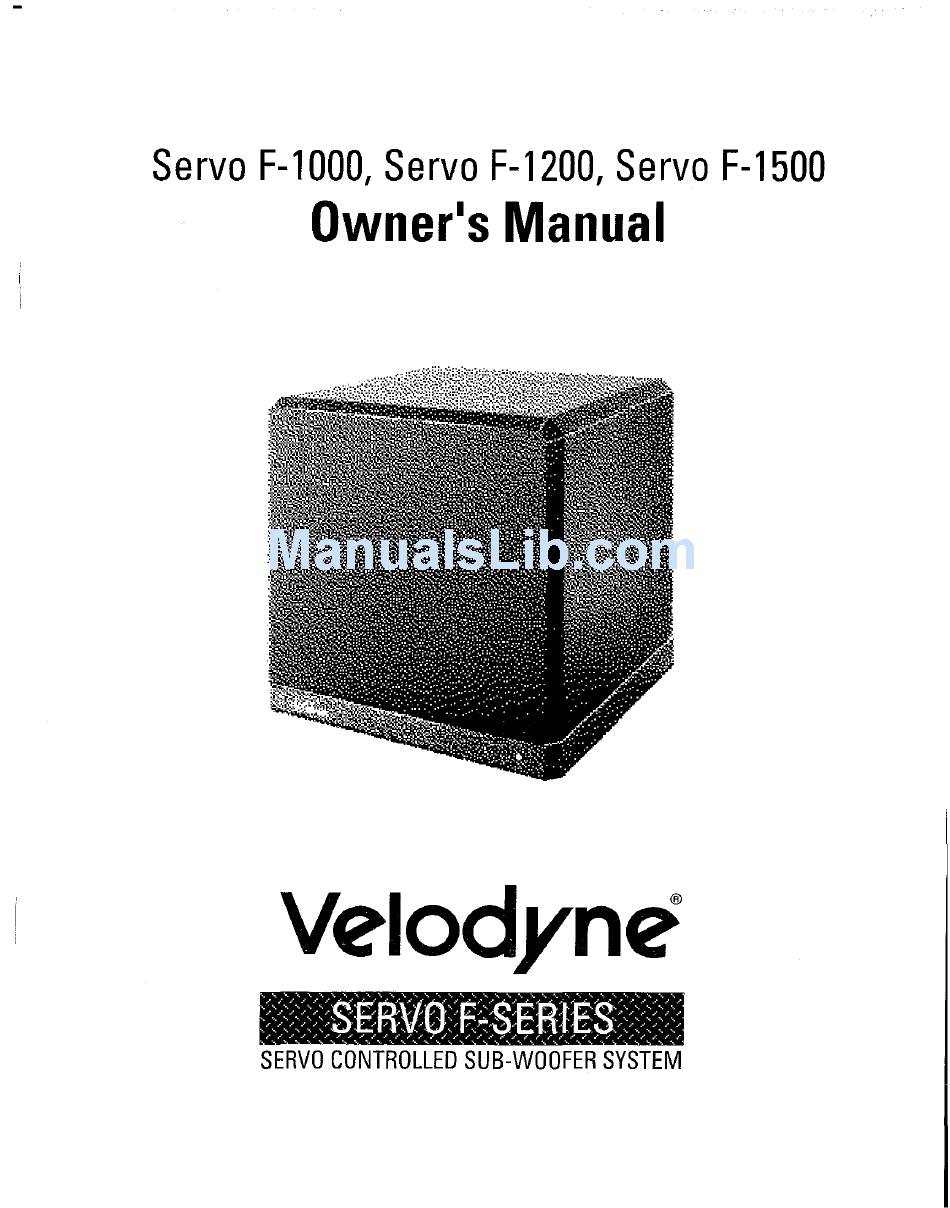

- Page 1 Servo F-l000, Servo F-1200, Servo F-1500 Ownerls Manual Velodyne SERVO CONTROLLED SUB-WOOFER SYSTEM...
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS CAUTION: Tareduce the risk of electric shock, do not remove cover (or back) No user-serviceable parts inside Refer servicing to qualified service personnel The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"... -
Page 3: Installation
VELODYNE SERVO F-SERIES SUBWOOFER SYSTEM Congratulations on your purchase of a Velodyne Servo F- Series Subwoofer System This system represents the state of the art in accurate bass reproduction. Read and follow the ·Instructions below to insure safe and proper system operation. - Page 4 INSTALLATION OF SERVO F-SERIES SUBWOOFER USING FROM AMPLIFIER INPUTS Figure 1 shows how to connect your Servo F-Series Subwoofer to a receiver or integrated amplifier. When using the speaker level terminals, note the right and left channel designations above the terminals. Red speaker jacks are positive, black speaker jacks are negative (common).
-
Page 5: Power Amplifier
A NOTE ABOUT SURROUND SOUND APPLICATIONS; If your processor has a "subwoofer out' jack on it, in most cases it is best not to use it for connecting your Velodyne By doing so, you will be combining the cross-over of the Velodyne with the cross-over of the processor. This can result in low gain and increased noise. Instead, we suggest that you connect your Velodyne between the main or front speaker outputs of your processor and the amplifier that will drive them This will generally give you the best results. - Page 6 Note that one pair of inpuVoutput terminals remain unused on each unit. Stereo connections can also be made with the line level inputs. SATELLITE SPEAKER SATELLITE SPEAKER LEFT RIGHT LOW PASS lOW PASS VOLUME VOLUME . . :n Velodyne POWER CROSSOVER CROSSOVER <=) :~~;~;;::; <=> fA . . A.WAUTION LINE LINE IOOr"...
- Page 7 For example, with the crossover set at 60Hz, the subwoofer begins rolling off above this frequency. Using this control you may match the Velodyne precisely to your main speakers. If you are using very small bookshelf speakers you may wish to raise the low pass as high as 100Hz. If you own large full range loudspeakers, you may find a lower setting more appropriate.
-
Page 8: Care Of Your Subwoofer
Velodyne's prime focus is in providing low distortion loudspeaker systems that impress the dedicated audio- phile as well as the casual listener. Velodyne developed its patented High Gain Servo (HGS) system to bring nonlinear distortion down to unprecedented levels on its ULD-15 and ULD-1 high performance subwoofers. - Page 9 Motional feedback has been used previously in an attempt to make small woofers sound like larger, more powerful ones At Velodyne, the use of motional feedback is applied to make what is already a large and powerful woofer achieve a level of performance that has never before been reached in a home entertainment...
- Page 10 VELOOYNE, Servo F-Series, F-1000, F-1200, and F-1500 ULO-15, and ULO 18 are trademarks of Velodyne Acoustics, Inc Velodyne Acoustics, Inc . . 1070 Commercial Street, Suite # 101...
- Page 11 THE SERVO F-SERIES SUBWOOFER SYSTEM SPECIFICATIONS F-1000 F-1200 F-1500 Amplifier: 80 Watts RMS 100 Watts RMS 250 Watts RMS Class AlB Class AlB Class AlB Driver: 10" with 1/2" 12" with 9/16" 15" with 5/8" Linear Travel Linear Travel Linear Travel Voice oil: 2 3/8"...
