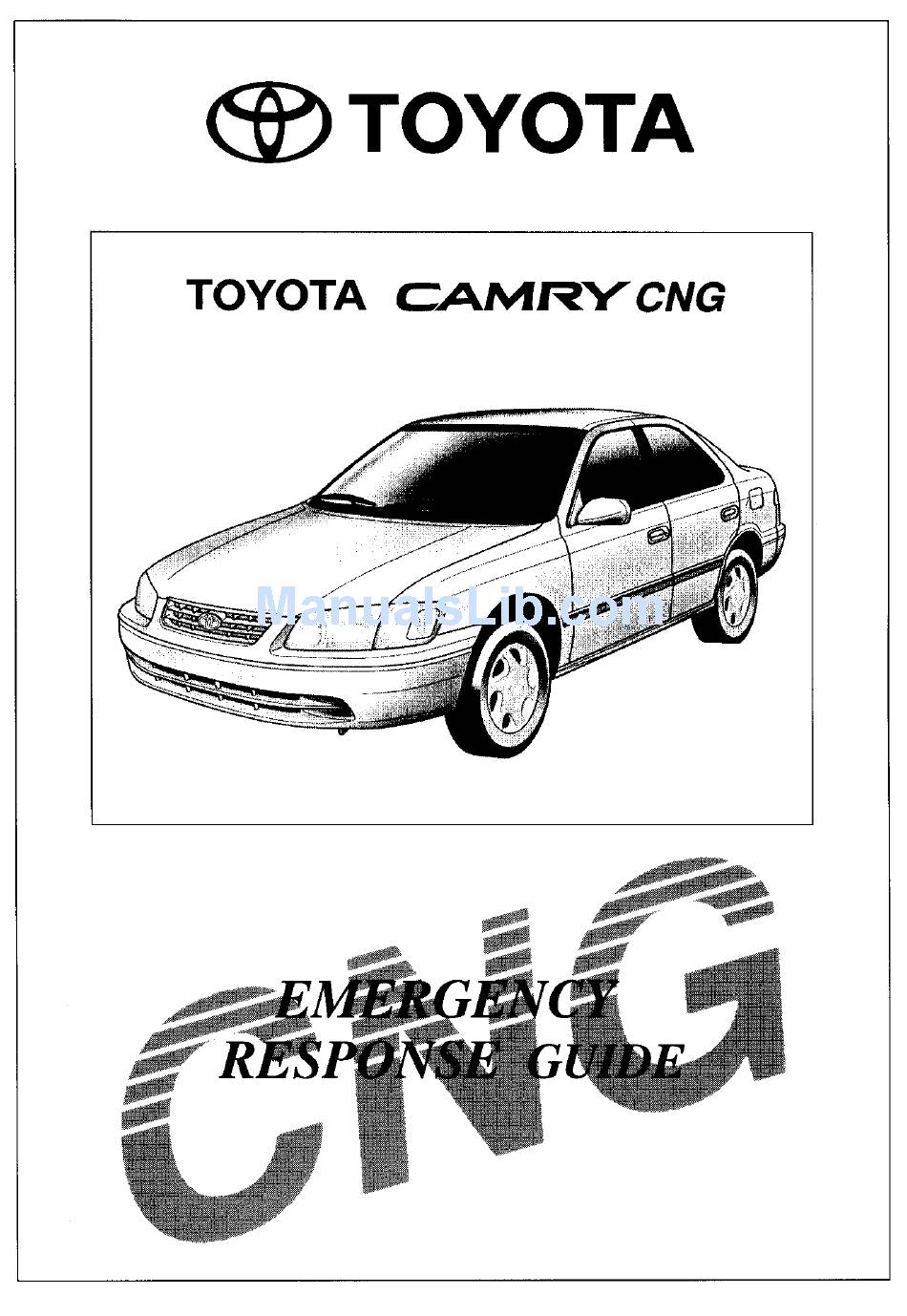

- Page 1 TOYOTA CAMRY CNG EMERGENCY RESPONSE G UIDE...
- Page 2 FOREWORD Unlike the conventional gasoline model, the CAMRY CNG operates on compressed natural gas . Natural gas is a colorless, transparent gas that is lighter than air. This model requires special procedures that must be fol- lowed not only when performing ordinary service on the ve-...
- Page 3 TABLE OF CONTENTS CHARACTERISTICS OF THE CAMRY CNG ... 2 FUEL SYSTEM AND PARTS LAYOUT DIAGRAM ..4 COMPRESSED NATURAL GAS (CNG) ....6 EMERGENCY HANDLING .
- Page 5 Fuel Tank When the fuel tank is full, the pressure of the natural gas is approximately 24,800 kPa (3,600 psi). equivalent to 135 liters (35.7 gal- Ions, 29.7 Imperial gallons) of water. The highly compressed gas from the fuel tank undergoes pressure reduction at the regulator.
- Page 6 FUEL SYSTEM AND PARTS LAYOUT DIAGRAM...
- Page 7 Fuel Receptacle Fuel Tank Manual Shutoff Valve Fuel Filter Fuel Pressure Regulator Fuel Shutoff Valve Fuel Shutoff Valve Injector Inlet Check Valve Fuel Shutoff Valve Pressure Relief Valve Vent Pipe...
-
Page 8: Compressed Natural Gas
COMPRESSED NATURAL GAS (CNG) Natural gas is a colorless, transparent gas with methane as its main component . No matter how much it is compressed at room temperature, it remains in the gaseous state. Because it is lighter than air, it will dissipate upward when released without remaining on the ground. - Page 9 The method for extinguishing a fire is basically the same as for gasoline-engine vehicles . However, beware that the fuel tank of the CAMRY CNG is provided with a pressure relief valve to prevent the fuel tank from bursting . This valve melts at approximately 100°...
- Page 12 TOYOTA OVERSEAS SERVICE DIVISION TOYOTA MOTOR CORPORATION Printed in Japan CAMRY CNG...
