Toa C-CV454R-3 CU Instruction Manual

Toa C-CV454R-3 CU Instruction Manual

Outdoor day/night ir camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

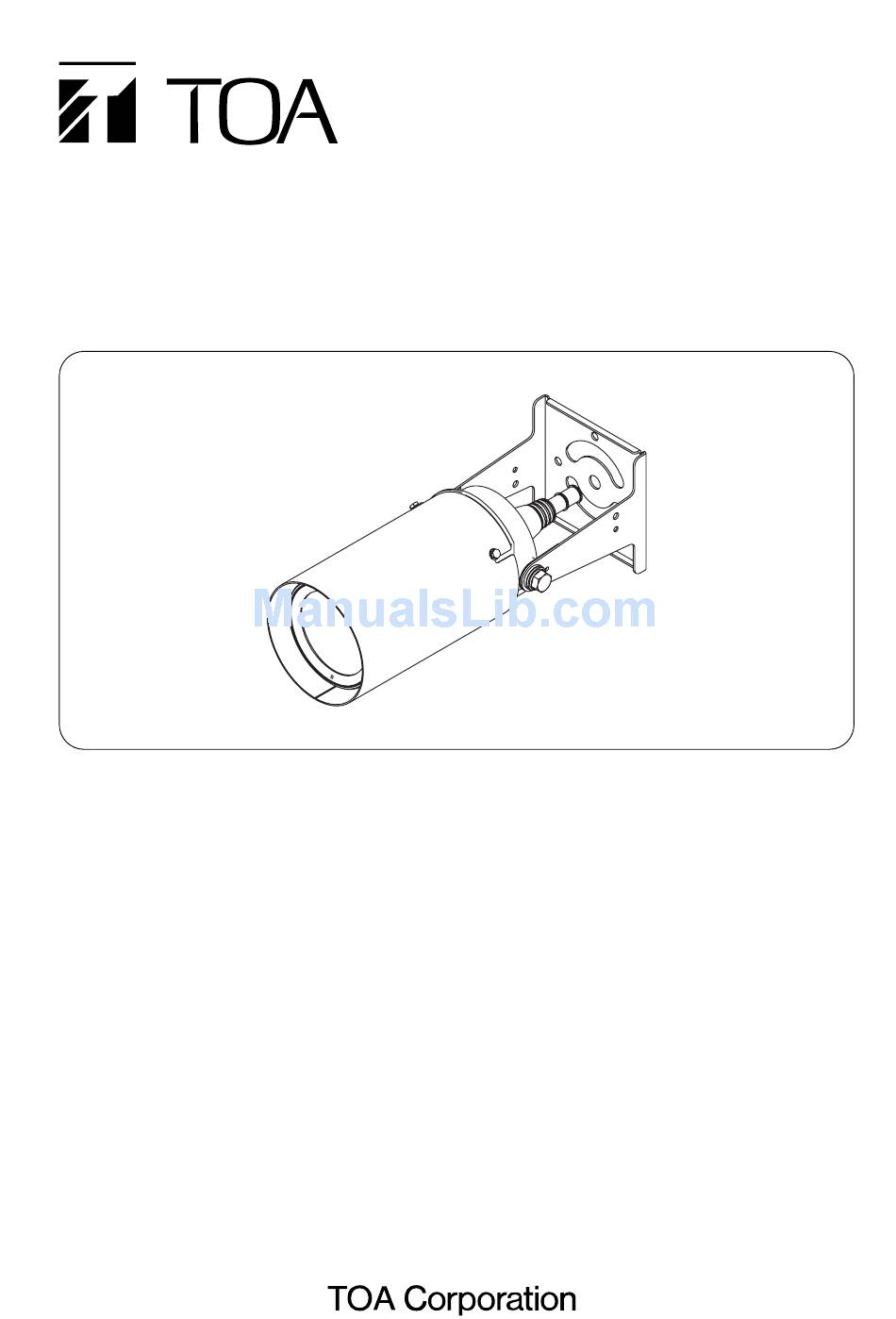

Outdoor Day/Night IR Camera

TABLE OF CONTENTS

............................................................
......................................................
Thank you for purchasing TOA Outdoor Day/Night IR Camera.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
..................................
............................
................................
..............................................
......
INSTRUCTION MANUAL
C-CV454R-3 CU
2
3
4
4
5
6
9
........................
......................................
....................
..............................
....................................
............................................
..........................................................
12
12
............
12
13
13
13
............
14
15
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C-CV454R-3 CU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Toa C-CV454R-3 CU

Summary of Contents for Toa C-CV454R-3 CU

  • Page 1: Table Of Contents

    .................. 6. INSTALLATION AND CONNECTIONS 10. SPECIFICATIONS ..........Accessories ............7. ADJUSTMENT ............Thank you for purchasing TOA Outdoor Day/Night IR Camera. Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.

  • Page 2: Safety Precautions

    • To prevent a fire or electric shock, never open nor remove the unit case as there are high voltage components inside the unit. Refer all servicing to your nearest TOA dealer.

  • Page 3: Handling Precautions

    • Leave the installation of the unit to your TOA dealer because the installation requires expert experience and skills. The unit may fall off if incorrectly installed, resulting in possible personal injury.

  • Page 4: General Description

    3. GENERAL DESCRIPTION The C-CV454R-3 is Outdoor-use Day/Night IR cameras equipped with a 1/3" CCD. Owing to a built-in auto iris varifocal lens, the angle of view can also be manually adjusted. Since it is equipped with a Day-Night function, it functions as a color camera (day mode) in bright locations and as a high-sensitivity black and white camera (night mode) in dark locations.

  • Page 5: Nomenclature

    5. NOMENCLATURE [Appearance] [View with sunshade, front cover and mounting bracket detached] [View with waterproof cap detached] 9 10 HEAD FIXING F.ADJ 1/60 1/100 SENS UP PEAK MONITOR OUT IRIS (1) Varifocal lens (11) Zoom ring (2) Sunshade (12) Mode setting switch (3) Front cover (13) Iris control (4) Mounting bracket (accessory)

  • Page 6: Installation And Connections

    6. INSTALLATION AND CONNECTIONS [Ceiling mounting example] [Wall mounting example] Safety wire mounting hole Camera mounting bolt M8 or W 3/8 Bracket mounting bolt Hexagon head screw with captive washer M8 x 14 Install the unit only in a location that can structurally support the weight of the unit and the mounting bracket.
  • Page 7 [Example 1: Mounting to a ceiling or wall] [Example 3: Mounting to a ceiling or wall] If only fine adjustment of camera angle is required; Camera mounting bolt M8 or W3/8 Camera mounting bolt M8 or W3/8 [Example 2: Mounting on a wall] If angle which Example 1 can not cover is required;...
  • Page 8 3. Install the camera unit to the mounting bracket using the supplied insulation spacers and Bracket mounting bolt (M8 x 14 hexagon head screw with captive washer). Note Be sure to position the insulation spacers between the bracket and bolt, as induction voltage or noise may be produced at the joints depending on installation conditions.

  • Page 9: Adjustment

    6. Connect the camera unit. Connect the camera unit to the monitor and the power supply referring to the figure below. Note If the Video output is not terminated at 75 Ω, camera images are not properly displayed. Make sure that the output has been terminated at 75 Ω...
  • Page 10 5. Adjust the camera angle. • Camera's orientation can be adjusted with the camera mounting and bracket mounting bolts loosen. • Adjust the inclination of image so that the projection of the camera faces upward by loosening a camera head fixing screw and turning the camera head. After adjustment completion, retighten the camera head fixing screw.
  • Page 11 Notes • Since the Iris control (for sensitivity adjustment) is factory-preset to an optimum position for general use, avoid tampering with it in normal conditions. Turning the control unnecessarily could cause reduced picture quality or equipment failure. When the Iris control needs to be readjusted to match a specific subject, first set both the Adjustment switch and the Backlight Compensation switch of the Mode switch to the OFF position, then adjust the control to an optimum level.

  • Page 12: About Mode Setting Switch

    8. ABOUT MODE SETTING SWITCH Set each switch to the position that provides the best picture reproduction. 1: Focus adjustment switch F.ADJ 2: Backlight compensation switch 3: Flickerless switch F.ADJ 1/60 1/100 1/60 1/100 4: ATW/AWB selection switch SENS UP PEAK SENS UP 5: High-sensitivity switch...

  • Page 13: Atw/Awb Selection Switch

    8.4. ATW/AWB selection switch: Set the white balance operation. ATW: Normally set to this position. Automatically adjusts the camera white balance when the subject's color temperature changes. AWB: Set the switch to AWB when a single-color subject occupies most of the screen and the difference between the on-screen color and the actual color is annoying, or when the subject's fluctuating color temperature causes annoying changes in color balance.

  • Page 14: Troubleshooting

    9. TROUBLESHOOTING Possible Cause Remedy Symptom Monitor TV's power is not switched No camera image dis- Switch on the main power. played on the monitor. Cables are not correctly connected. Connect the cables correctly. BNC plugs are not correctly sold- Solder BNC plugs correctly.

  • Page 15: Specifications

    10. SPECIFICATIONS Model Number C-CV454R-3 CU Power Source 24 V AC, 50/60 Hz or 12 V DC Power 4 W (300 mA, Maximum current: 800 mA) Consumption Image Device 1/3 type IT-CCD Number of 768 (H) x 494 (V), 380,000 pixels...

  • Page 16: Accessories

    Cable with waterproof cap (2 m (6.56 ft)) .................... Bracket mounting bolts (Hexagon head screw with captive washer M8 x 14, stainless steel) ........Insulating spacer ............................• Optional products Pole mounting bracket: C-BC450PM Mounting band: YS-60B URL: http://www.toa.jp/ 133-22-186-8A...
