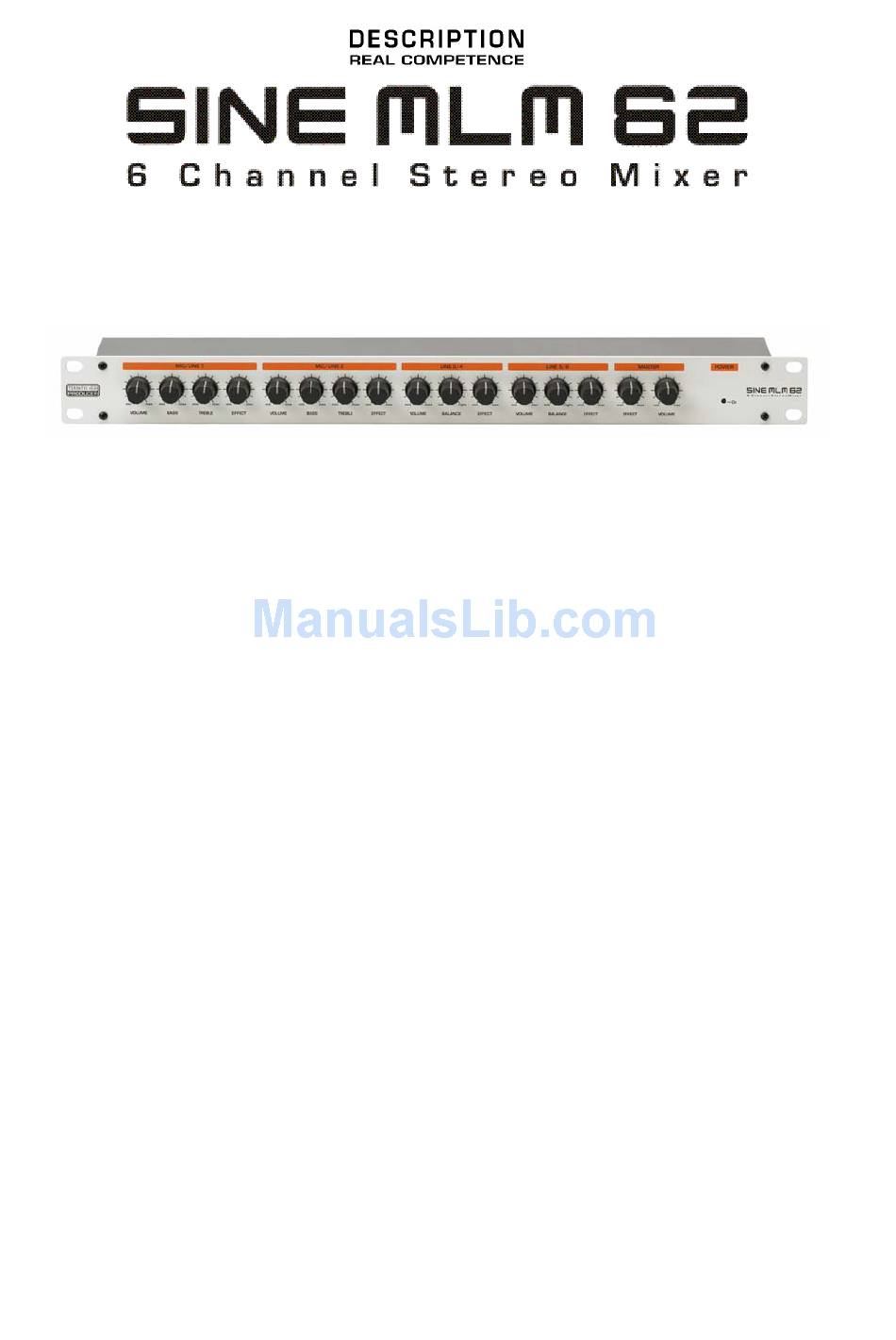

- Page 1 TERRATEC PRODUCER/SINE MLM 62 English Manual Version 1.0, last revised: February 2005...
- Page 2 TerraTec Electronic GmbH, Herrenpfad 38, D-41334 Nettetal, Germany hereby declare that the products: TerraTec Producer SINE SLE 82, SINE SLM 82 and SINE SLM 162, to which this declaration refers are in compliance with the following standards or stan- dardizing documents: 1.
-
Page 3: Table Of Contents
Welcome!........................17 Scope of delivery......................18 SINE MLM 62........................19 Connections and con ..................... 19 The front panel: ......................19 The rear panel:......................20 Function ......................... 21 Technical data ....................... 22 Service at TerraTec Producer ..................23 SINE MLM 62 (English) -
Page 4: Important Safety Information
Please ensure that all analog devices are turned off before plugging them in. This will protect you from any possible—albeit weak—electrical shocks, as well as protecting your speakers and your hearing from sudden peaks. For digital devices, be sure to at least lower the volume on your playback equipment. SINE MLM 62 (English) -
Page 5: Welcome
Welcome! We are pleased that you have chosen a TerraTec Producer rack mixer and would like to congratulate you on your decision. You've purchased a sophisticated product represent- ing the state of the art of studio technology, and we're convinced that our product will prove extremely useful to you in the coming years and provide you with a great deal of entertainment. -
Page 6: Scope Of Delivery
Scope of delivery Start by making sure that the contents of the package are complete. The SINE MLM 62 rack mixer package should contain at least the following: SINE MLM 62 19" rack mixer 12V AC power adapter Customer service card... -
Page 7: Sine Mlm 62
MIC/LINE channel 1 4. EFFECT: volume control for effects loop in channel 5. BALANCE: panorama control 6. EFFECT: volume control for effects loop in master 7. VOLUME: volume control for master output 8. POWER LED: indicates operating status SINE MLM 62 (English) -
Page 8: The Rear Panel
8. CHANNEL 5/6 RIGHT (MONO): right input 9. MIC/LINE IN 2 LINE (MONO): line input for channel 2 10. MIC/LINE IN 2 GAIN: gain control of input channel 2 11. MIC/LINE IN 2 MIC: microphone input of channel 2 SINE MLM 62 (English) -
Page 9: Function
(Treble/Bass), effect channels and gain controls on the back side. Please use the included 12 V AC power adapter to connect the SINE MLM 62 Mixer to an AC power source. The LED on the front panel indicates that the device is operational (no on/off switch). -
Page 10: Technical Data
600 ohm Signal-to-noise ratio >97 dB Headphone 1.3 mW/600 ohm Input impedance 22 kohm Gain - 00 to 28 dB Frequency response 4 Hz – 20 kHz Dimensions 482.6 x 87 x 44 mm (19”, 1U) SINE MLM 62 (English) -
Page 11: Service At Terratec Producer
Sometimes, no matter how good the weather is, things do not always work as they should. Problems can arise in the best studio systems. If this happens to you, the TerraTec Pro- ducer team is happy to offer its service and support. - Page 12 *TT600485* SINE MLM 62 (English)
